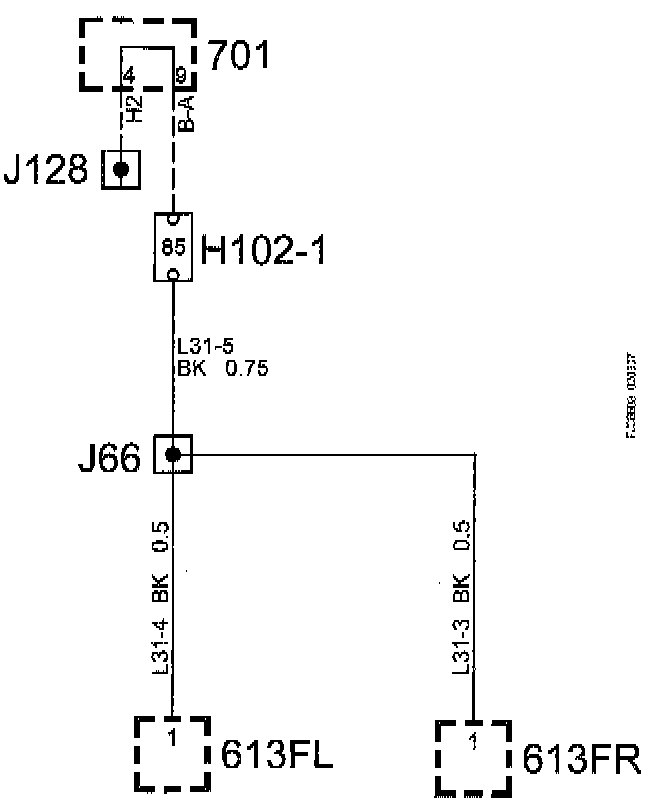

Crimp Connection J66, Instrument Harness

Crimp connection J66, Instrument Harness

Location:
SOP: Approx. 40 mm from branching point left-hand front floor lighting to connector H102-1

Rev.3: Approx. 30 mm from branching point light switch to connector H102-1






List of Components
No. Name
613FL Lamp, floor lighting, front, left
613FR Lamp, floor lighting, front, right
701 Electrical centre, luggage compartment,
