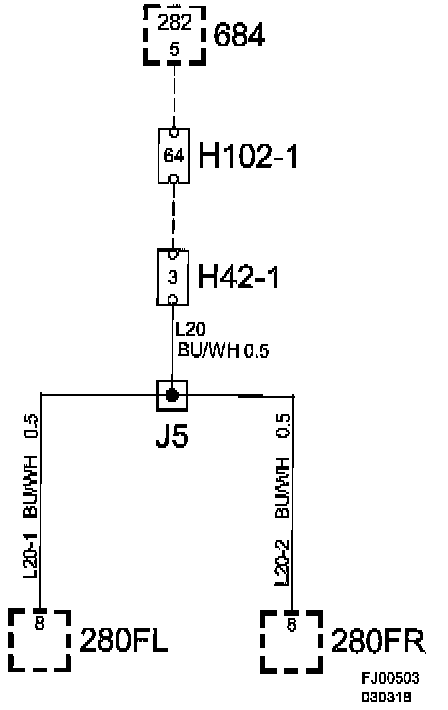

Crimp Connection J5, Front Wiring Harness




Crimp Connection J5, Front Harness

Location: Approx. 270 mm from branching of grounding point G30 towards grounding point G31.

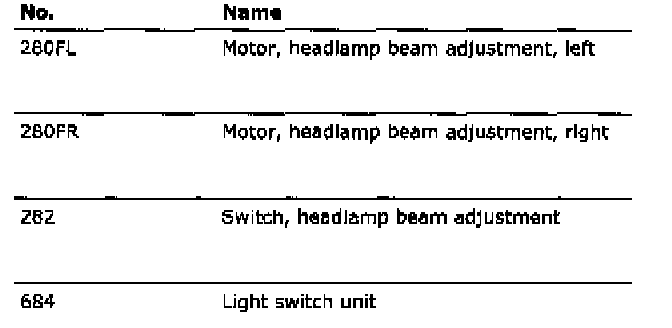

List Of Components:
