Crimp Connection J26, Engine Harness, Trionic

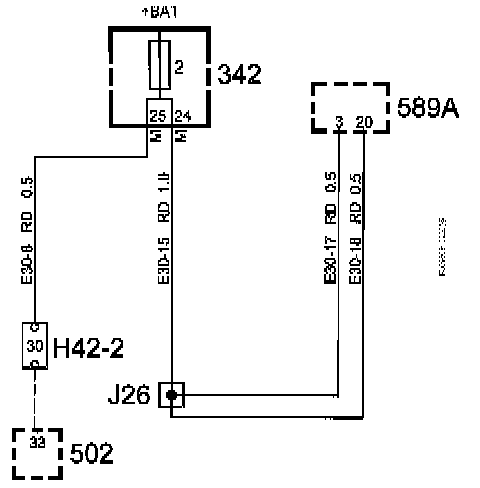

Crimp J26, Petrol Engine Harness

Location: Approx. 210 mm from branching of connector H42-2 towards the engine control module

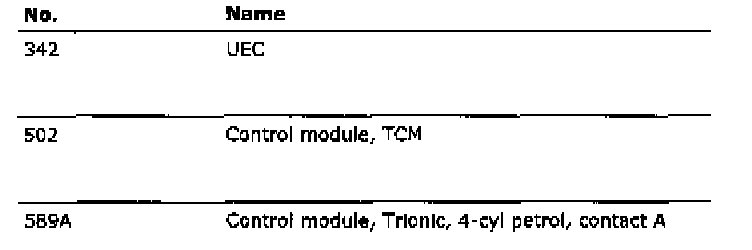

List Of Componenets:
