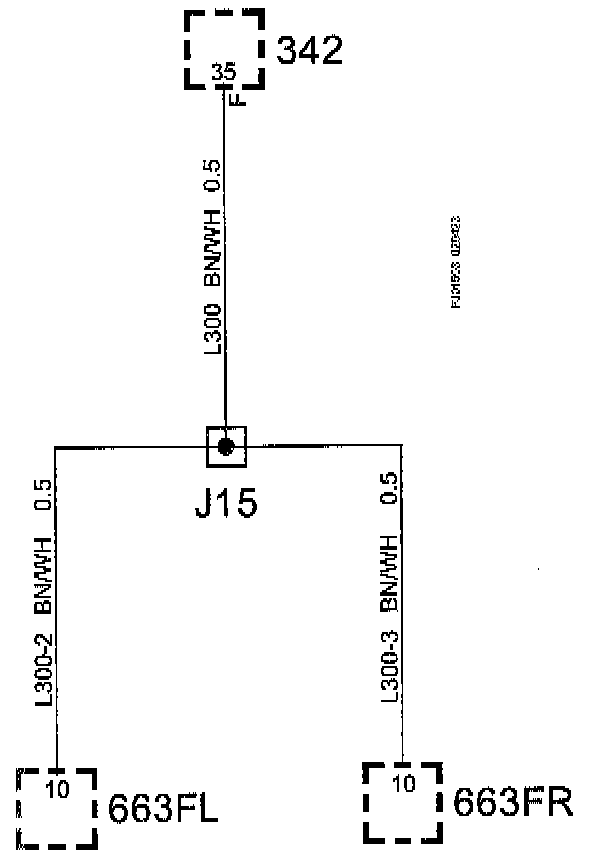

Crimp Connection J15, Front Harness

Crimp connection J15, front harness

Location:
Approx. 100 mm from branching of windscreen wiper motor towards grounding point G31.

List of Components:
No. Name

342 UEC
663FL Unit, headlamp, LH.
663FR Right-hand headlamp unit.
