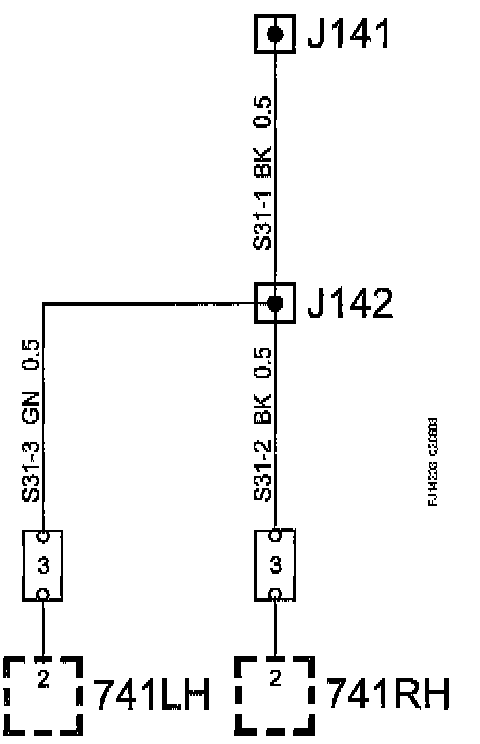

Crimp Connection J142, Parcel Shelf Harness

Crimp connection J142, parcel shelf harness


Location:
SOP: Approx. 200 mm from the branching point of connector H10-6 towards the luggage compartment lighting

Rev.3: --

List of Components:
No Name

741LH Microswitch, backrest locked in upright position, rear seat left
741RH Microswitch, backrest locked in upright position, rear seat right
J141 Crimp connection J141, parcel shelf harness
