Crimp Connection J126, Roof Harness




Crimp Connection J126, Roof Wiring Harness

Location: Approx. 130 mm from branching point cabin lighting switch to left-hand sun visor.

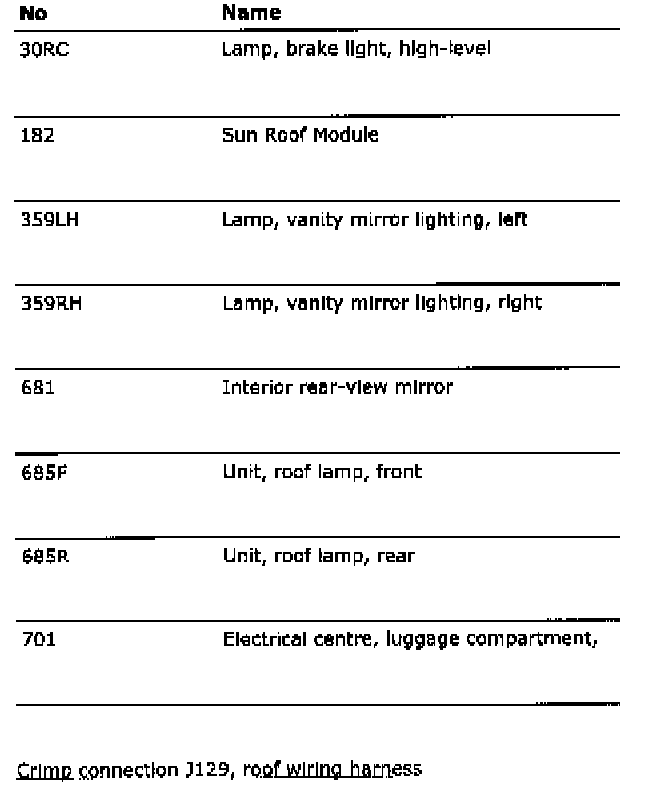

List Of Componenets:
