Crimp Connection J110, Main Harness

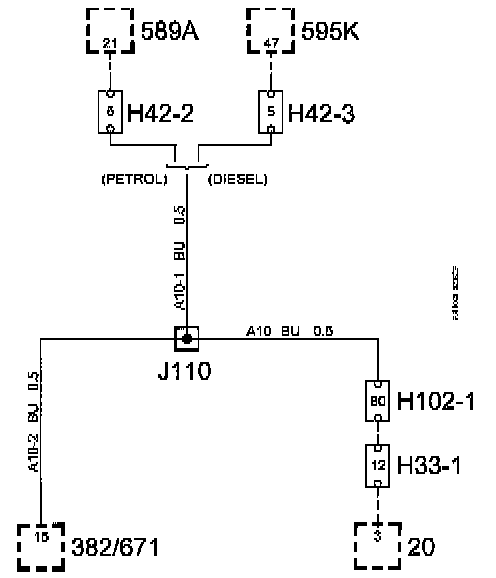

Crimp J110, Main Harness

Location:
SOP: Approx. 140 mm from connector H42-3

Rev.3: Approx. 240 mm from connector H42-3

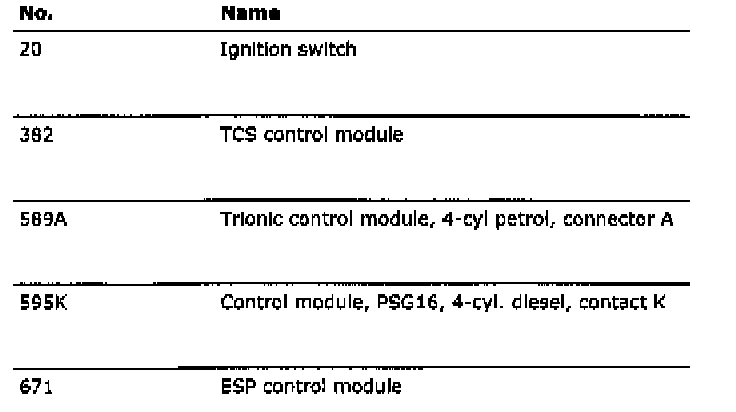

List Of Components:
