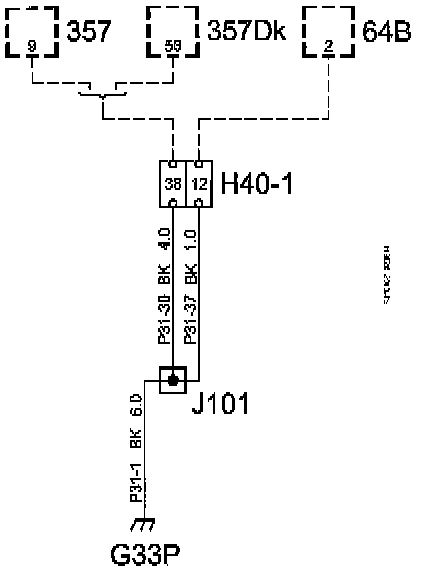

Crimp Connection J101, Main Harness

Crimp Connection J101, Main Harness

Location: Approx. 280 mm from the left seat.






List of Components
No. Name
64B Seat heating pad, backrest
357 Switch, electrically adjustable seat
357Dk Control module, electrically adjustable driver's seat with memory
