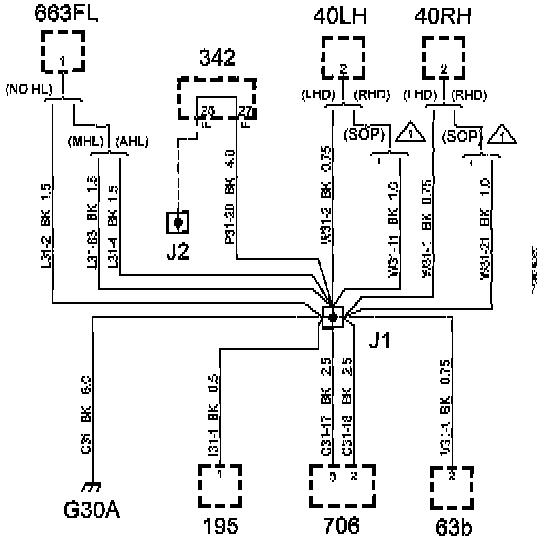

Crimp Connection J1, Front Harness

Crimp Connection J1, Front Harness

Location: Approx. 210 mm from branching of grounding point G30 towards the left headlamp.

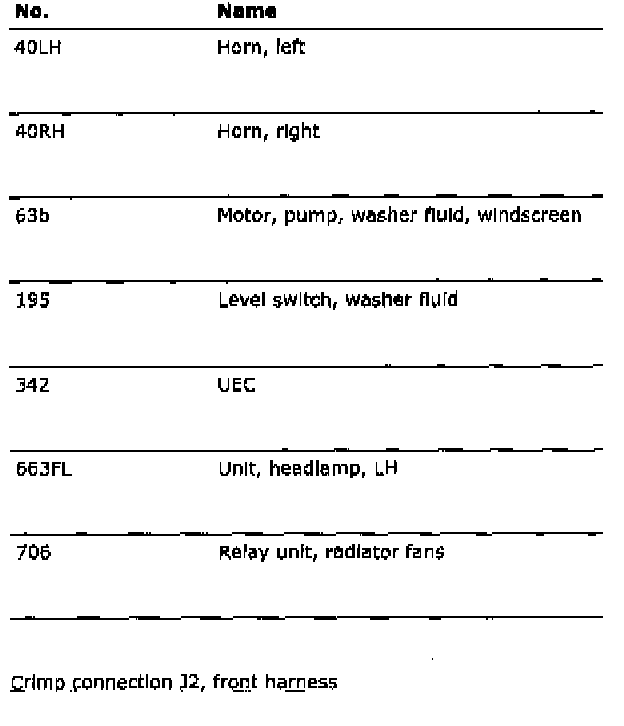

List Of Components:
