9-3 (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Control Module
>>
Control Module, Passenger Door (702P)
Control Module, Passenger Door (702P)
Location
: in door
J1
Control Module, Passenger door (702P) (J1):
J2

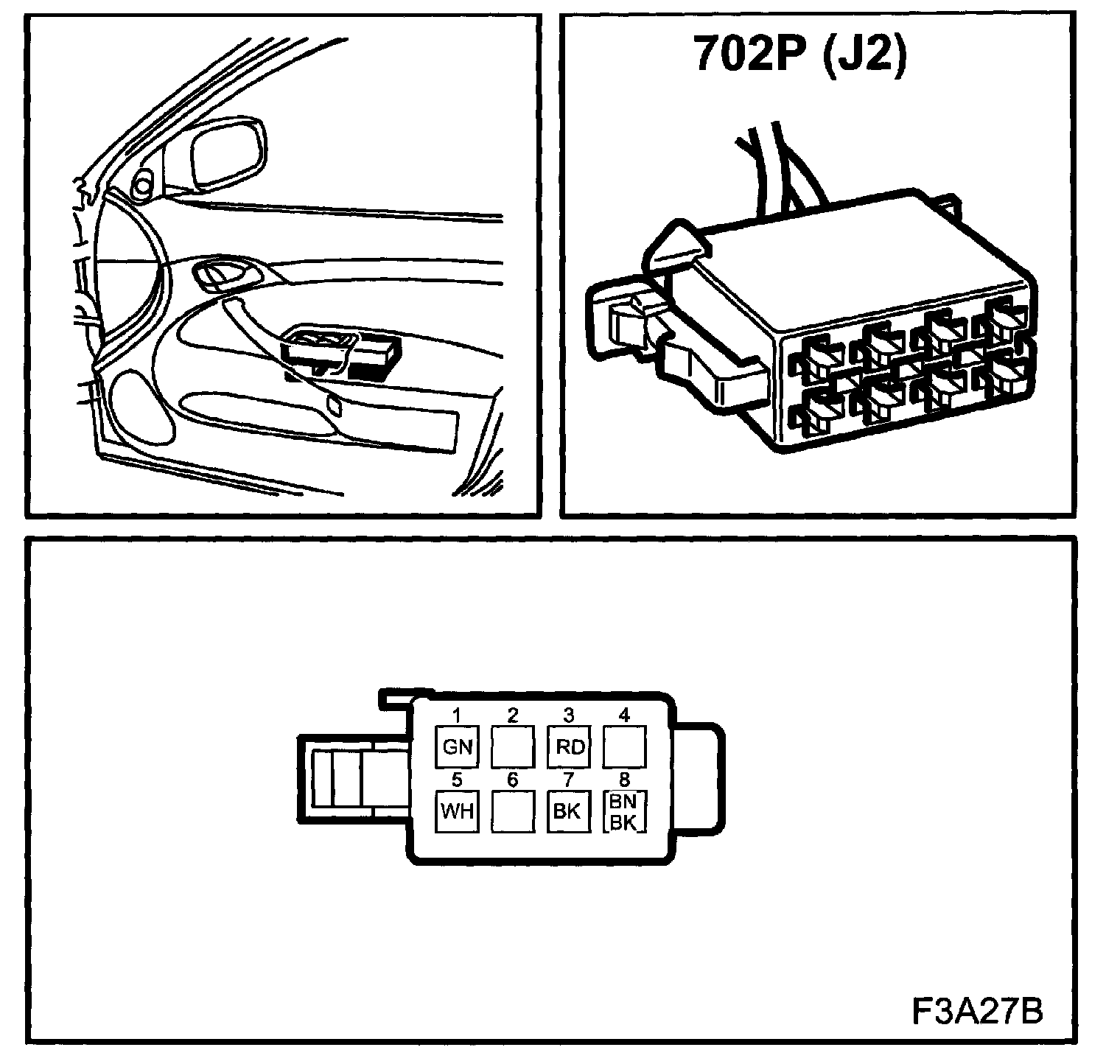

Control Module, Passenger Door (702P) (J2):
