Parking Assist Control Module



Location: In luggage compartment behind backrest member on left-hand side.

K12


SPA Control Module 630 (K12):






K18

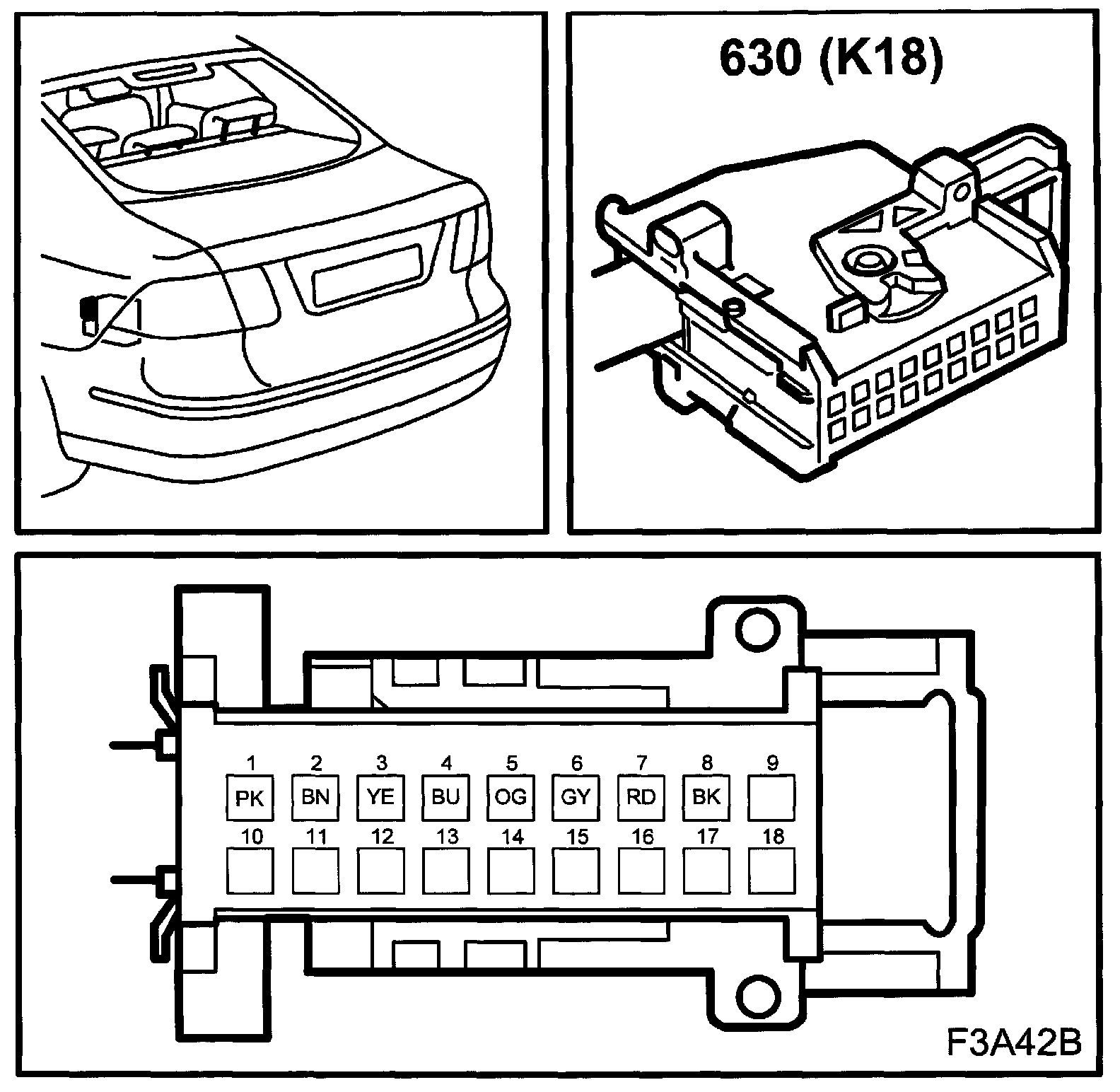

Control Module, TCM 630 (K18):
