Headlamp Igniter Module
>>
Xenon Lamp Ignition Transformer (663a)
Xenon Lamp Ignition Transformer (663a)
Location
: in the headlamp module

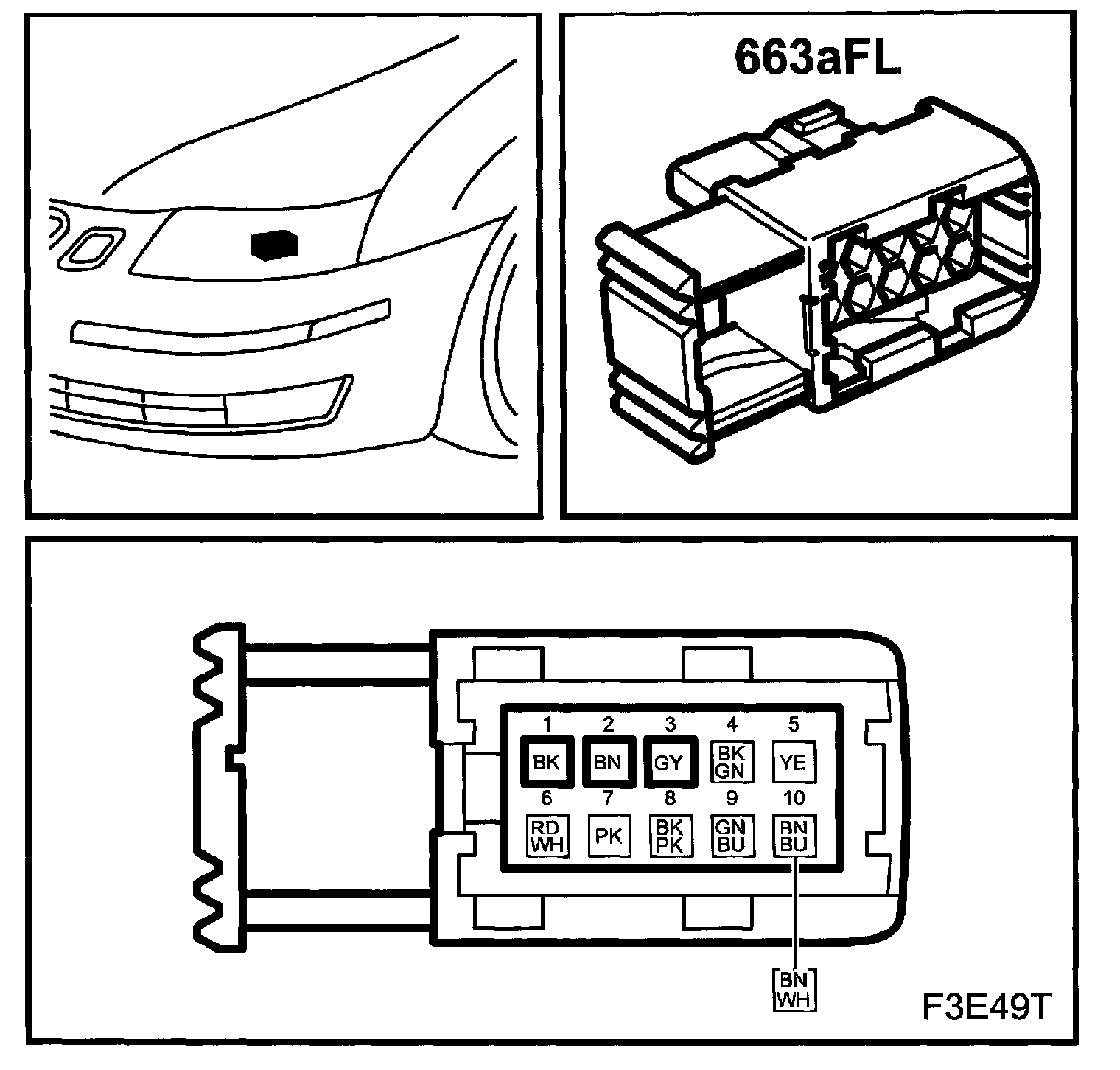

FL
Ignition Transformer, Xenon Headlight (663a):

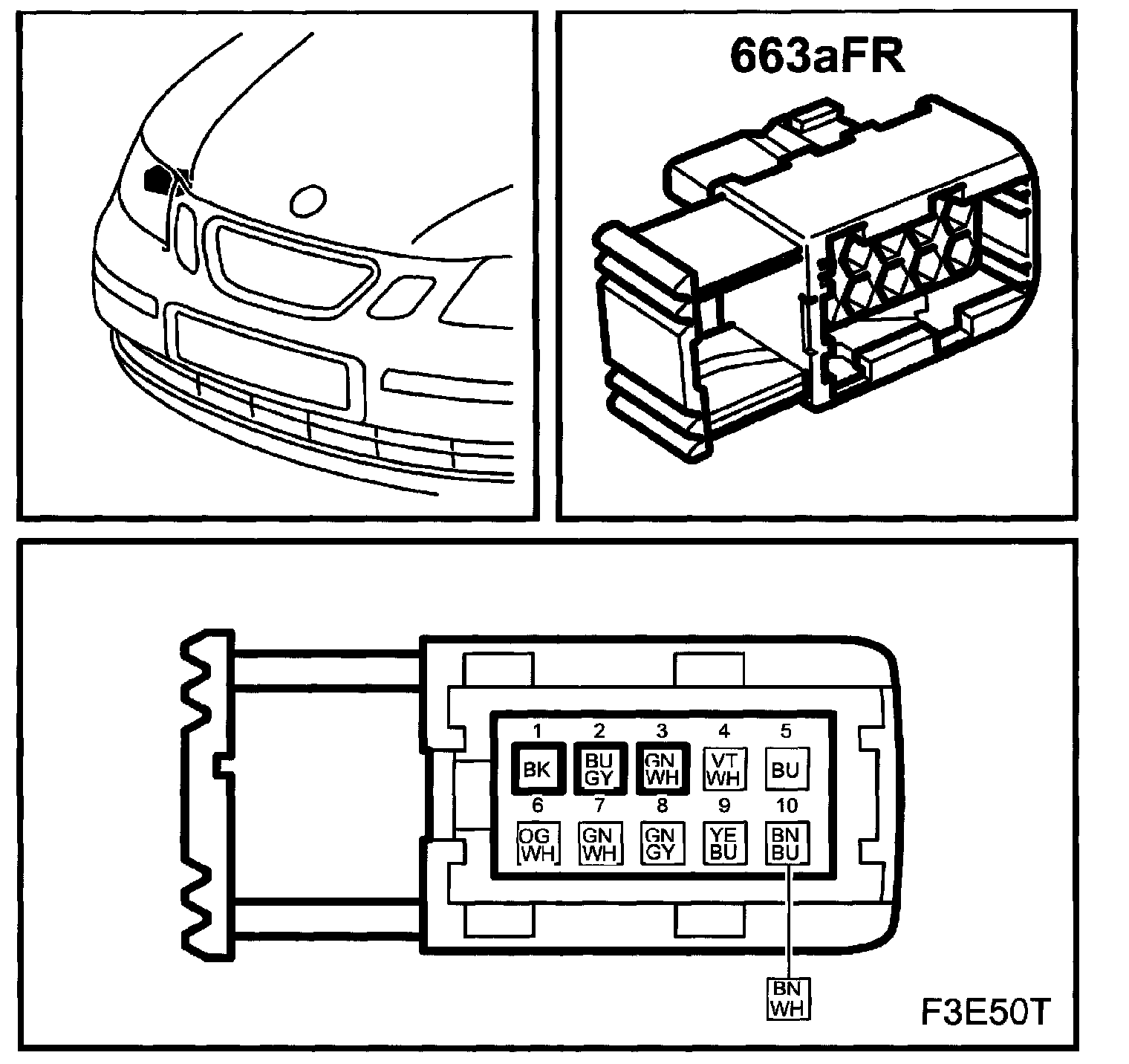

FR
Ignition Transformer, Xenon Headlight (663a):
