Home >> Saab >> 2003 >> 9-3 (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Global Positioning System >> System Diagram >> Telematics Unit (468)

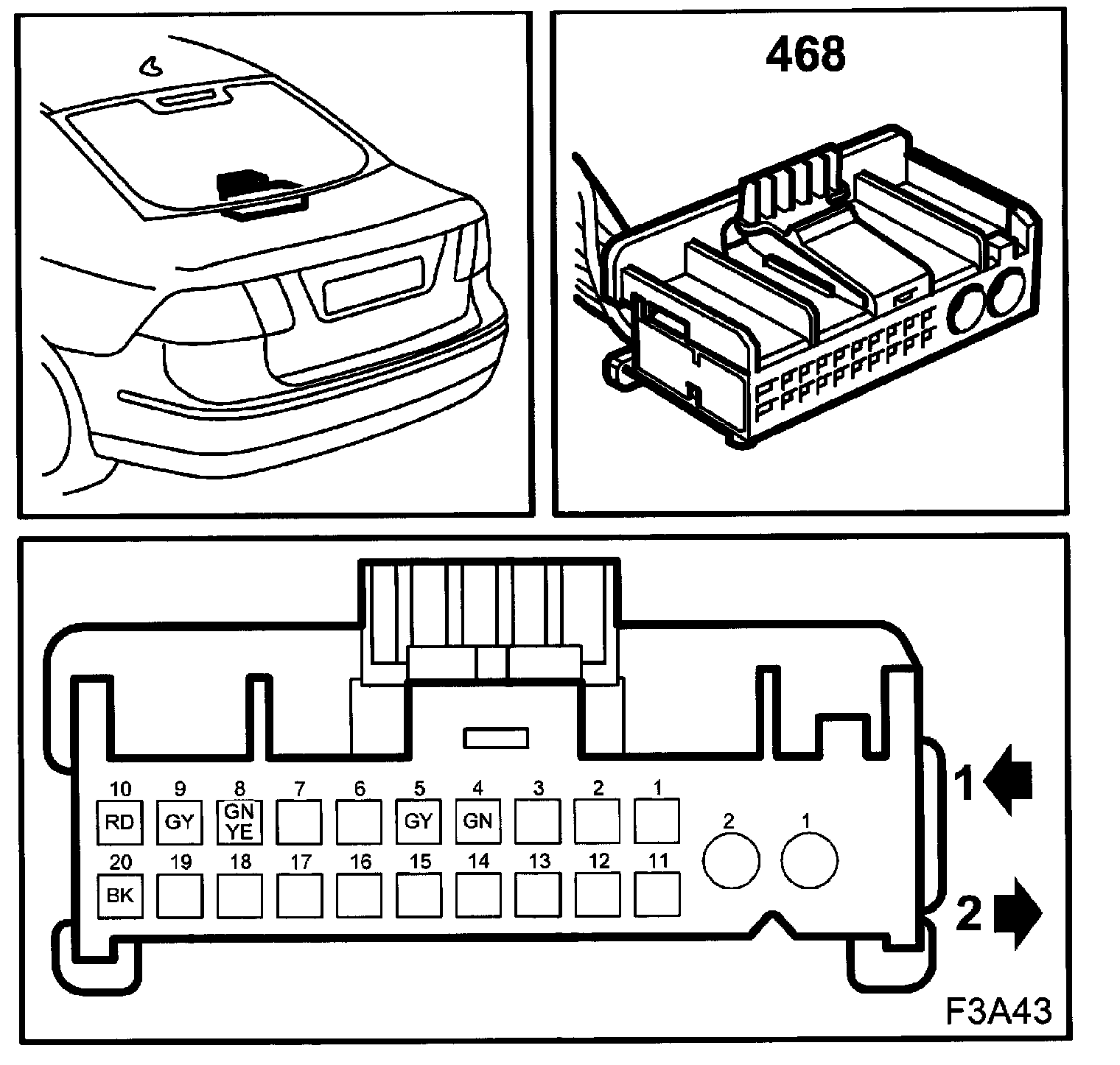

Telematics Unit (468)



Location: under the parcel shelf


Unit, Telematics (468):
