9-3 (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
Control Module, A/T
Location
: On bracket between battery and engine

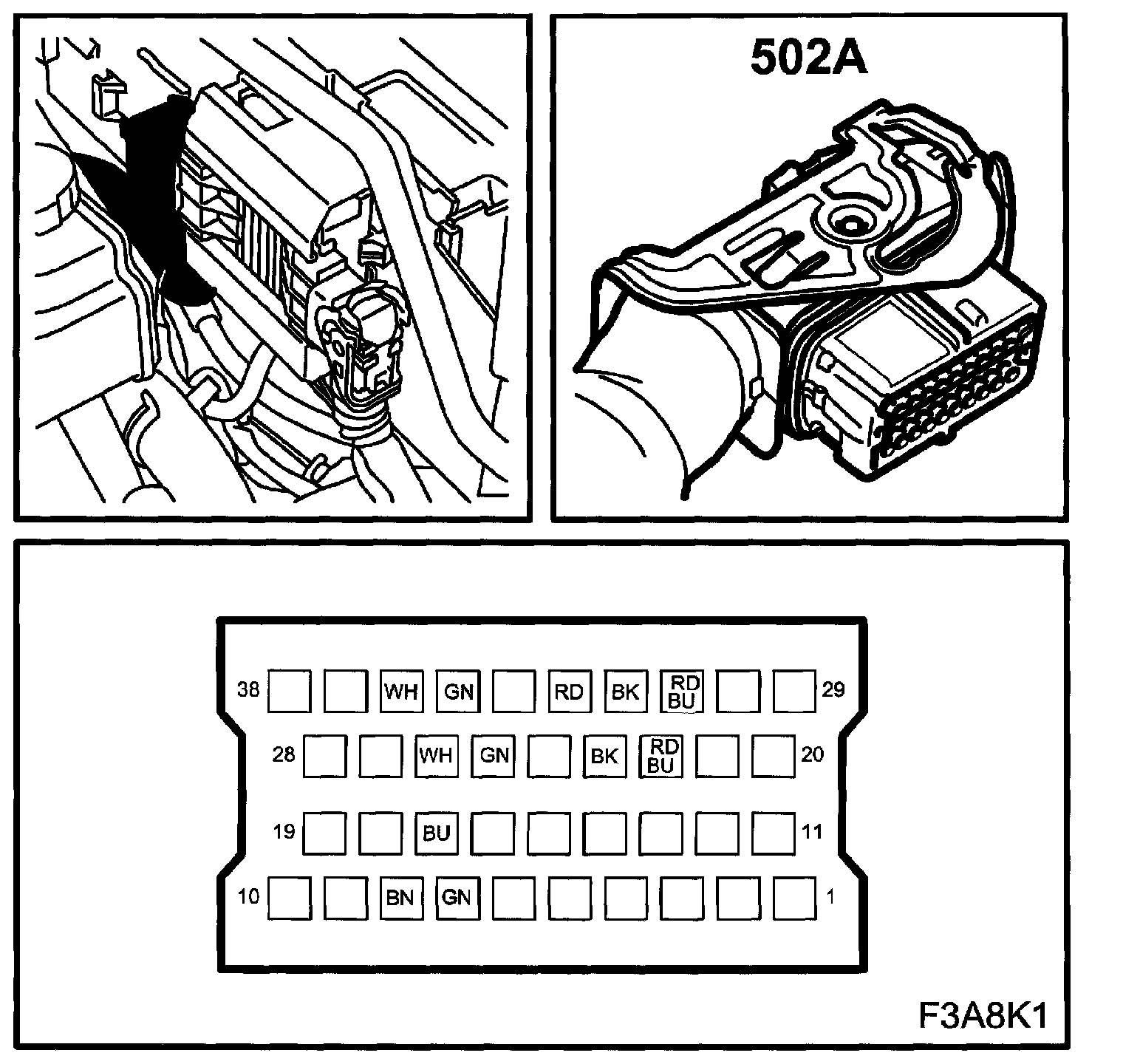

K38A
Control Module, TCM 502A:

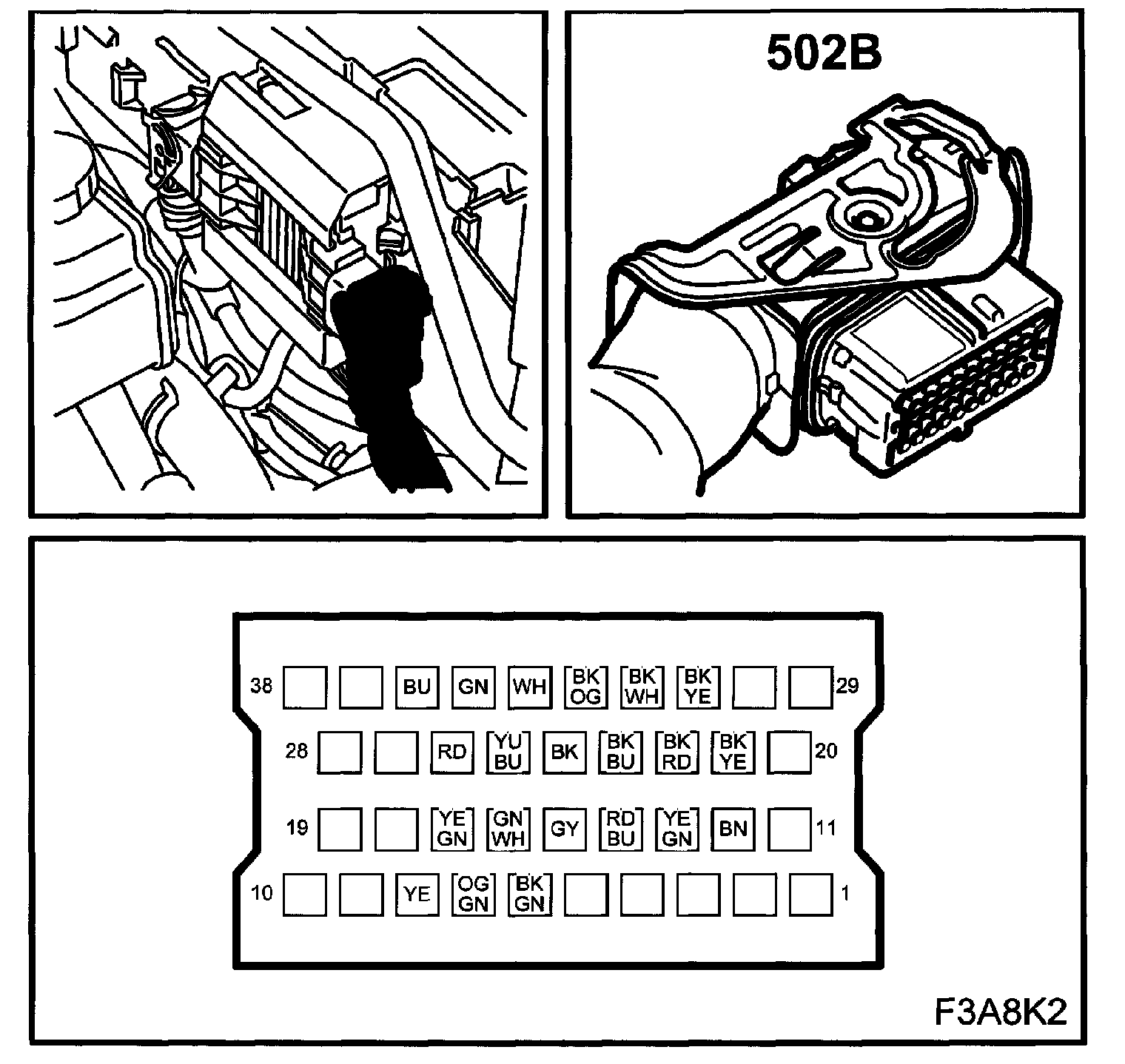

K38B
Control module, TCM 502B:
