Home >> Saab >> 2003 >> 9-3 (9440) L4-2.0L Turbo (2.0 HOT) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Interior Light Switch >> Diagrams

Interior Light Switch: Diagrams

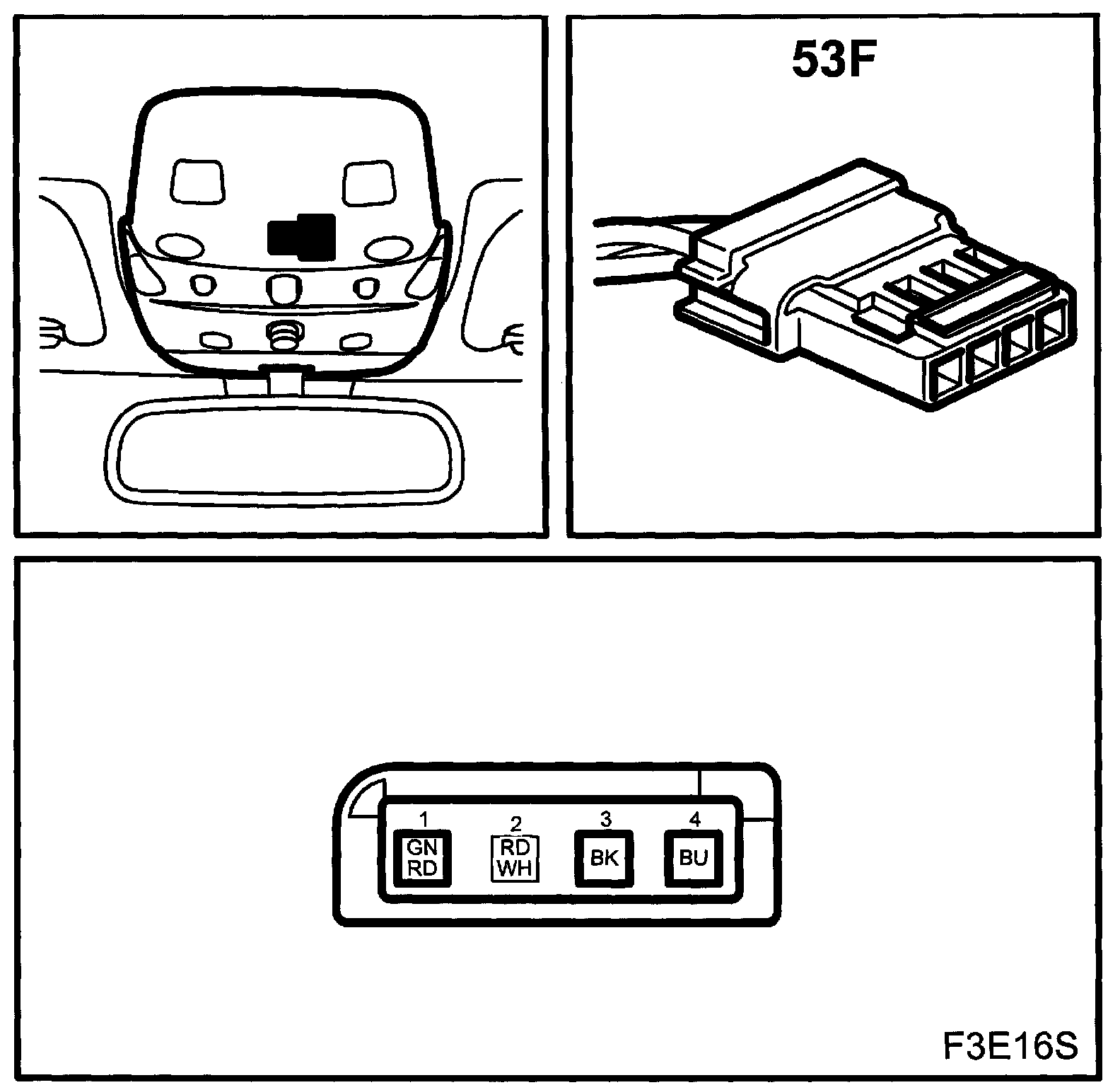

Location: in front roof console


Interior Lighting Switch (53F):
