Rear Heated Oxygen Sensor (593), T8



Location:

component: after the catalytic converter
connector: grey connector on the console between the power steering pump and the vacuum pump

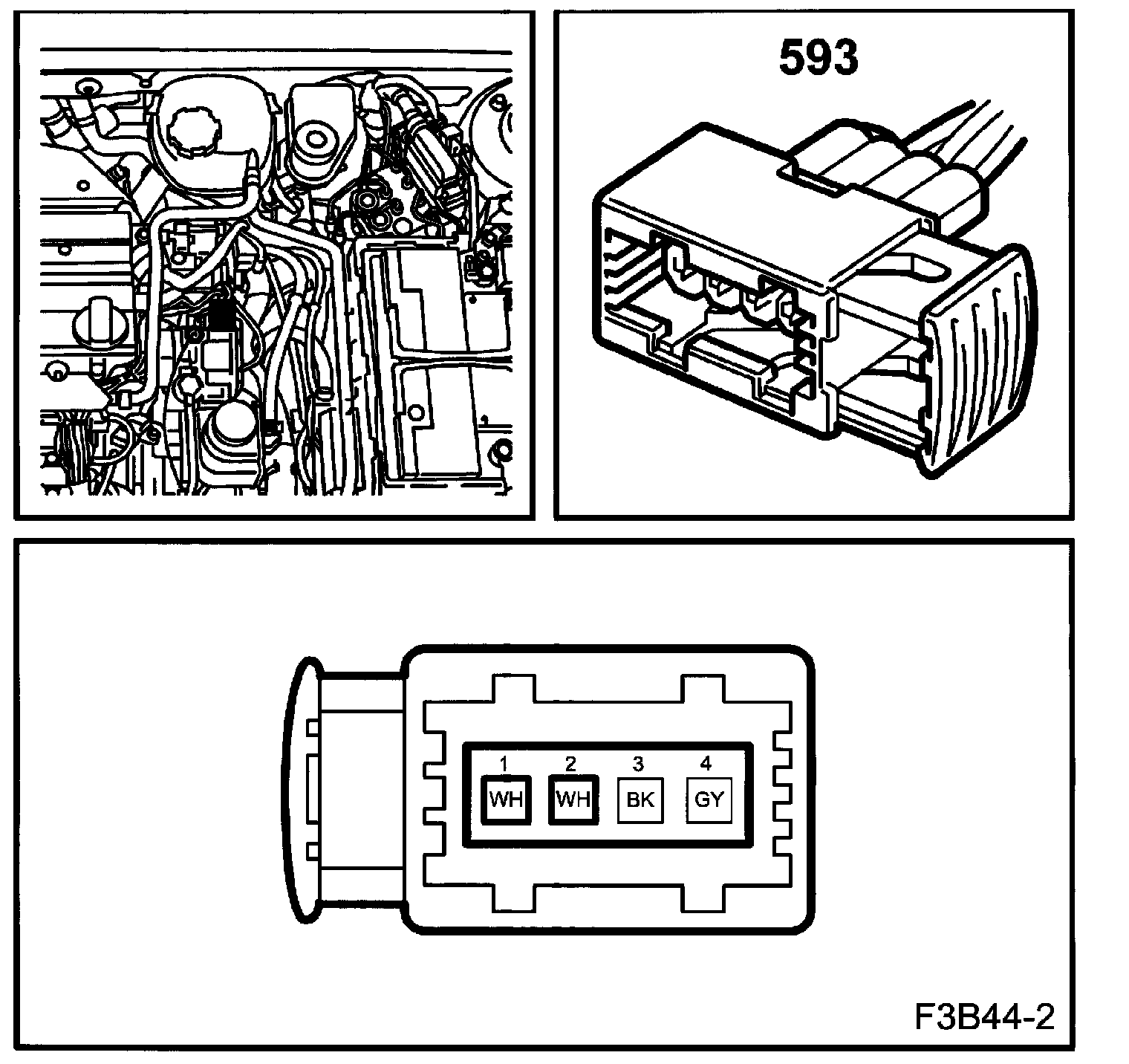

Rear Heated Oxygen Sensor (593):
