Home >> Saab >> 2003 >> 9-3 (9440) L4-2.0L Turbo (2.0 HOT) >> Repair and Diagnosis >> Locations >> Connector Locations >> Connector H42-2

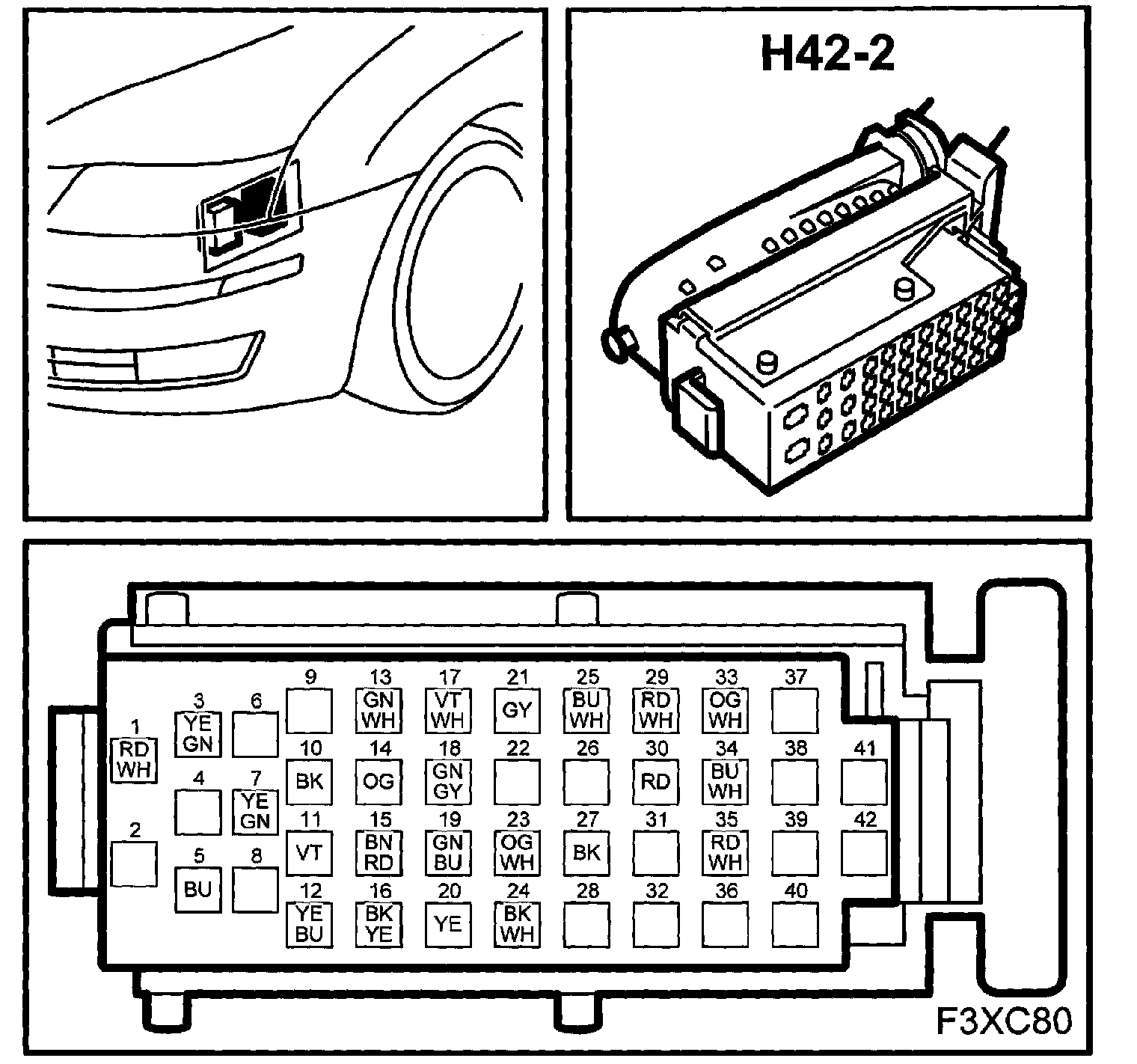

Connector H42-2



Location: Grey connector in front of battery on side of left structural member

Connector H42-2:
