Grounding Point G30A



Grounding Point G30A

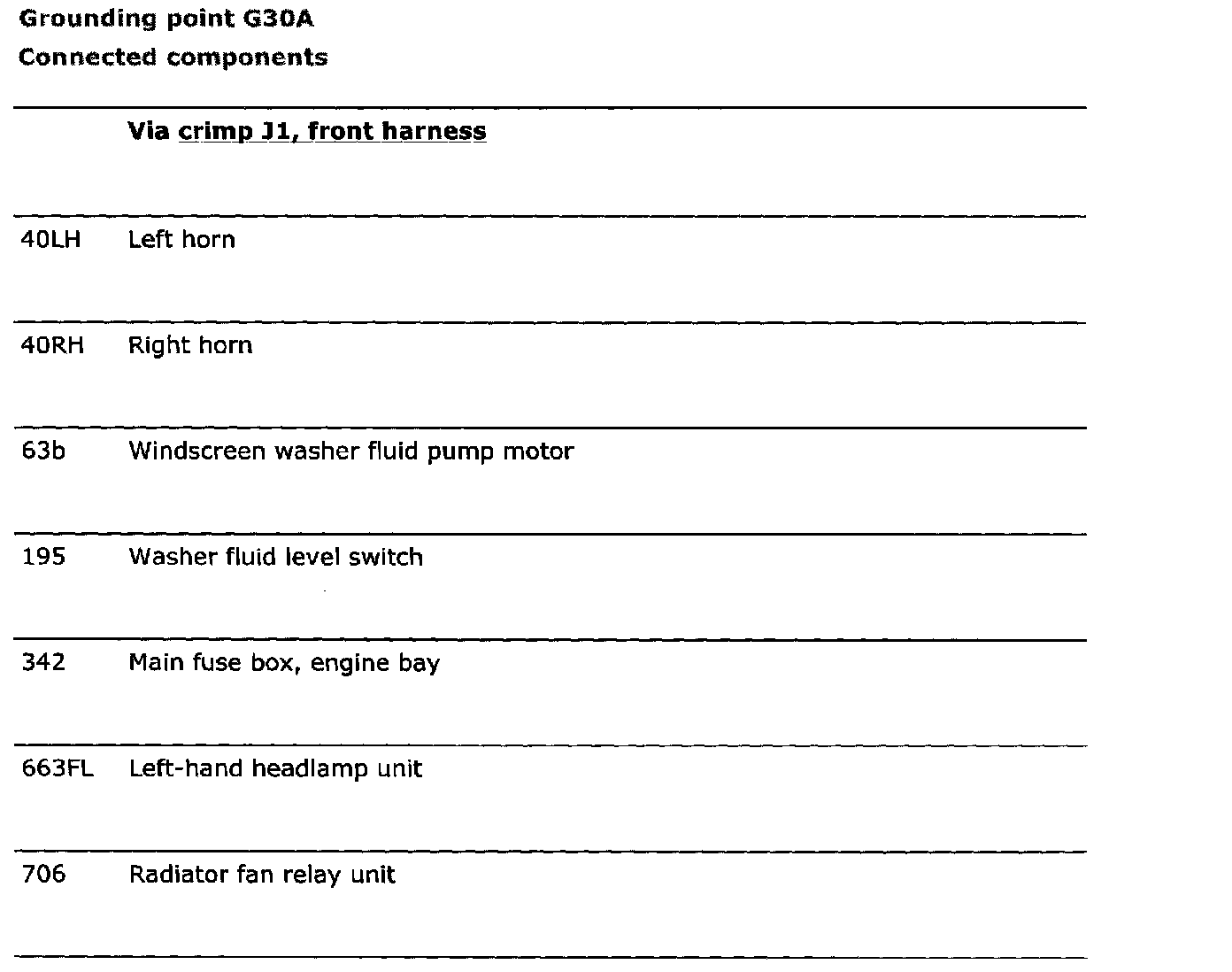

Connected Components:

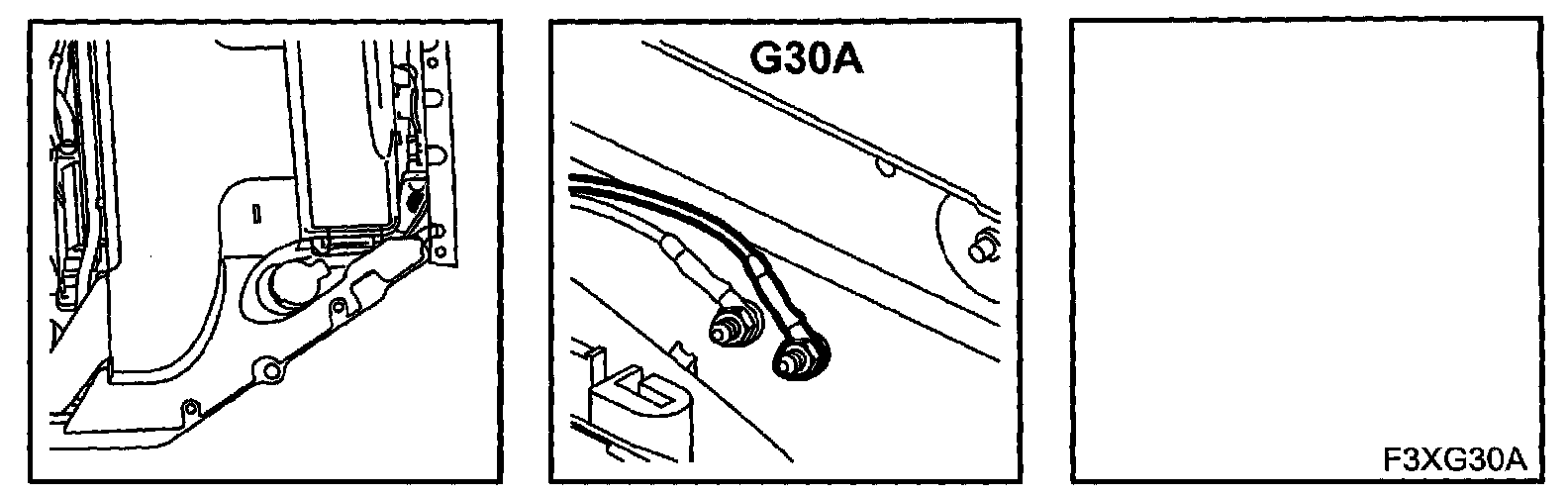

Location: Front grounding point on the side plate above the front left wheel housing

The grounding point is connected to grounding point G3OB via crimp J1, engine bay main fuse box 342 and crimp J2.

Grounding Point G30A:
