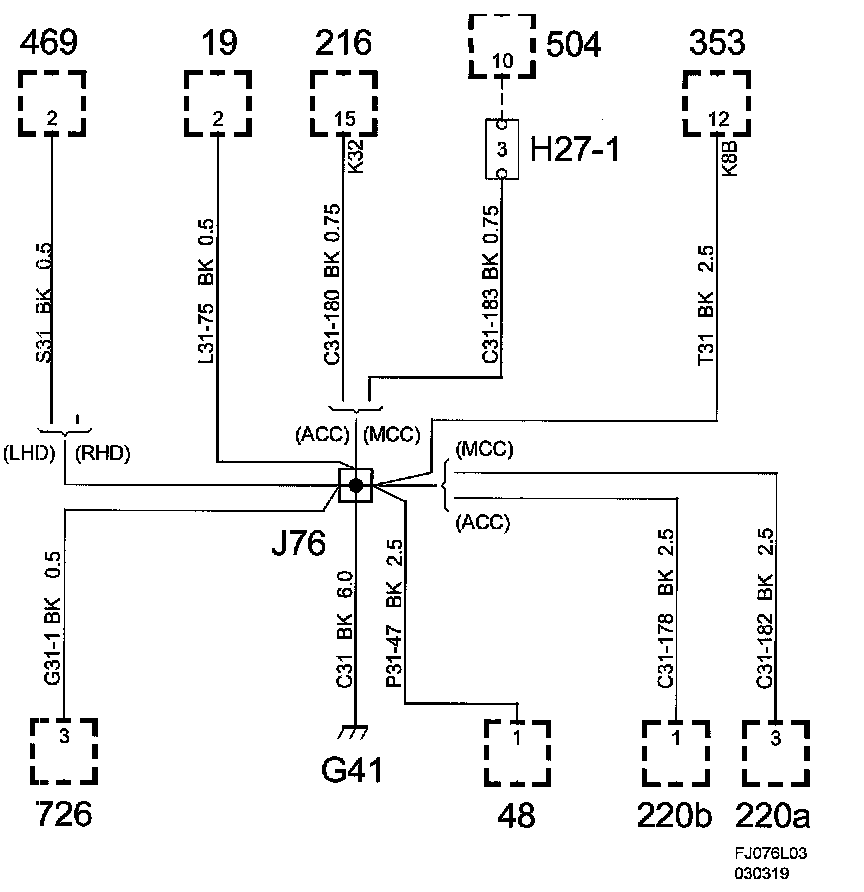

Crimp Connection J76, Dashboard Harness

Crimp connection 376, dashboard harness
Location:
LHD: Approximately 40 mm from cigarette lighter branching point towards grounding point G41
RHD: Approximately 130 mm from grounding point G43 branching point towards the radio

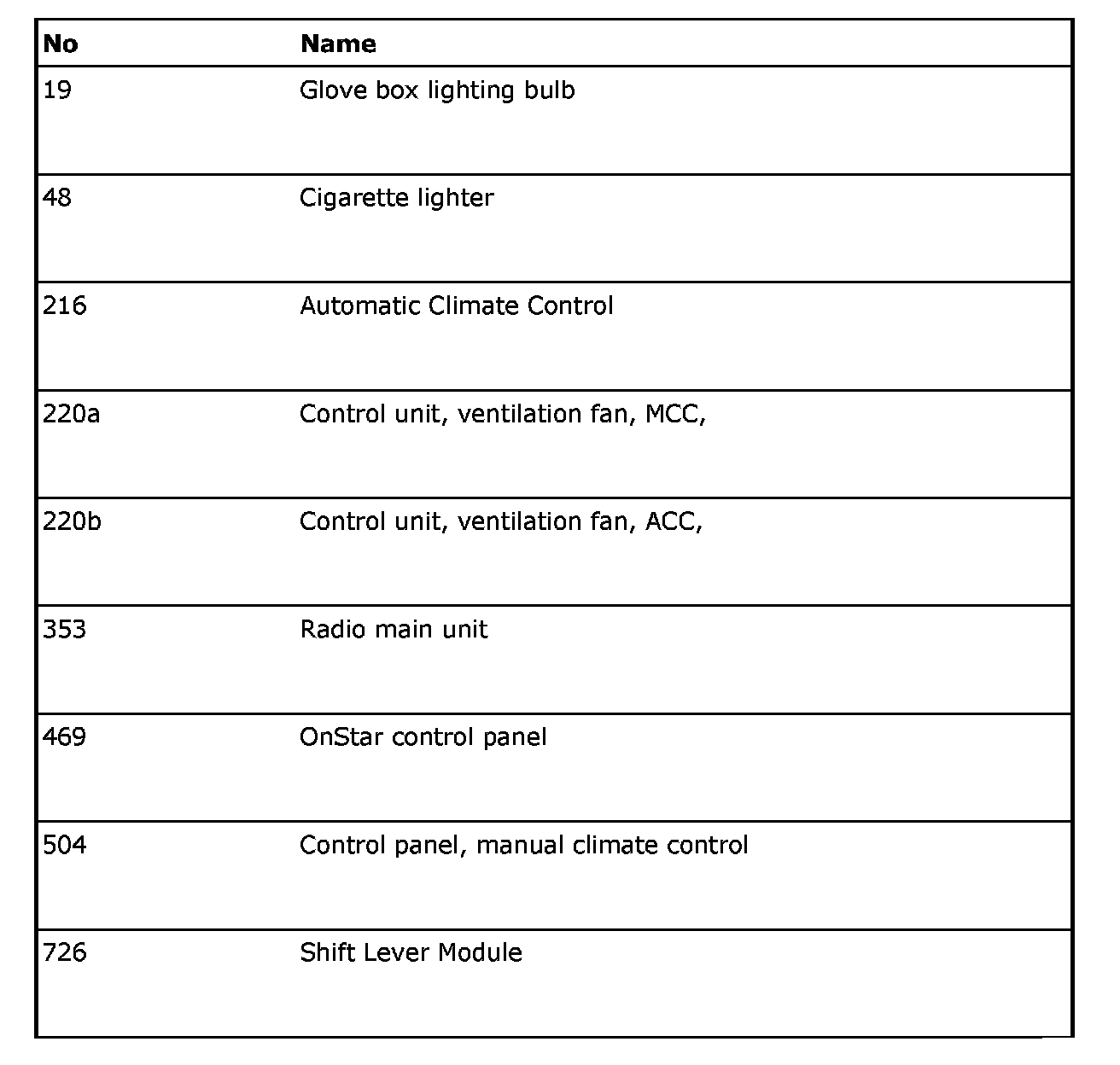

List of components
