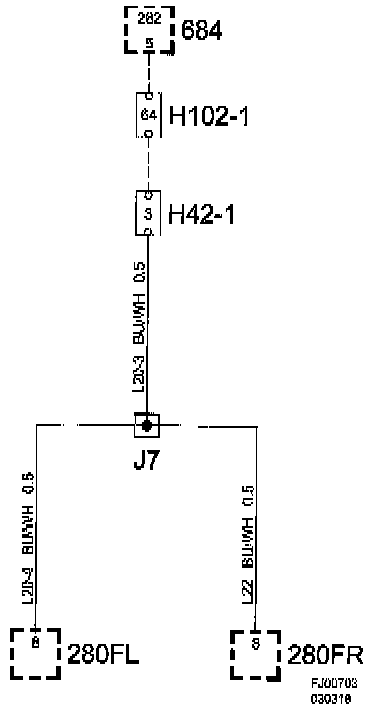

Crimp Connection J7, Front Harness

Crimp Connection J7, Front Harness

Location: Approx. 270 mm from branching of grounding point G30 towards the right headlamp.

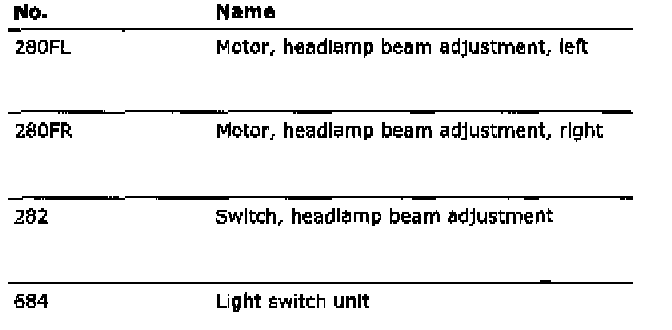

List Of Componenets:
