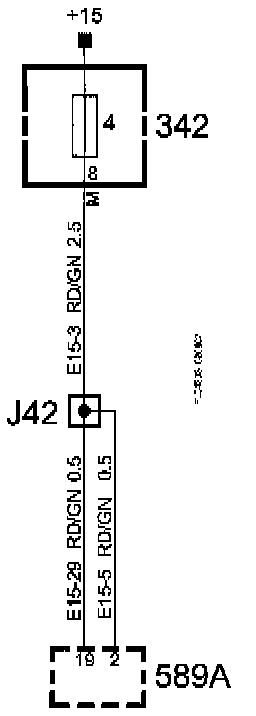

Crimp Connection J42, Engine Harness, Trionic

Crimp J42, Petrol Engine Harness

Location: In the branching point to the power steering fluid pressure switch.






List of Components
No. Name
342 UEC (Underhood Electrical Center)
589A Control module, Trionic, 4-cyl petrol, contact A
700 Battery isolator
