Crimp Connection J136 Inner Door Harness

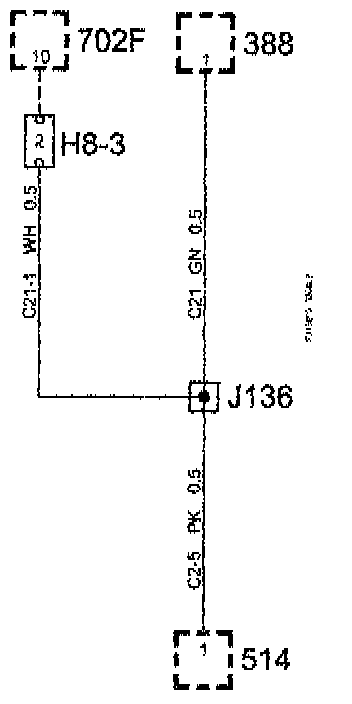

Crimp J136 Inner Door Harness

Location: Approx. 230 mm from connector H8-3 towards the central locking system switch

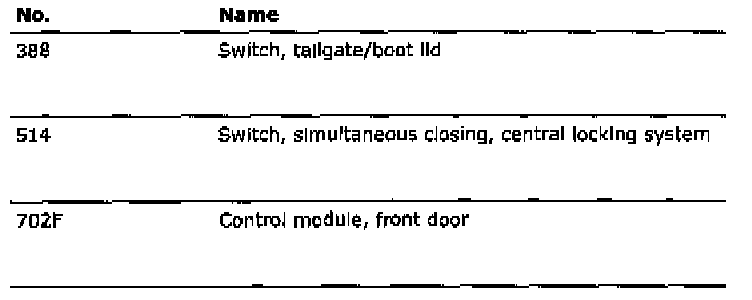

List Of Componenets:
