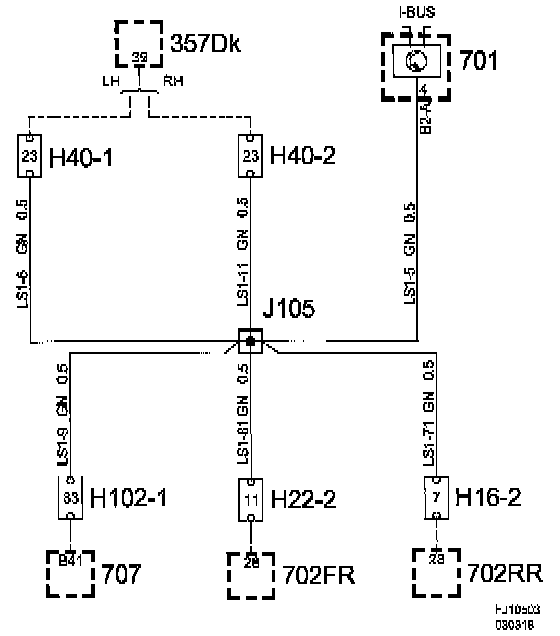

Crimp Connection J105, Main Harness

Crimp Connection J105, Main Harness

Location: Approx. 290 mm from branching of grounding point G14 towards airbag control module.

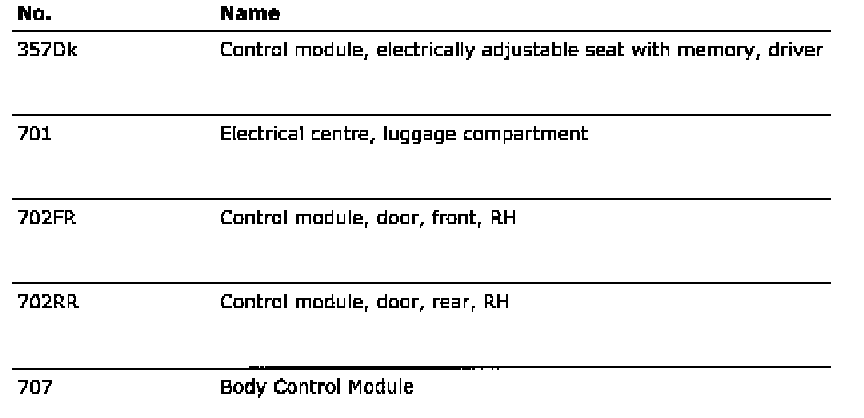

List Of Components:
