Home >> Saab >> 2003 >> 9-3 (9440) L4-2.0L Turbo (2.0 HOT) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Rear Door Window Motor >> Motor, Electric Window Lift, Rear, Left-Hand (164RL)

Motor, Electric Window Lift, Rear, Left-Hand (164RL)



Location: in door

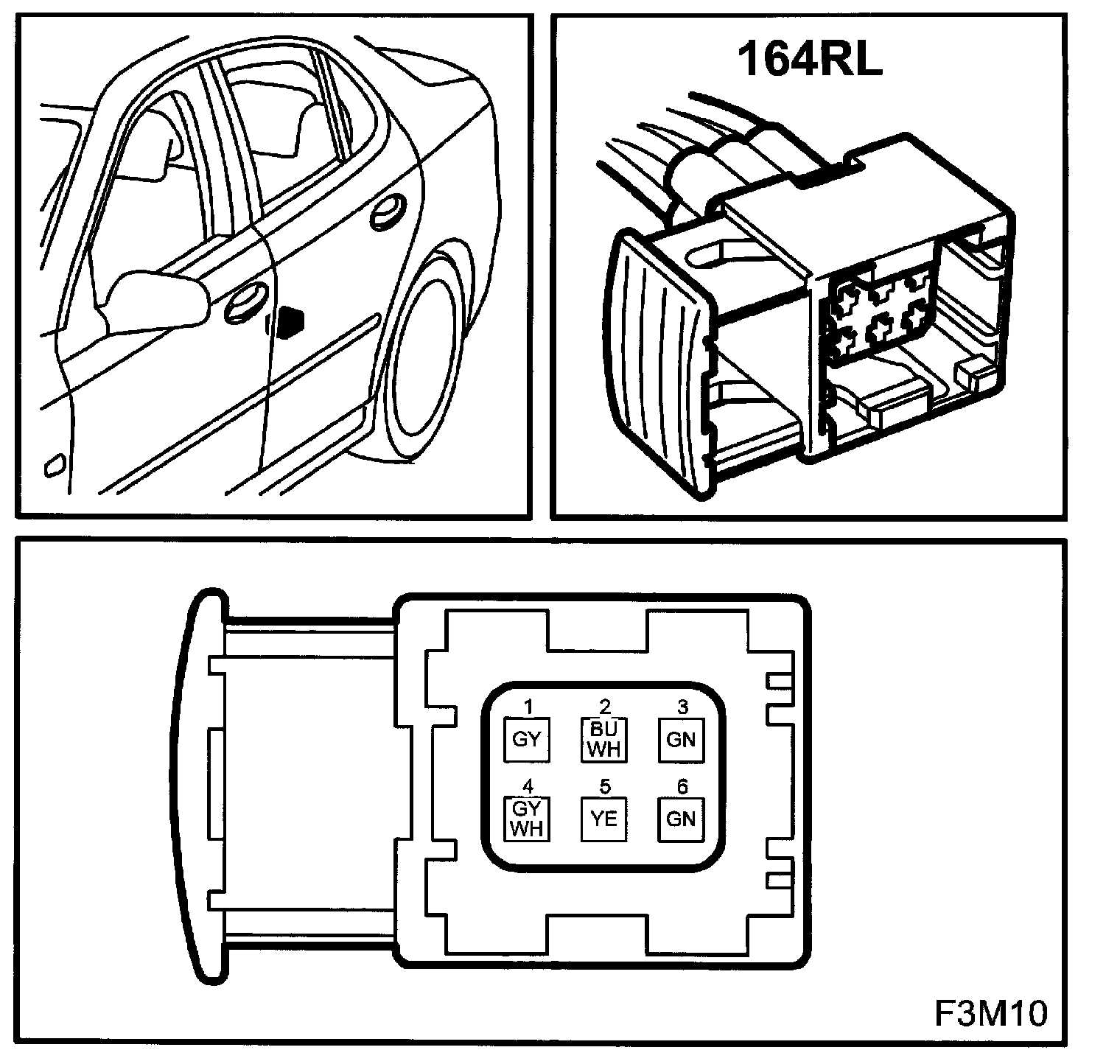

Without pinch protection


Motor, Electricallv Operated Window Lift, Rear, Left-hand (164RL):

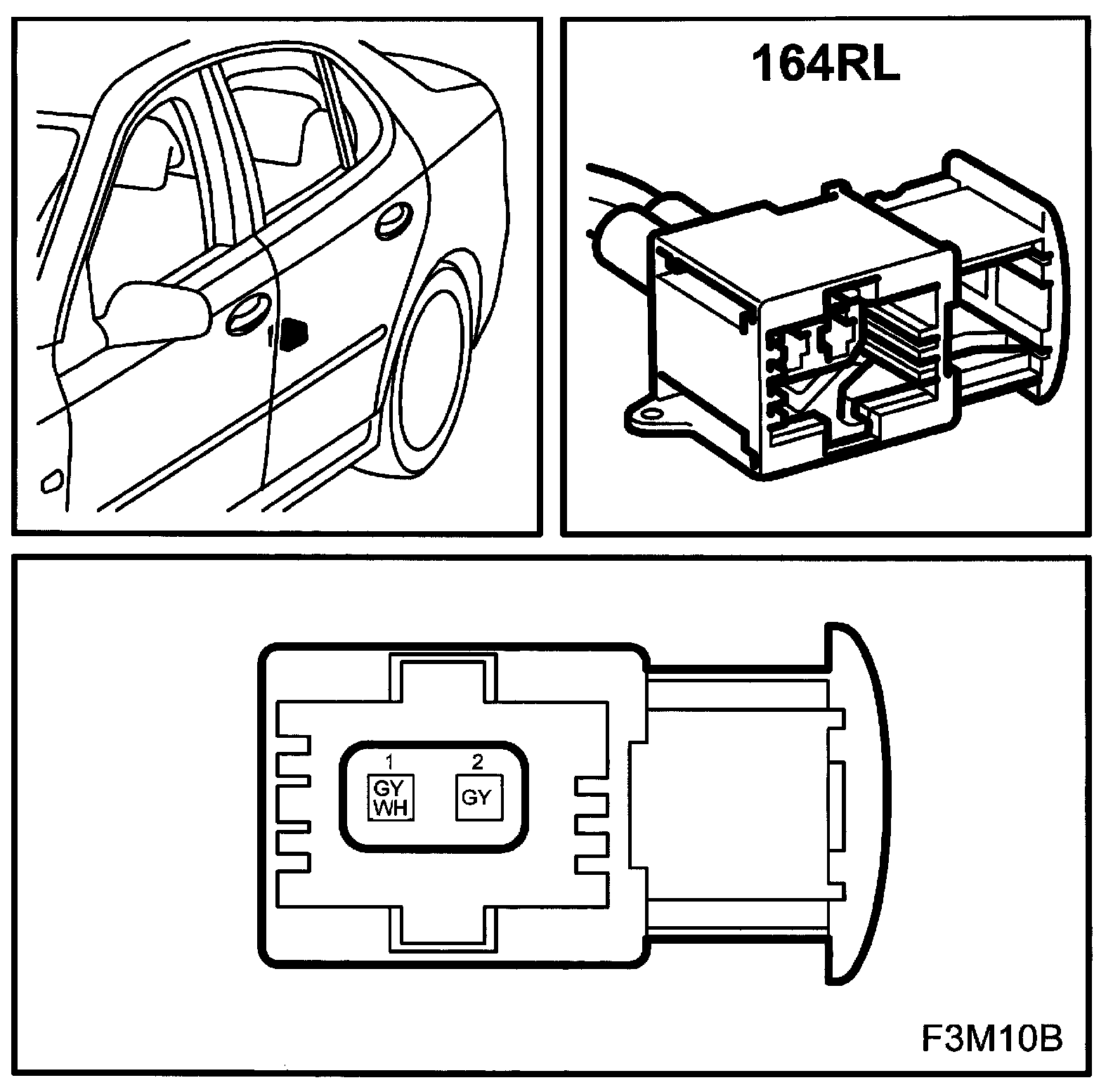

With pinch protection


Motor, Electricallv Operated Window Lift, Rear, Left-hand (164RL):
