FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2003
>>
9-3 (9440) L4-2.0L Turbo (2.0 HOT)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

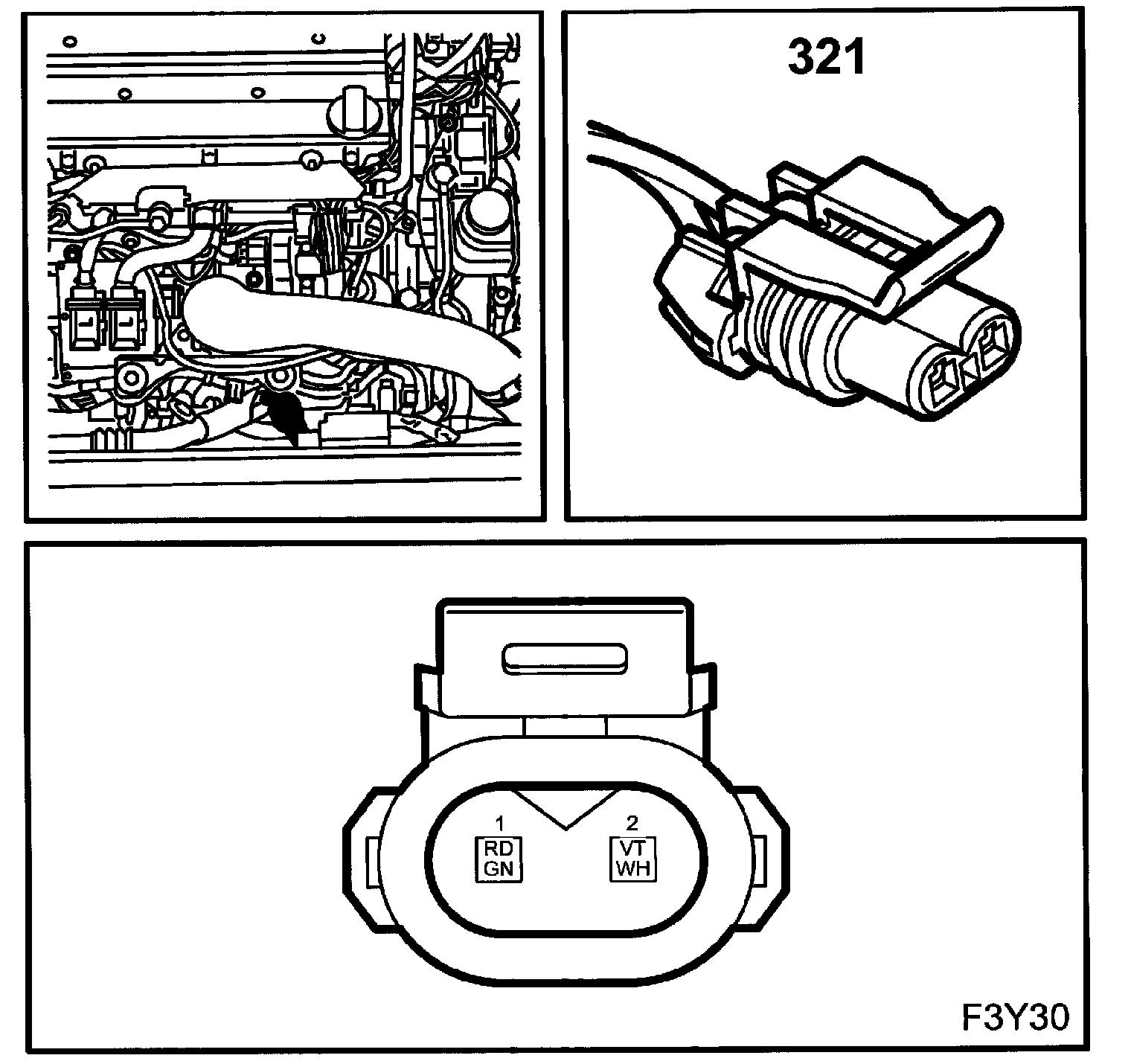

Canister Purge Control Valve
Canister Purge Control Valve
Location
: on the mass air flow sensor's hose
EVAP Canister Purge Valve (321):
