Home >> Saab >> 2002 >> 9-5 Linear Sport Wagon (9600) L4-2.3L Turbo (B235) >> Repair and Diagnosis >> Wiper and Washer Systems >> Locations >> Ground Locations >> Ground Point G42

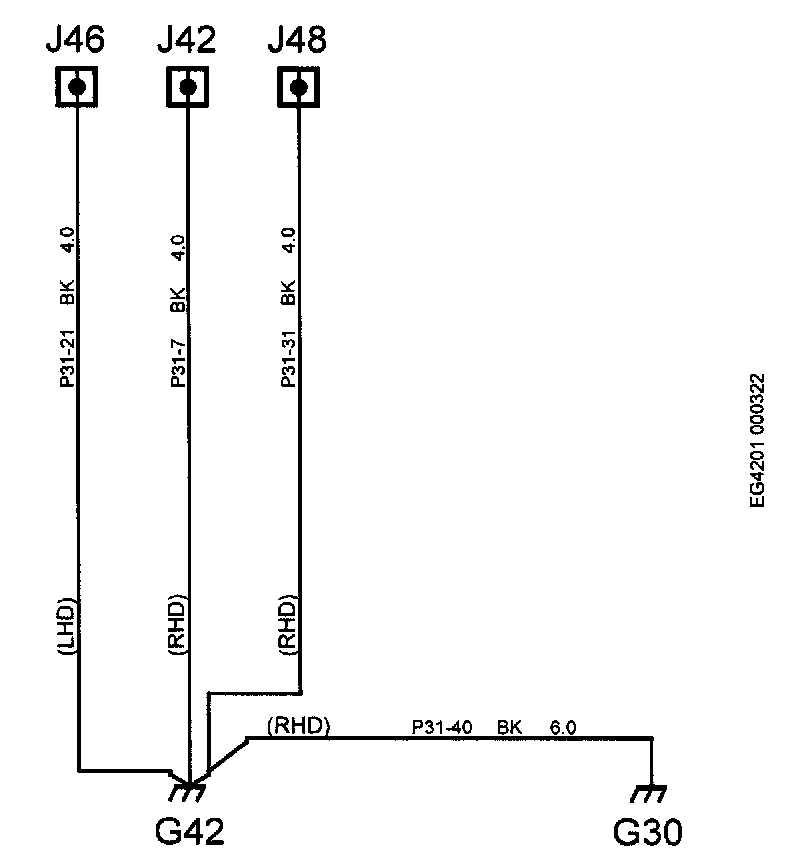

Ground Point G42




Grounding Point G42

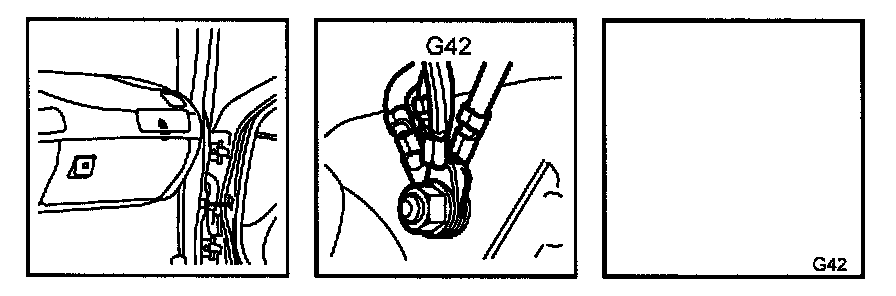

Location: On right-hand side of knee protection bar.

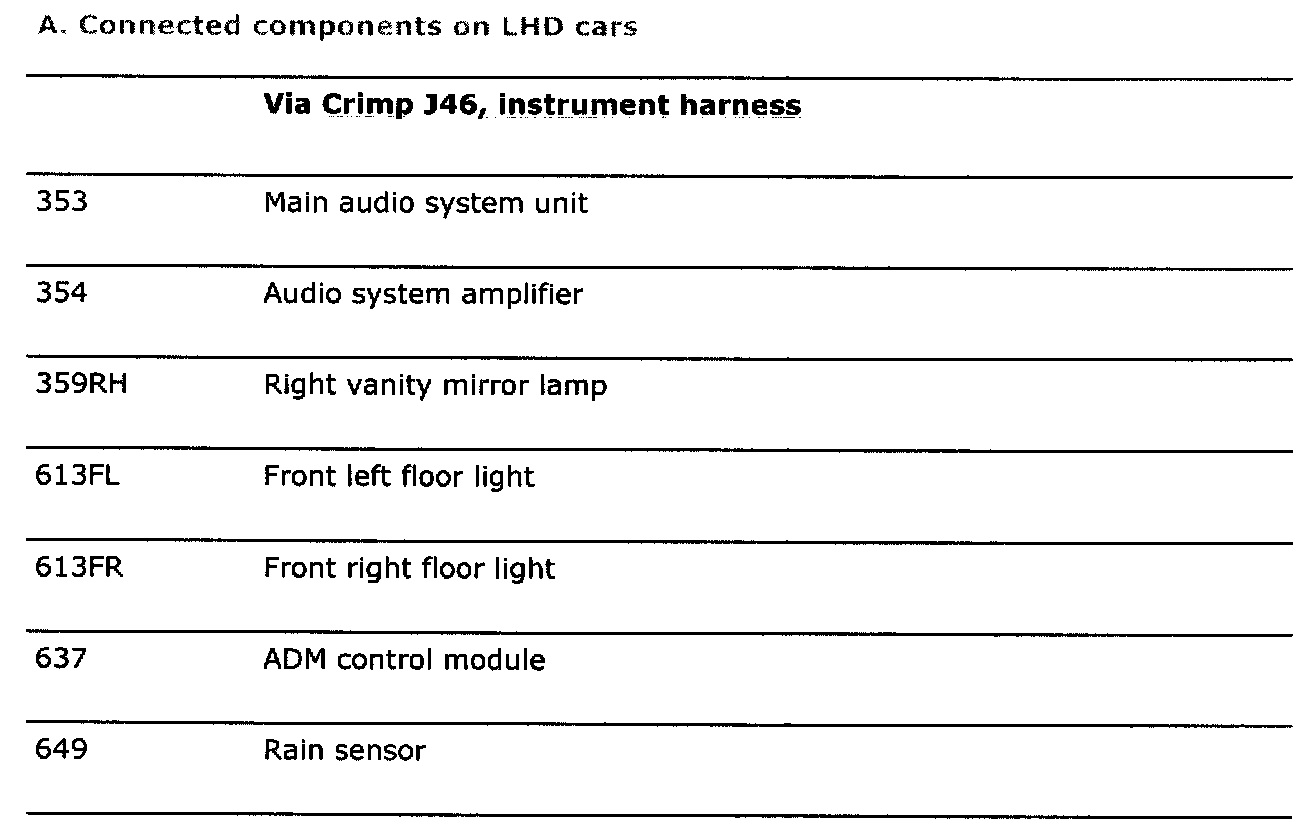

Part 1:

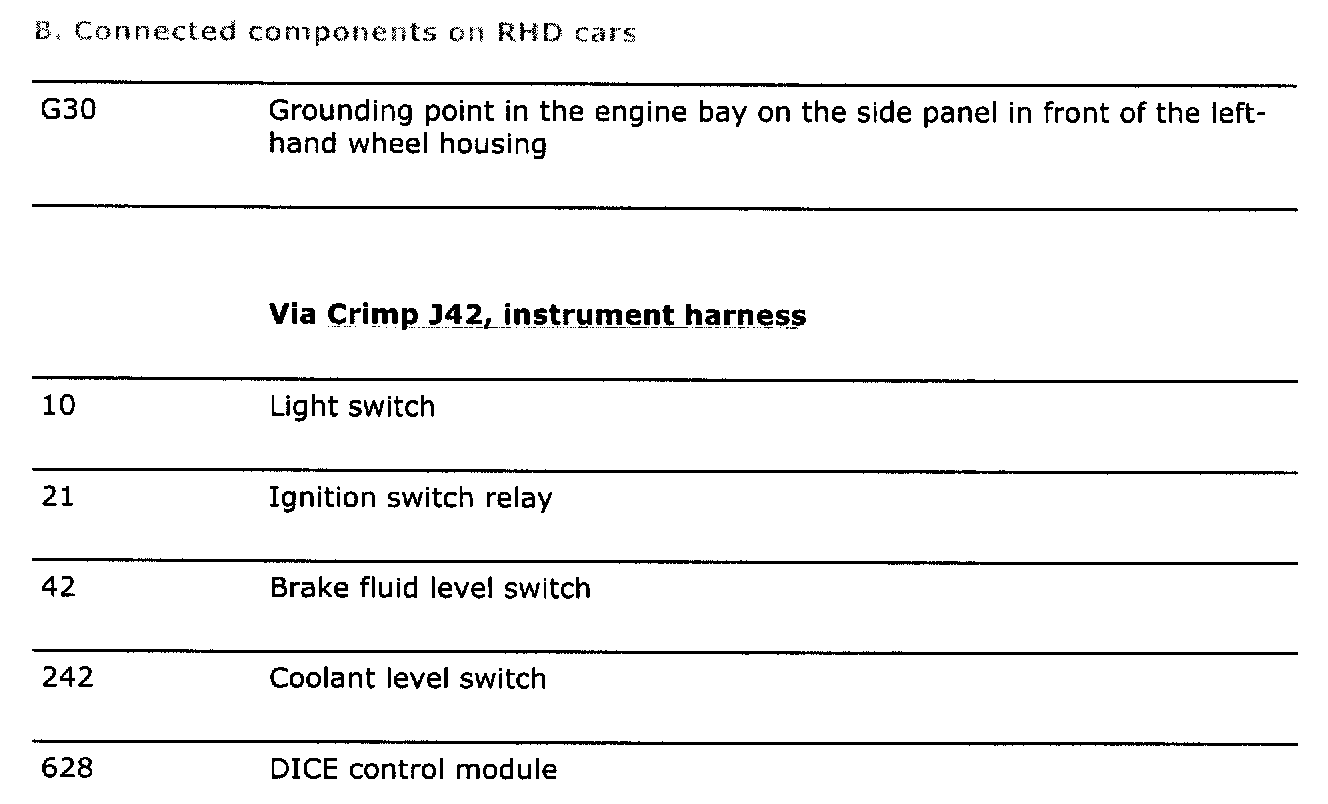

Part 2:

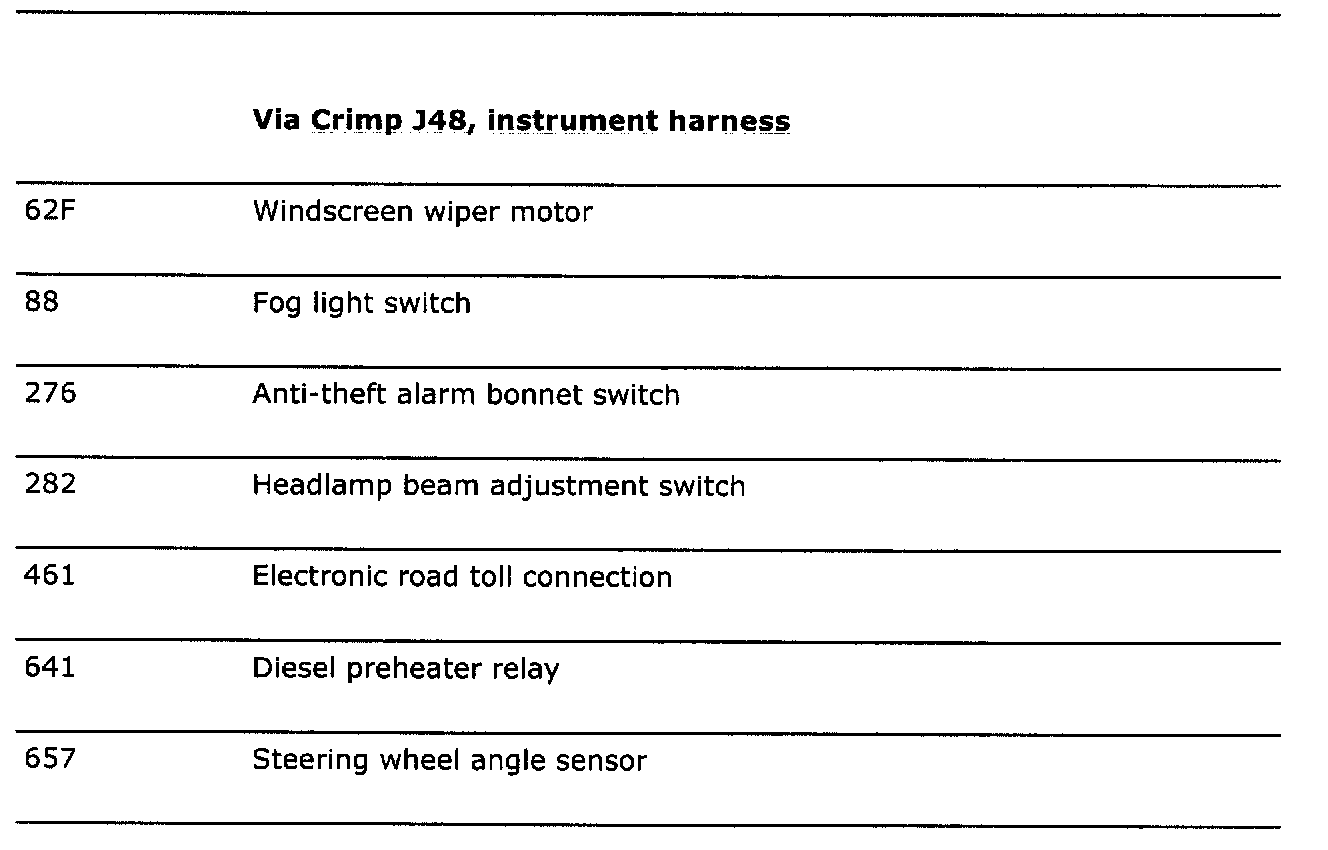

Part 3:
