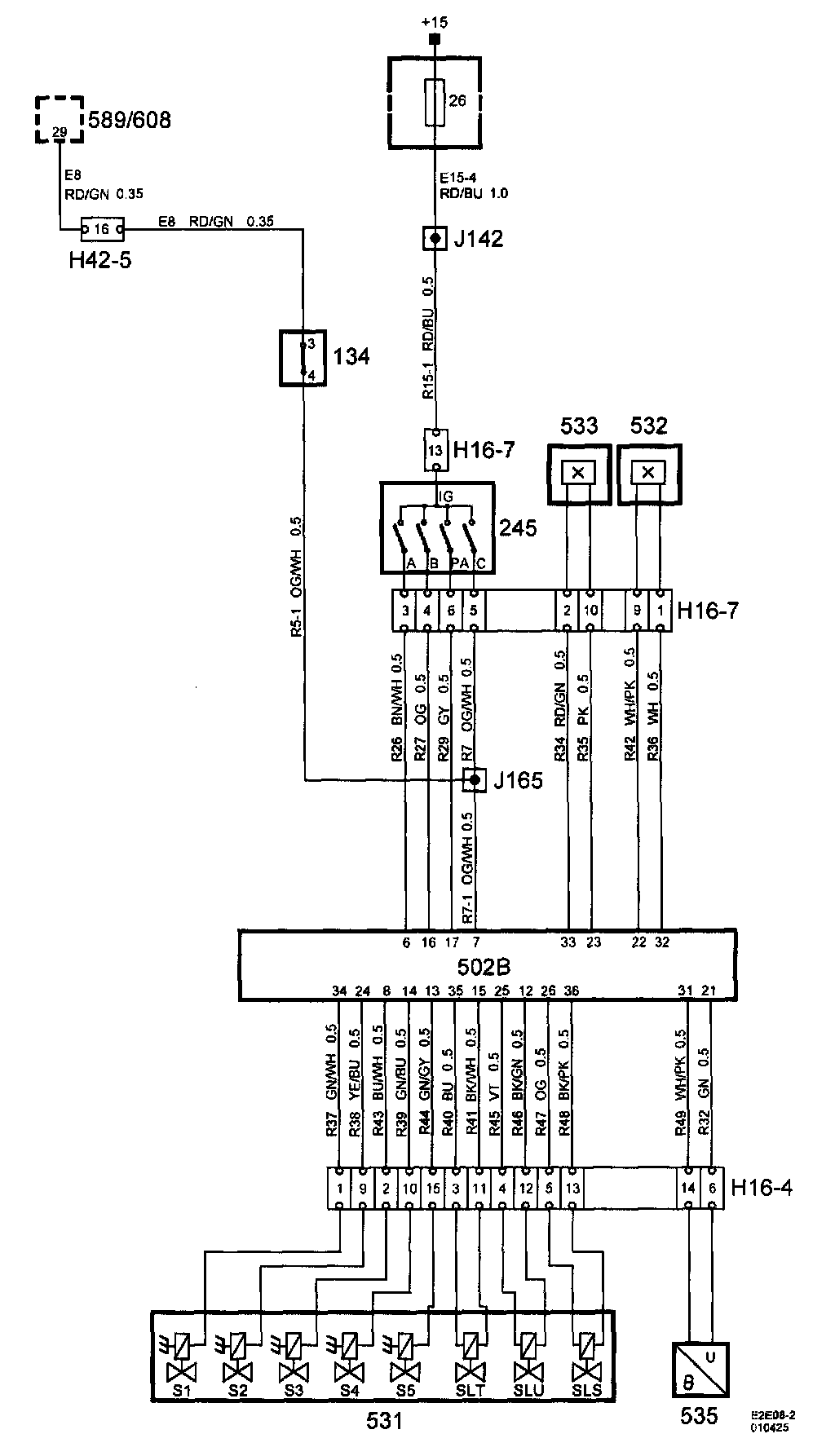

Transmission Control Module (TCM), (Part 2/2)
Transmission Control Module (TCM), (Part 2/2)
Transmission Control Module (TCM), (Part 2/2)

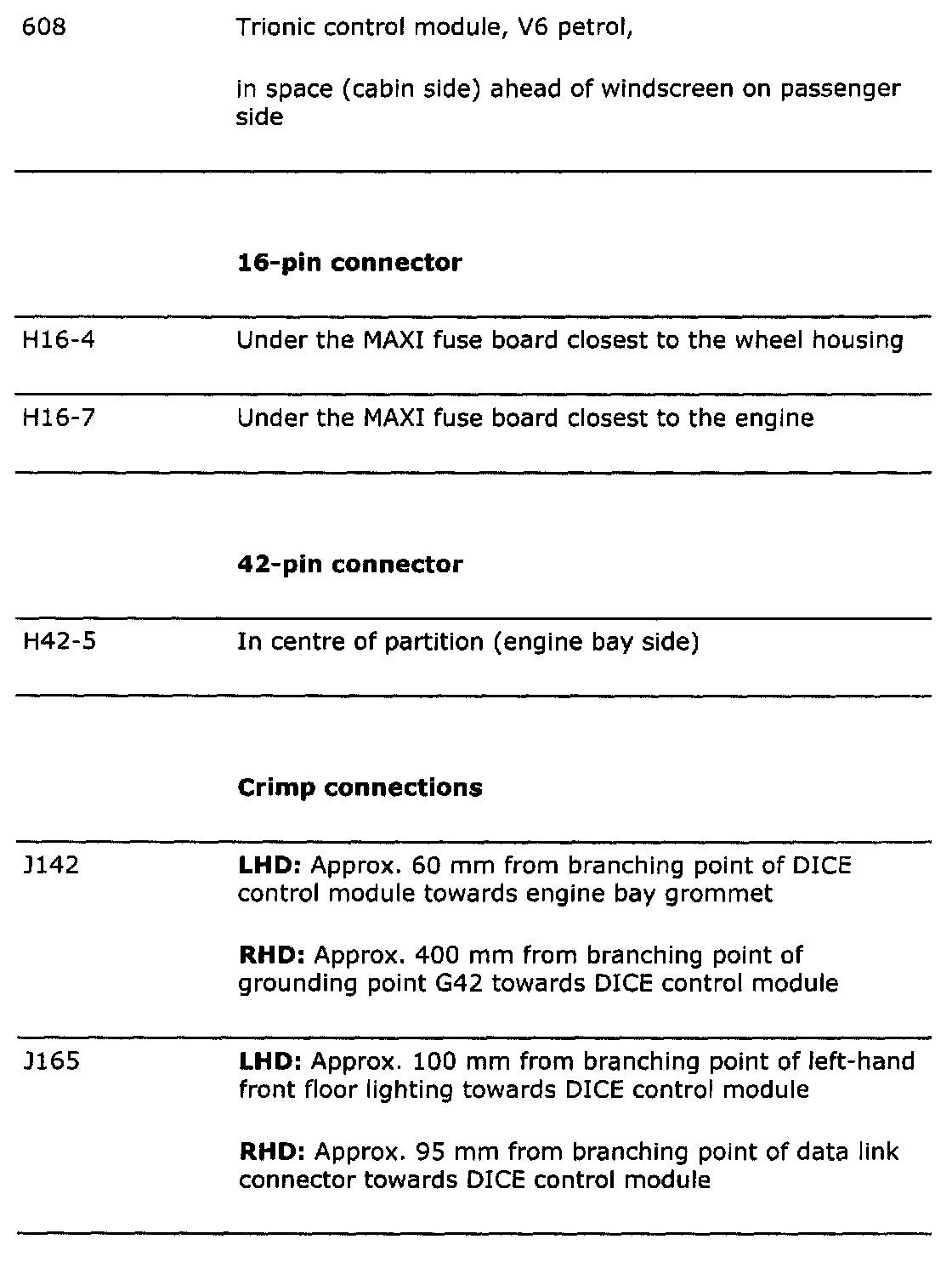

List of Components
Part 1:
Part 2:
