Relay Box
>>
Application and ID
>>
Relay Board 342b In Engine Bay
Relay Board 342b In Engine Bay
Relay Board 342b In Engine Bay

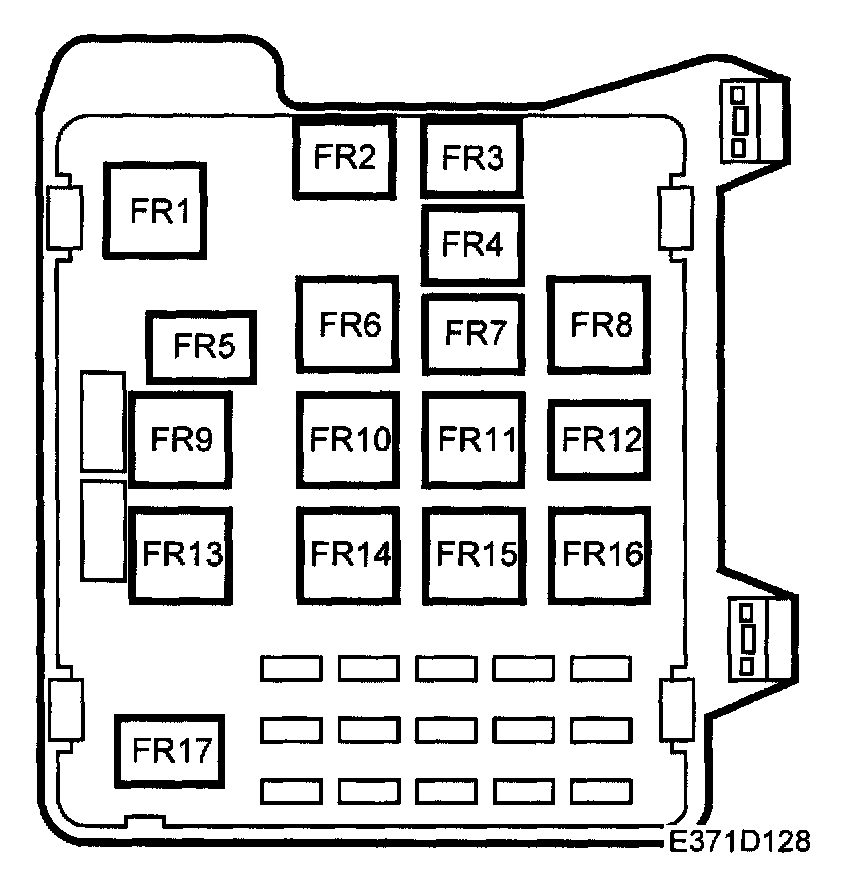

Panel Layout:

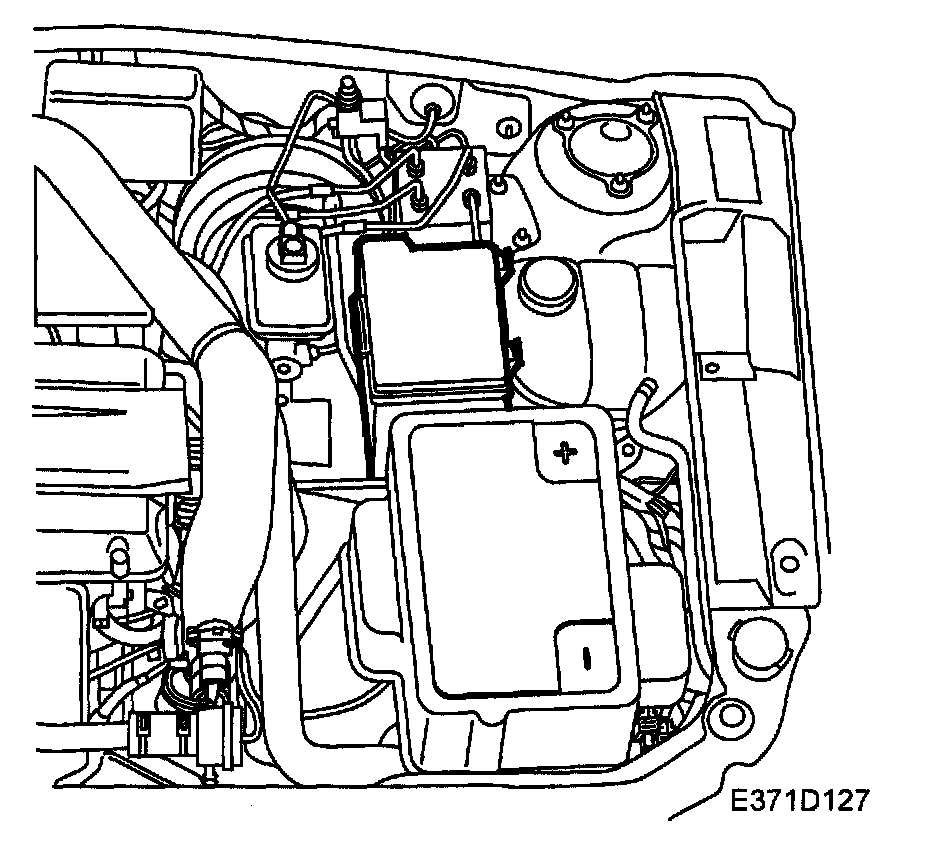

Panel Location:
Behind the battery

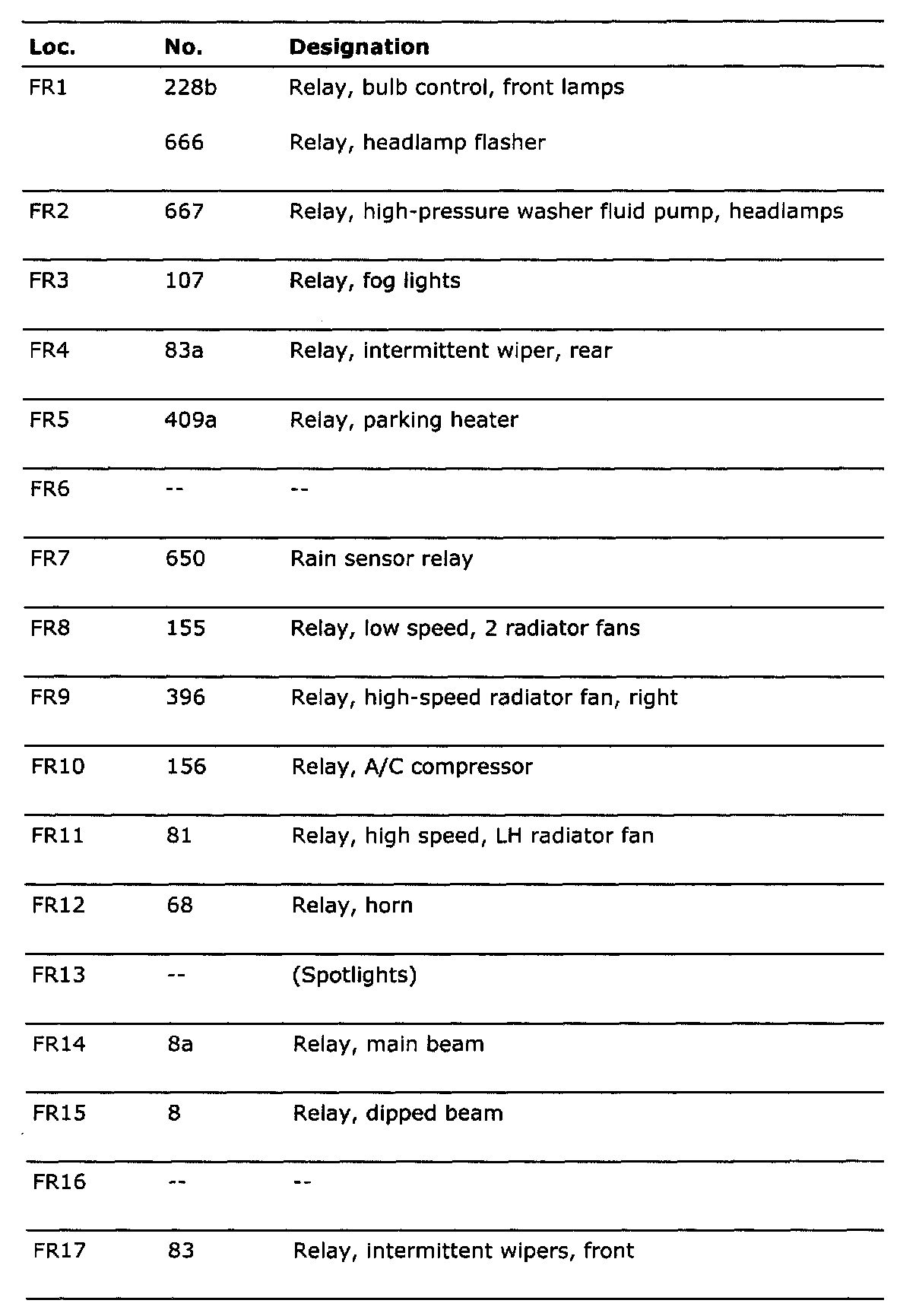

Relay Designations:
