Relay Box
>>
Application and ID
>>
Relay Board 22b In Dashboard
Relay Board 22b In Dashboard
Relay Board 22b In Dashboard

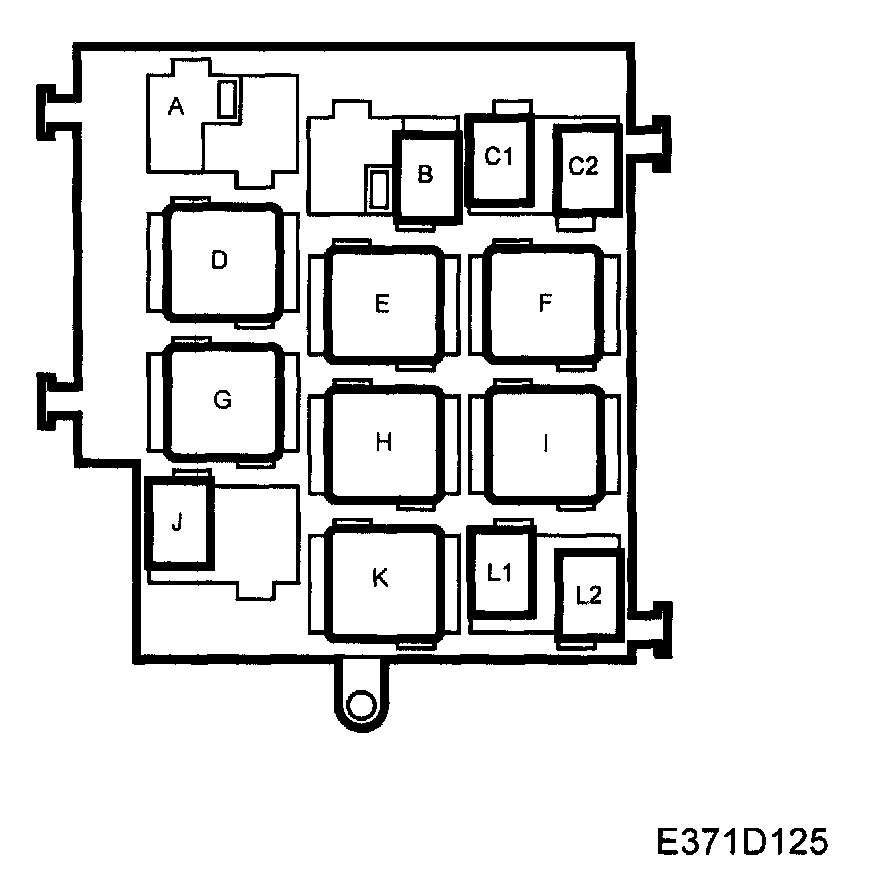

Panel Layout:

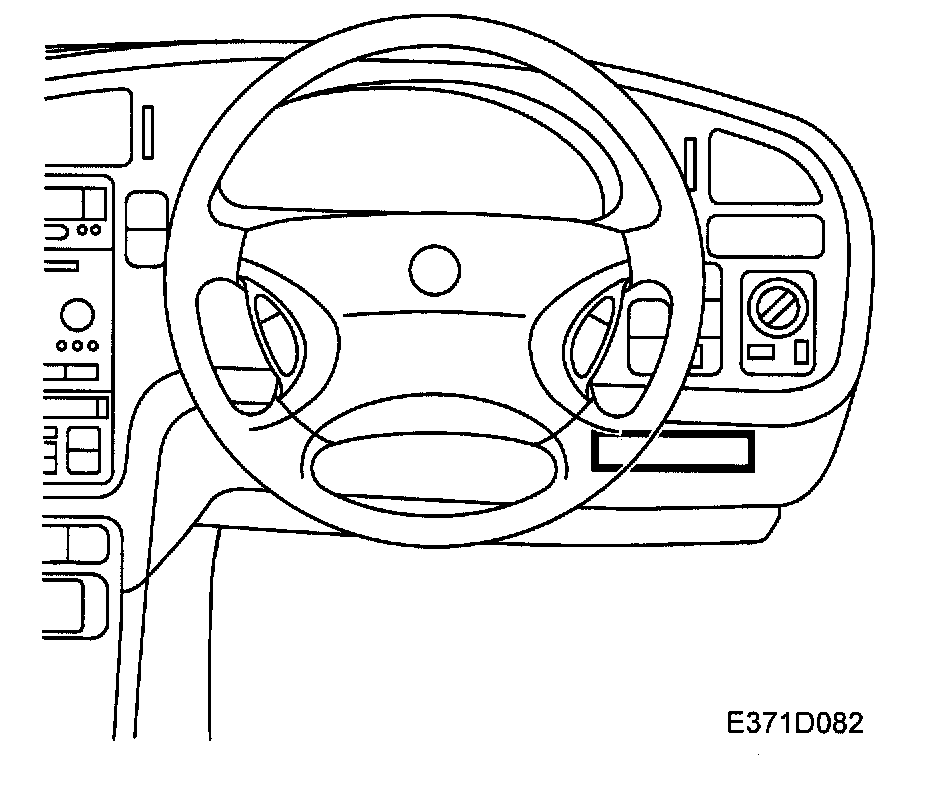

Panel Location, LHD:

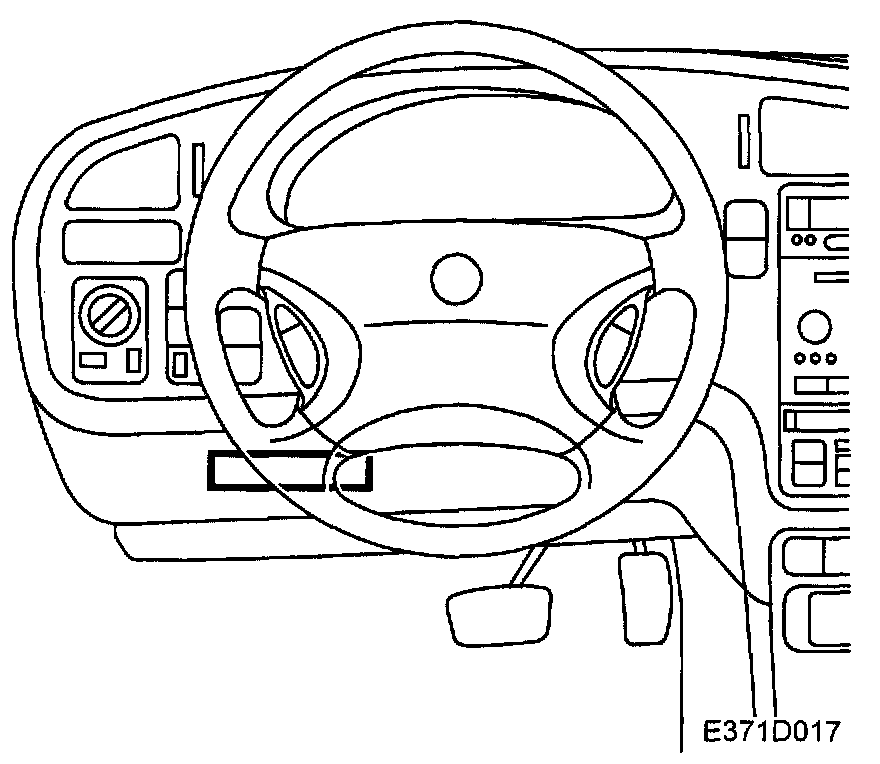

Panel Location, RHD:
Beneath the dashboard by the steering wheel.

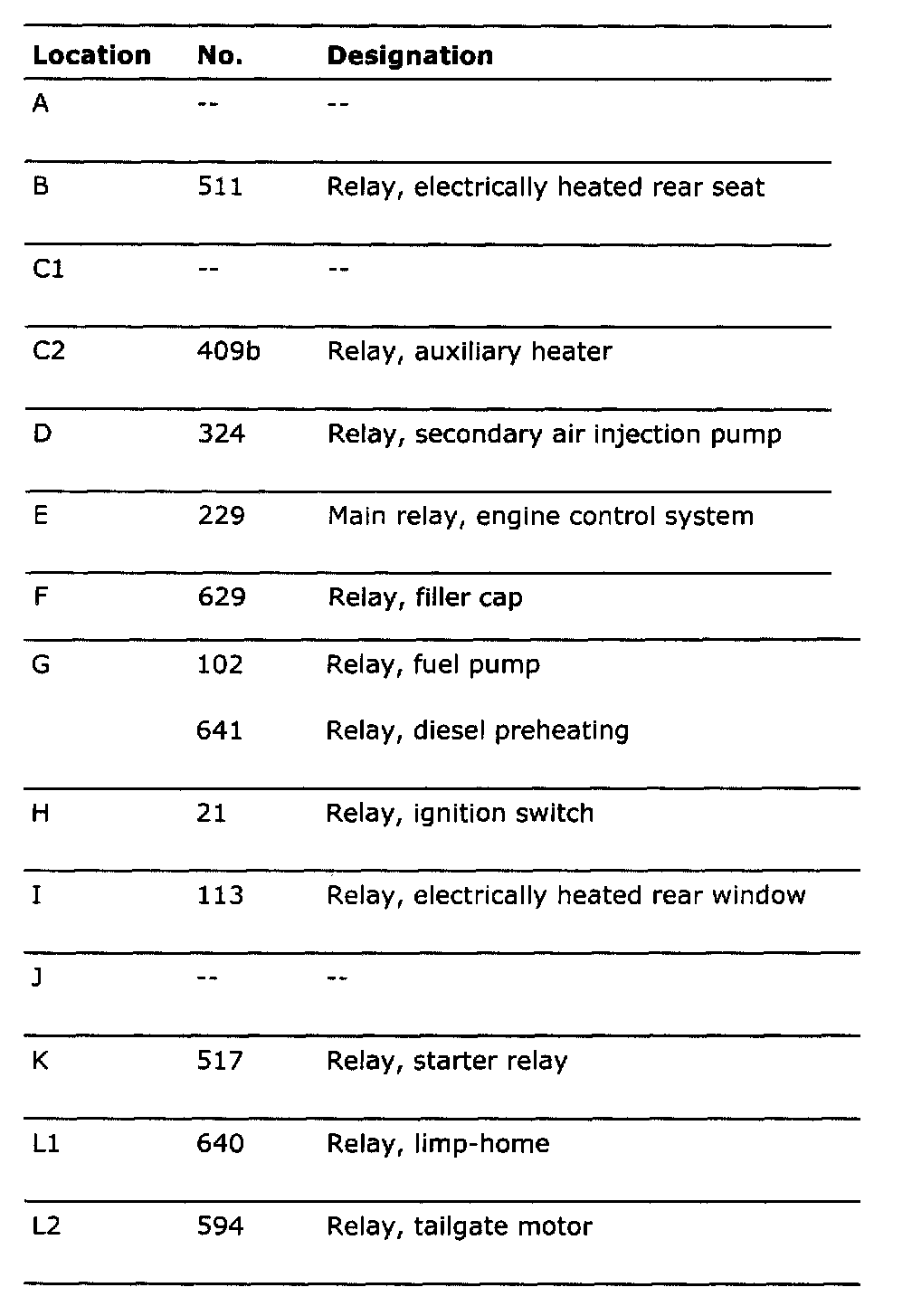

Relays A - L2:
