Grounding Point G45
Grounding Point G45
Grounding Point G45 (only 5D)

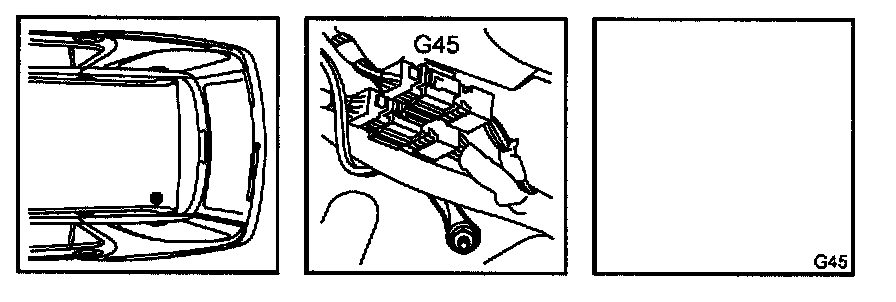

Location:
In roof above LH D-pillar.
