Home >> Saab >> 2002 >> 9-5 Linear Sport Wagon (9600) L4-2.3L Turbo (B235) >> Repair and Diagnosis >> Specifications >> Pressure, Vacuum and Temperature Specifications >> Engine >> System Specifications >> Control Values Pressure (Cylinder Compression)

Control Values Pressure (Cylinder Compression)


Control Values, Pressure

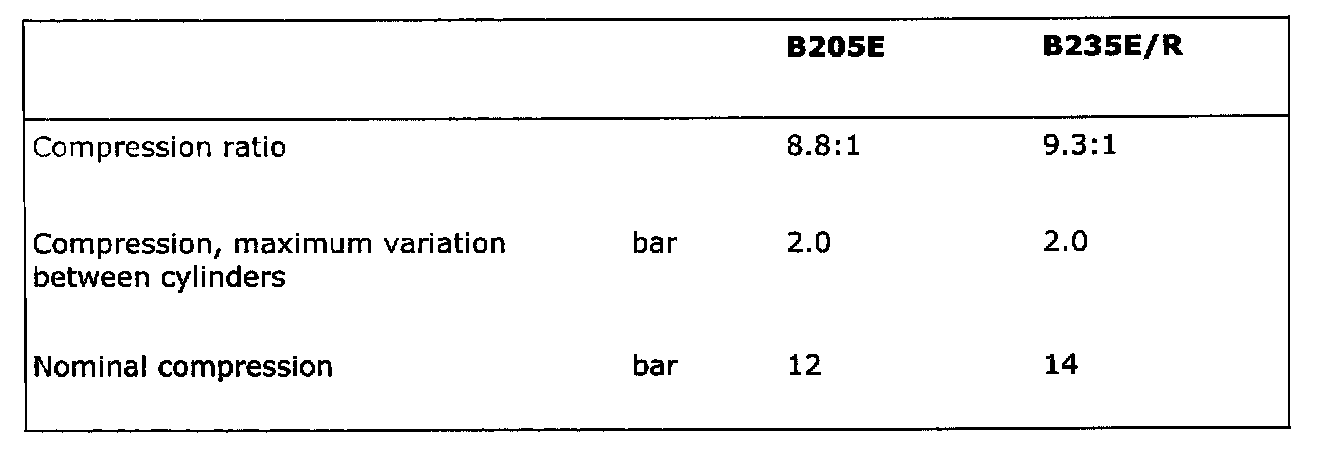

Specification Table:
