Lubricating System


Lubricating System General Data

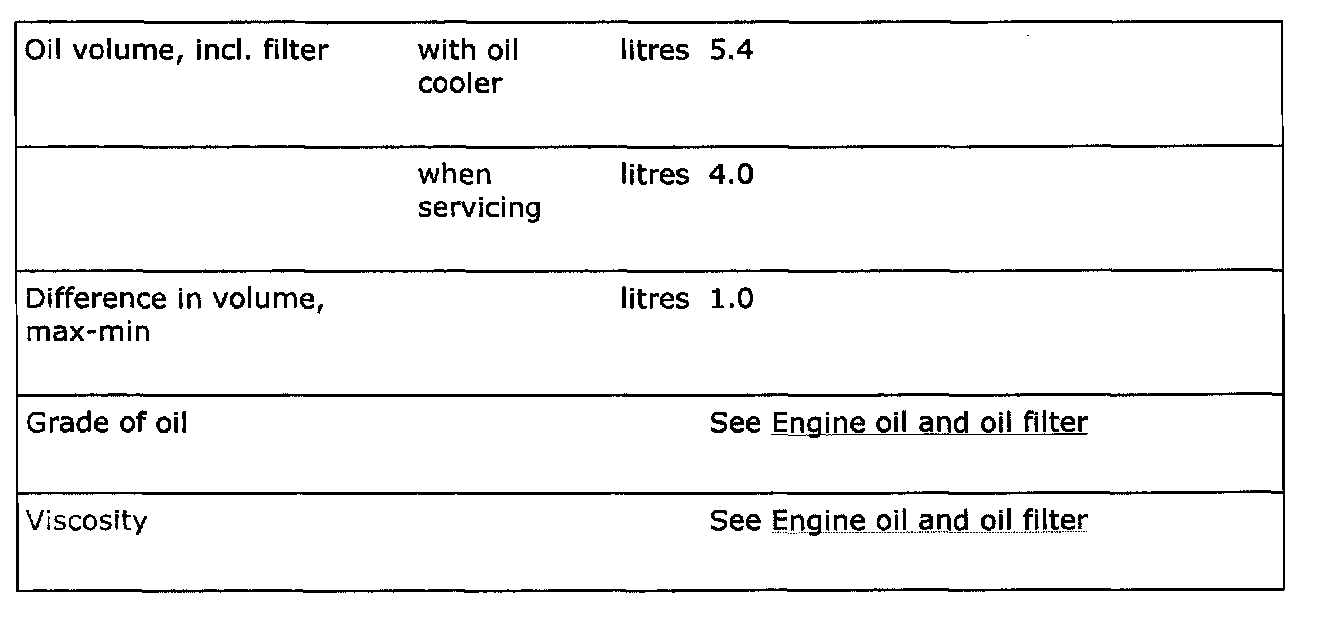

Specifications Table:





Important: The recommended grades of oil contains all necessary additives and the use of additional additives should therefore be avoided.

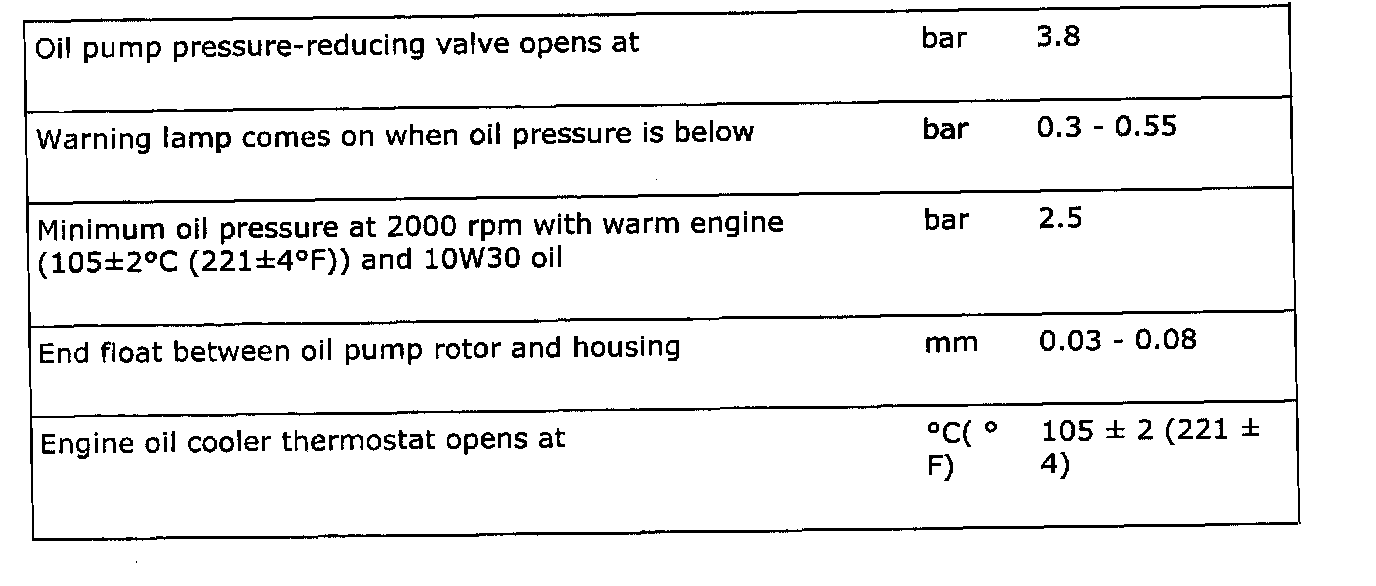

Oil Pressures

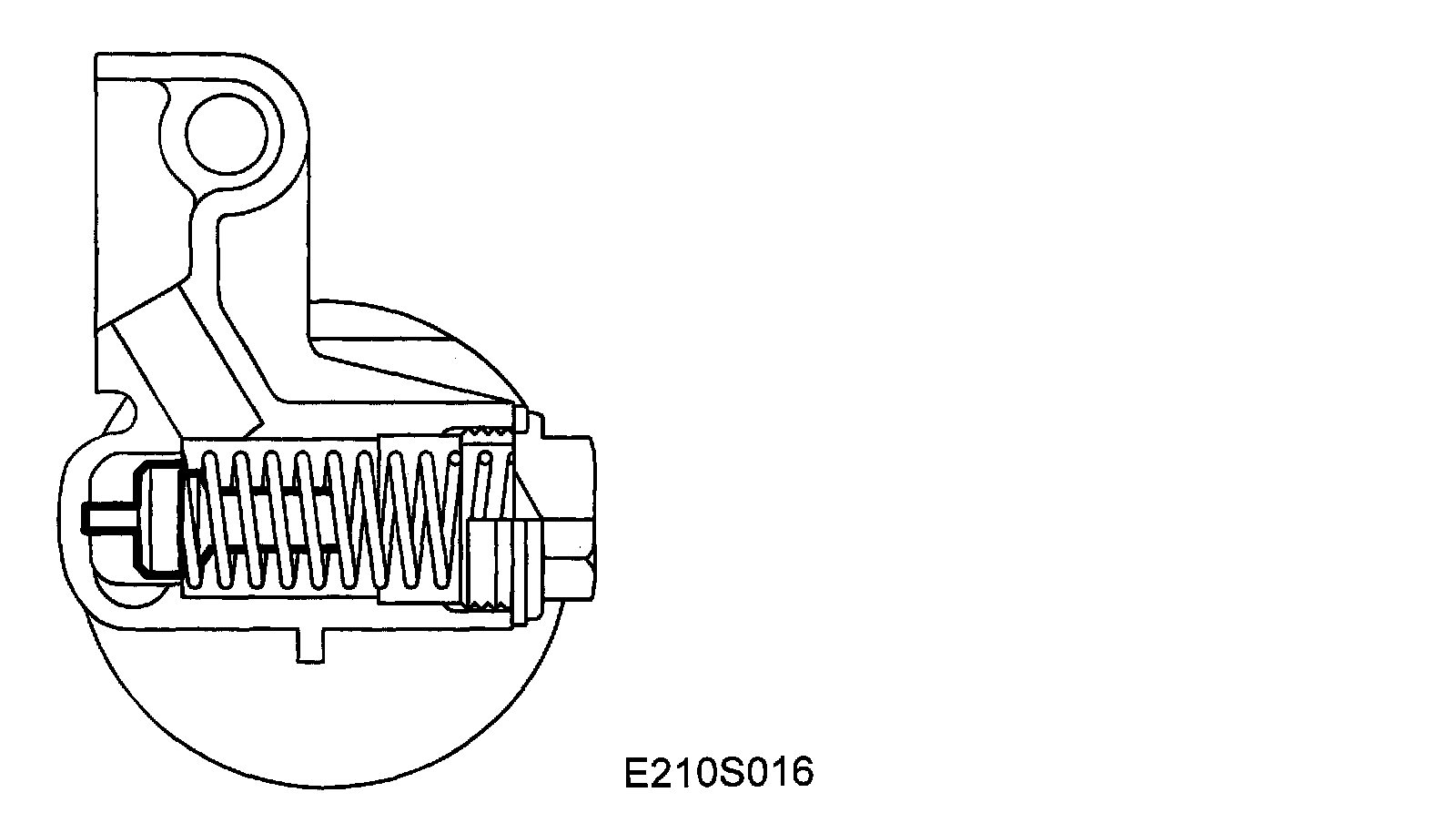

Component Illustration:





Specifications Table:
