Home >> Saab >> 2002 >> 9-5 Linear Sport Wagon (9600) L4-2.3L Turbo (B235) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Heating and Air Conditioning >> Air Door Actuator / Motor, HVAC >> Stepping Motor, Mixed-Air (222 LH/RH)

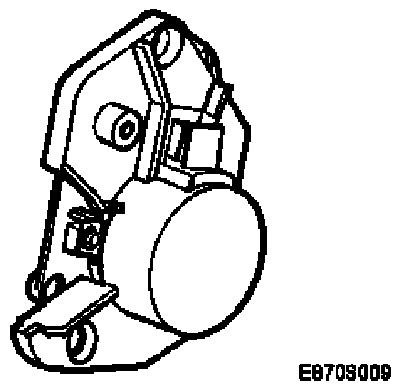

Stepping Motor, Mixed-Air (222 LH/RH)

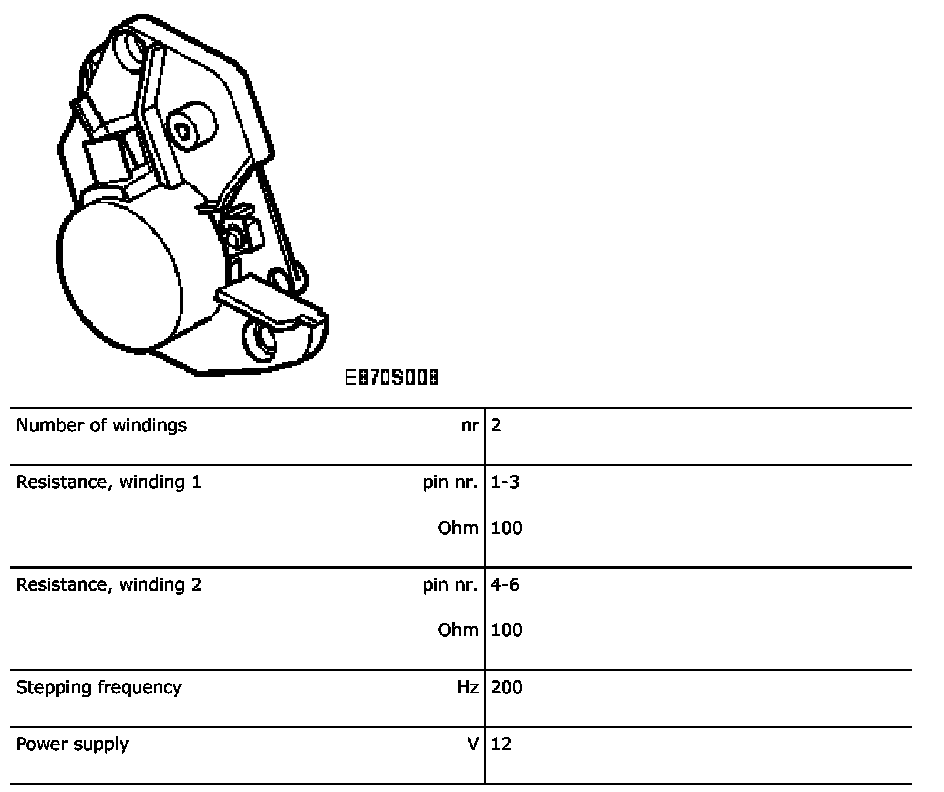

Stepping Motor, Mixed-air (222 LH/RH):
