Home >> Saab >> 2002 >> 9-5 Linear Sport Wagon (9600) L4-2.3L Turbo (B235) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Heating and Air Conditioning >> Air Door Actuator / Motor, HVAC >> Direct Current Motor, Air Recirculation, ACC

Direct Current Motor, Air Recirculation, ACC

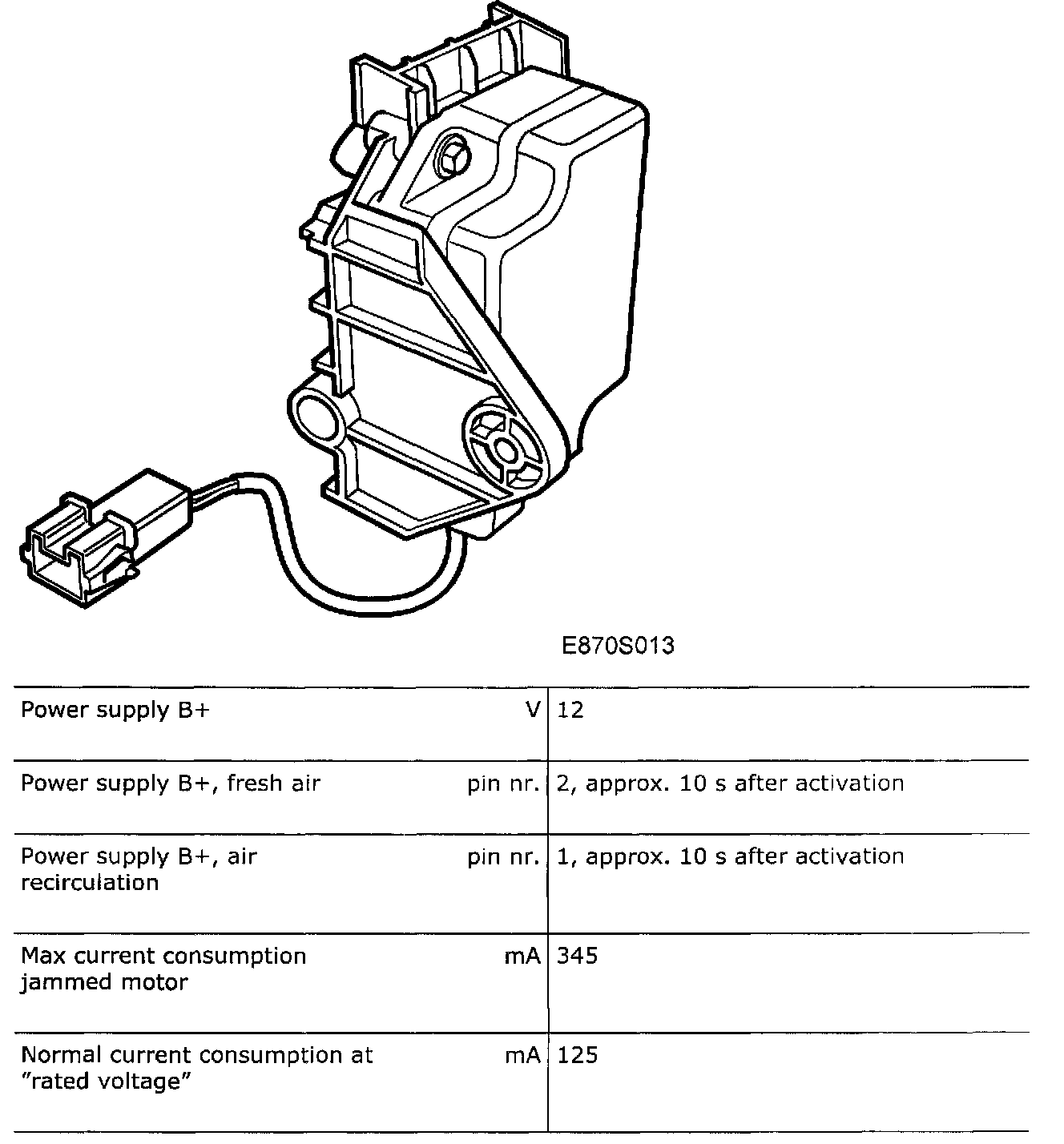

Direct Current Motor, Air Recirculation Flap (38)
