Test Readings, Amplifier Connections
Test Readings, Amplifier Connections

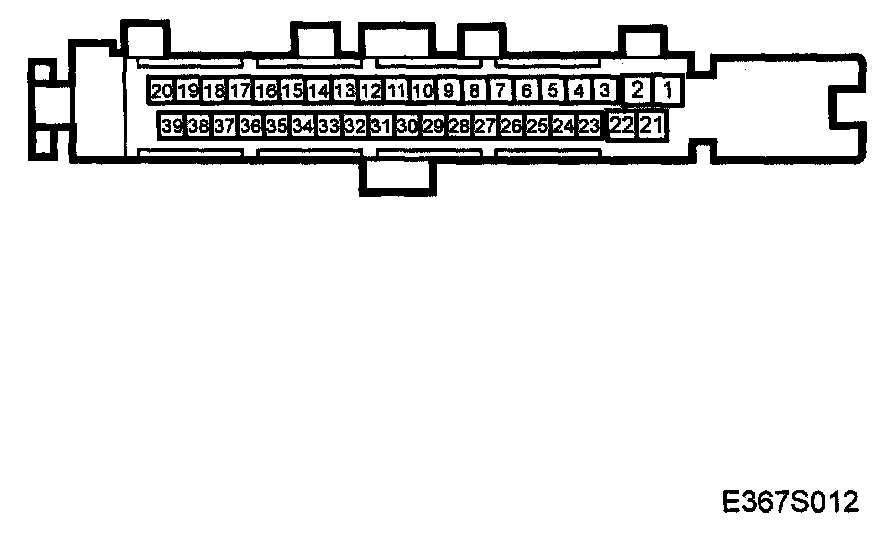

Test Readings,
Amplifier
Connections

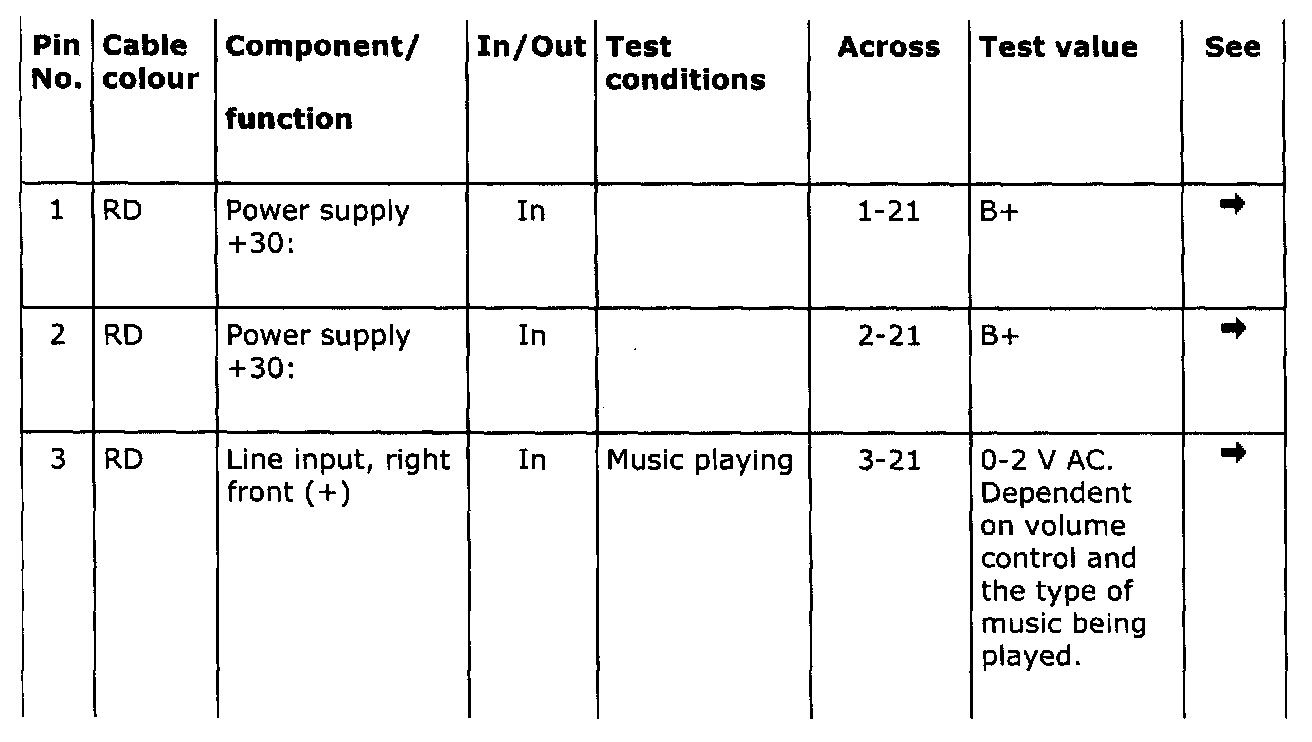

Pin No. 1 - 3:

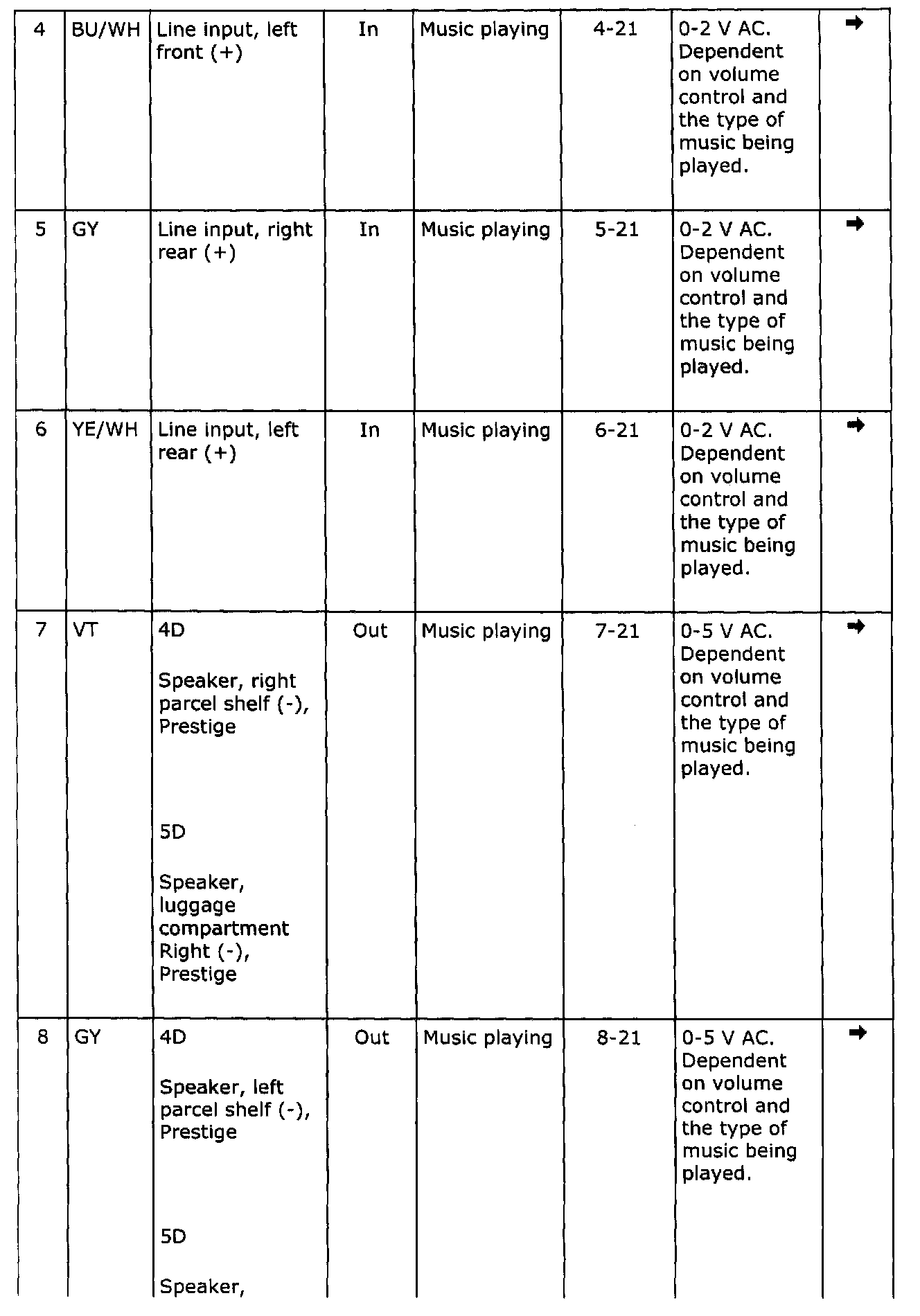

Pin No. 4 - 8:

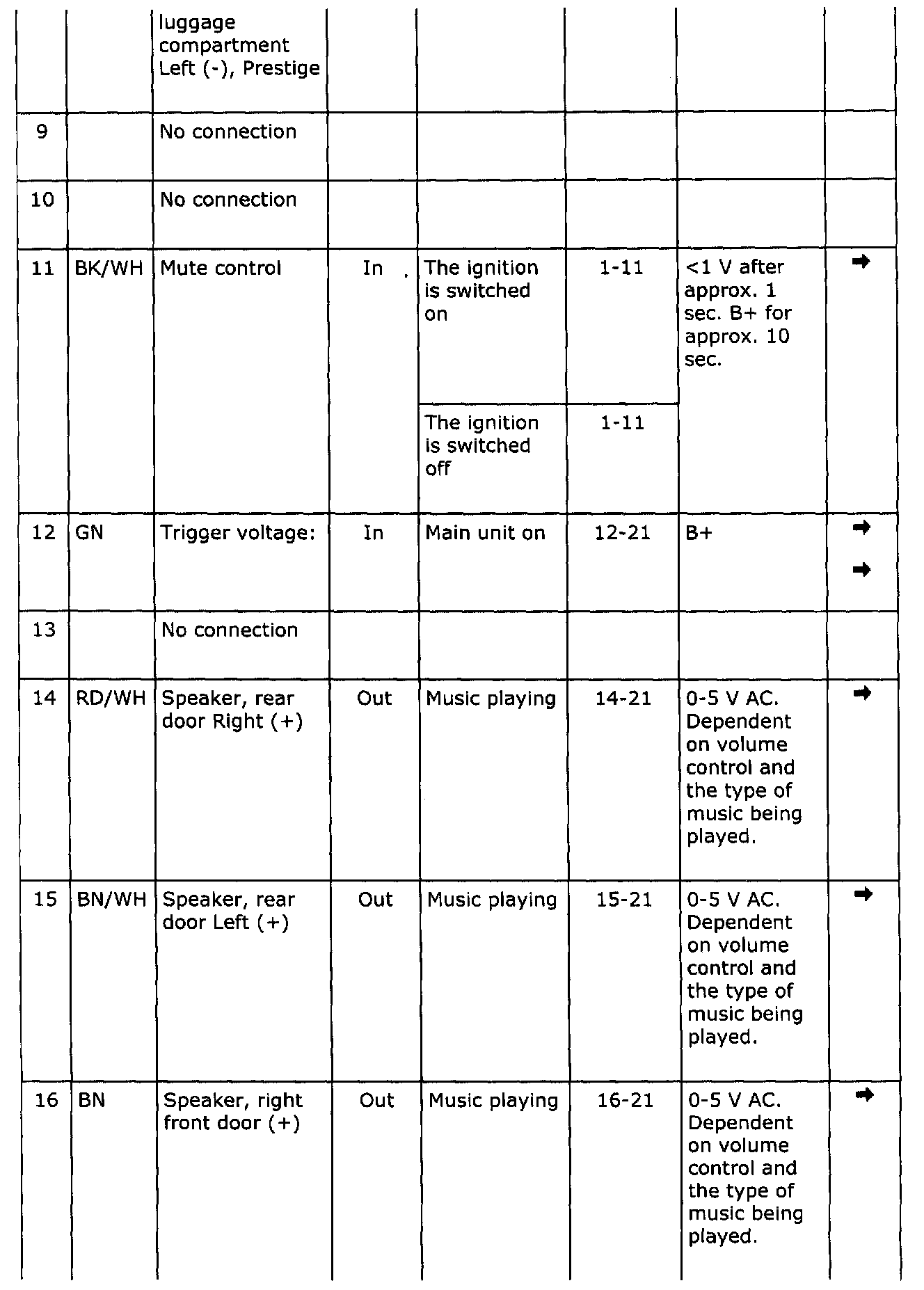

Pin No. 9 - 16:

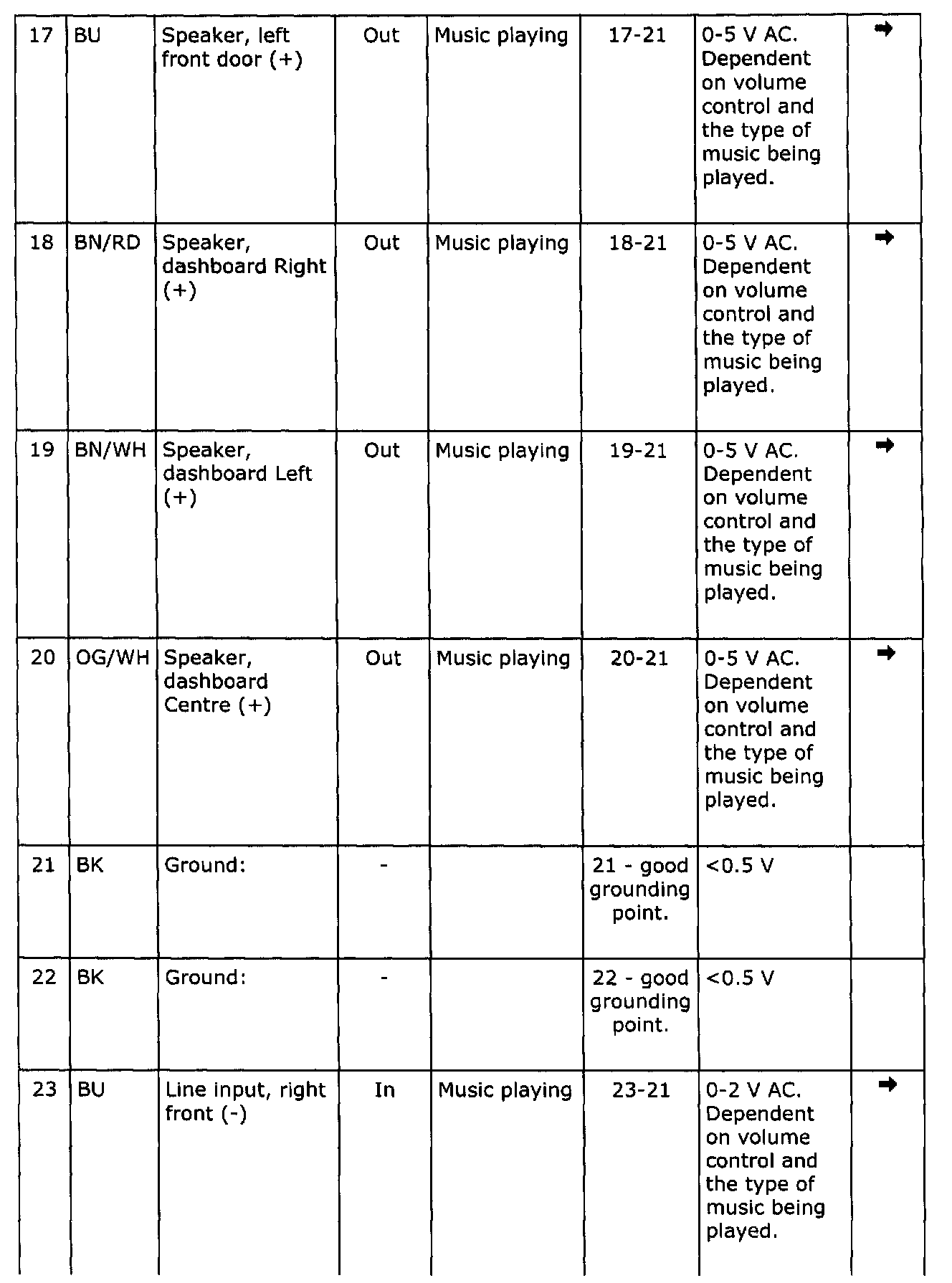

Pin No. 17 - 23:

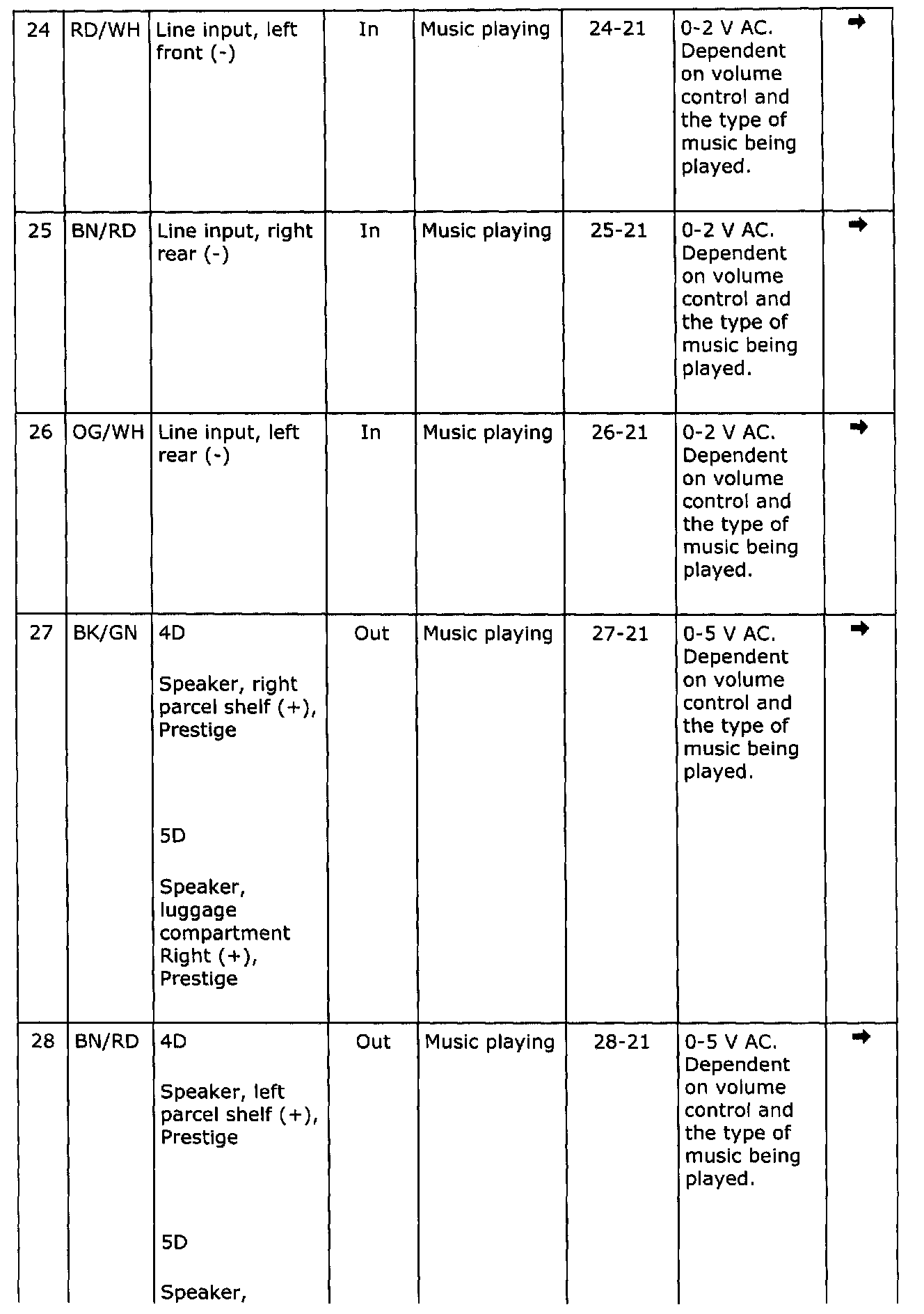

Pin No. 24 - 28:
Pin No. 29 - 36:

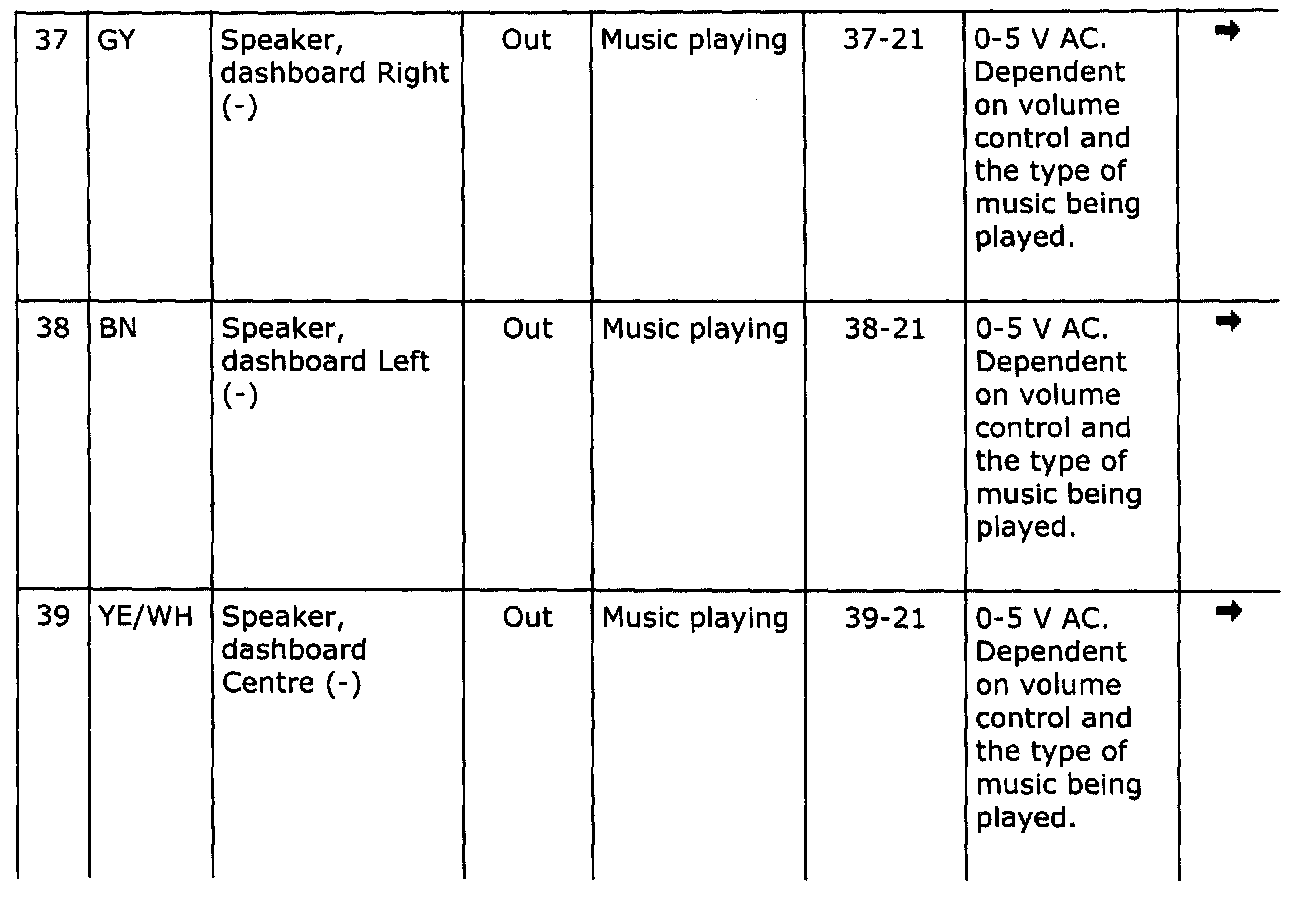

Pin No. 37 - 39:
