Scan Tool Testing and Procedures

Tech 2 Menu Structure

Diagnostic Trouble Codes (DTC)
Read Values / Activate
Immobilizer
Adjustment
Programming
System Information

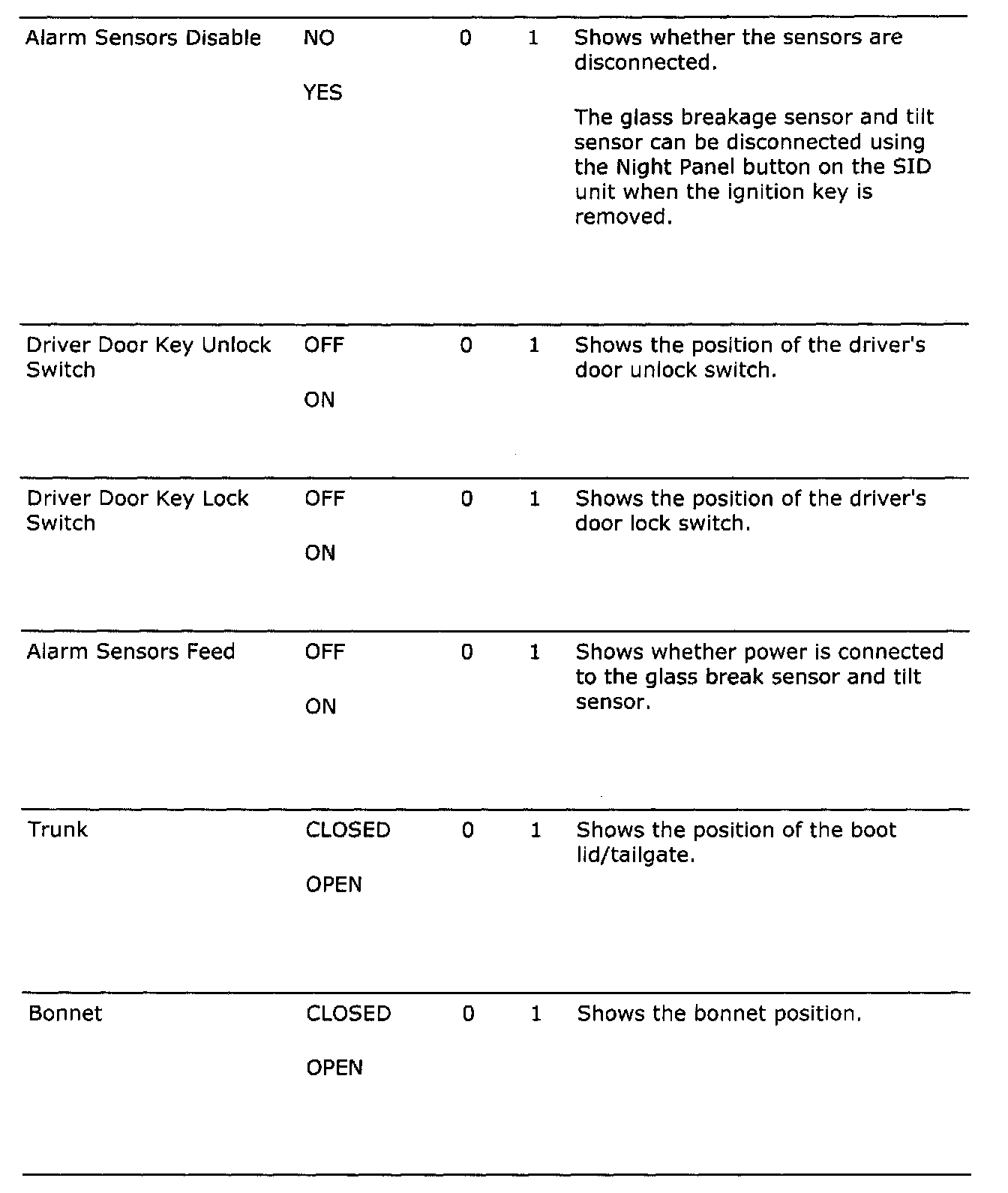

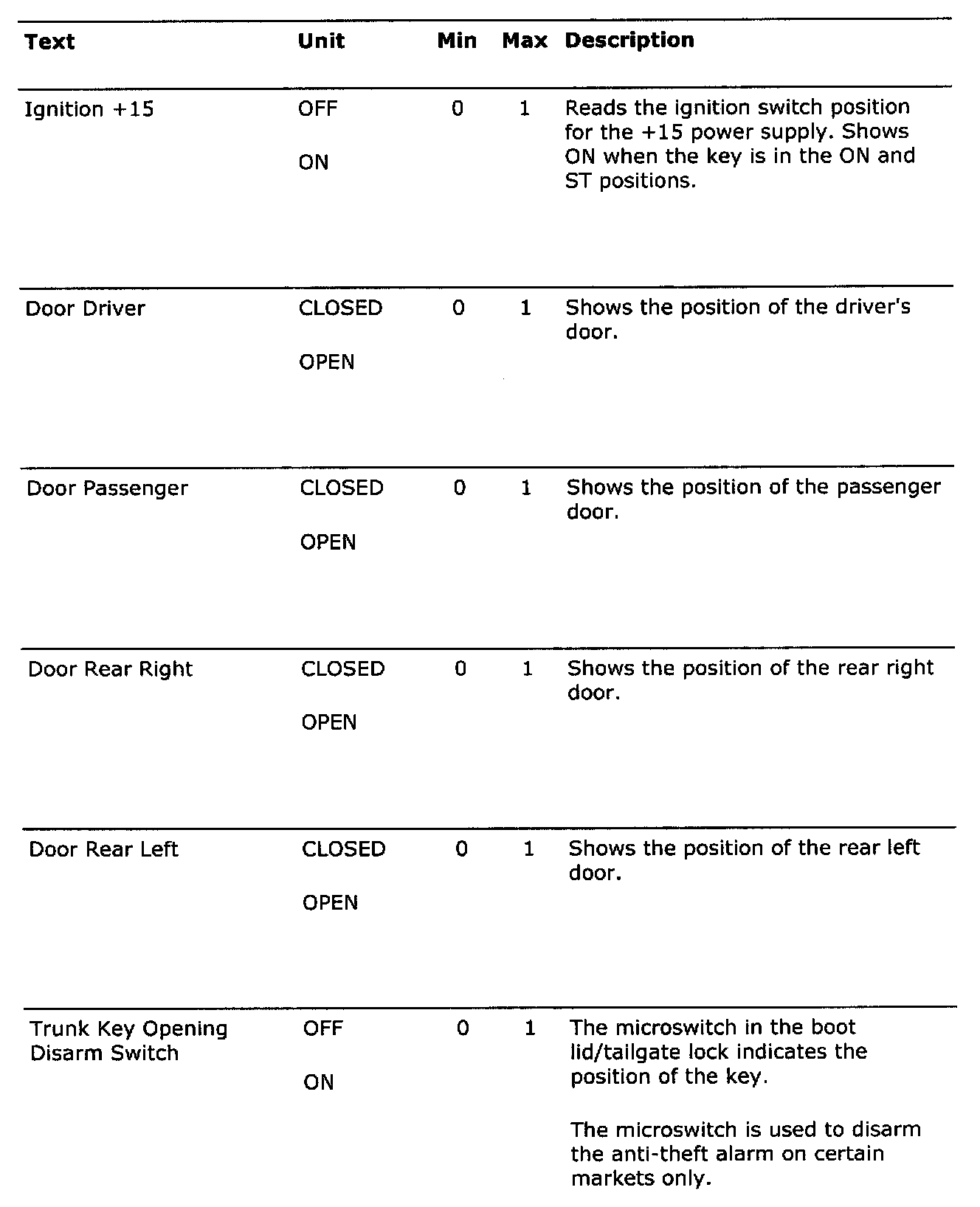

Menu "Read Values"

Part 1:

Part 2:

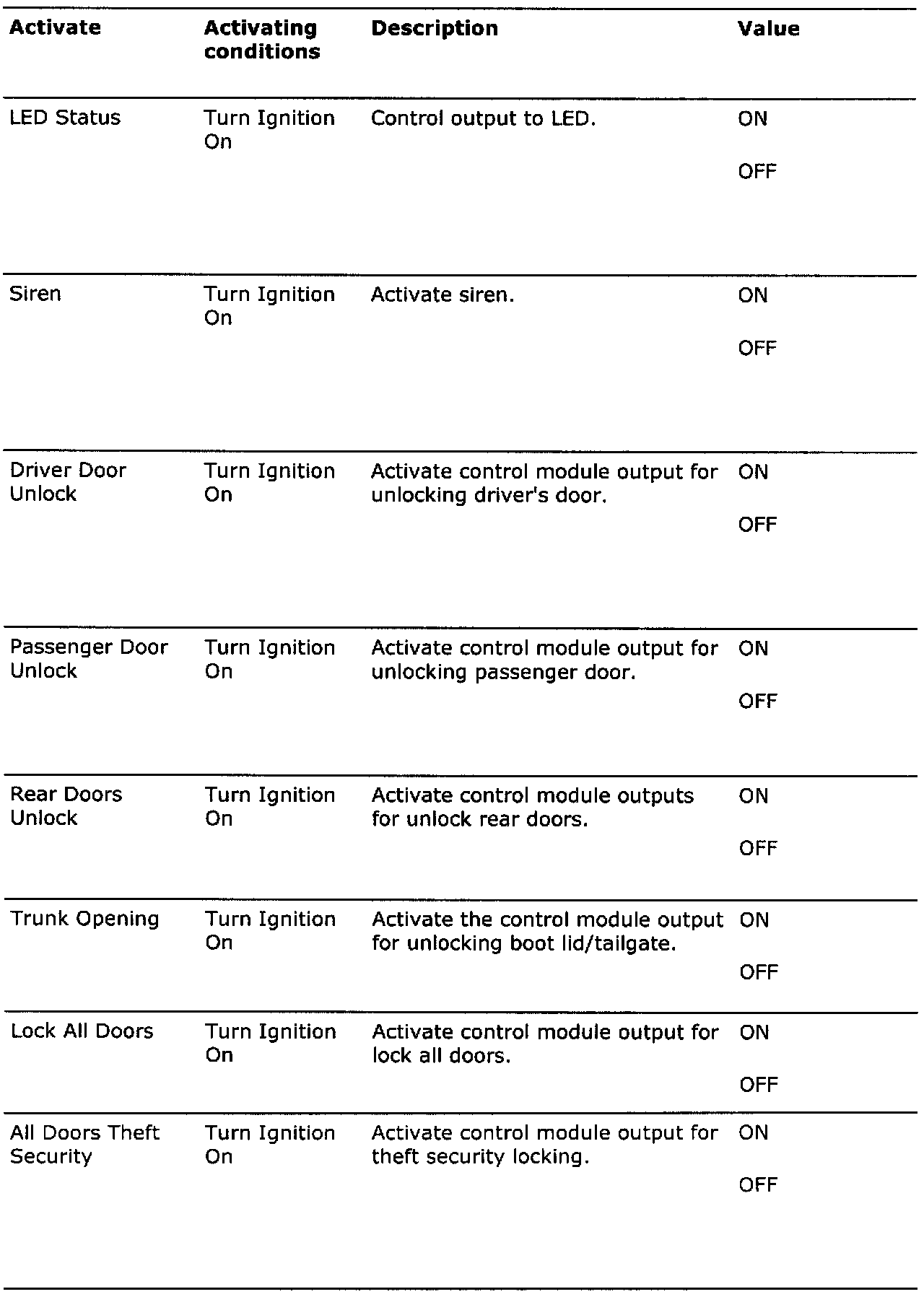

Menu "Activate"

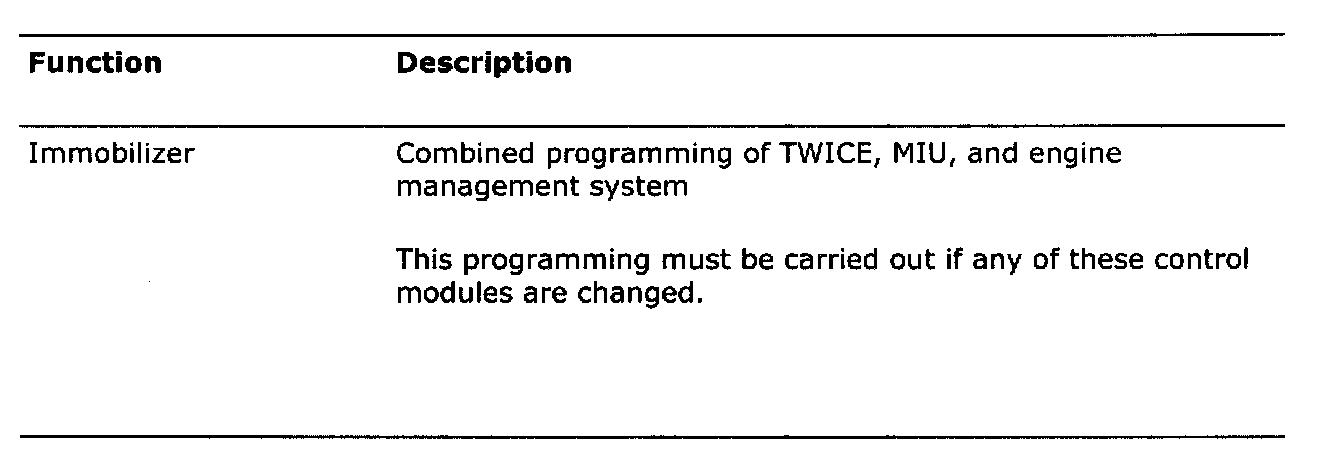

Menu "Immobilisation"

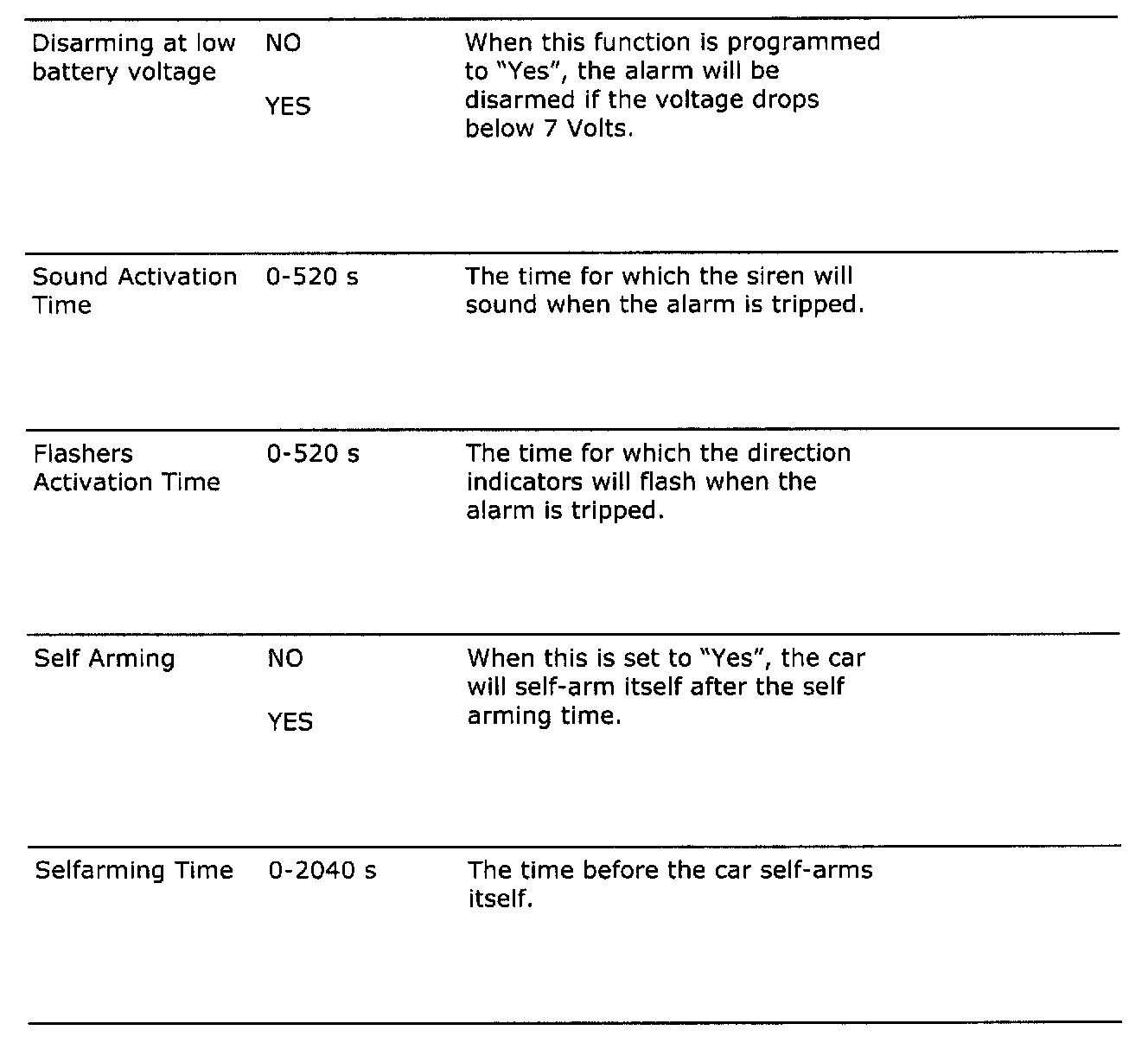

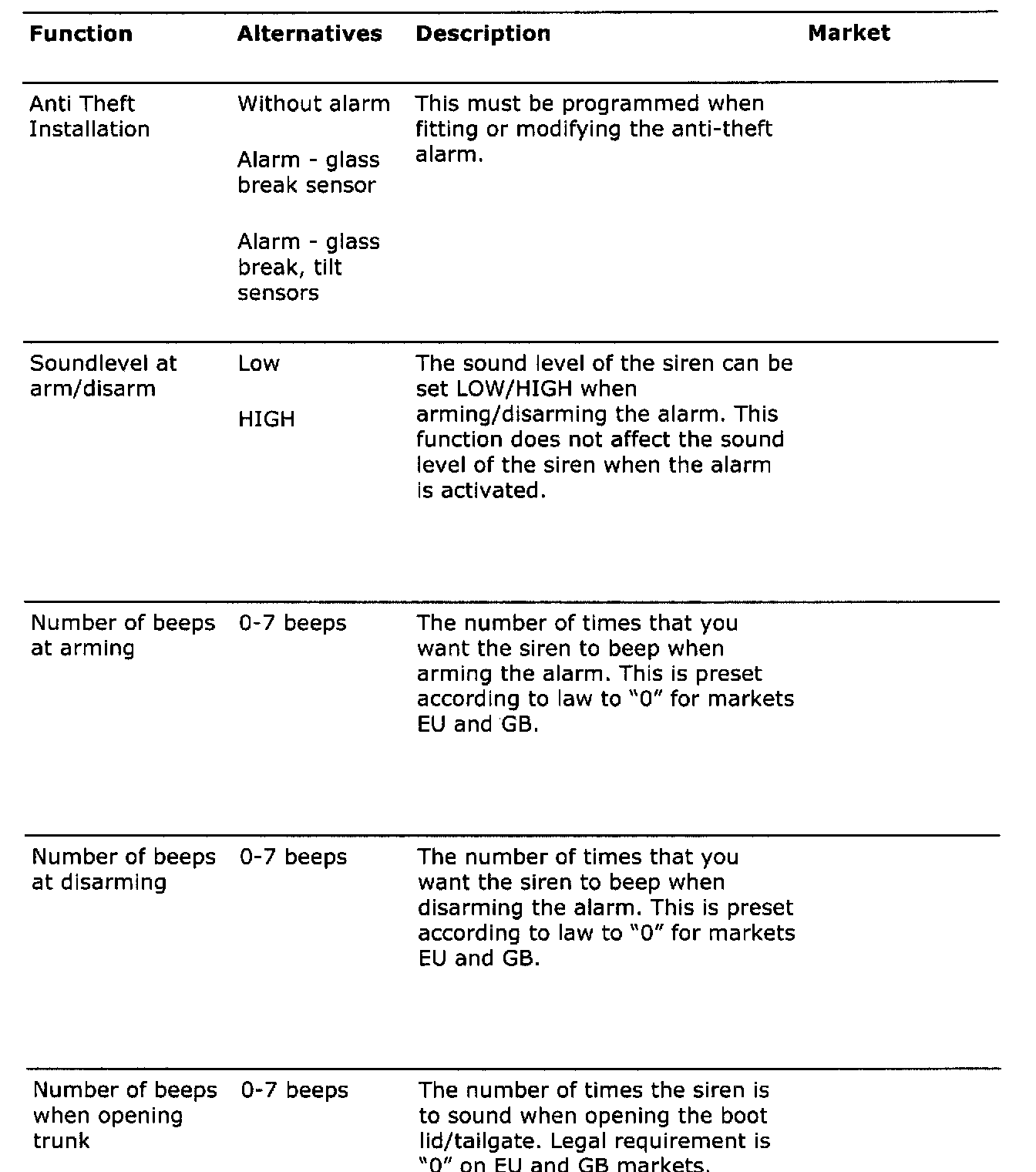

Menu "Adjustment"

Part 1:

Part 2:

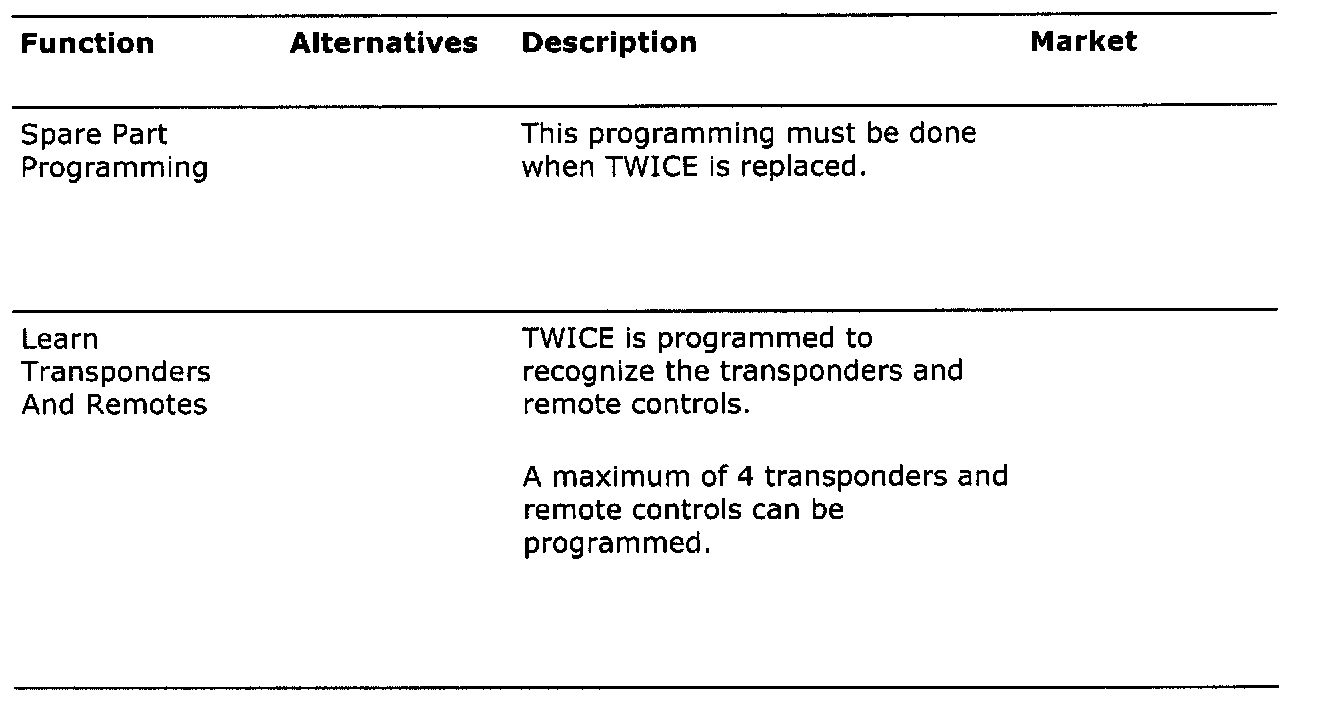

Menu "Programming"







Menu "System Information"

Text Function
SAAB Part Number: Shows SAAB's 7 digit part number.
Hardware Number: Shows the hardware number of the control module.
Hardware Version Number: Shows the control module version.
Software Number: Shows the control module software number.
Software Version Number: Shows the control module software version.
System Name: Shows the system name.
