Rear-Seat center Belt, 4D

To remove







1 Fold down the backrest.
2 Remove the head restraints from the seat.
3 Remove the speaker grilles on both sides.
4 Remove the 3 clips at the front of the parcel shelf.

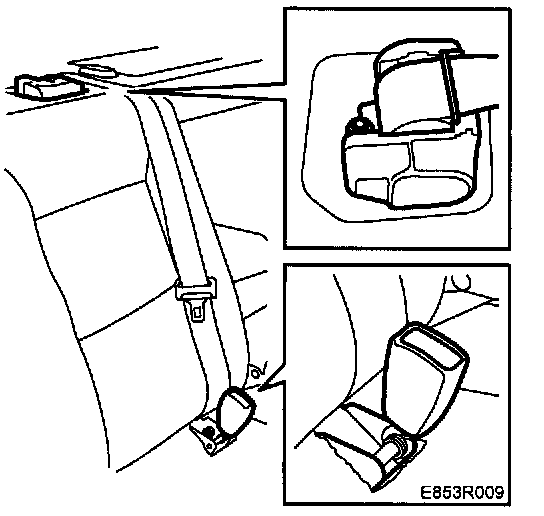

5 Lift out the parcel shelf trim and pull out the center belt.
6 Unscrew the lower belt mounting, 1 nut.
7 Remove the center belt from the parcel shelf, 1 nut.

To fit


IMPORTANT
Ensure that the belt runs correctly.


Fit in reverse order.
Check that the center belt runs in front of the locating pin and backrest.

Tightening torques:
Inertia reel mounting nuts 45 Nm (33 lbf ft).
Floor mounting 45 Nm (33 lbf ft)
