Ground Locations




Grounding point G30


G30:

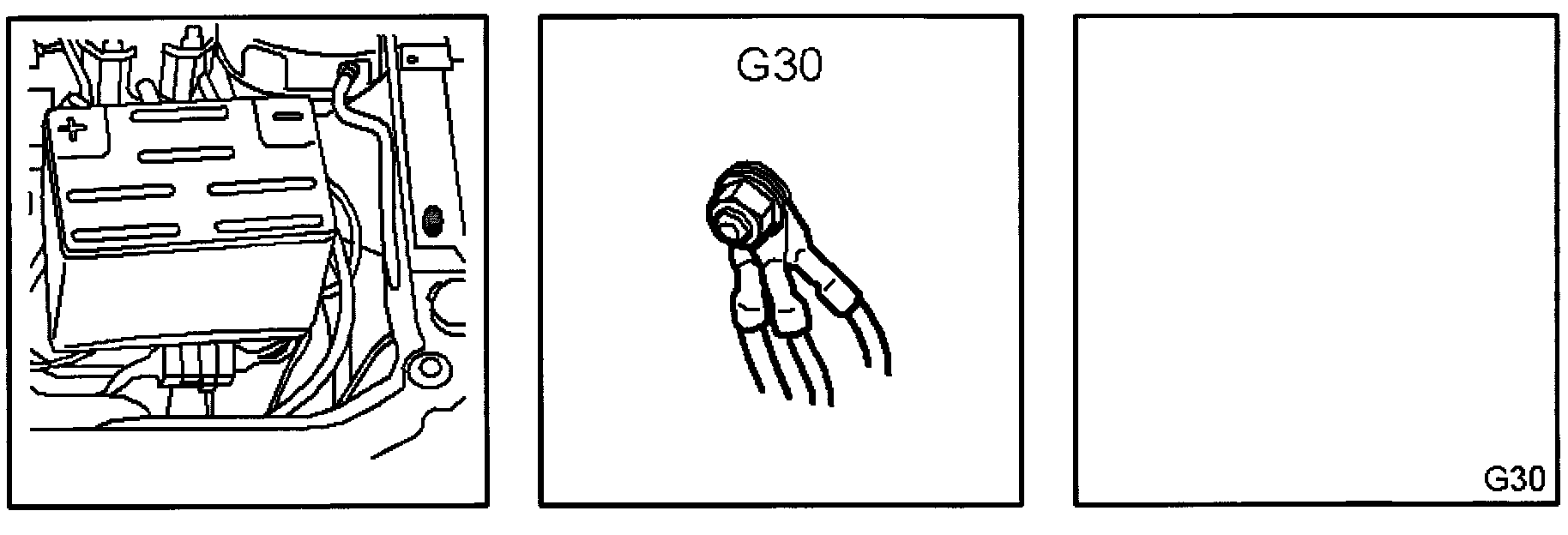

Location: In the engine bay on the side panel in front of the left-hand wheel housing.

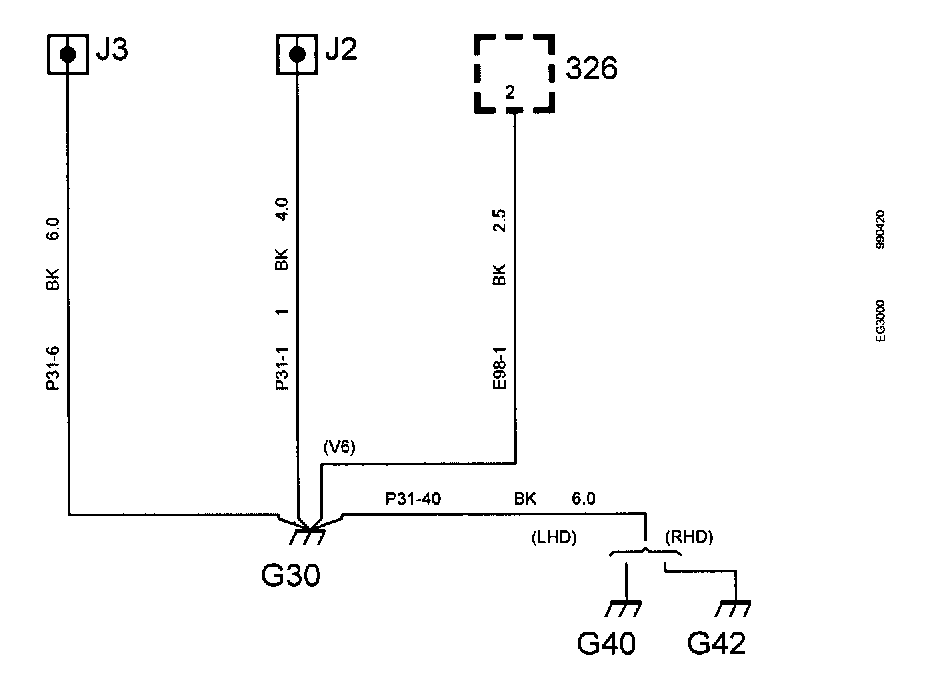

Part 1:

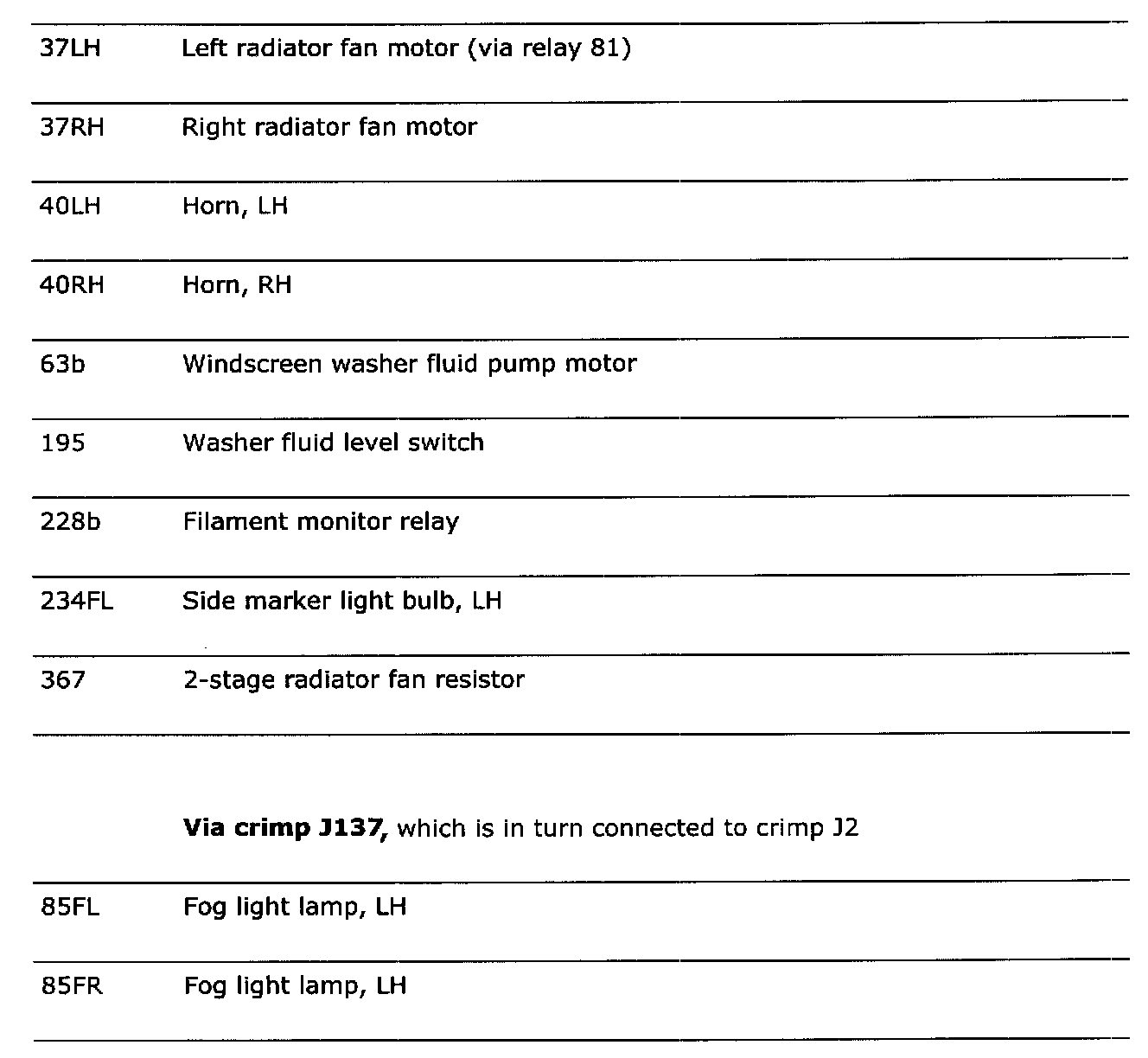

Part 2:
