Tech 2 Menu Structure, DTC Menu, Read Value, Activate, Sys Info

Tech 2 Menu Structure

Diagnostic Trouble Codes
Read Values/Activate
Snapshot
System Information

Diagnostic Trouble Code Menu

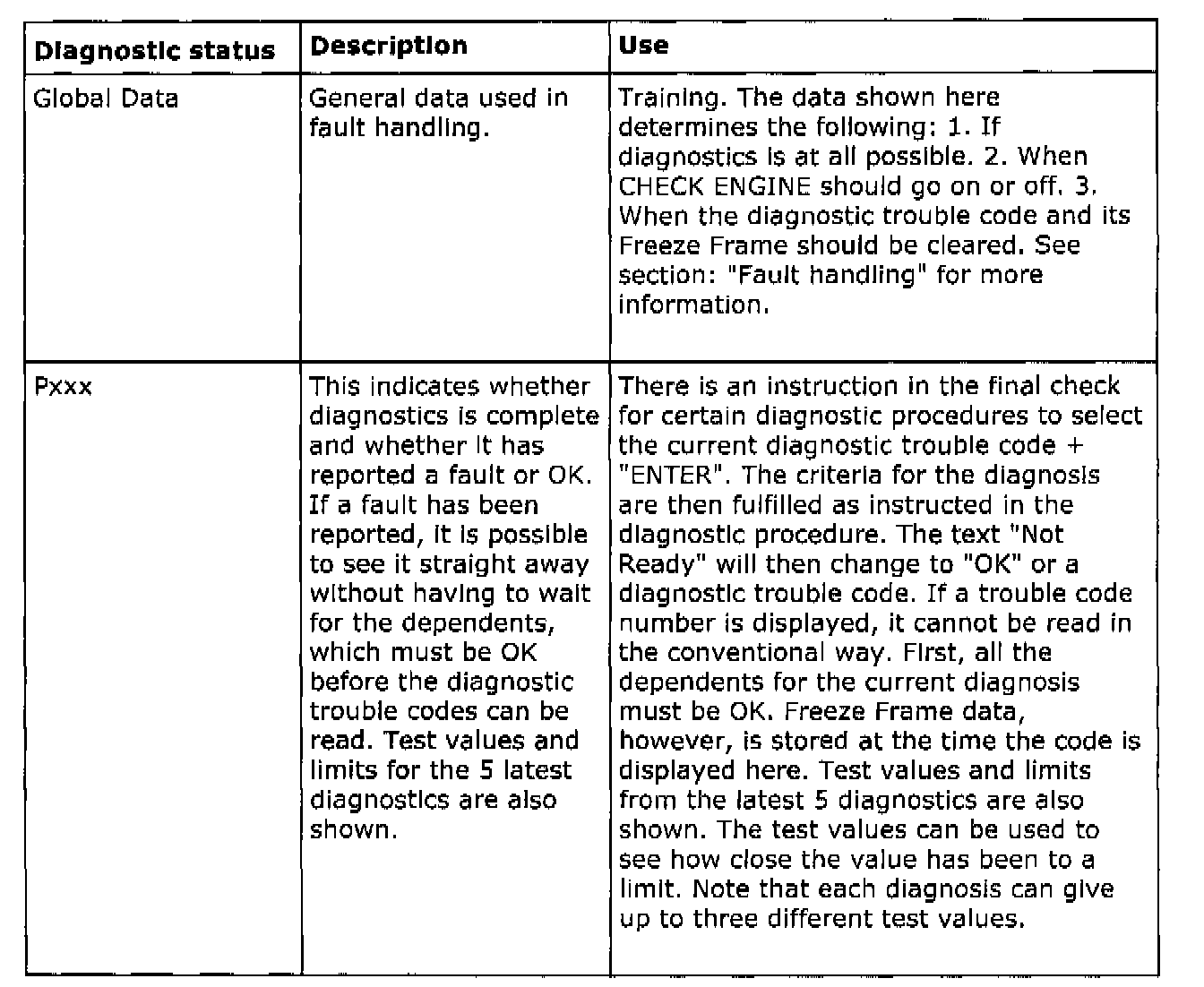

Diagnostic Status

Current information and history from diagnostics with dependents.

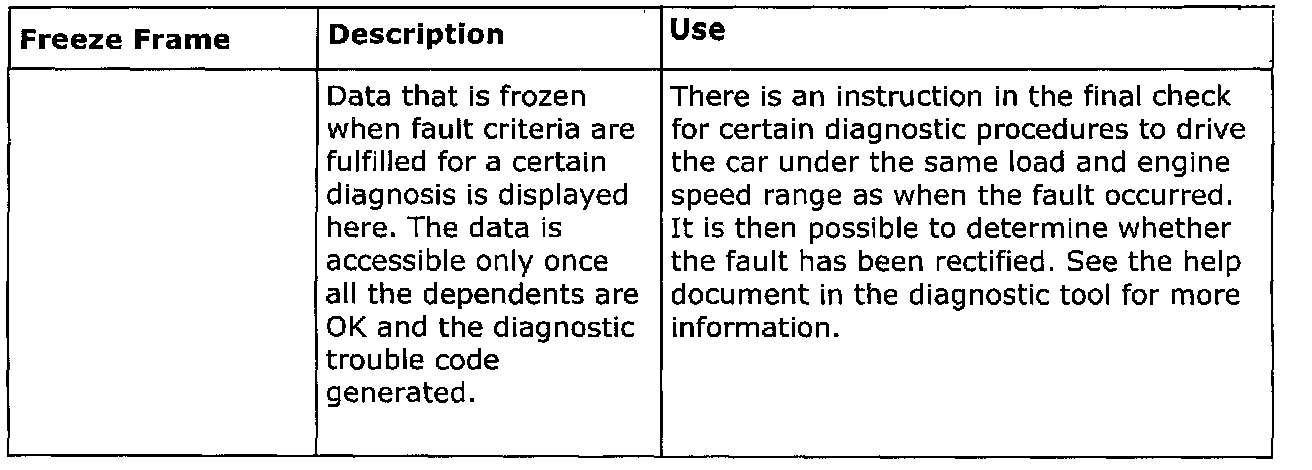

Freeze Frame

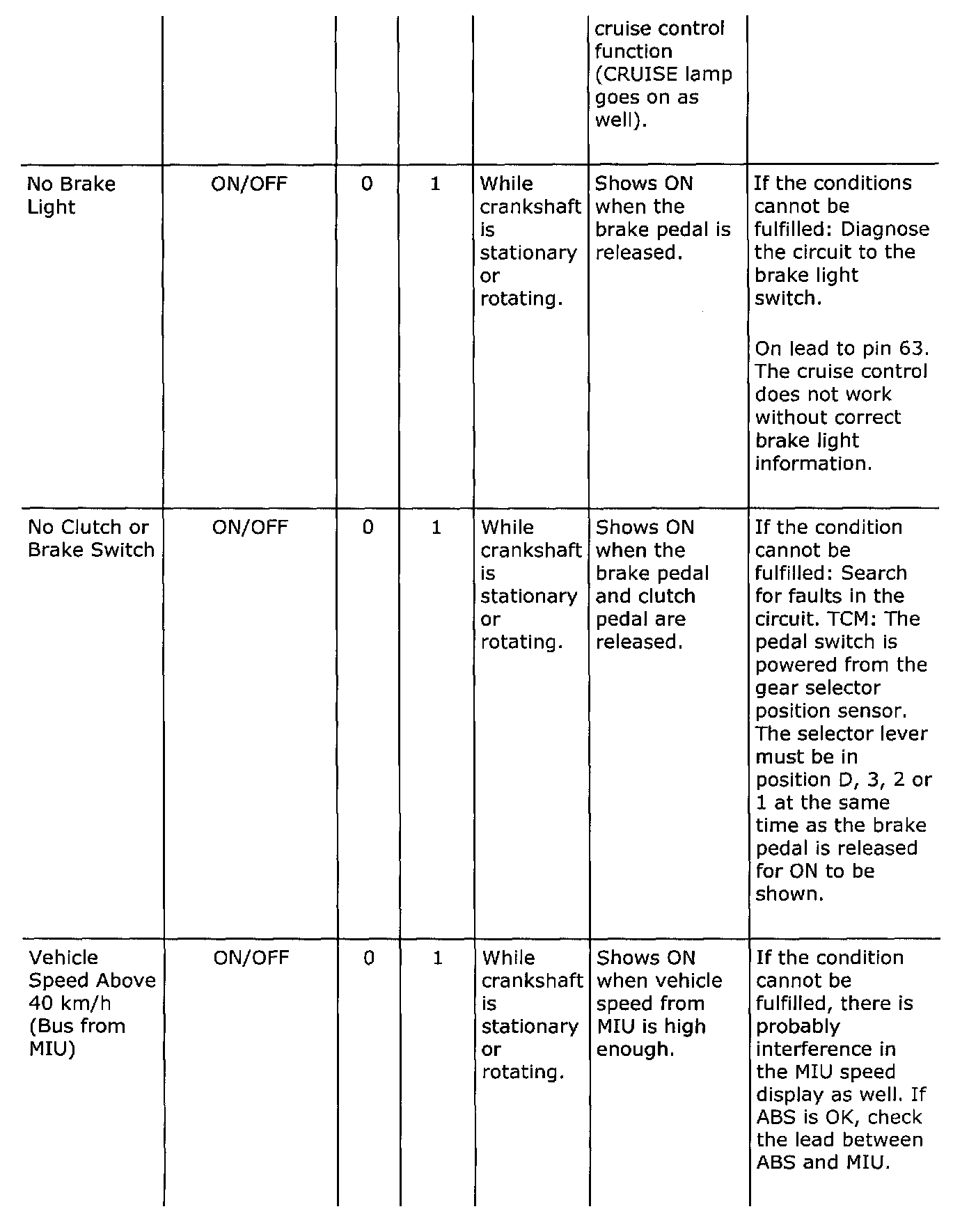

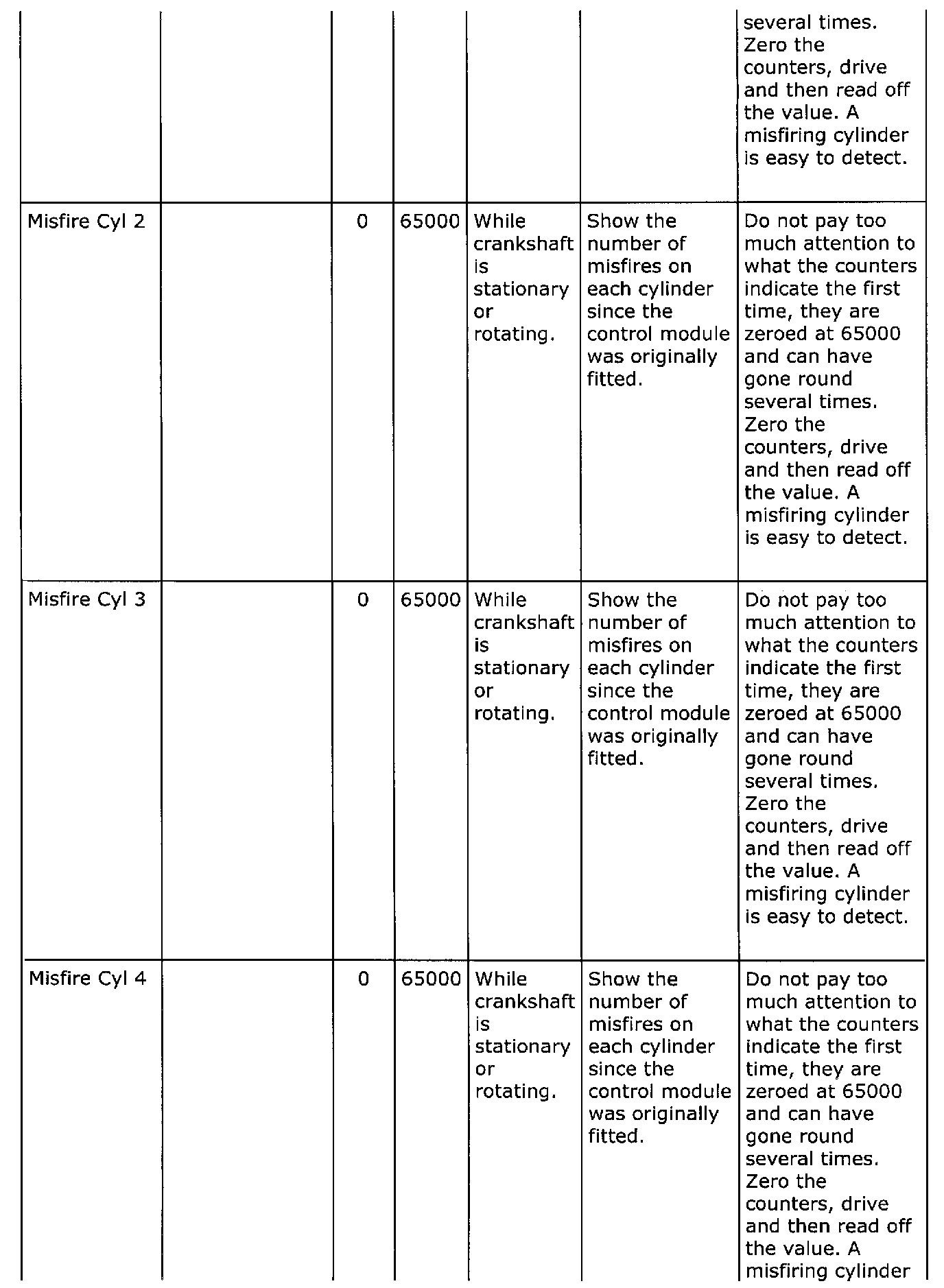

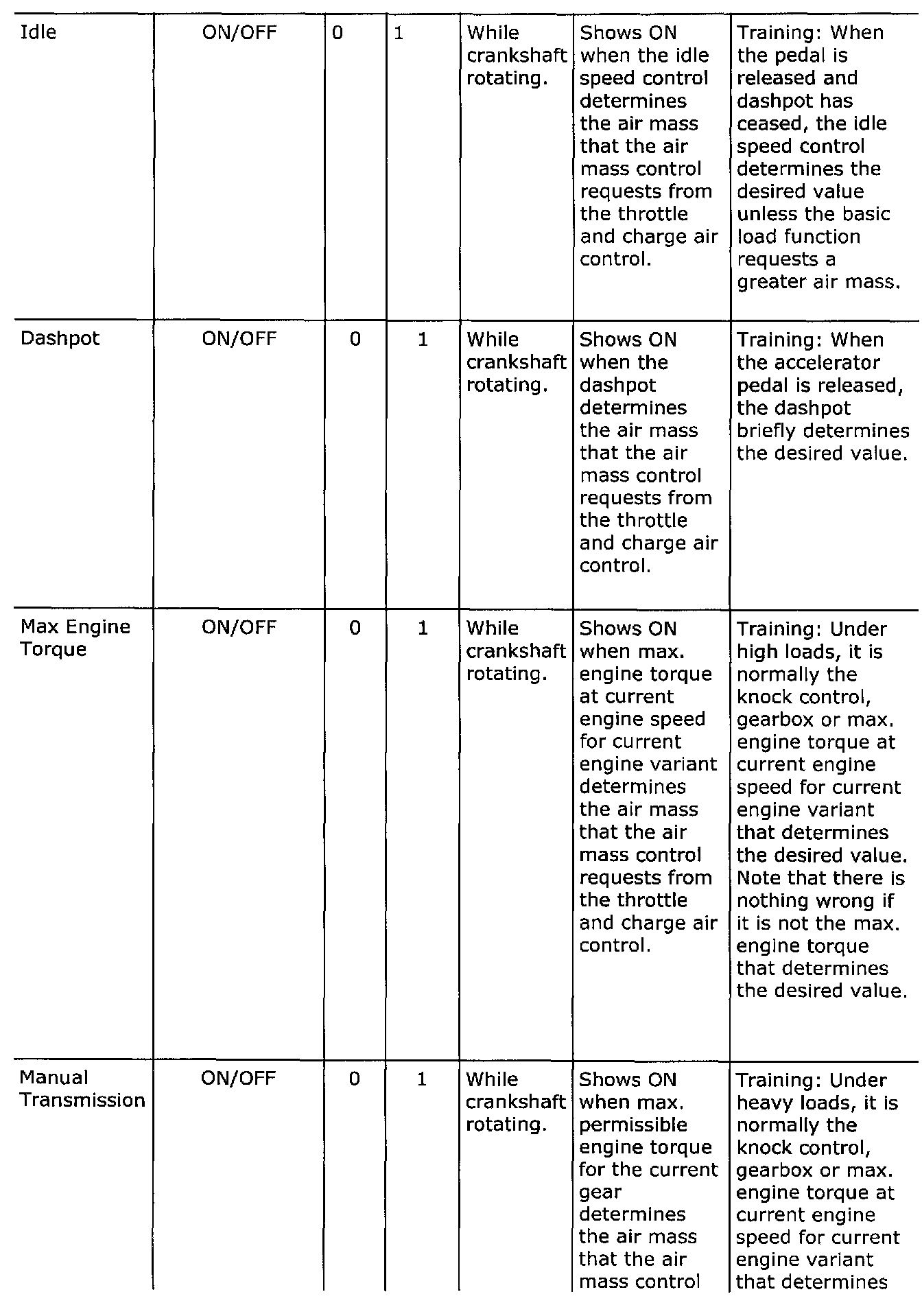

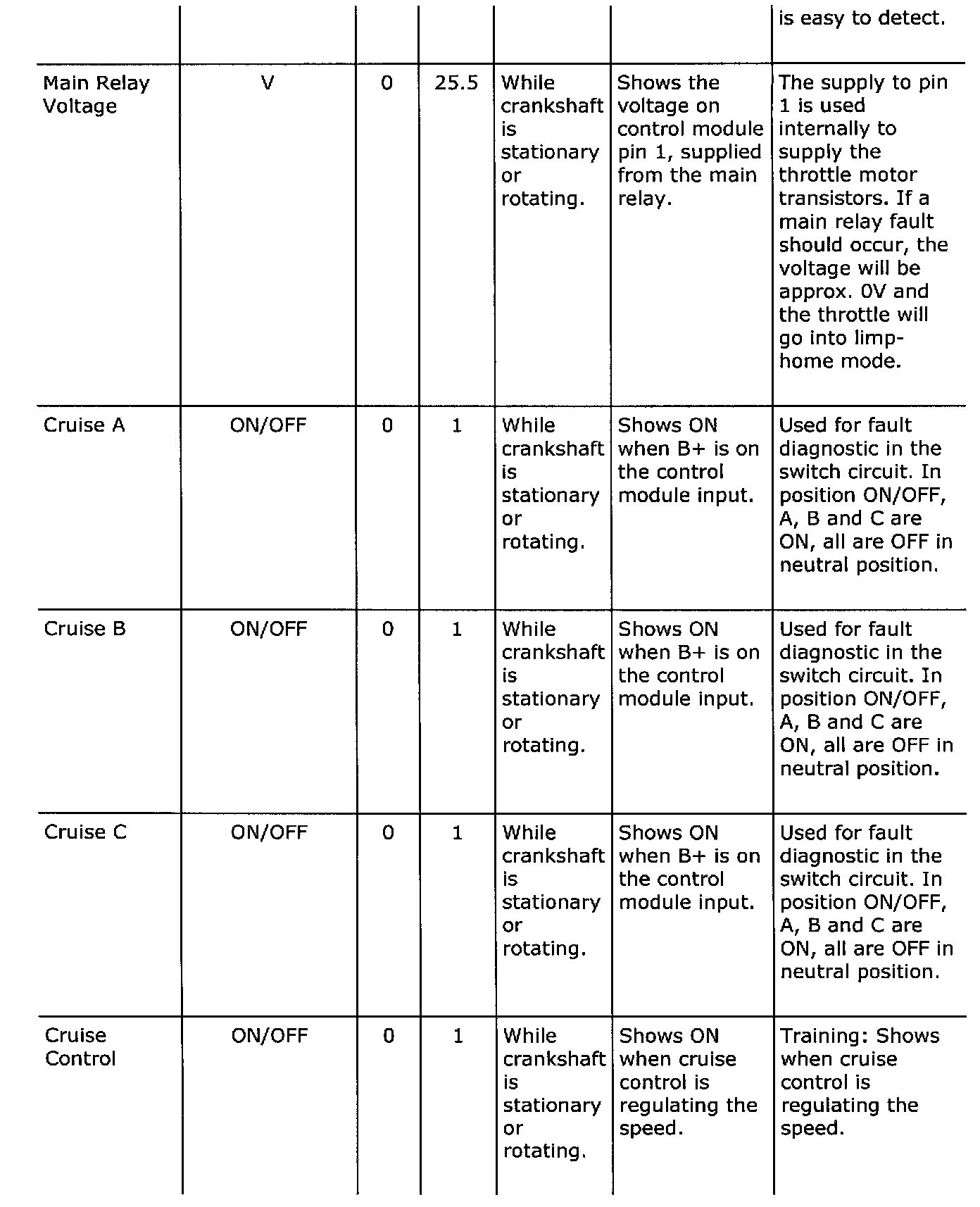

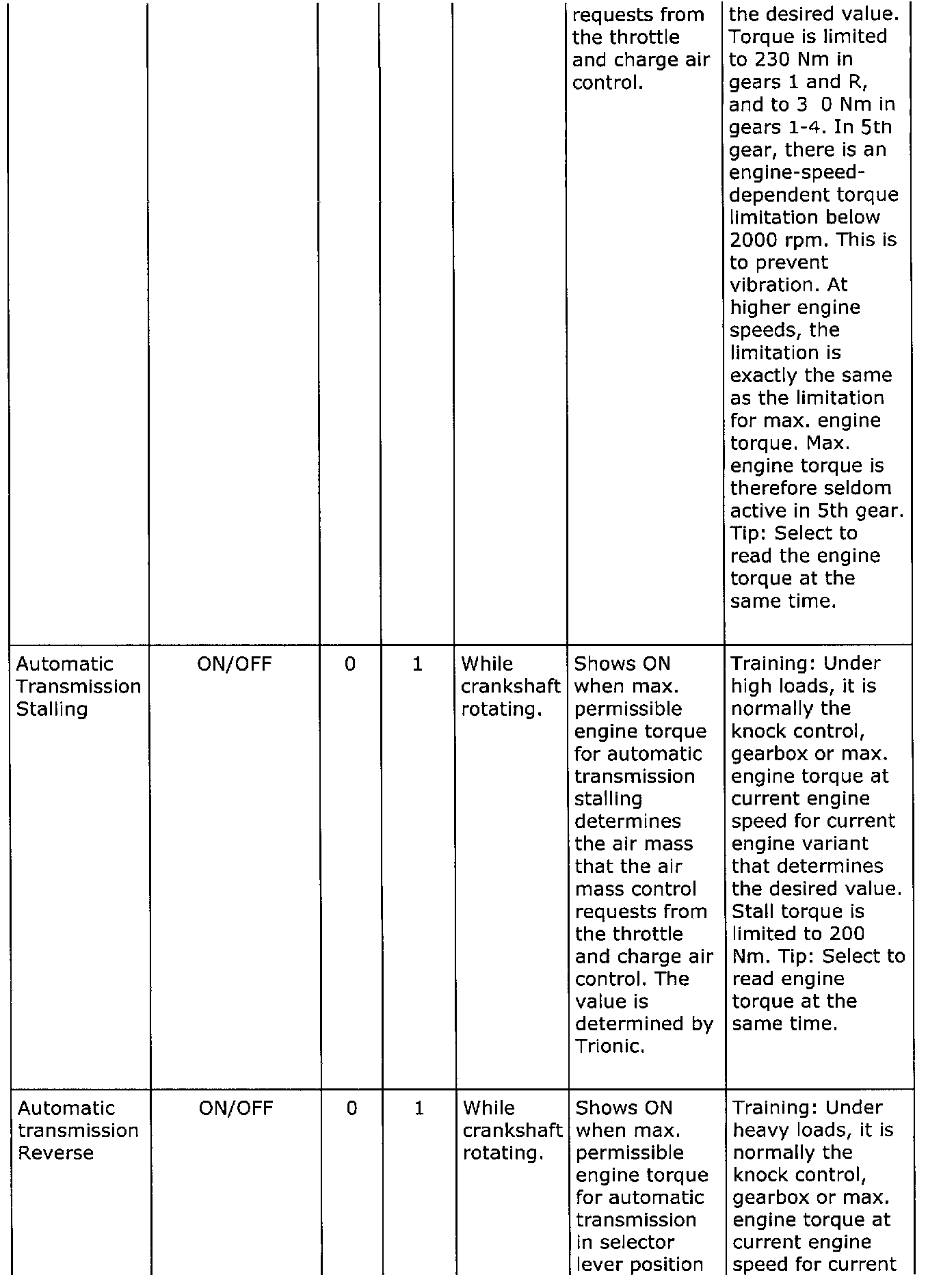

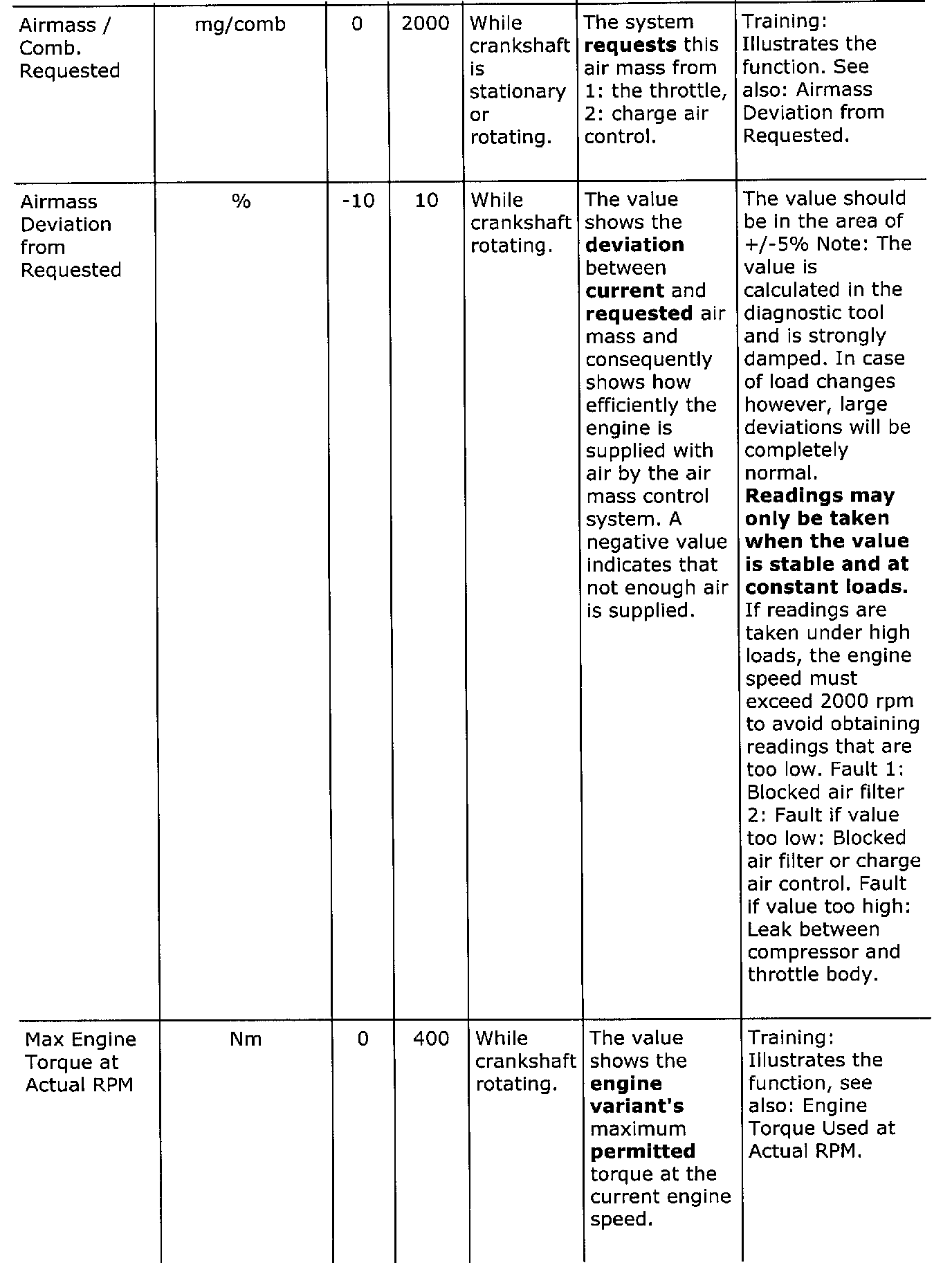

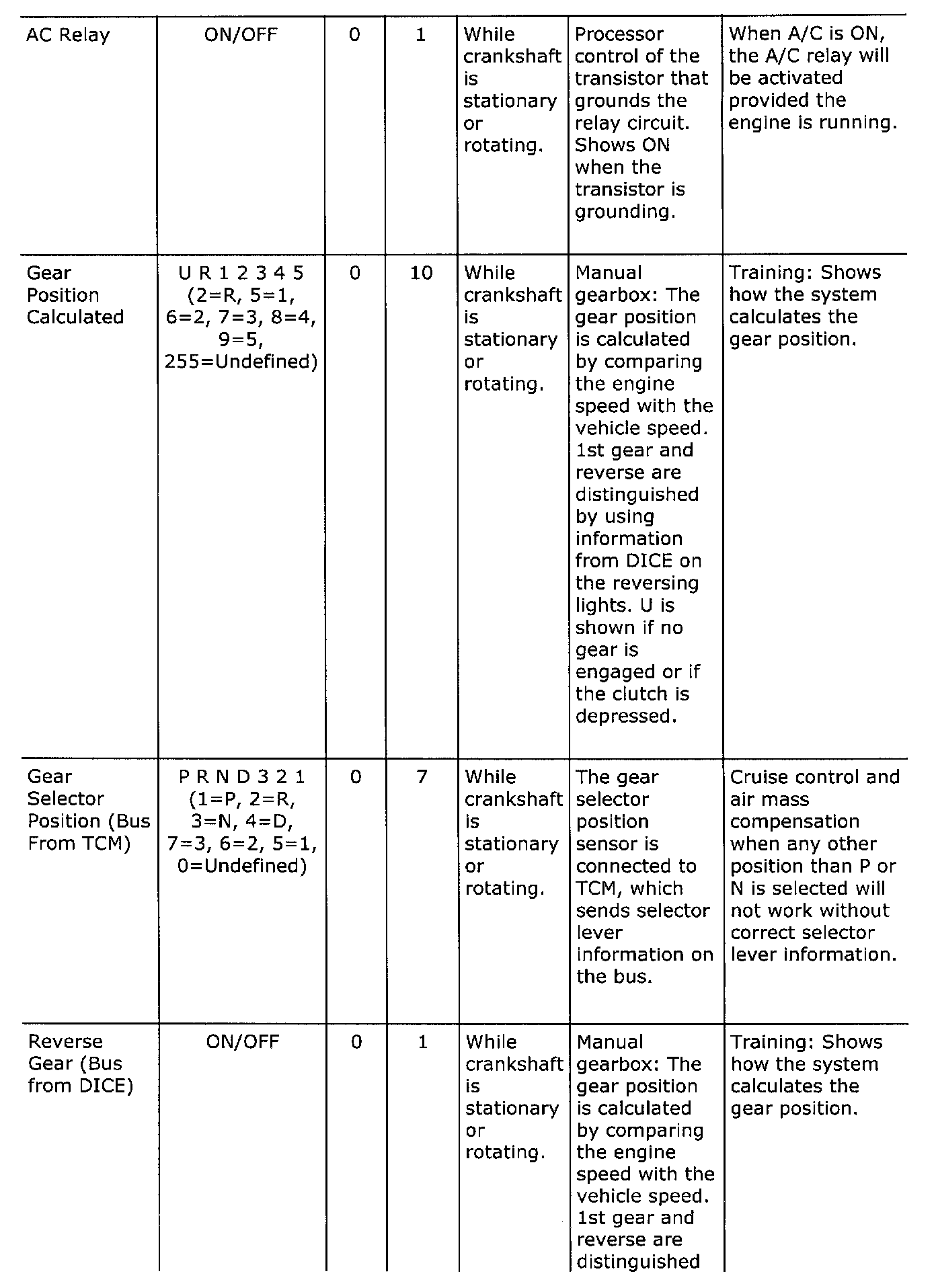

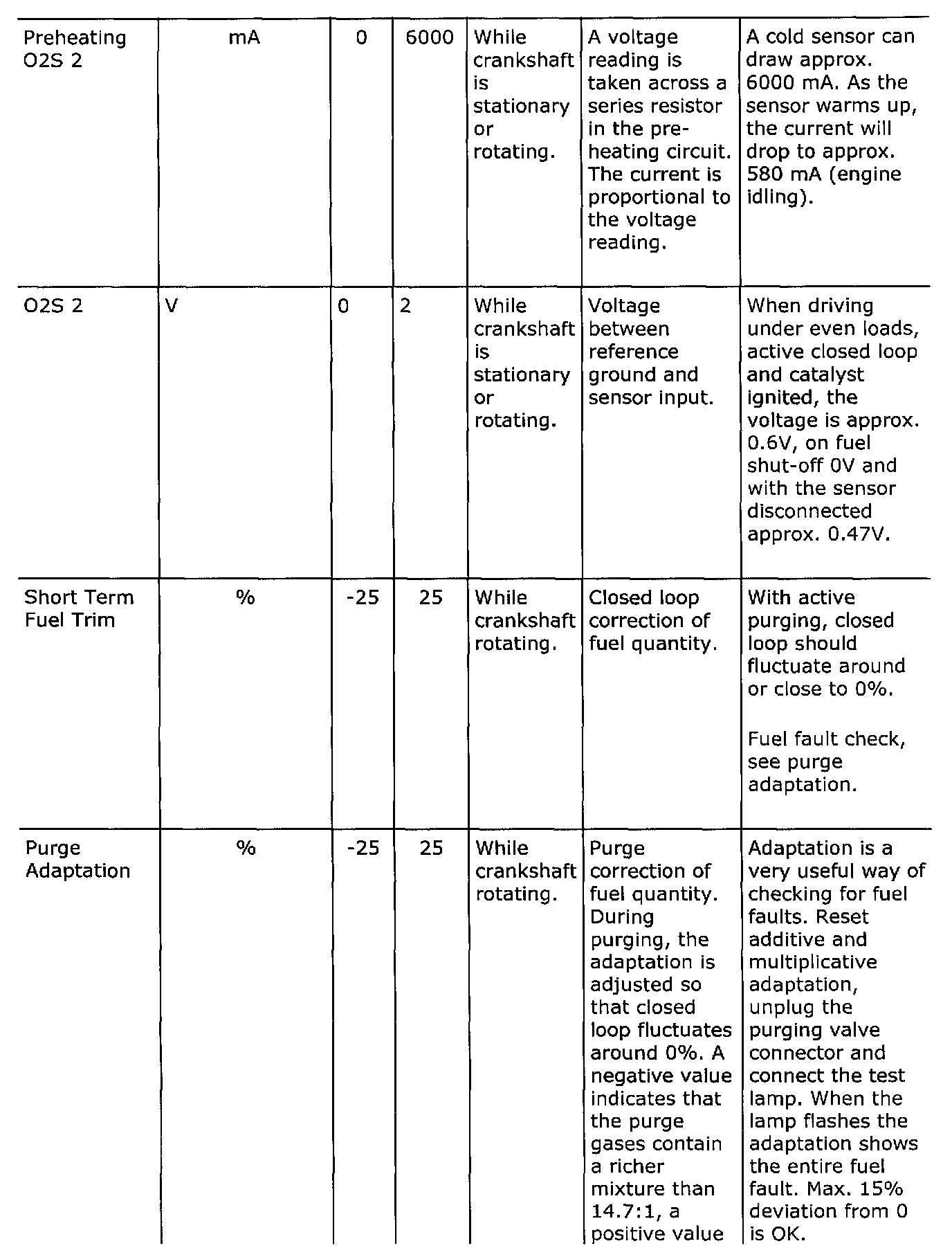

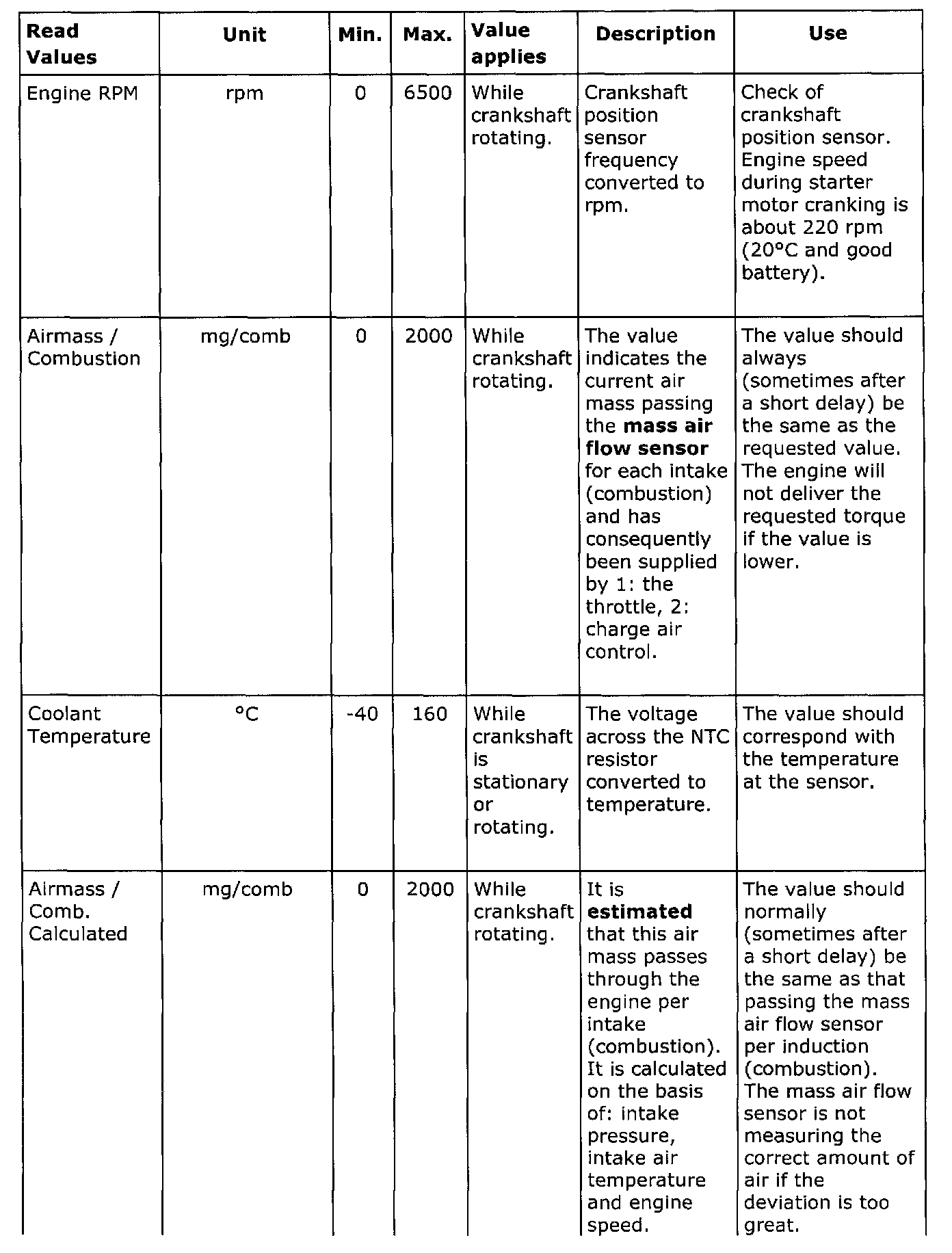

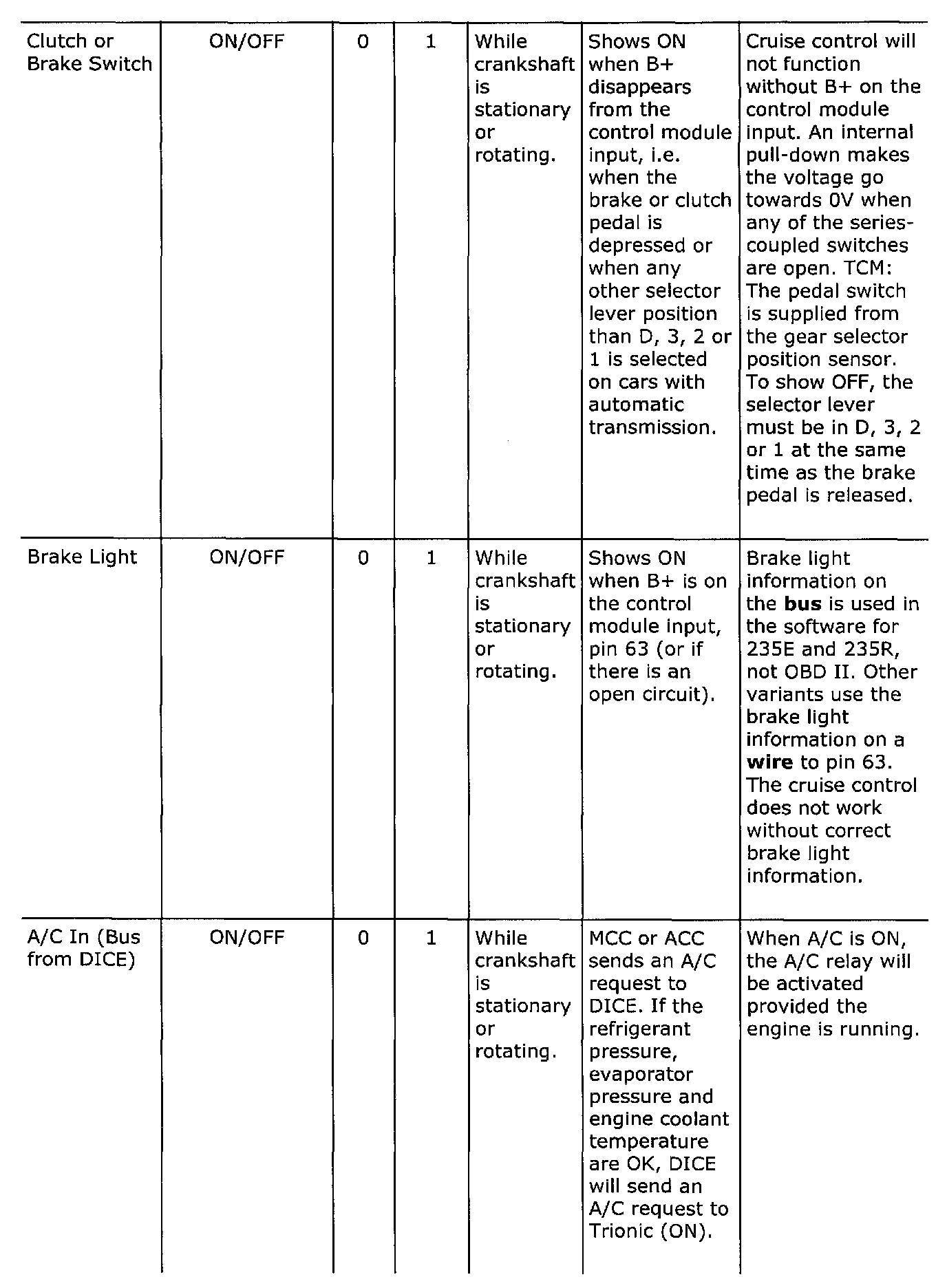

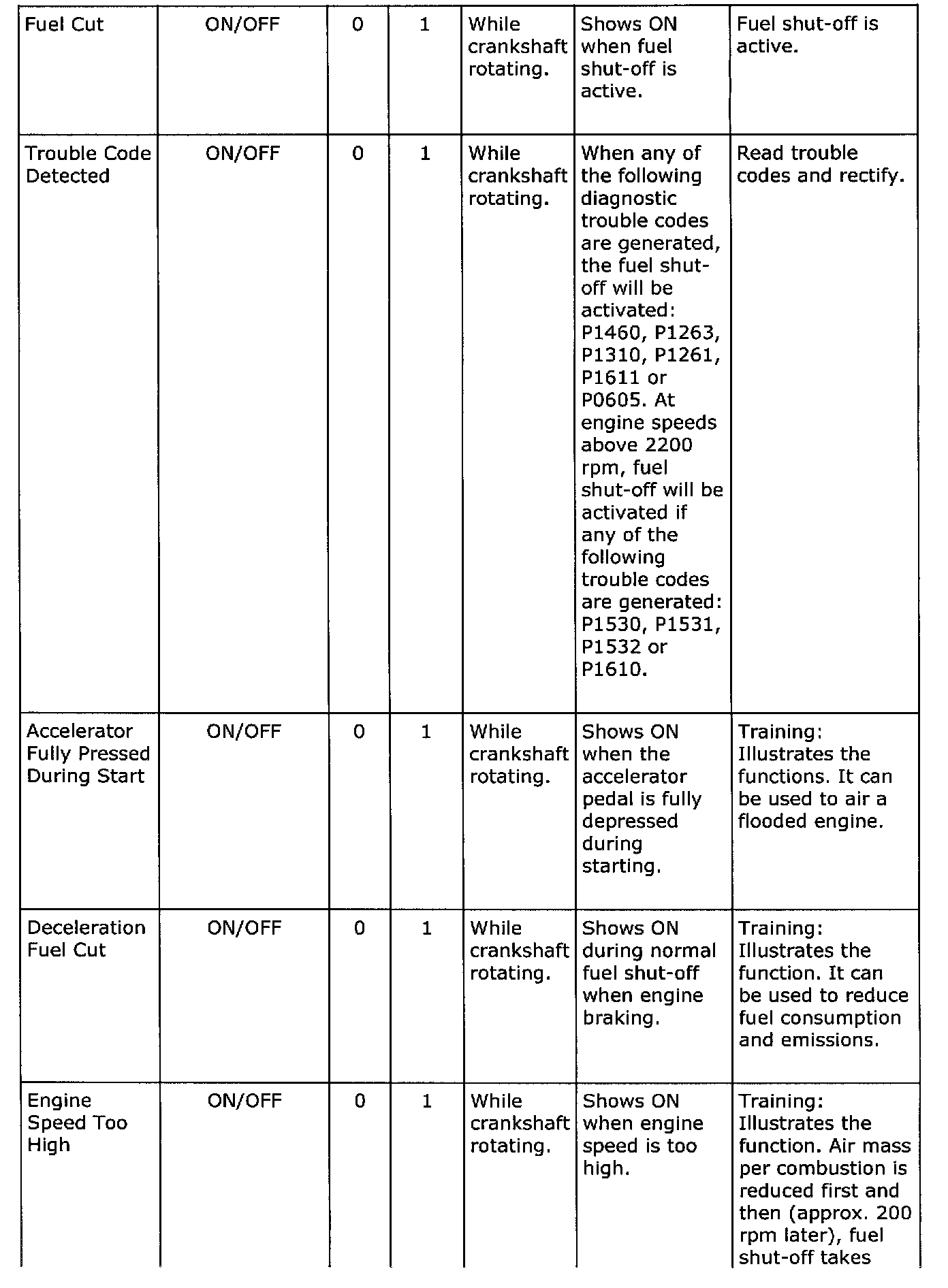

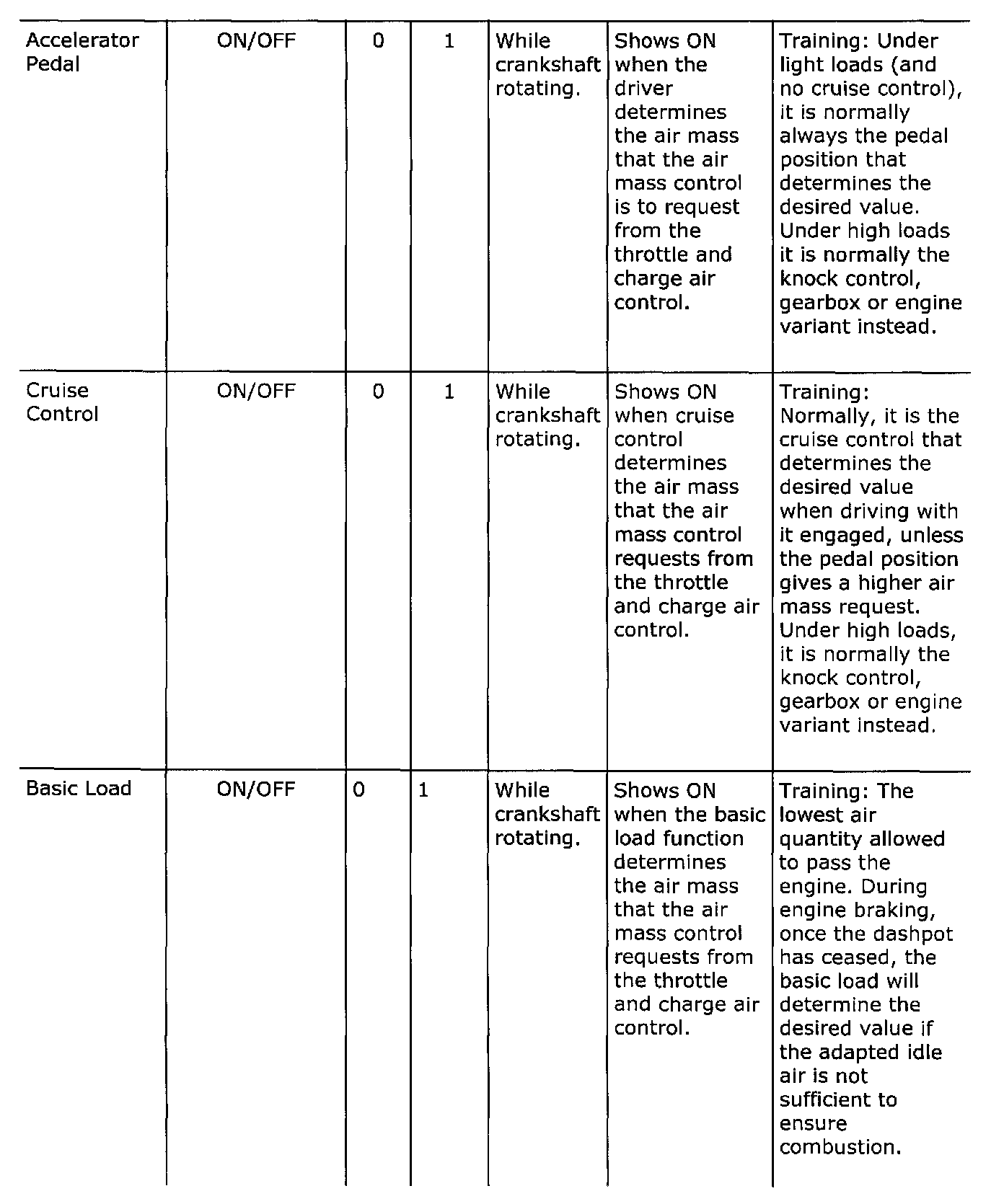

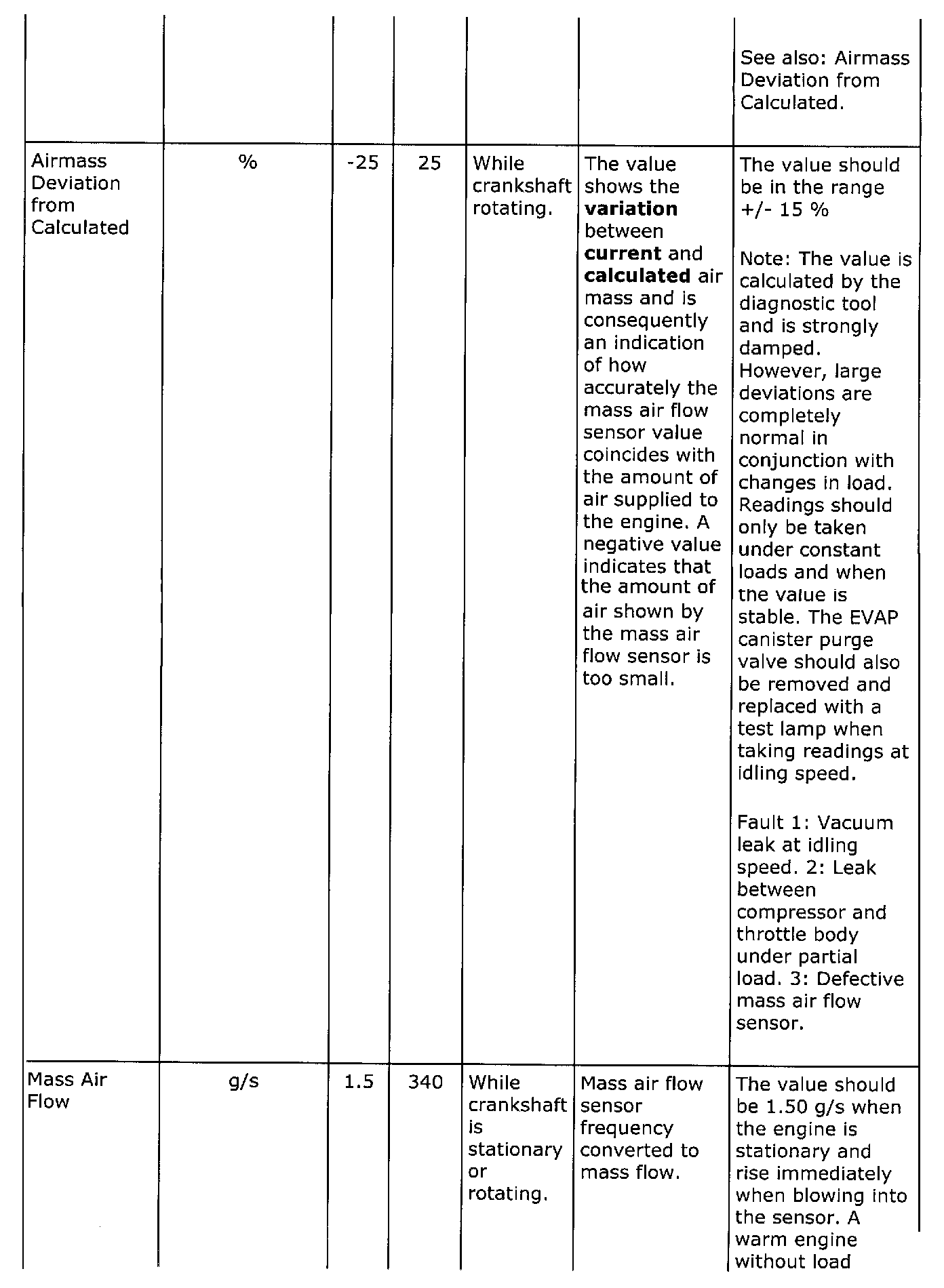

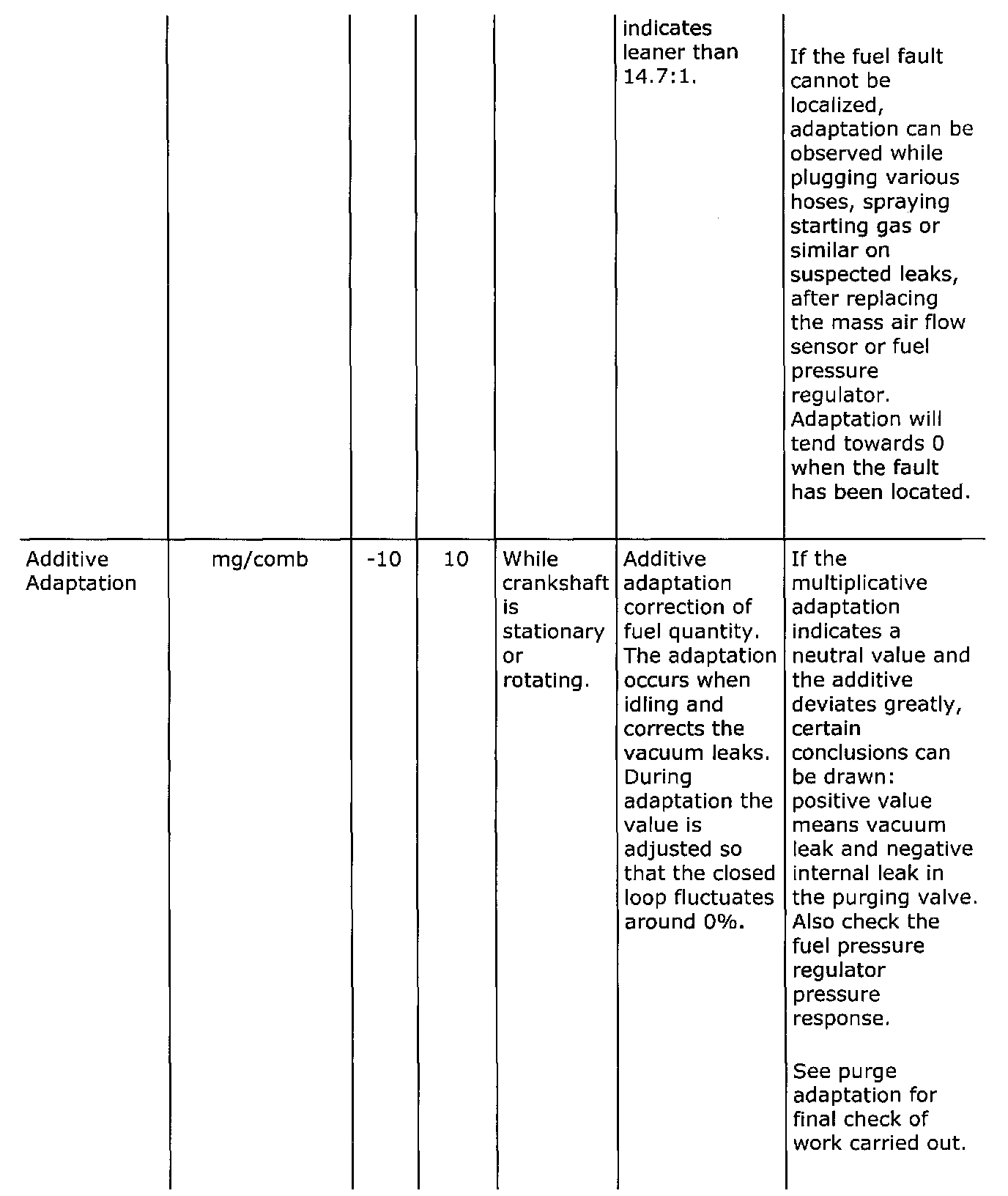

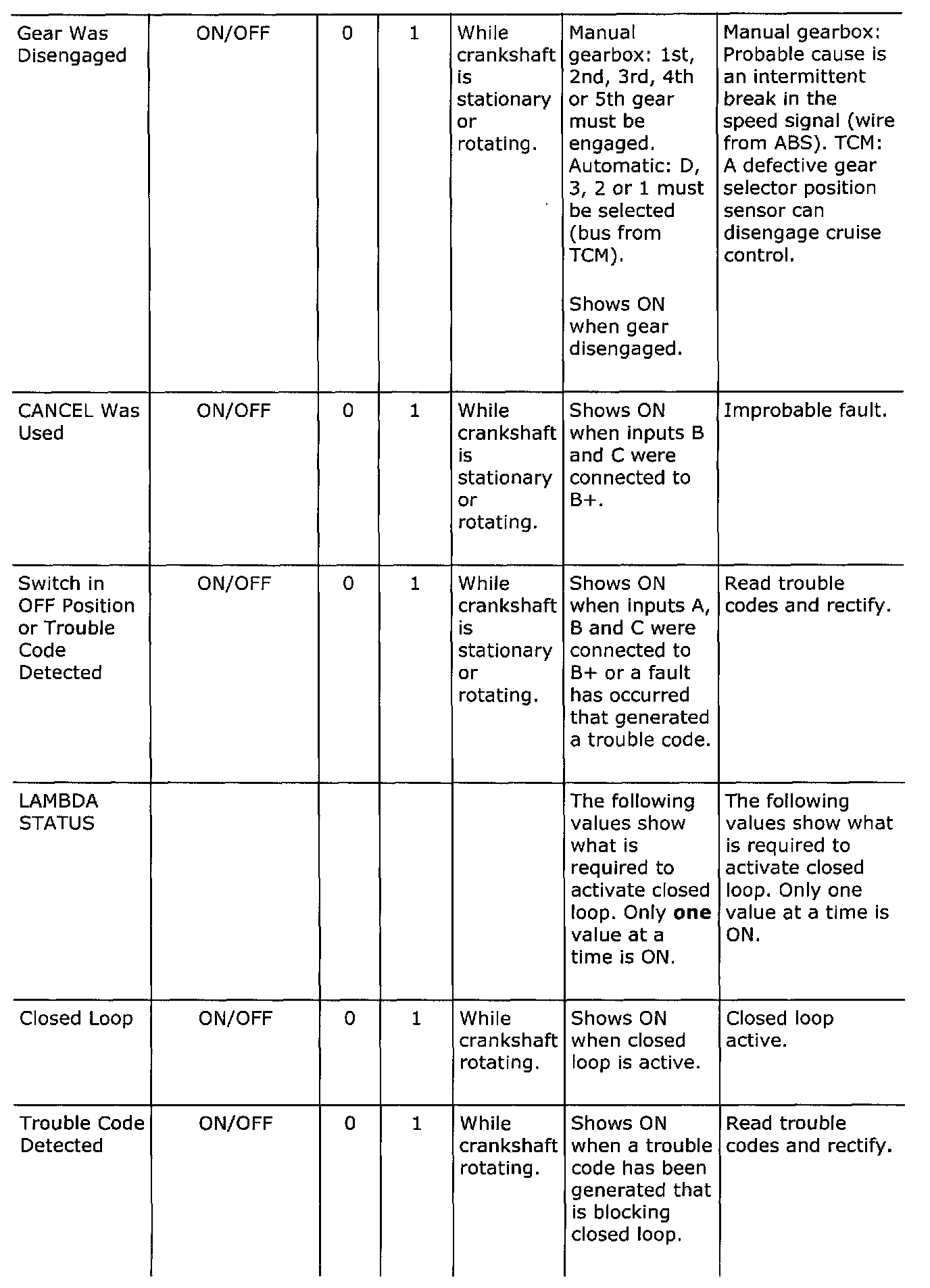

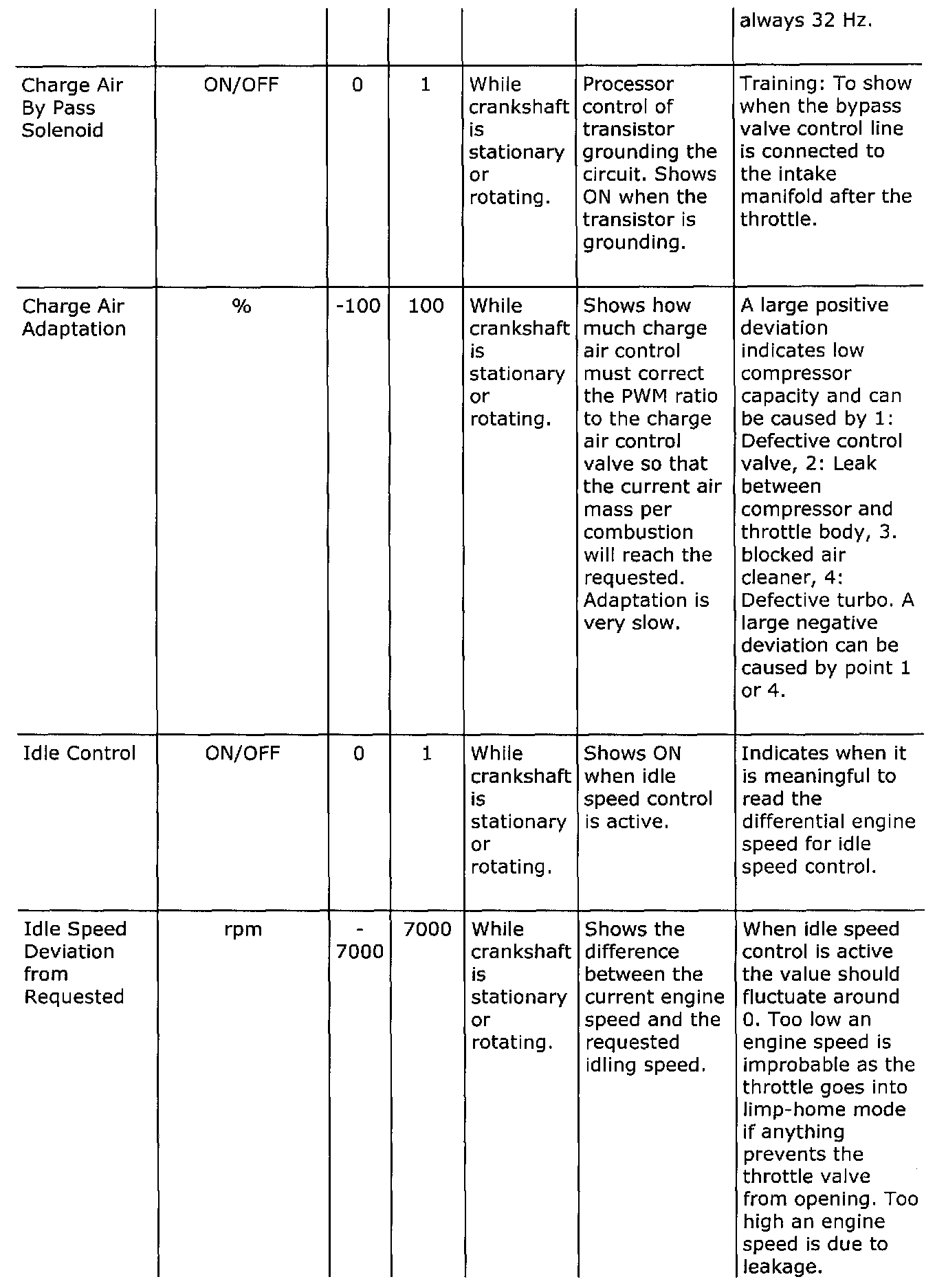

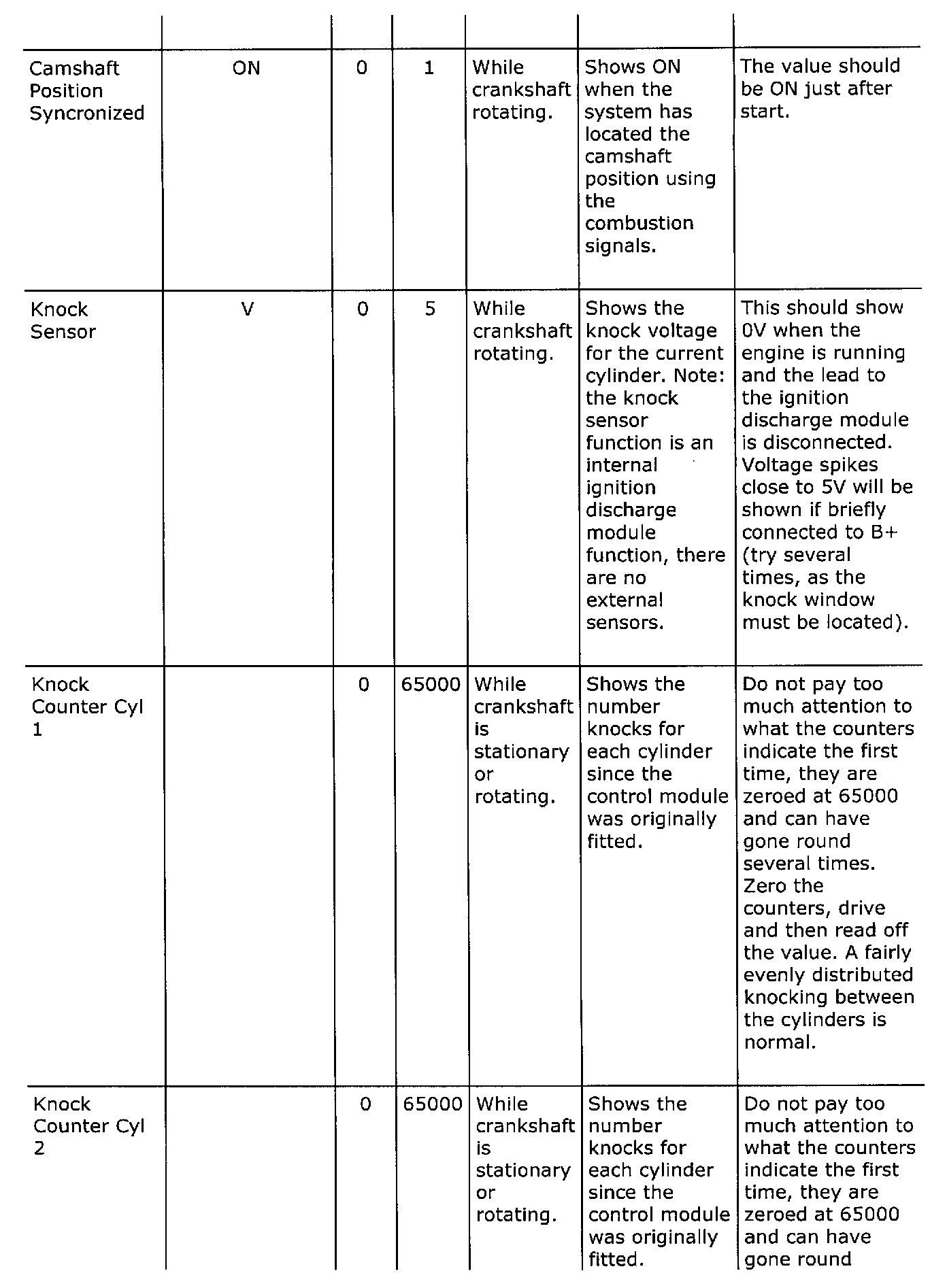

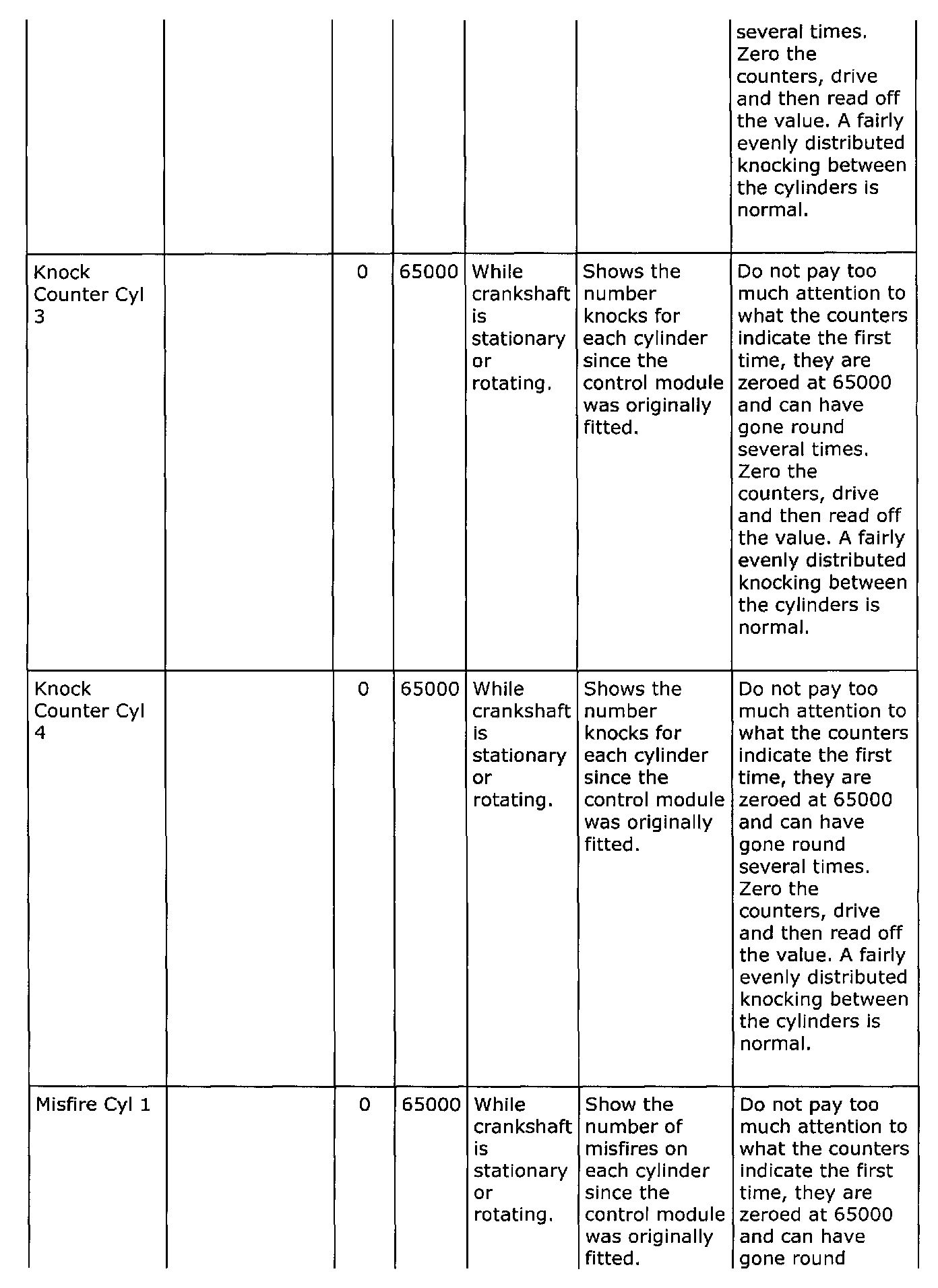

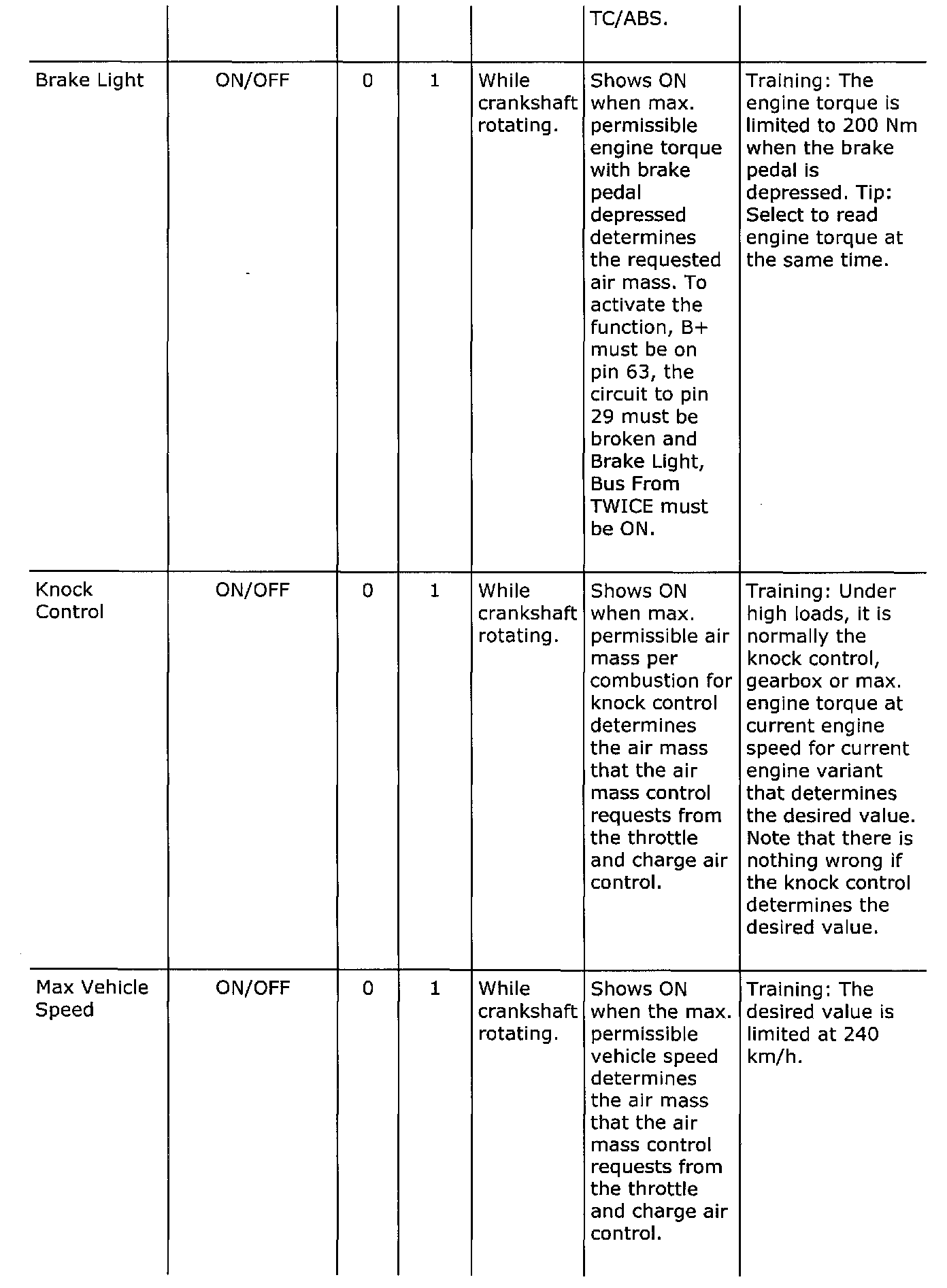

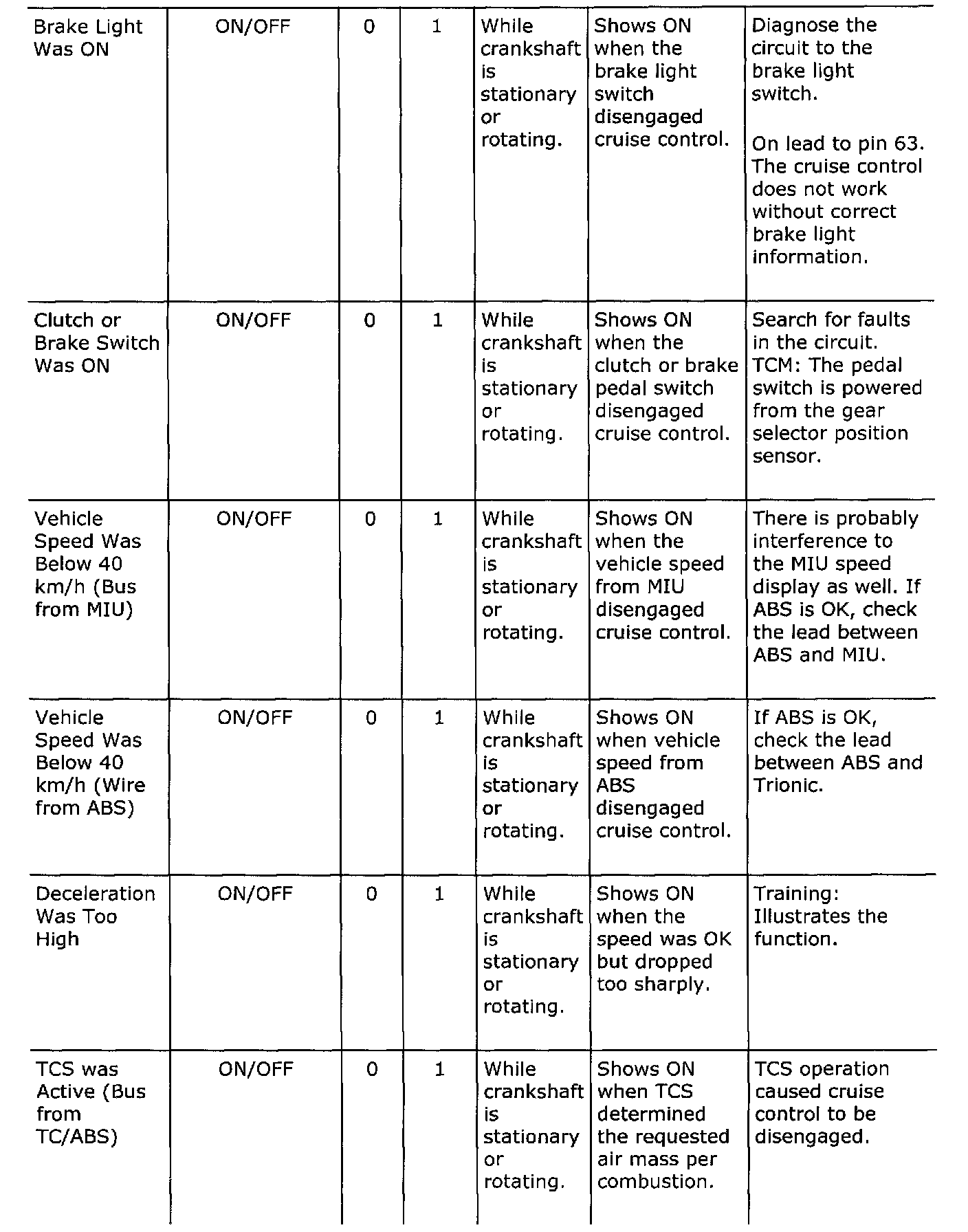

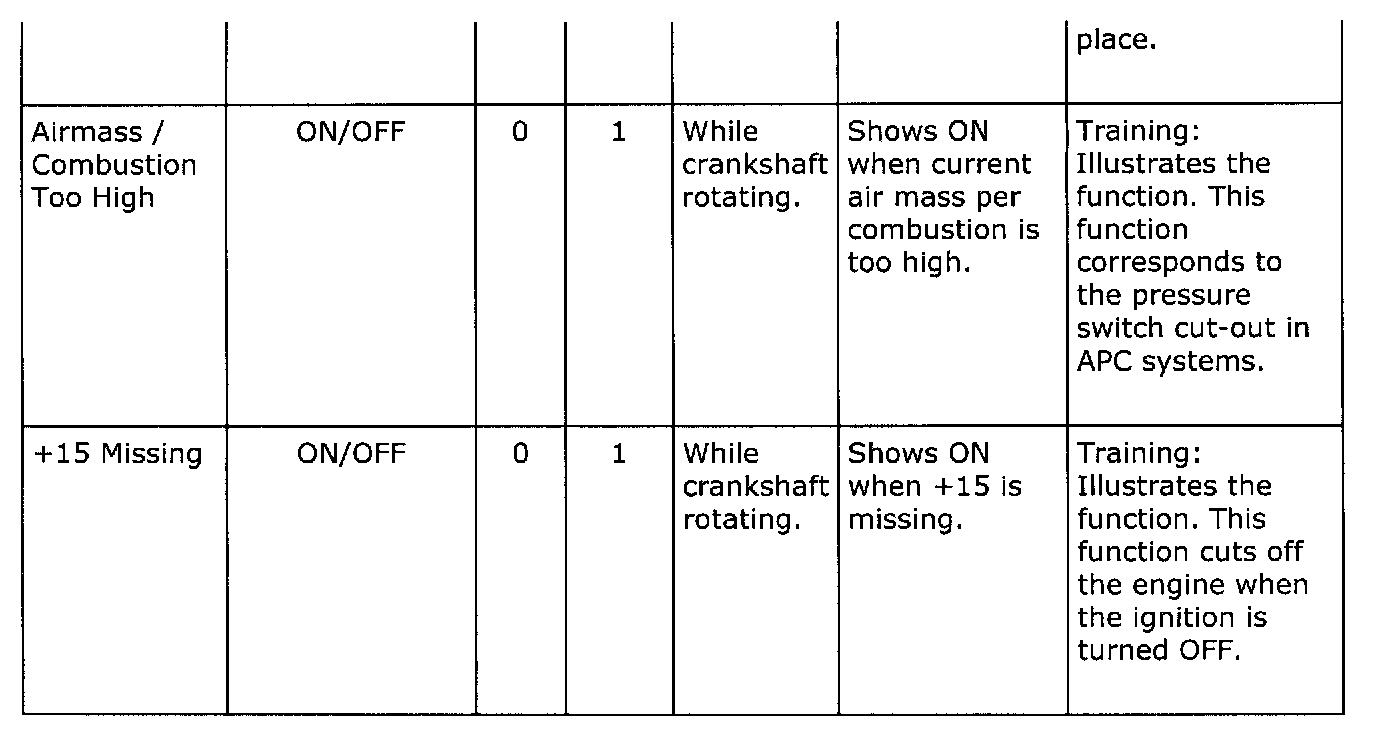

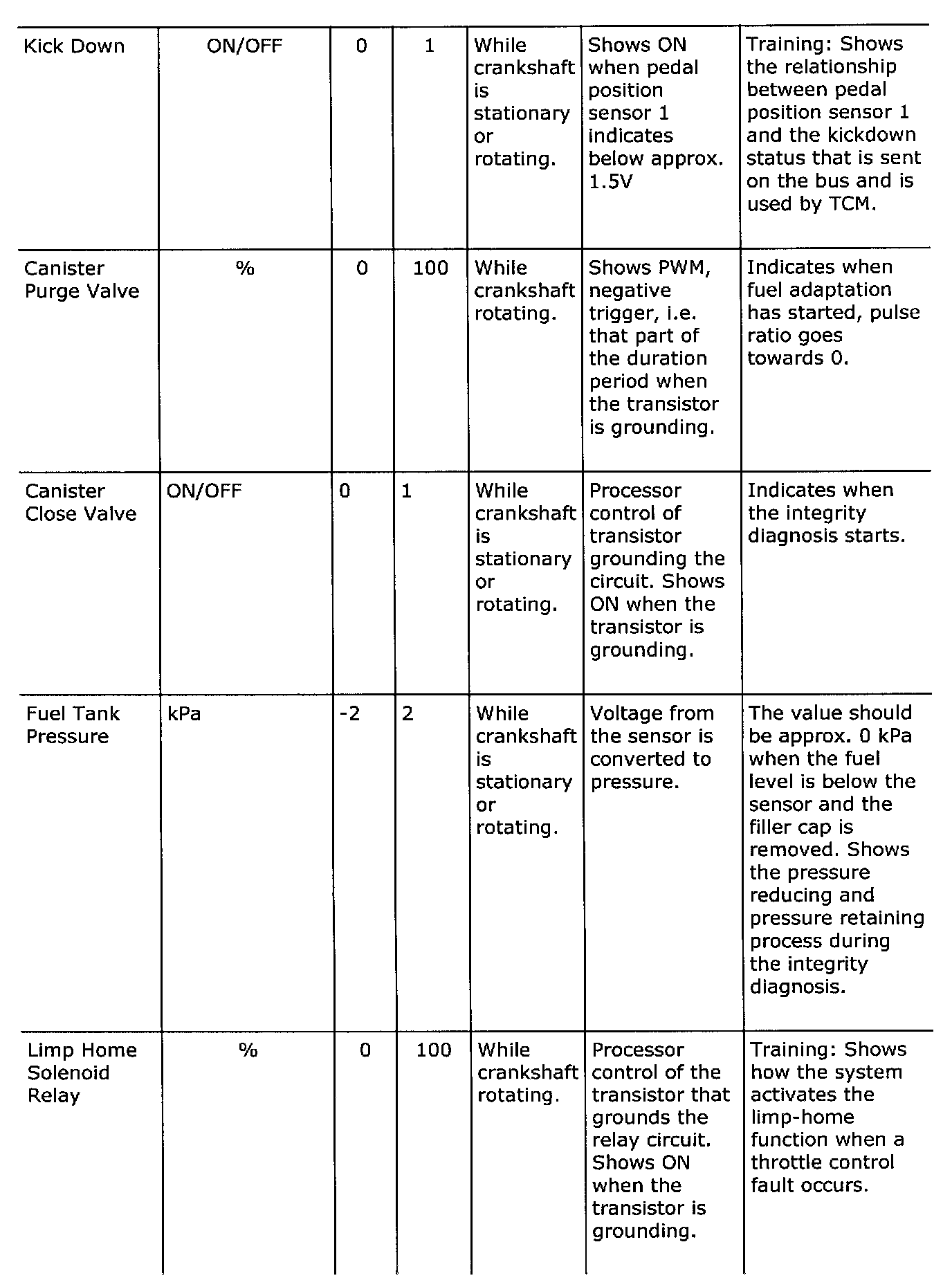

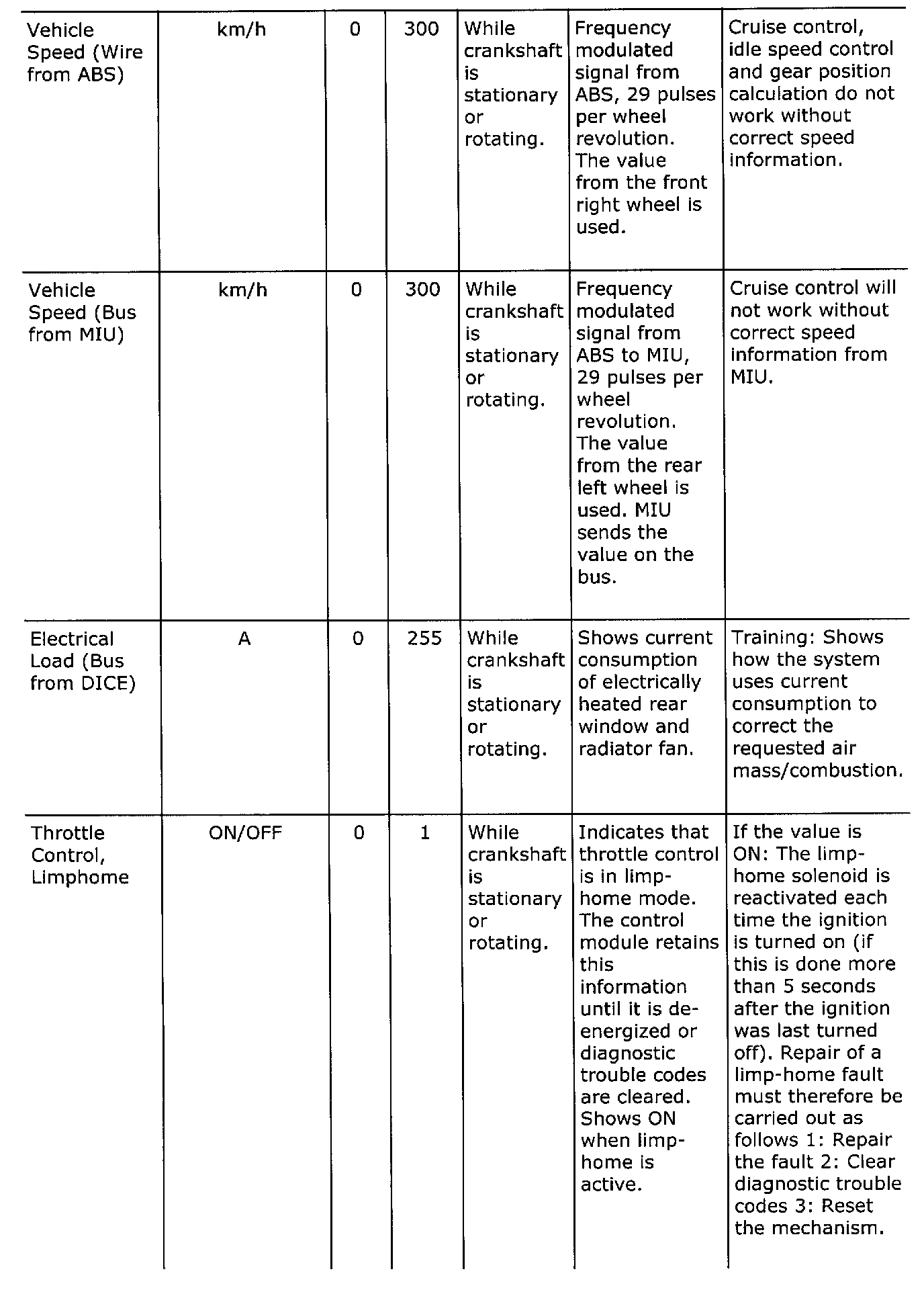

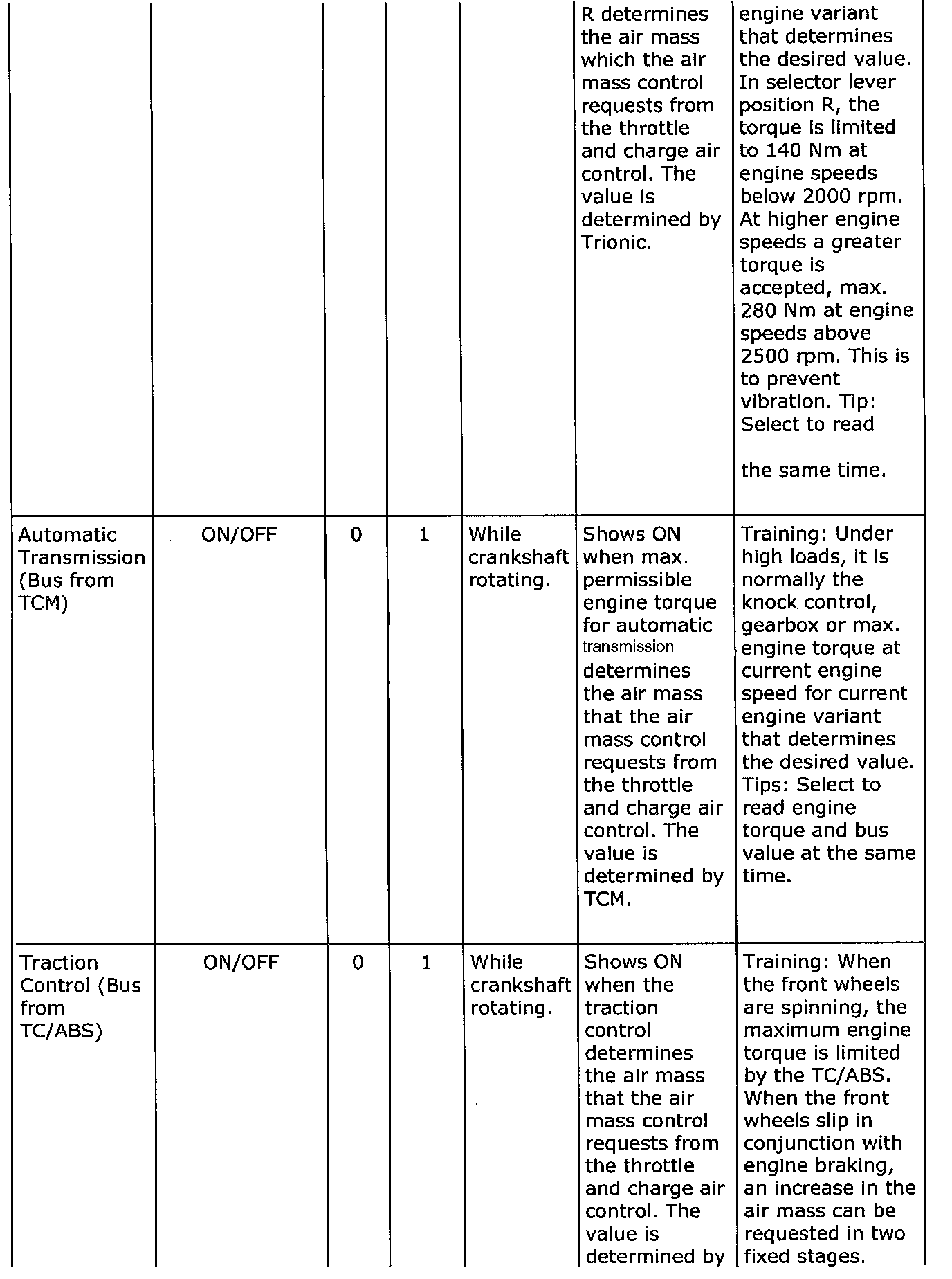

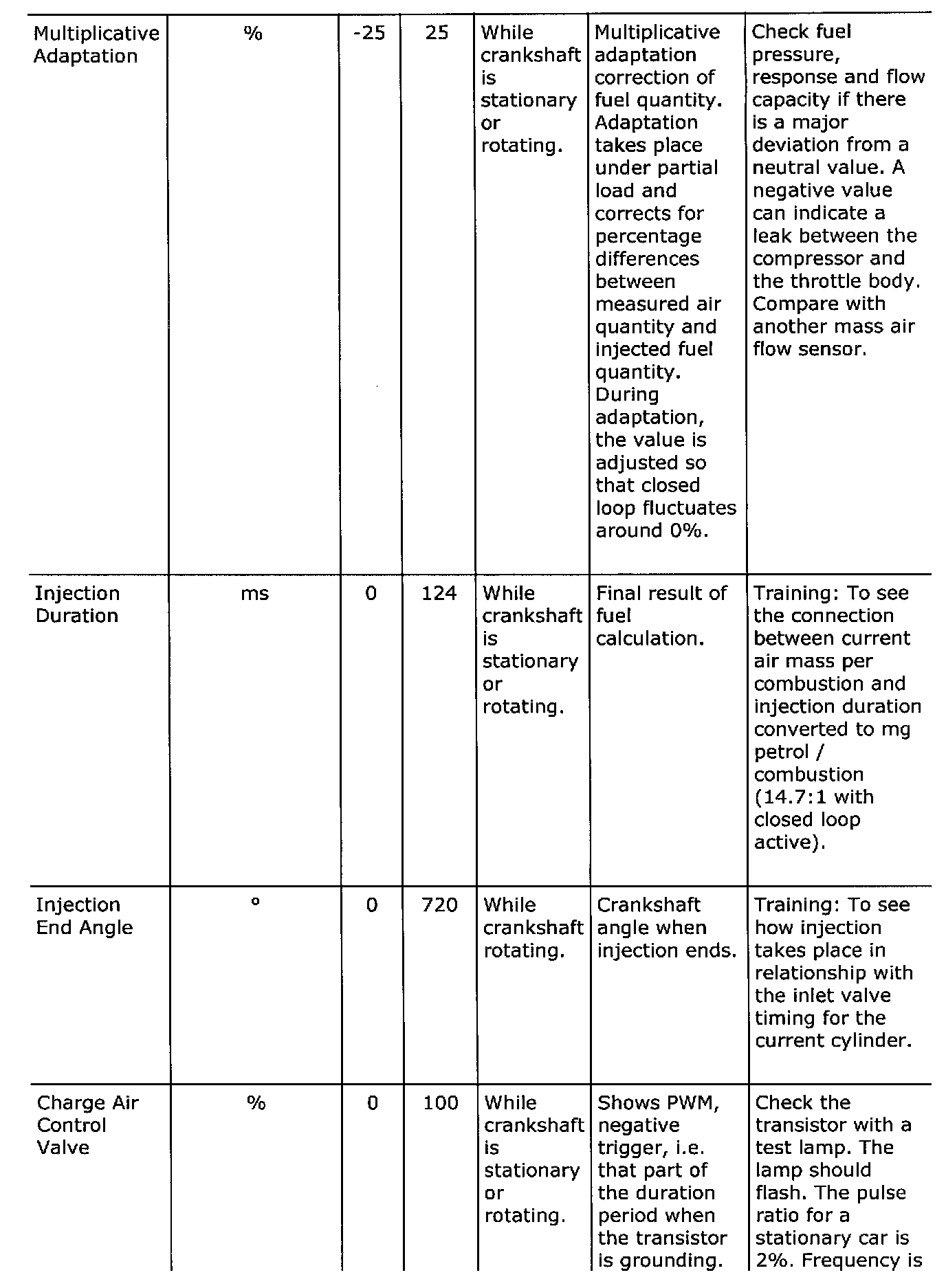

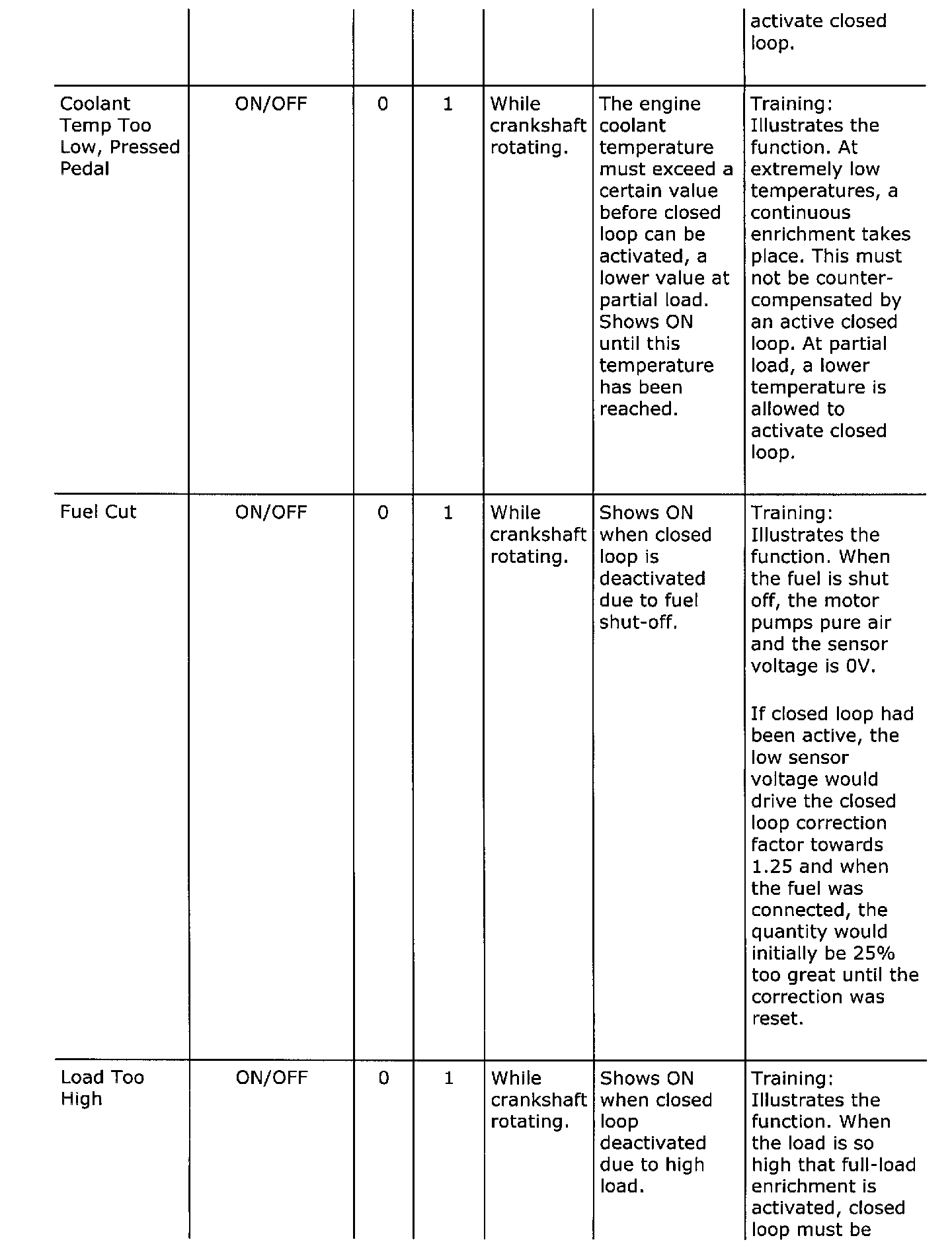

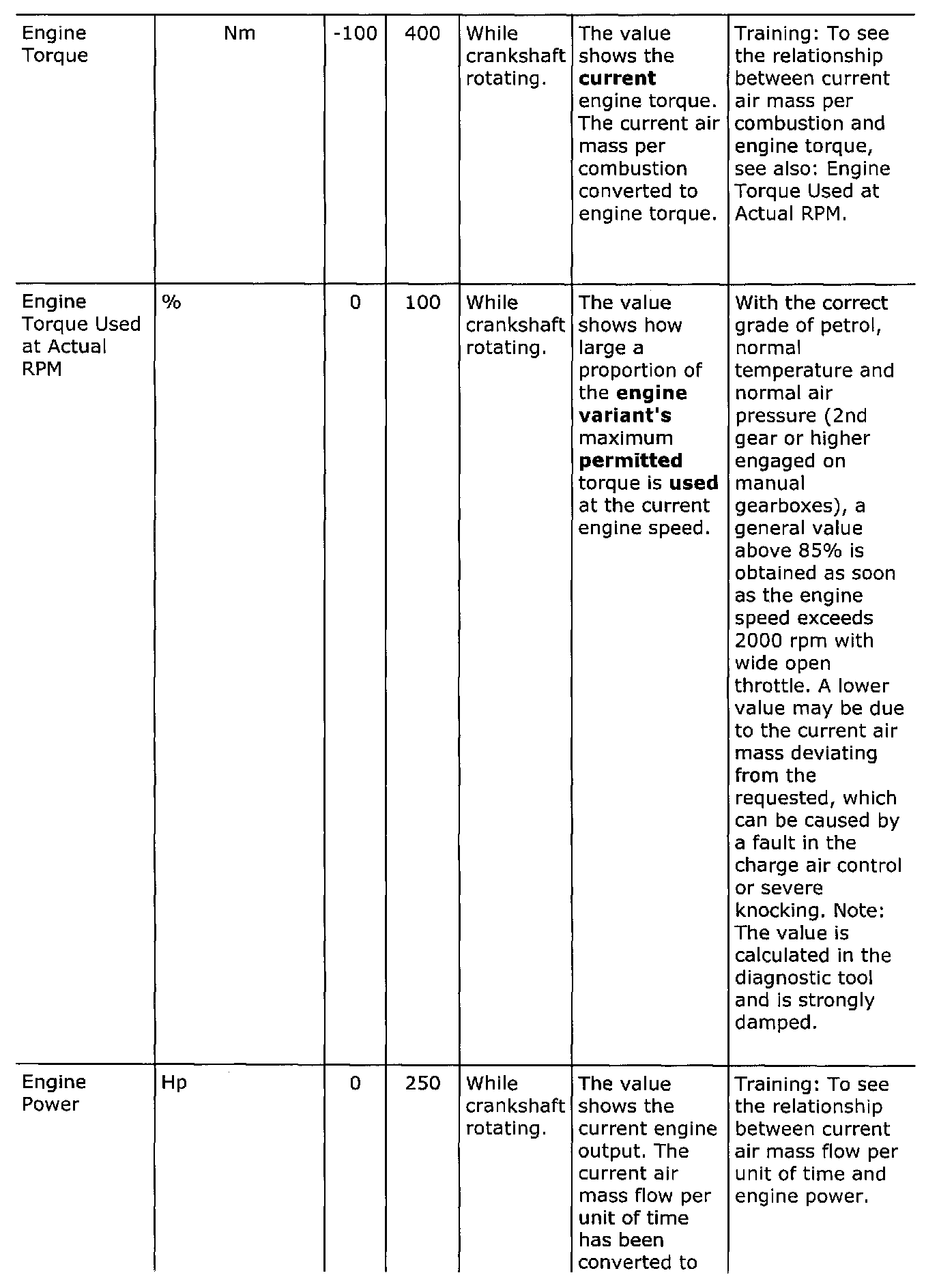

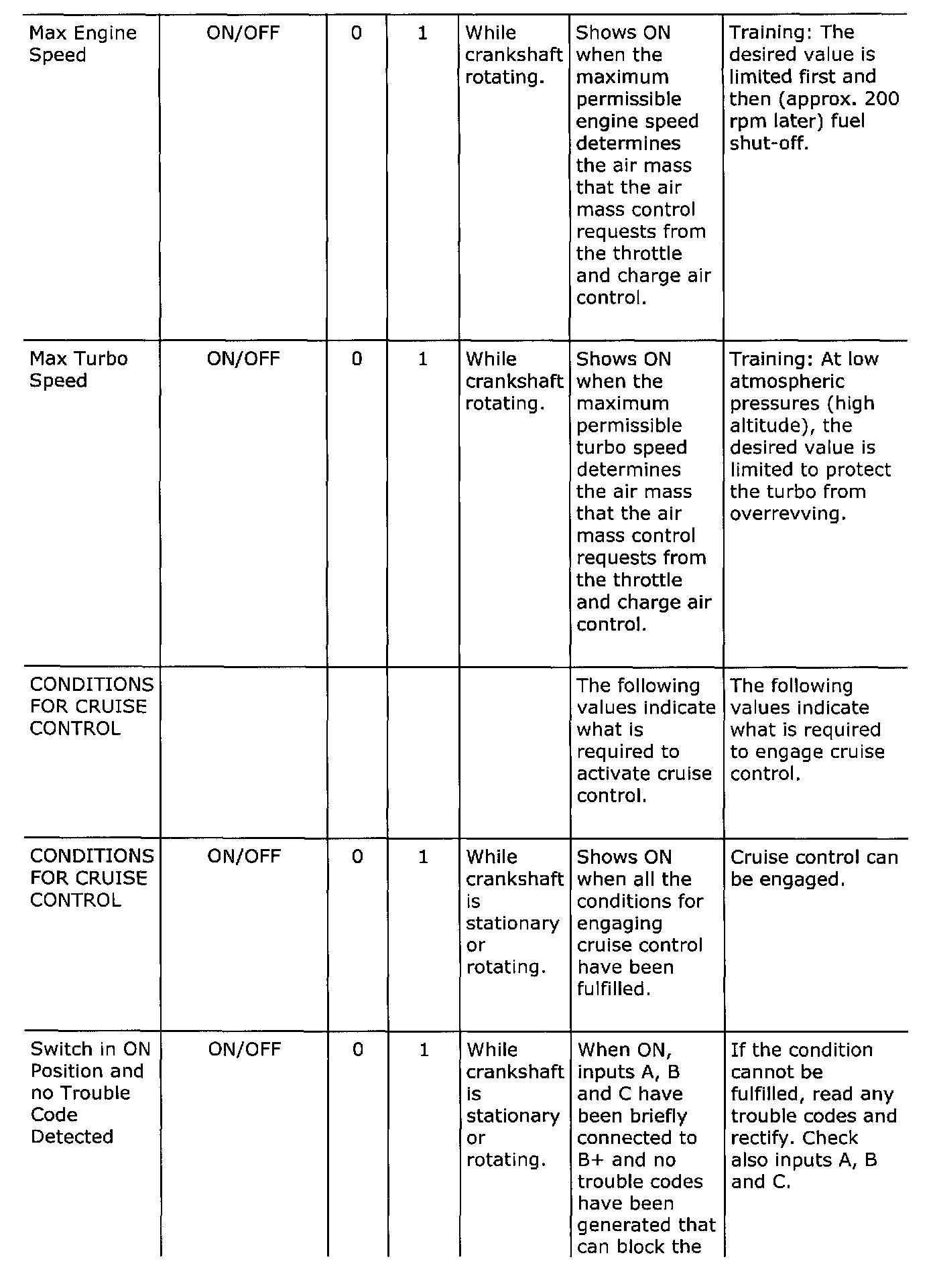

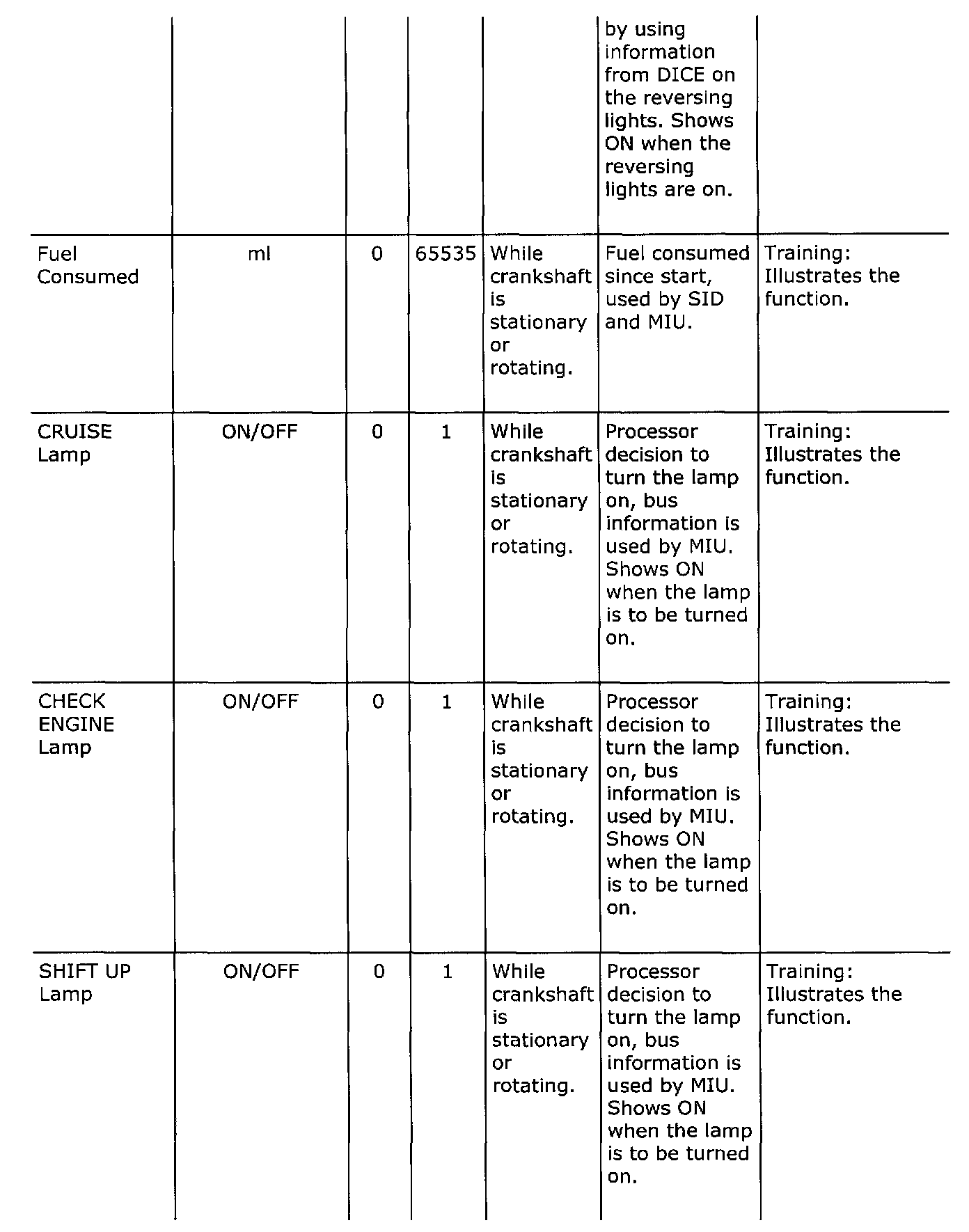

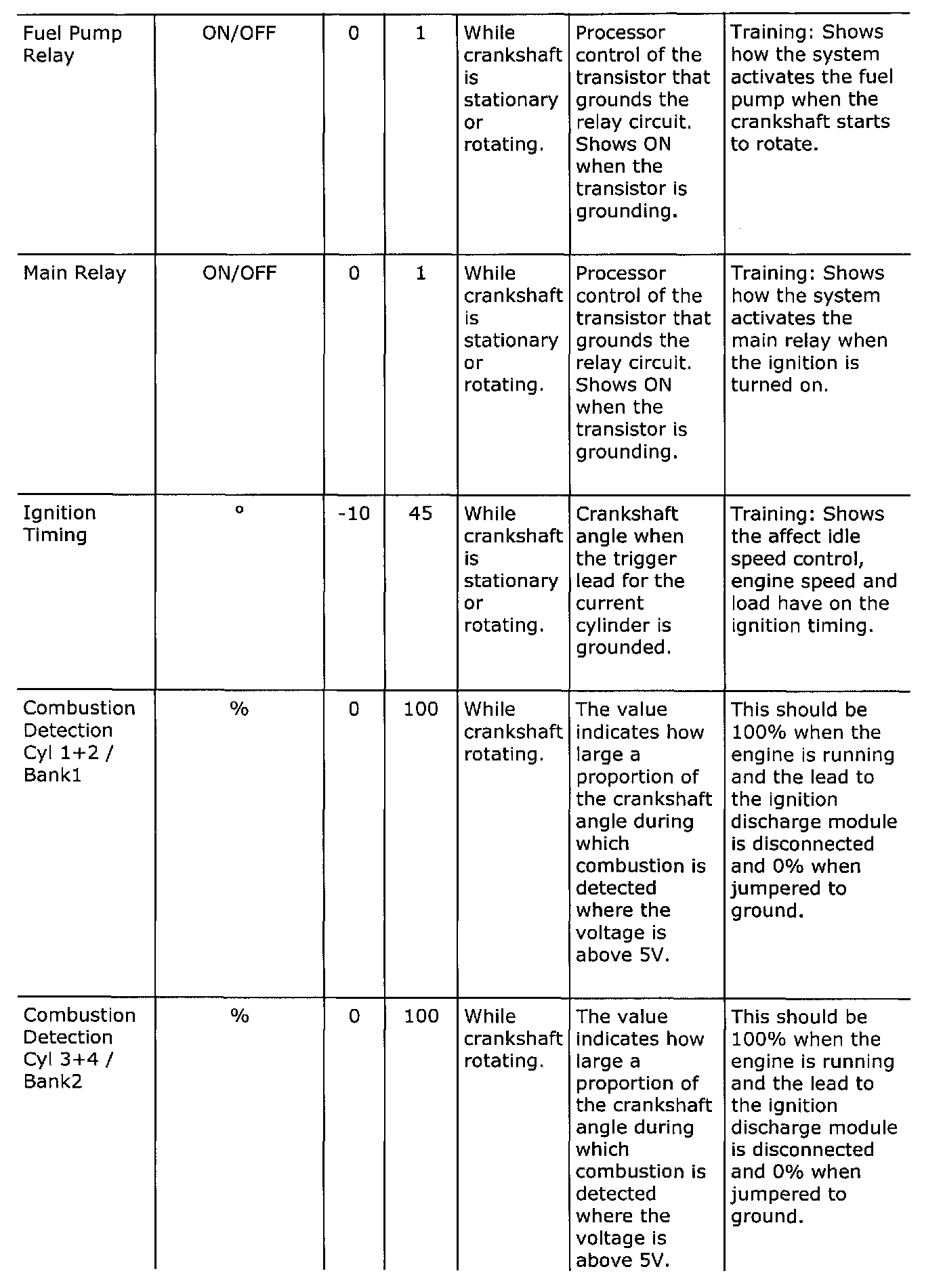

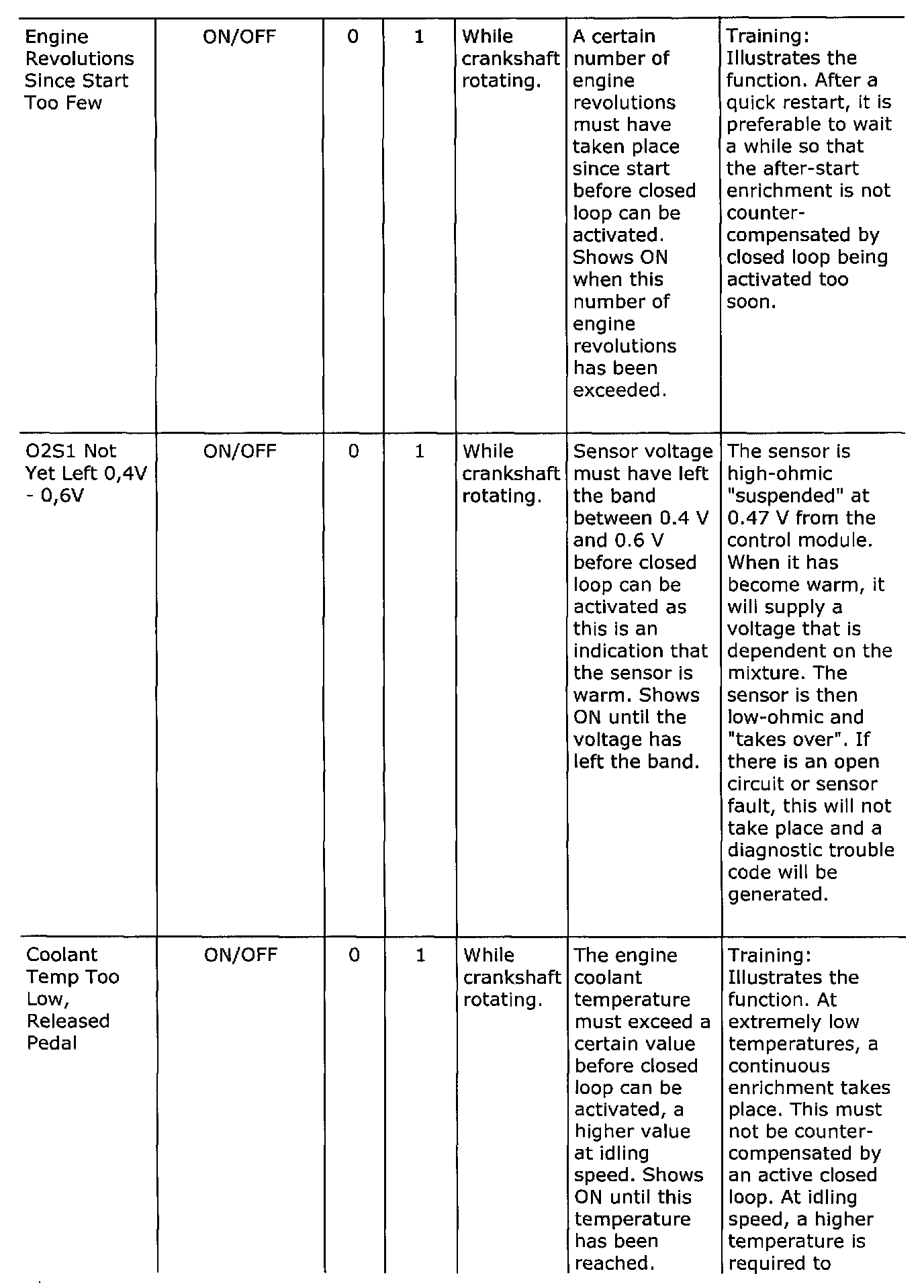

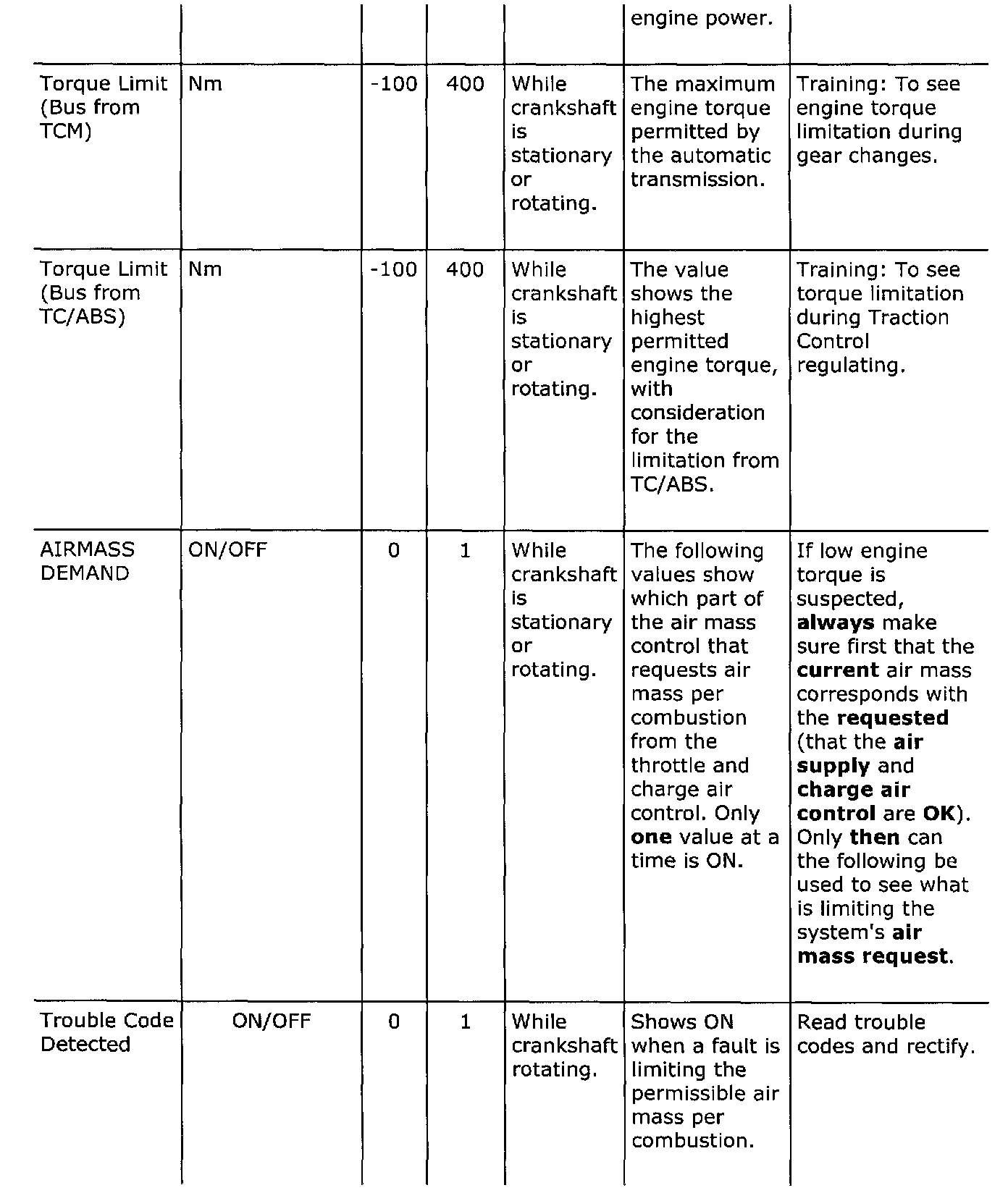

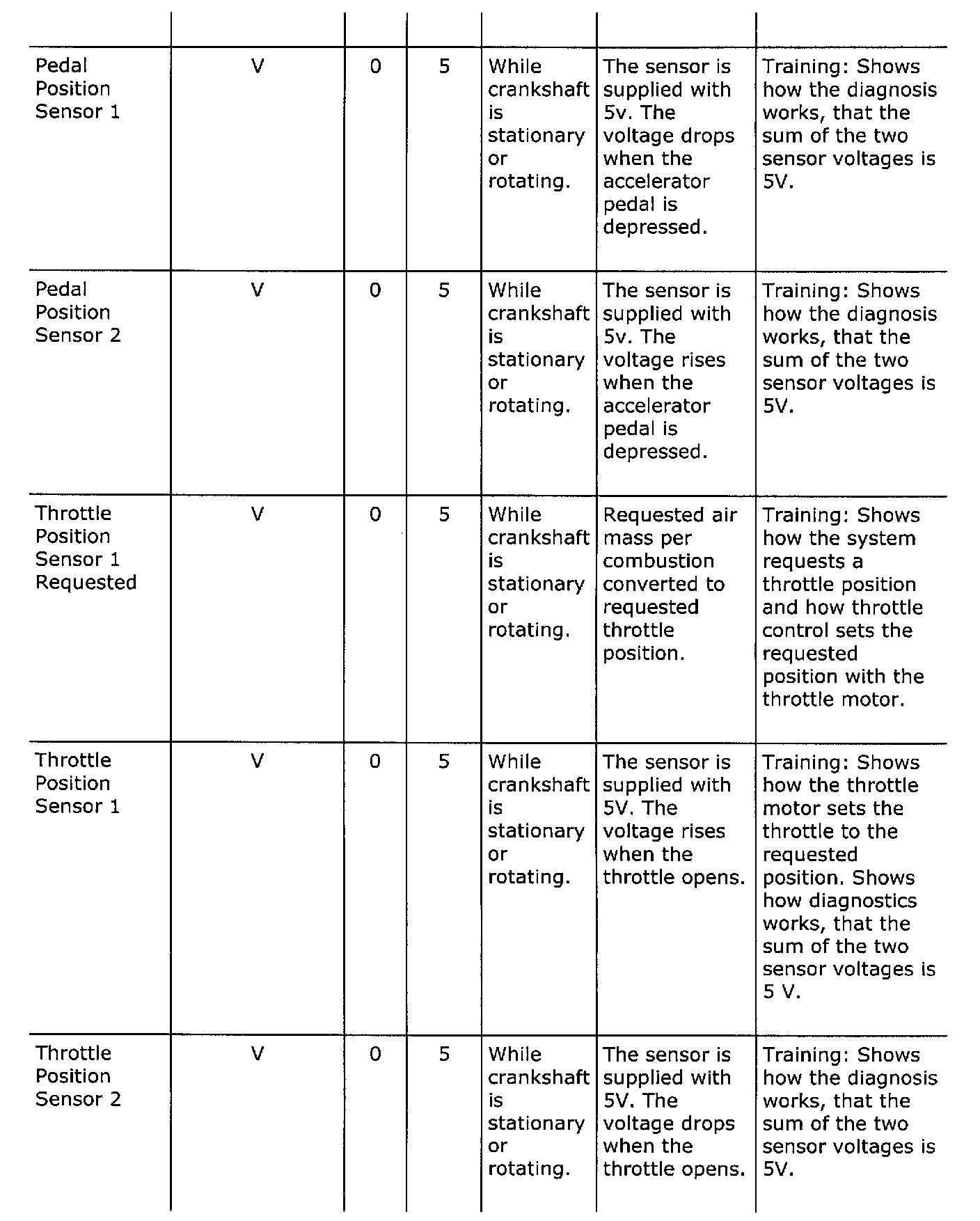

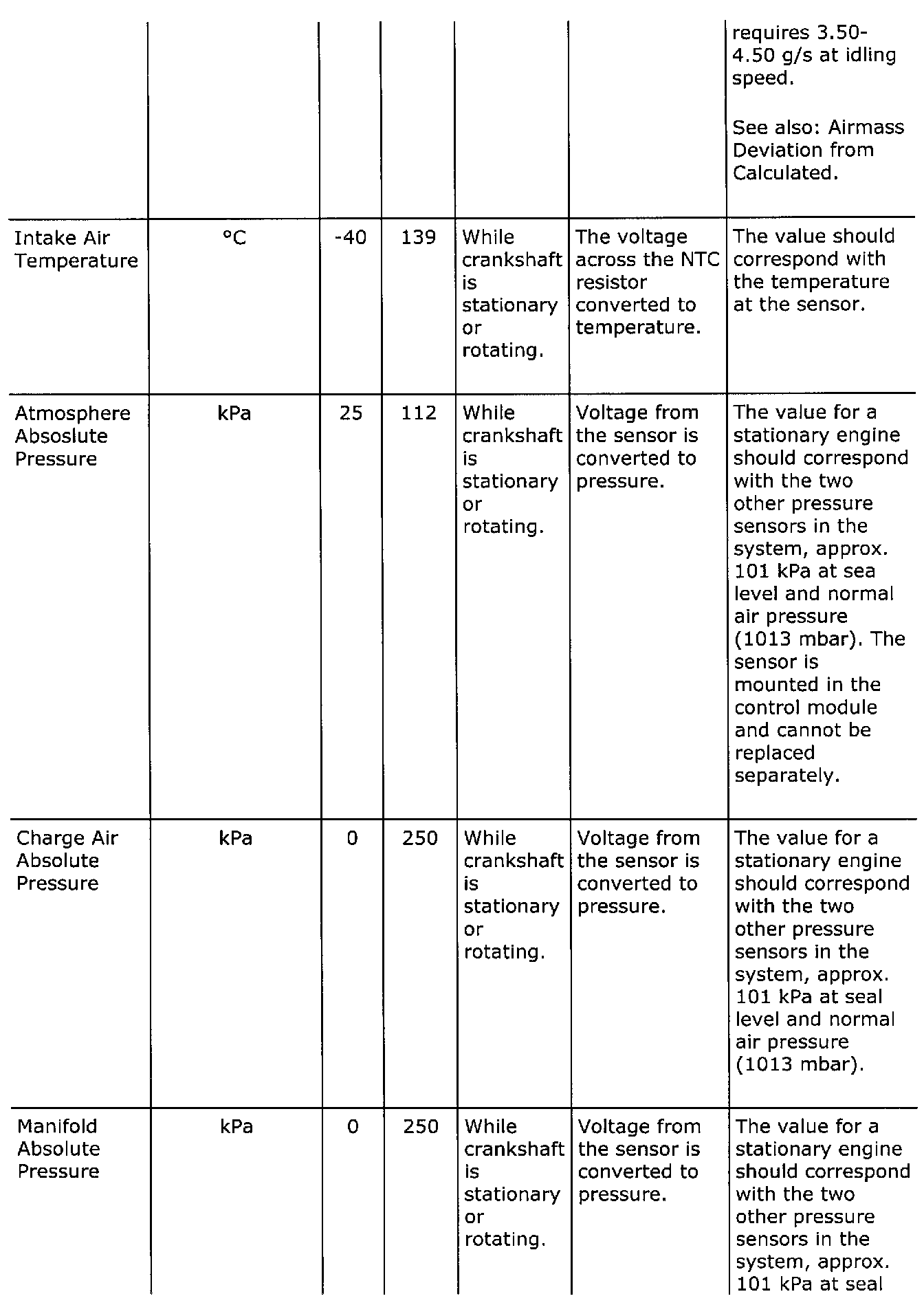

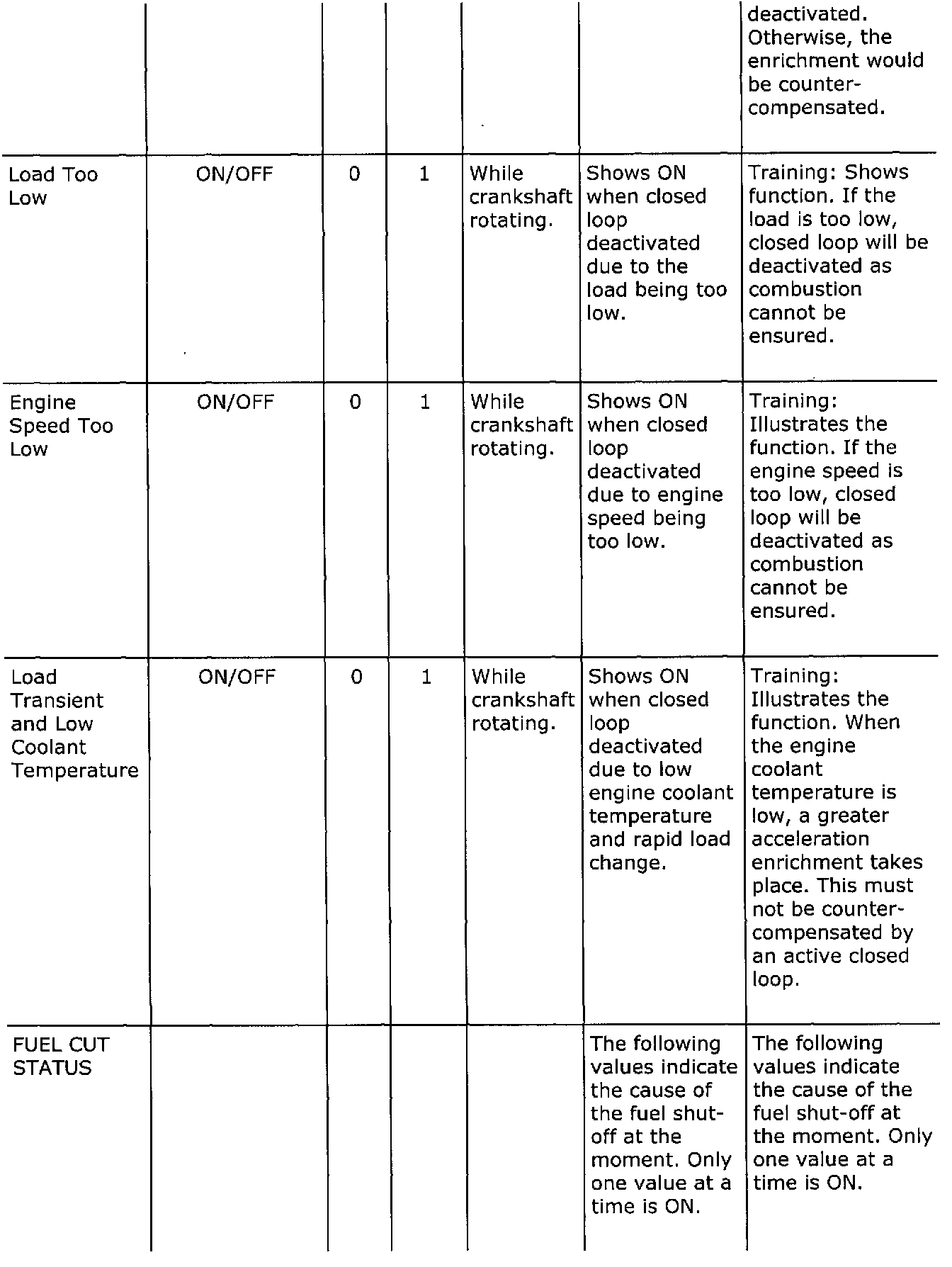

Menu "Read Values"

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

Part 8:

Part 9:

Part 10:

Part 11:

Part 12:

Part 13:

Part 14:

Part 15:

Part 16:

Part 17:

Part 18:

Part 19:

Part 18:

Part 21:

Part 22:

Part 23:

Part 24:

Part 25:

Part 26:

Part 27:

Part 28:

Part 29:

Part 30:

Part 31:

Part 32:

Part 33:

Part 34:

Part 35:

Part 36:

Part 37:

Part 38:

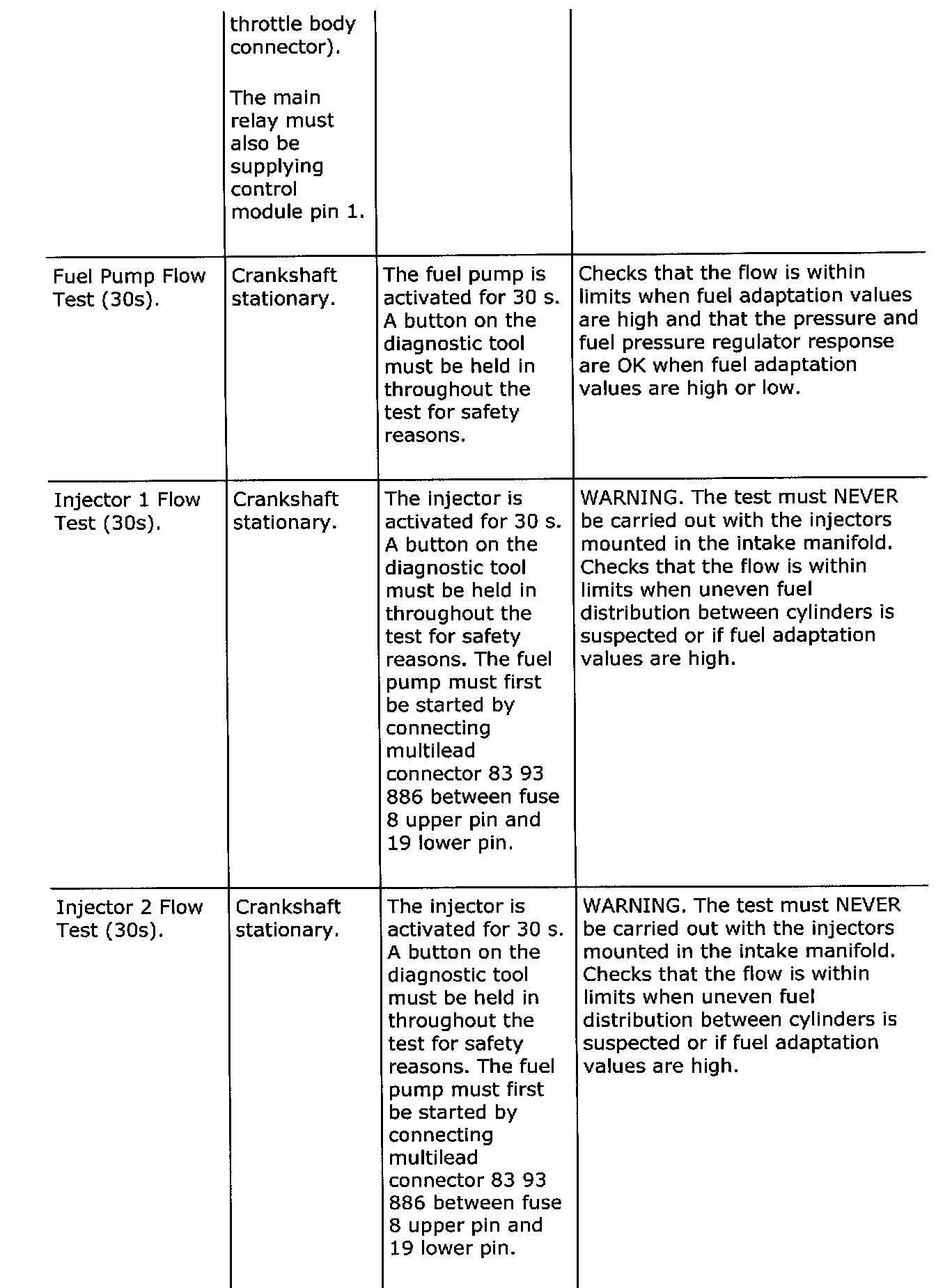

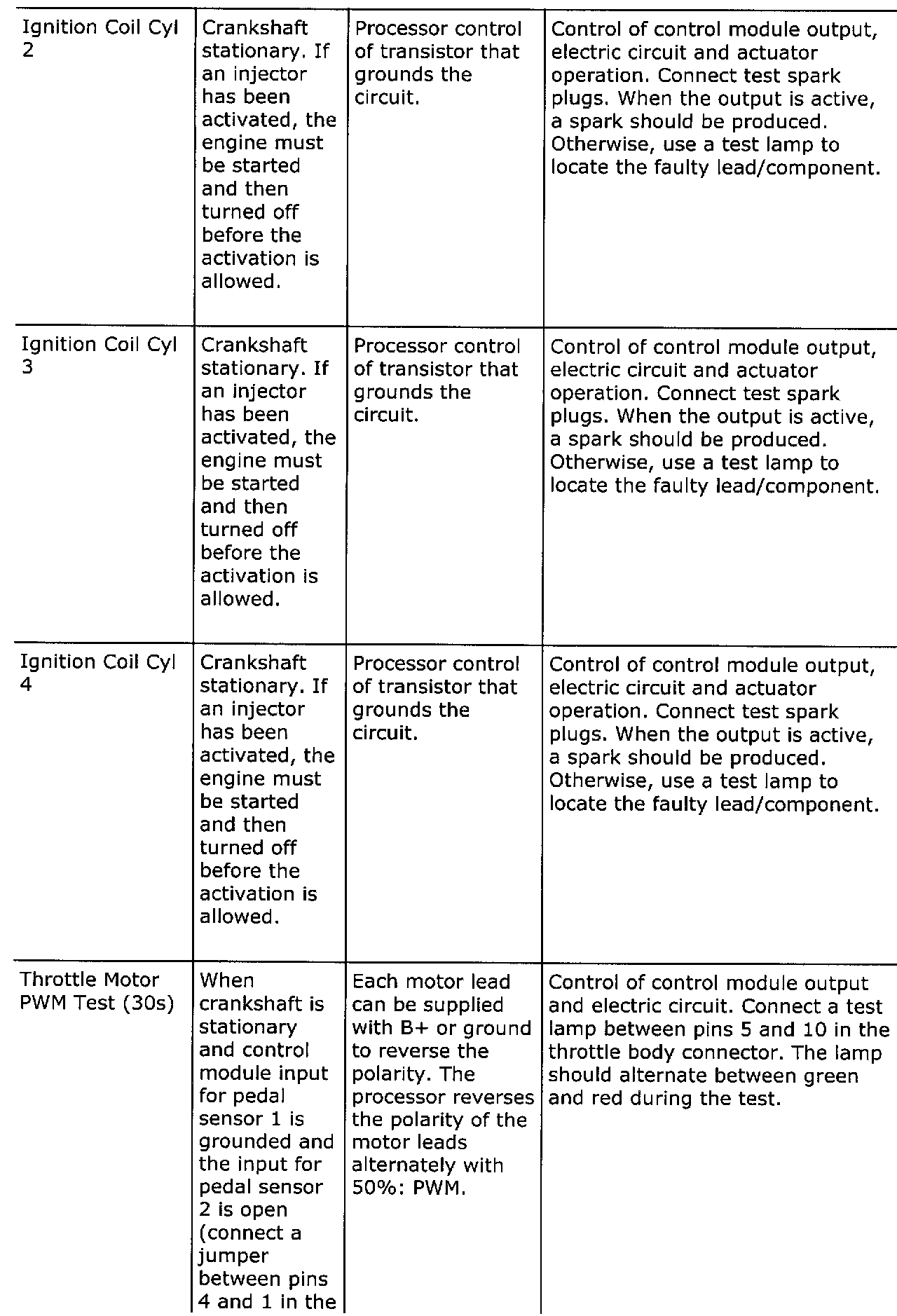

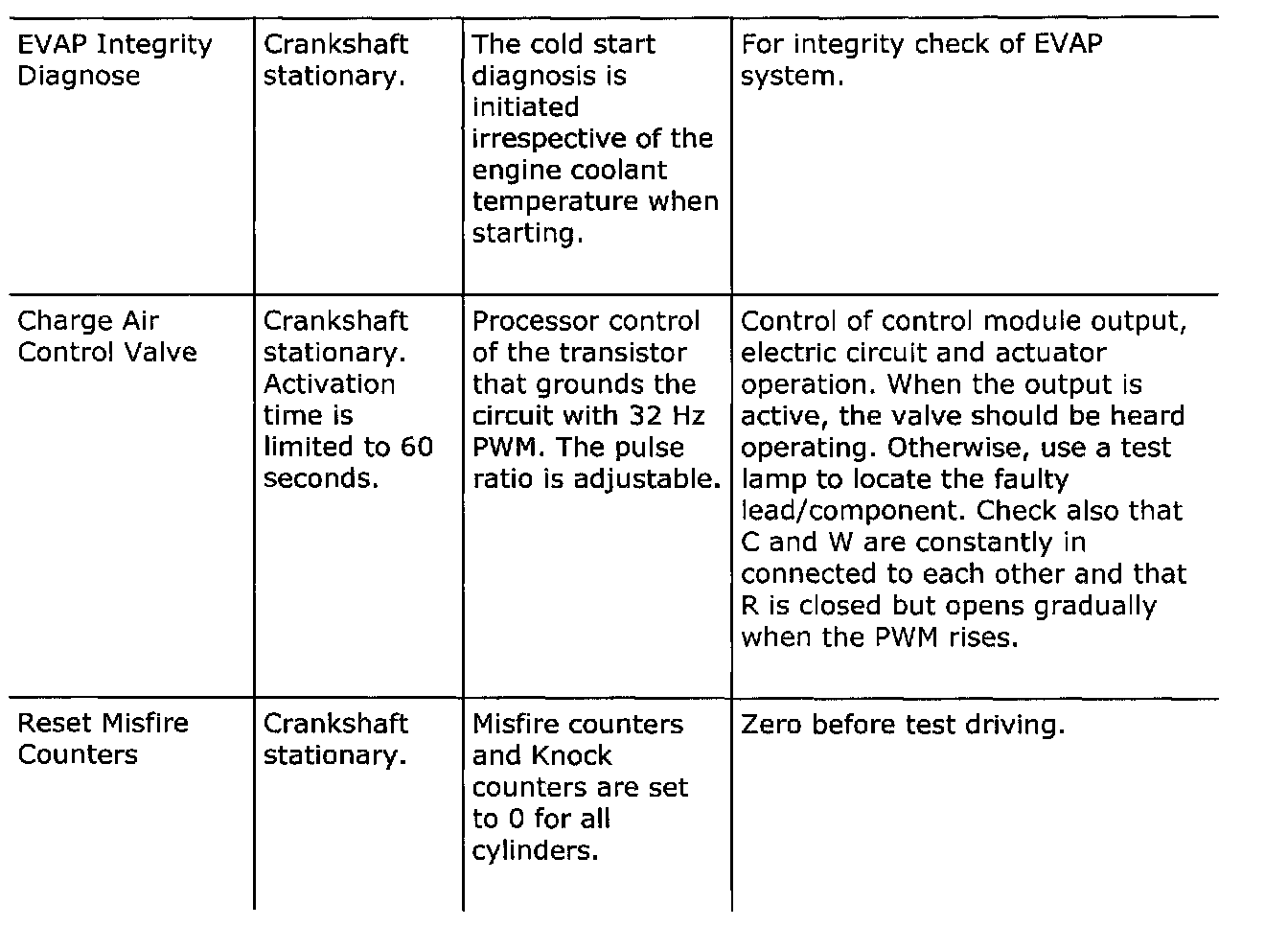

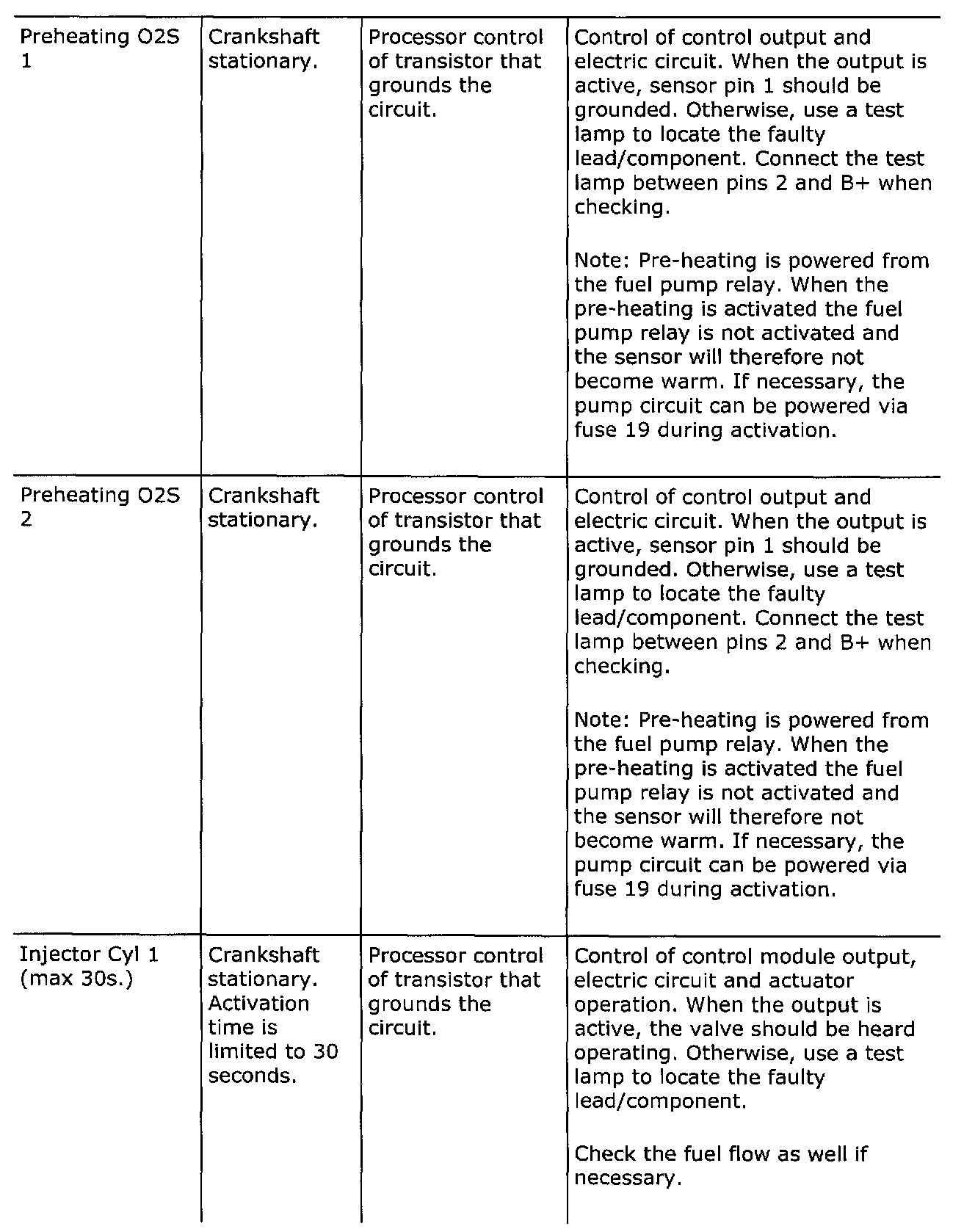

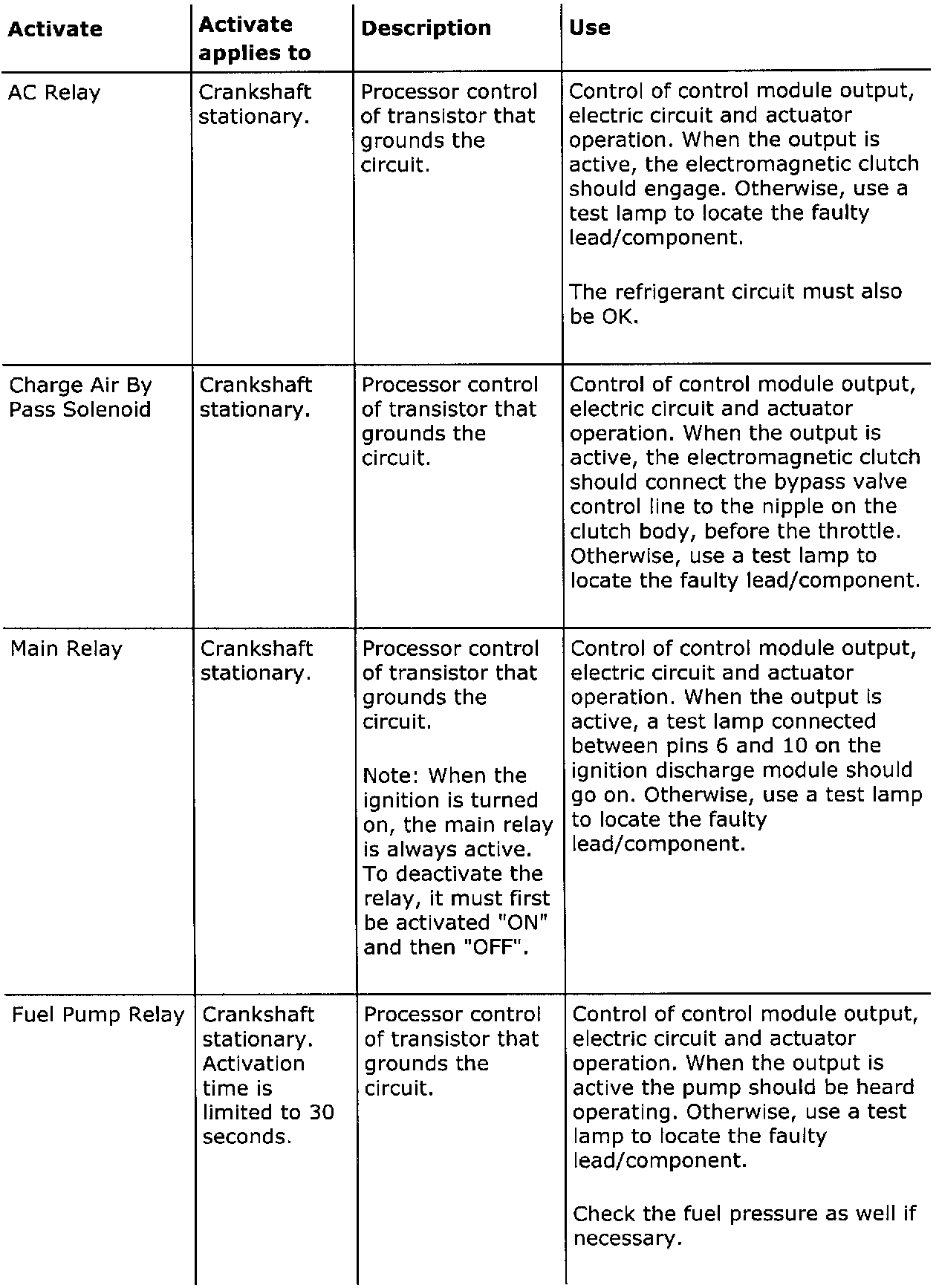

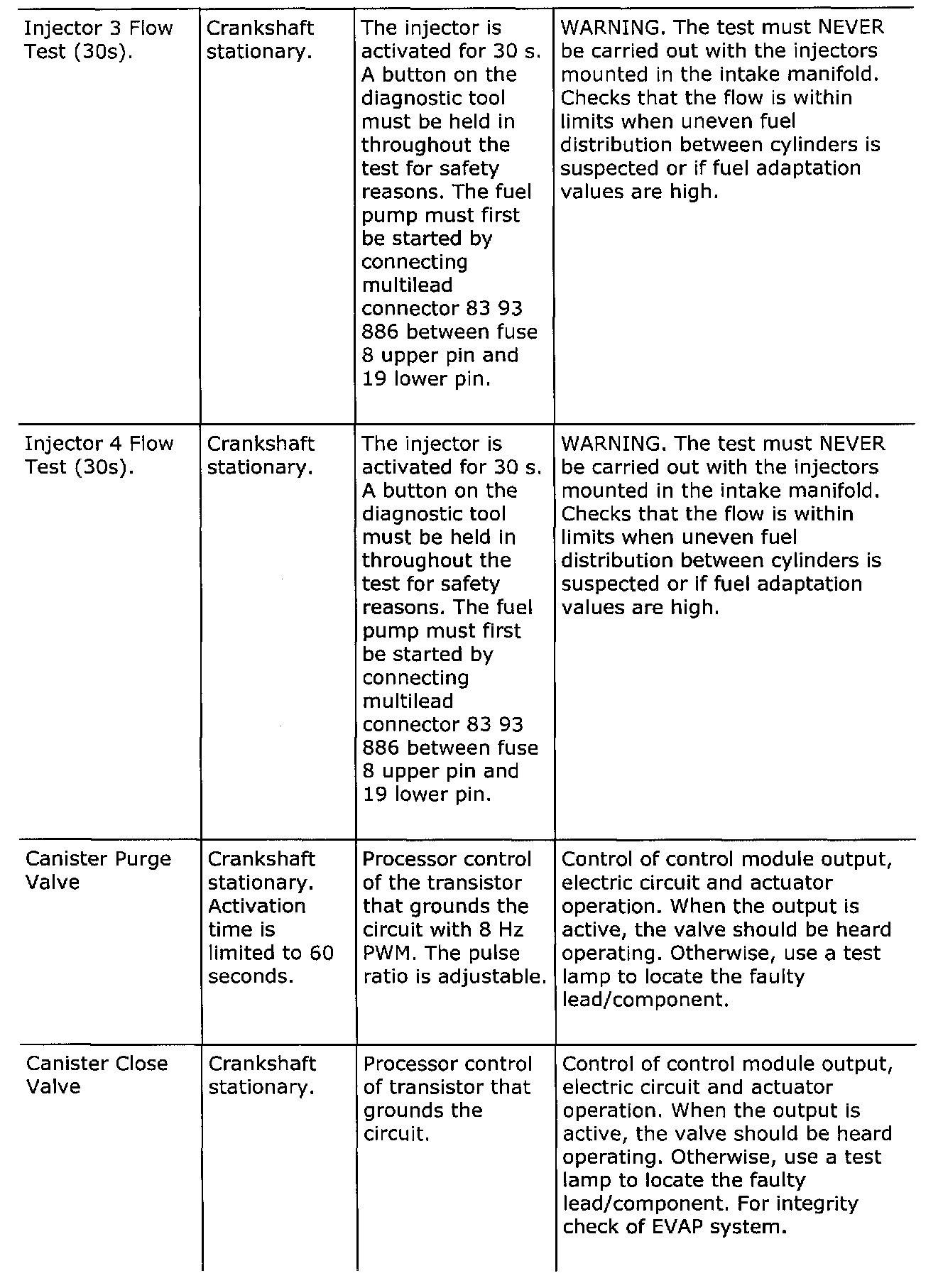

"Activate Menu"

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

Menu "System Information"


Text Function
Vehicle Identification Number VIN
SAAB Part Number: Saab part number for programmed Control Module
Hardware Number: Serial number from supplier
Hardware Version Number Saab hardware part number
Software Number: Saab software part number
Software Version Number: Name of data file used to program Control module
System Name: Engine type the program is intended for
Repair Shop Code or Tester Serial #: Identity number specifying workshop or diagnostic tool (Tech 2)
Programming Date: Latest date programming was performed
Diagnostic data Identifier: Shows the engine type and diagnostic variant for which the software is intended.
