Intake Air Temperature Sensor (407)




Intake Air Temperature Sensor (407)

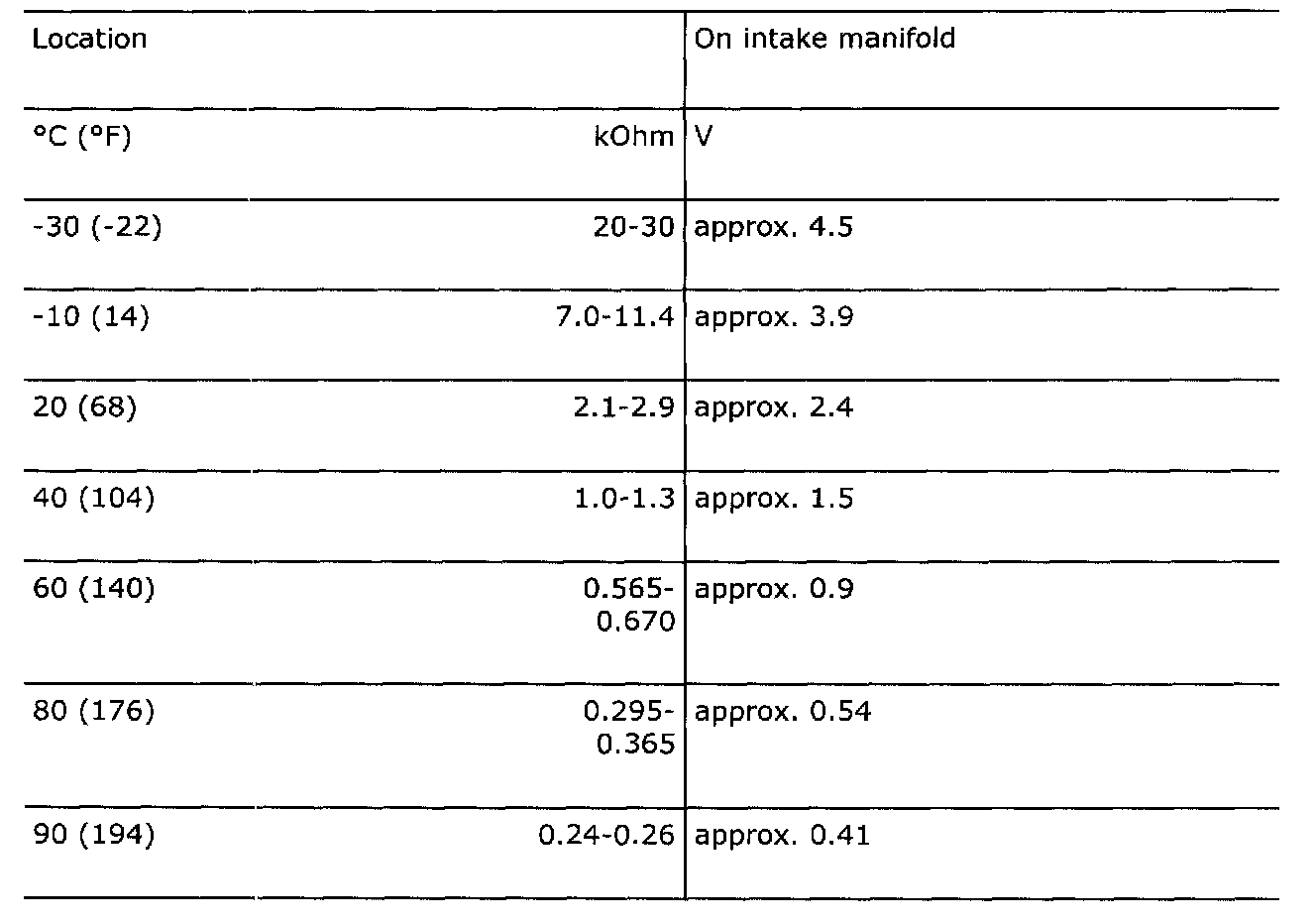

The temperature sensor (407) is integrated with the absolute pressure sensor (603) in one component. The sensor (407/603) is located on the Charge air pipe.







Power supply 5 V through 2.74 kohm resistor in Control module.
