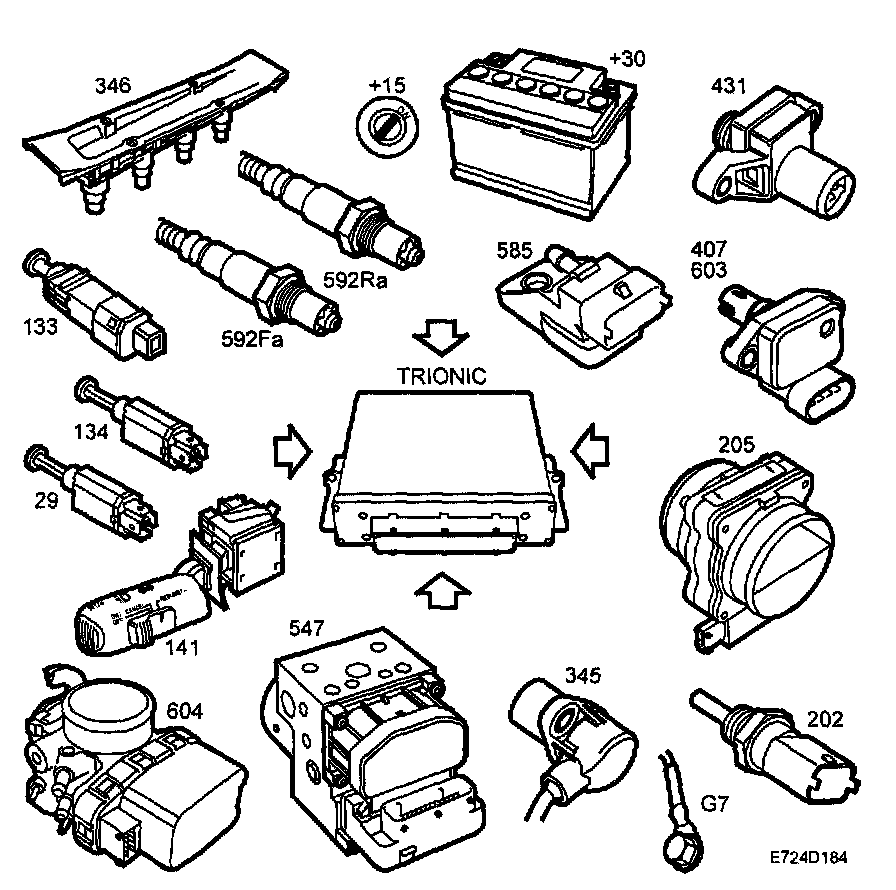

Control Module Inputs

Control Module Inputs







- Power supply +30, see Control module power supply
- Power supply +15, see Control module power supply
- Power ground, see Ground
- Mass air flow sensor (205), see Mass air flow sensor
- Manifold absolute pressure sensor (431), see Manifold absolute pressure sensor
- Charge air absolute pressure sensor (603), see Charge air absolute pressure sensor
- Intake air temperature sensor (407), see Intake air temperature sensor
- Tank differential pressure sensor (585), see Purging
- Temperature sensor, coolant (202), see Temperature sensor coolant
- Speed, wire from ABS (547) Speed, wire from ABS
- Pedal position sensor see Pedal position sensor
- Cruise control switch, see Cruise control
- Pedal switches, see Cruise control
- Throttle position sensor, see Throttle control
- Oxygen sensor 1 (592Fa), see Closed Loop
- Oxygen sensor 2 (592Ra), see Closed loop
- Ignition discharge module (346), see Ignition discharge module
