Description and Operation
>>

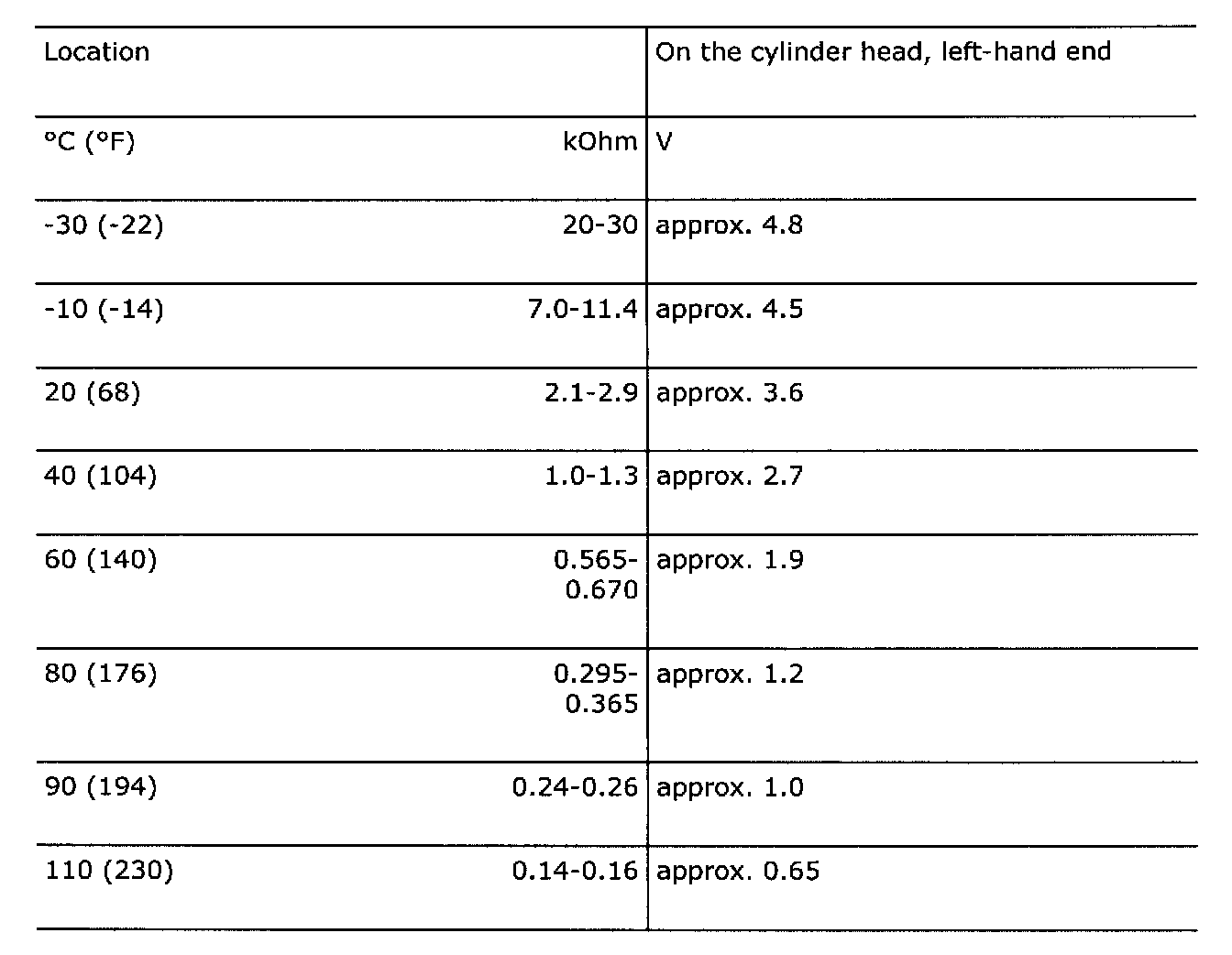

Coolant Temperature Sensor (202)
Coolant Temperature Sensor (202)
Coolant Temperature Sensor (202)
Power supply
5 V
through
1.0 k ohm
resistor in Control module.
