Light Cluster In Tailgate

Light Cluster In Tailgate, 5D

To remove
1. Remove Trim, tailgate, 5D.
2. Remove the number plate.







3. Remove the decor panel.

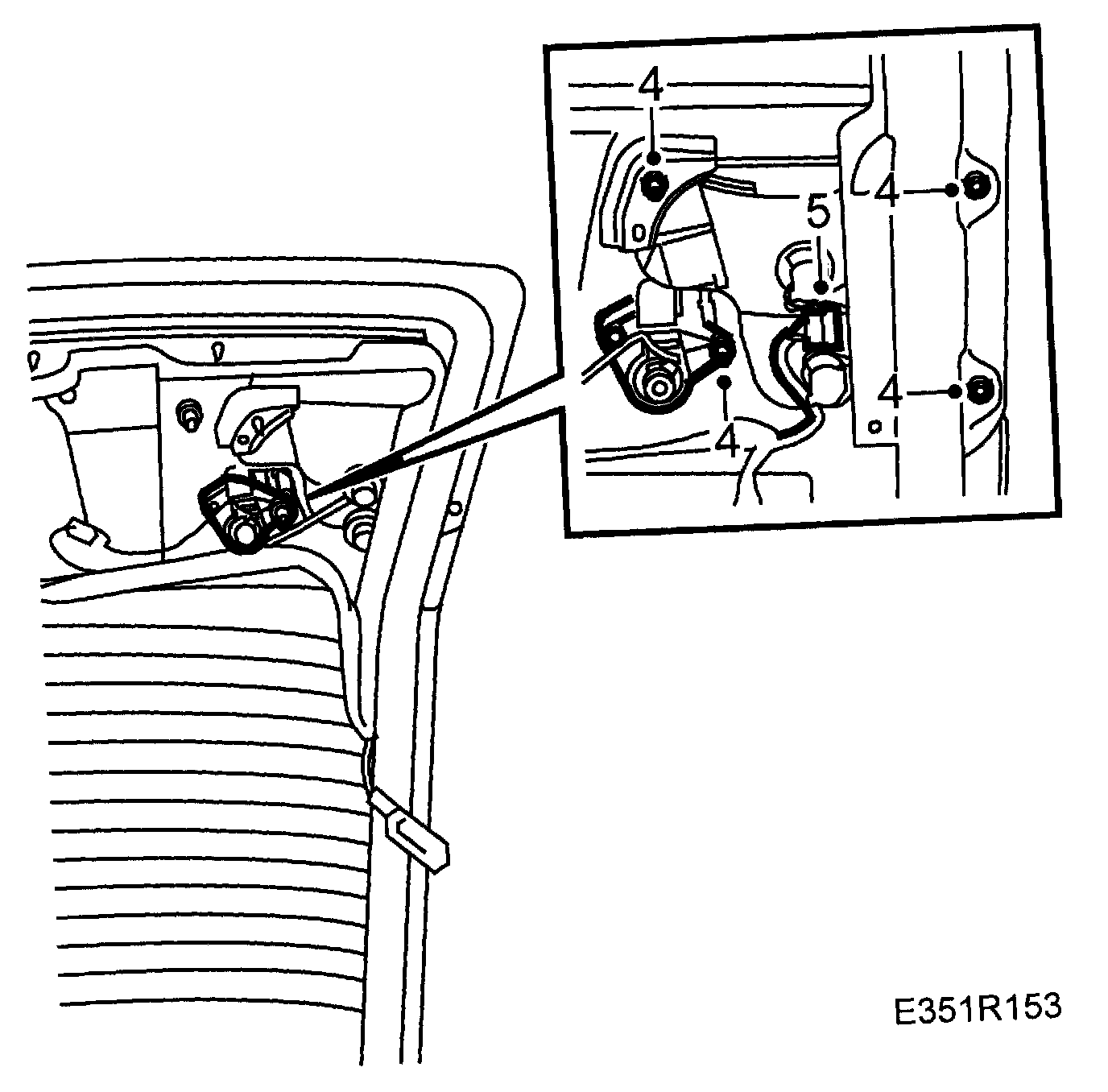

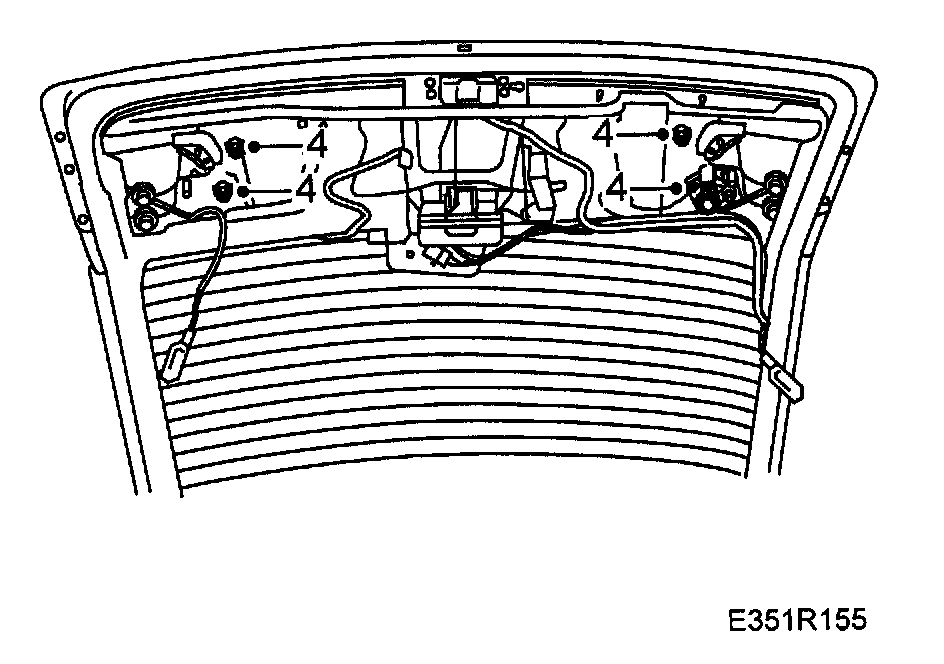

4. Unscrew the nuts securing the light cluster.
5. RH: Pull out the lock and leave it hanging on the lock rod. Inspect the seal around the lock cylinder.
6. Unplug the connector and lift away the light cluster.

To fit







1. Put the light cluster in position and plug in the connector.
2. RH: Inspect the seal and fit the lock.
3. Screw in the lamp.







4. Fit the decor panel.
5. Fit the number plate.
6. Fit Trim, tailgate, 5D.
