Home >> Saab >> 2002 >> 9-5 Linear Sport Wagon (9600) L4-2.3L Turbo (B235) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Headlamps, Halogen

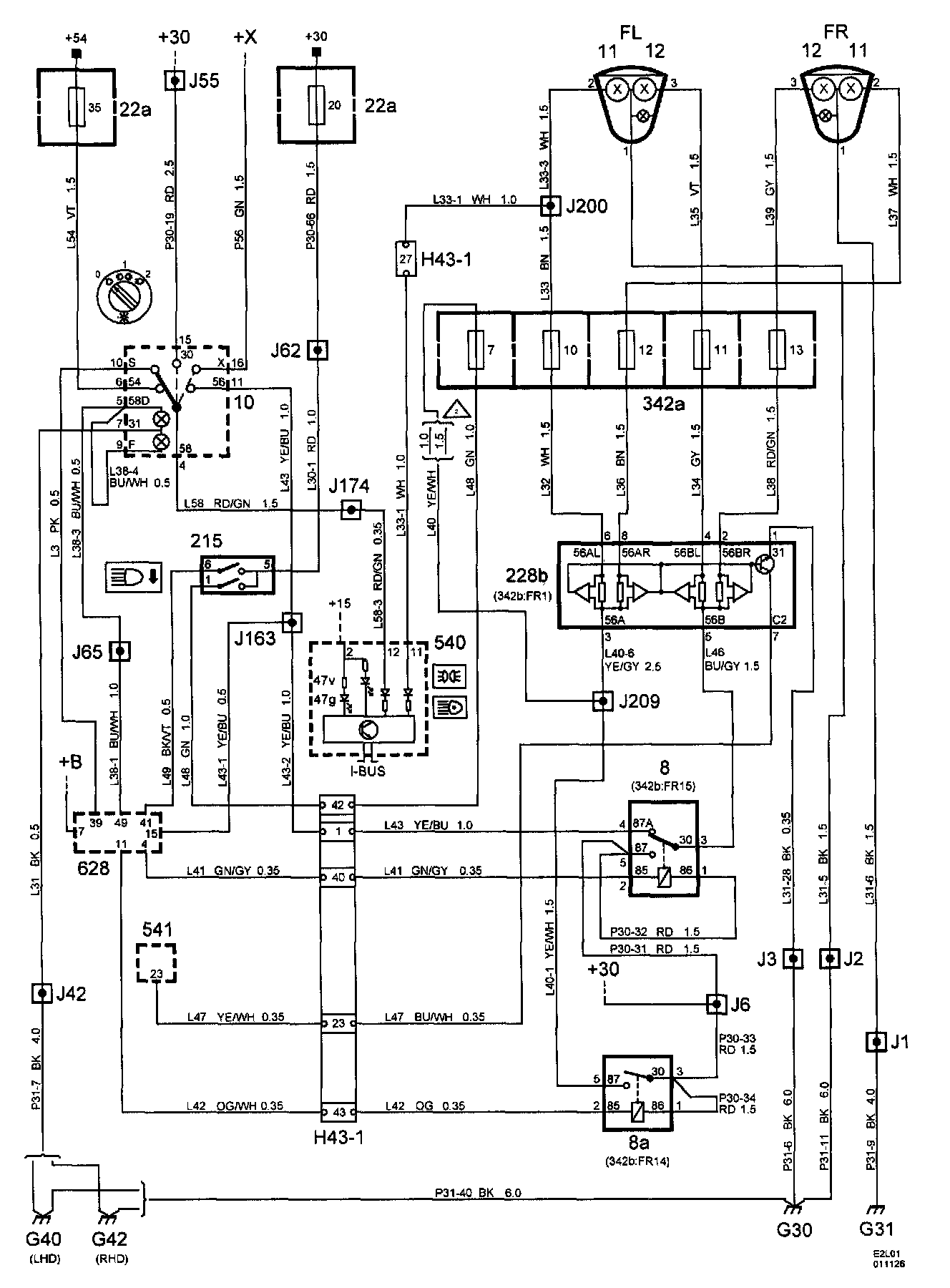

Headlamps, Halogen




Headlamps, Halogen

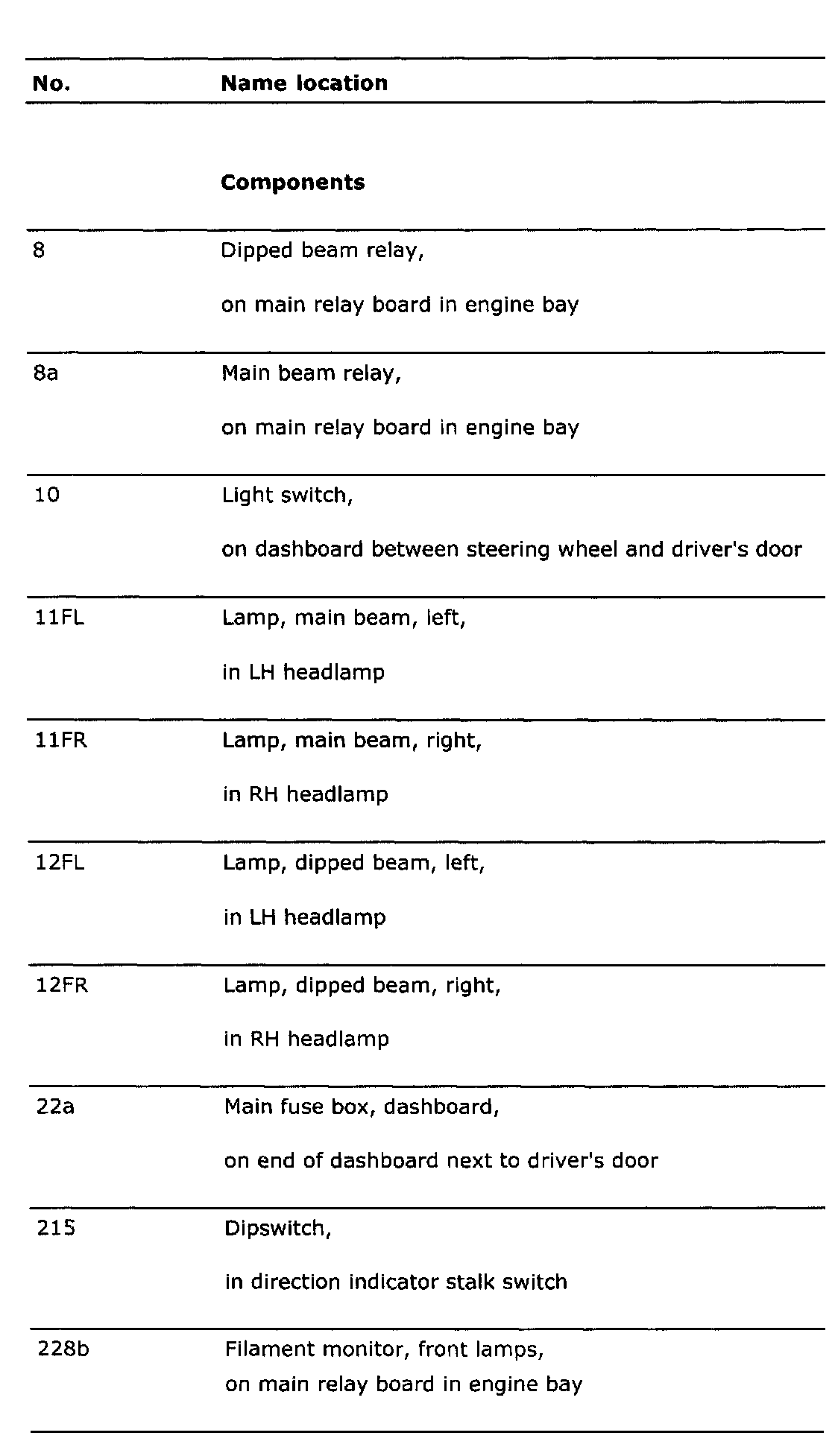

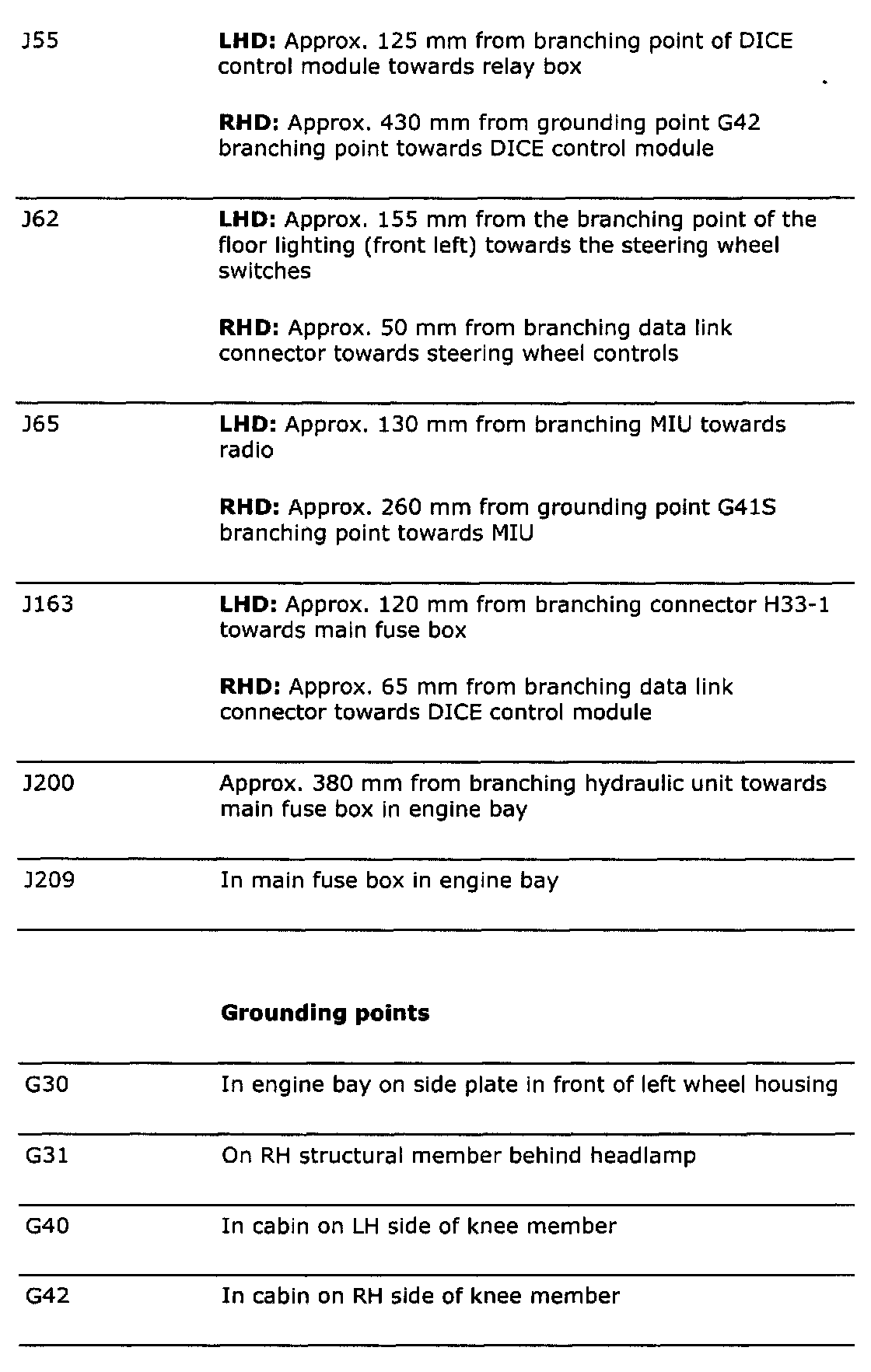

List Of Components


Part 1:






Part 2:






Part 3:
