Xenon Headlamps, Ground




Xenon Headlamps, Ground

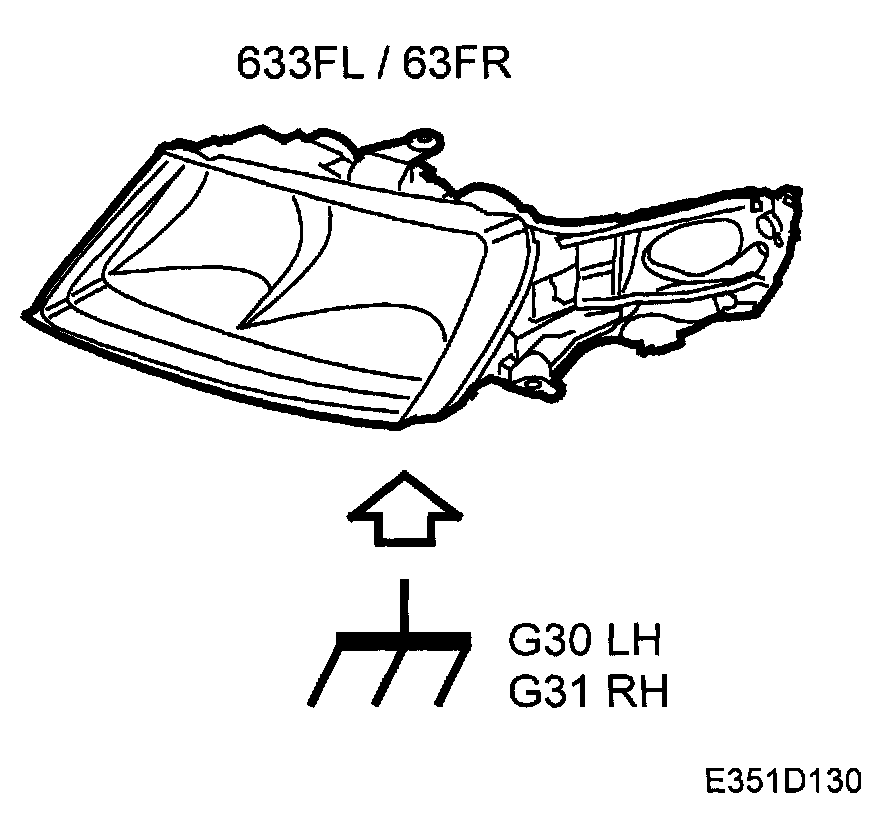

Ground connection

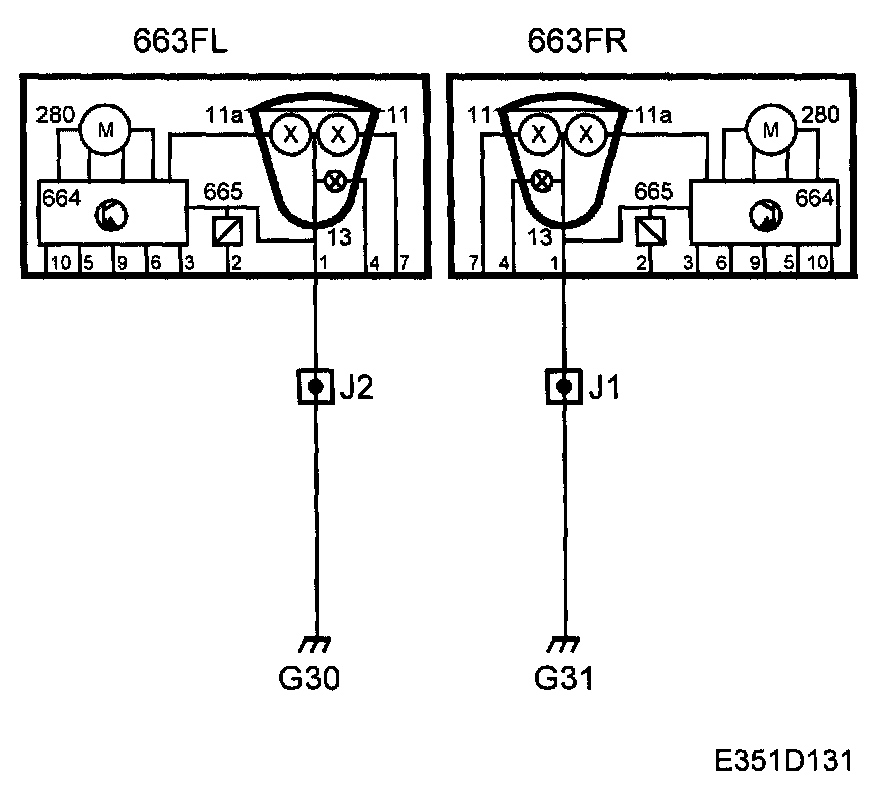

LH headlamp is grounded to grounding point G30 via pin 1.
RH headlamp is grounded to grounding point G31 via pin 1.
