Control Module Inputs, Outputs, Bus, Power Supply and Ground

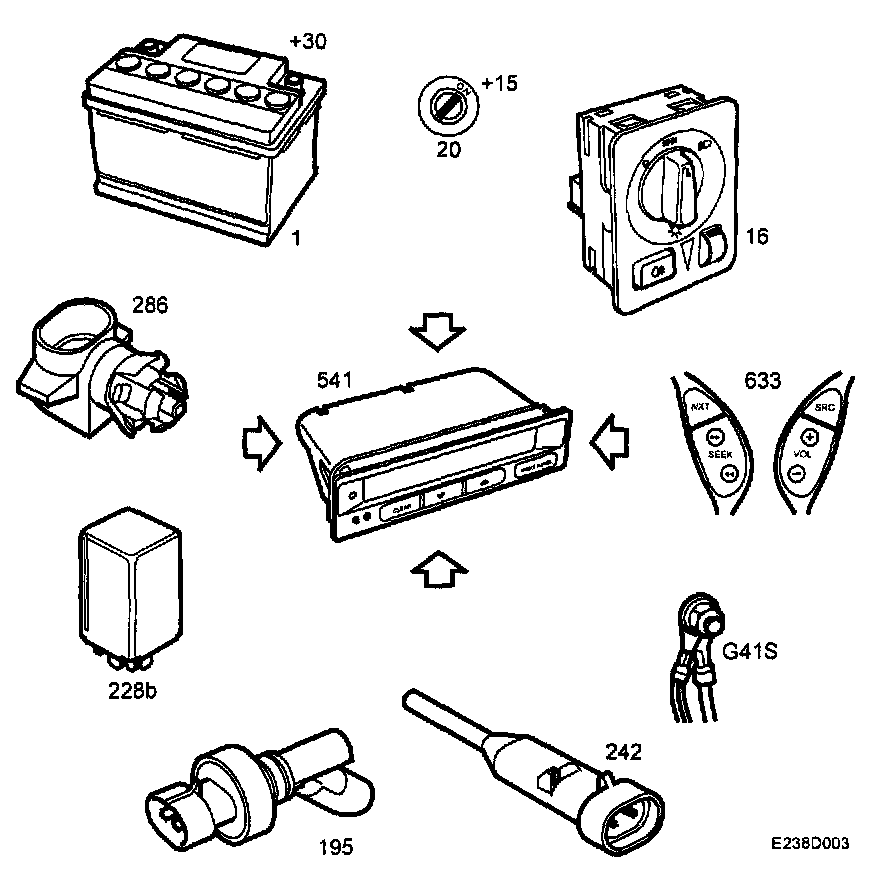

Control Module Inputs
- Power supply +30 (1)
- Power supply +15 (20)
- Ground (G41S)
- Rheostat (16)
- Steering wheel controls (633)
- Coolant level, low (242)
- Washer fluid, low (195)
- Filament monitor (228B)
- Outside temperature sensor (286)

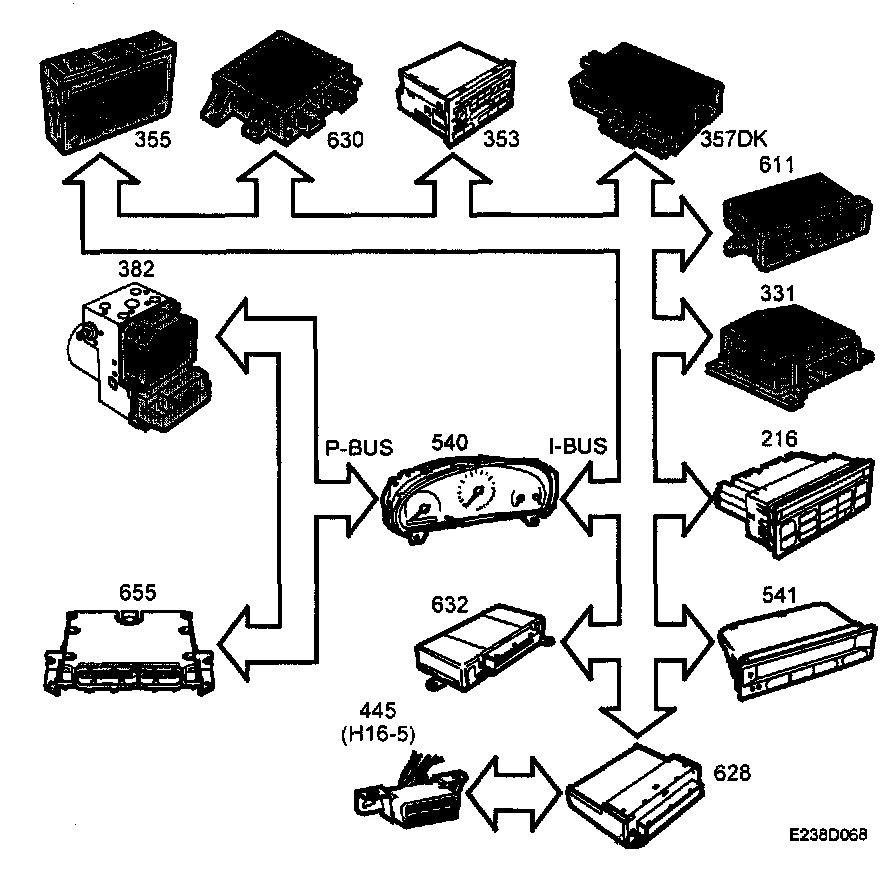

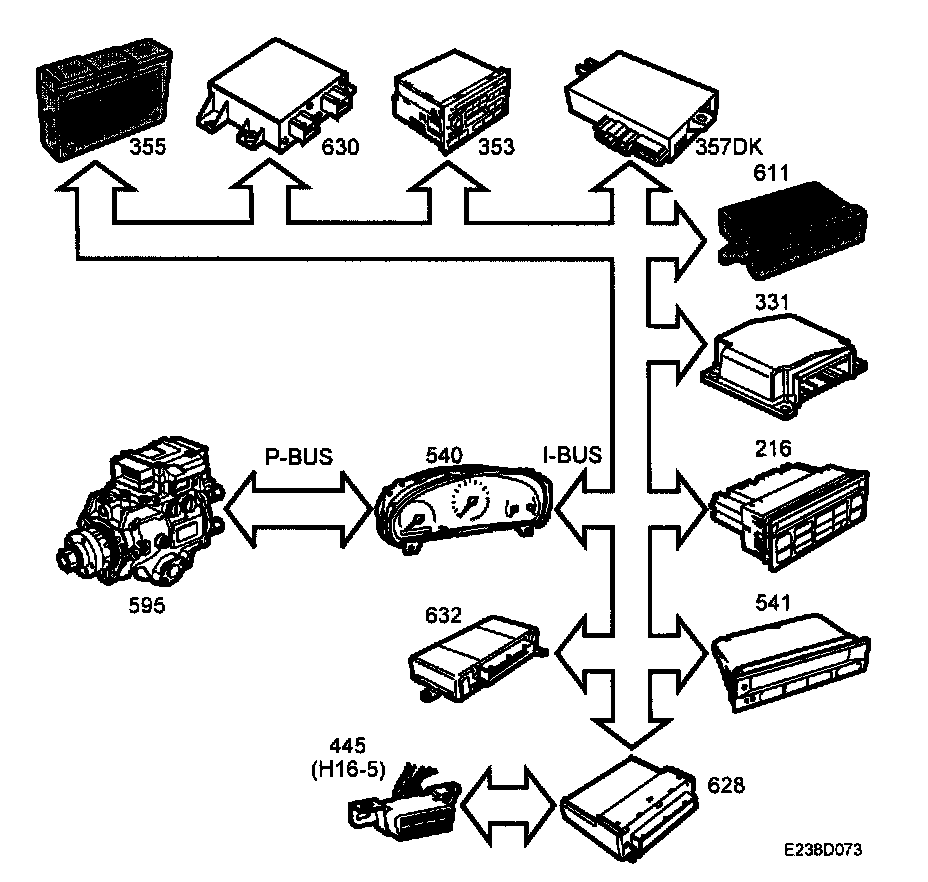

Control Module Inputs, Bus
Cars with petrol engine

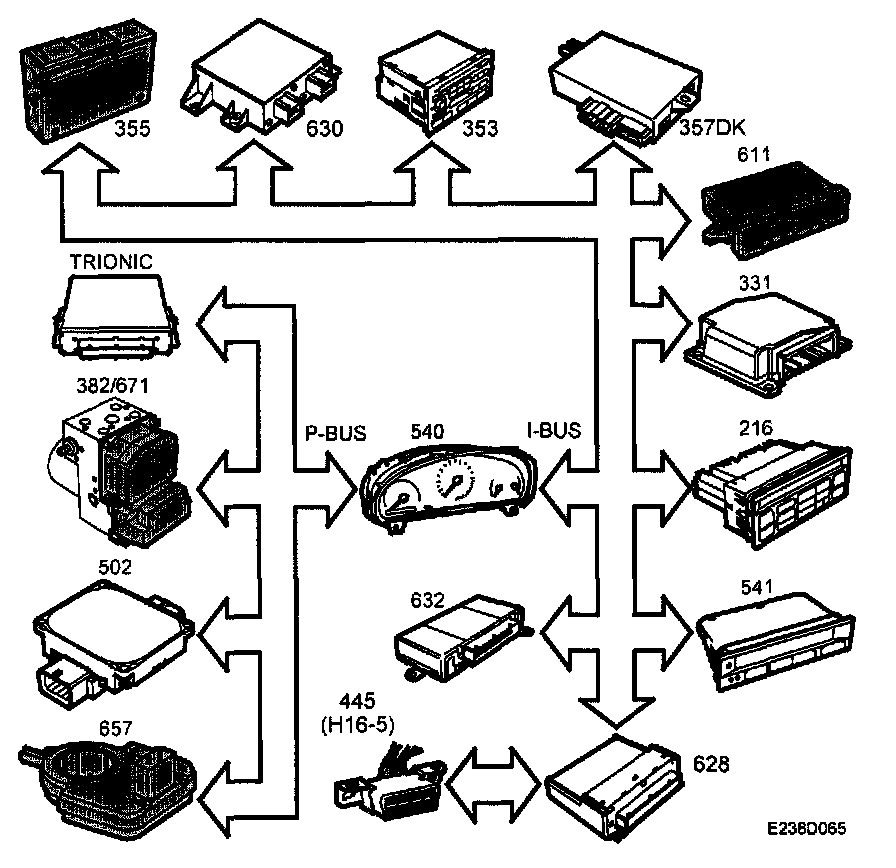

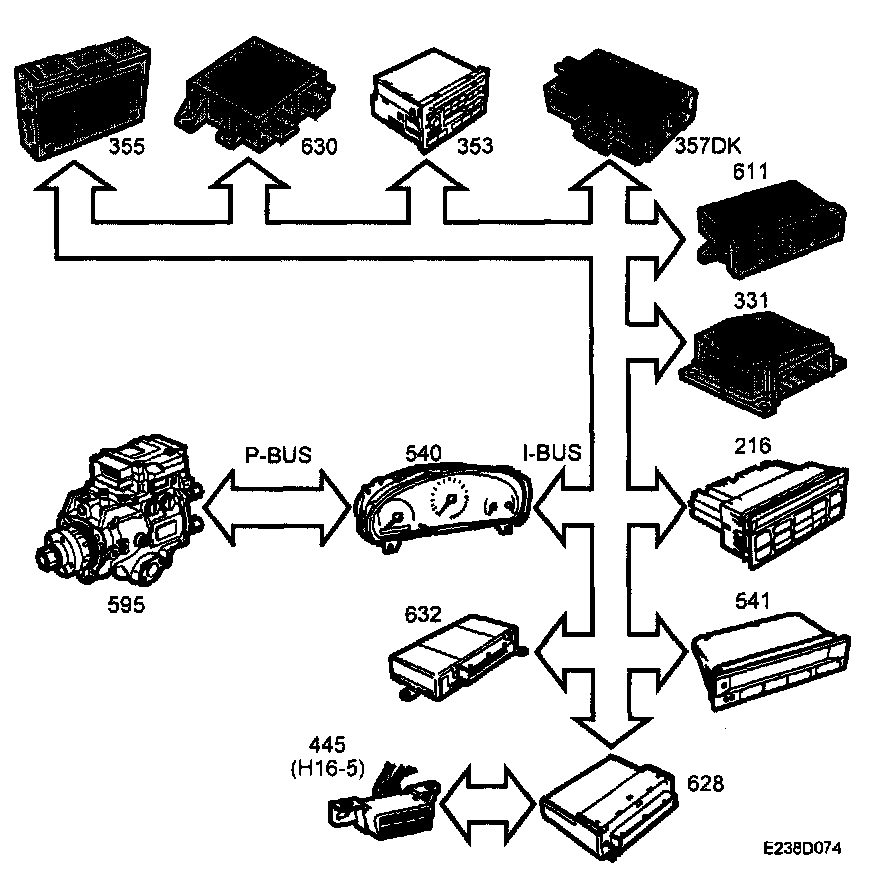

Cars with V6 diesel engine

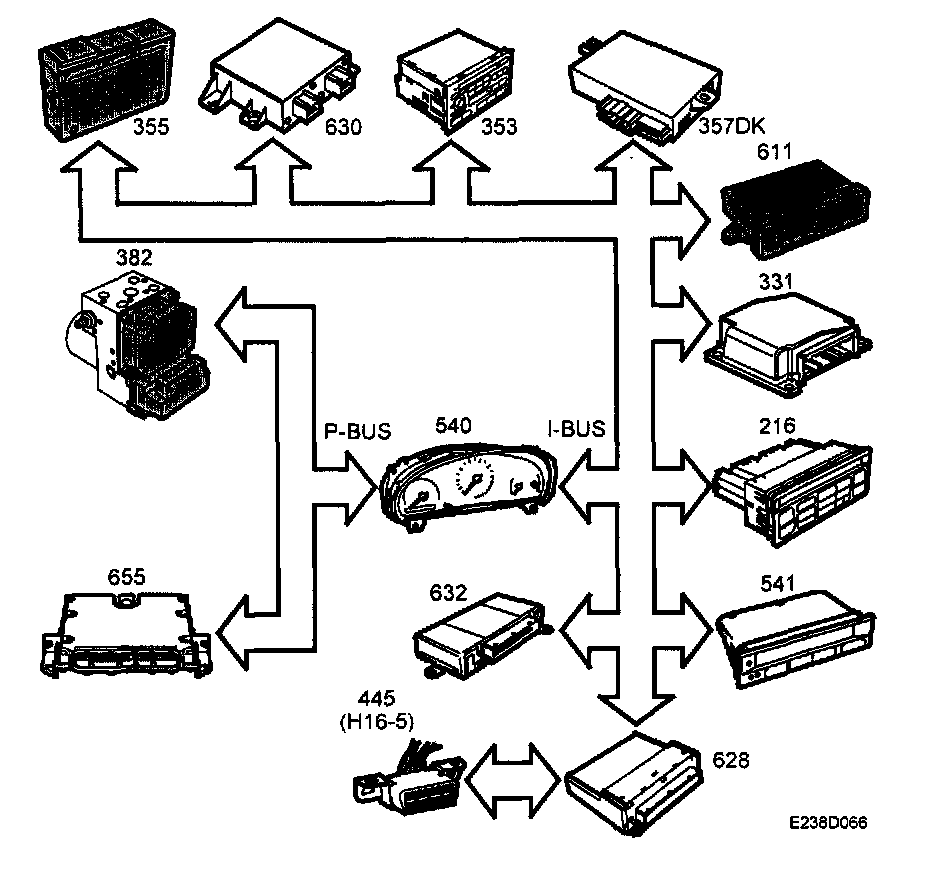

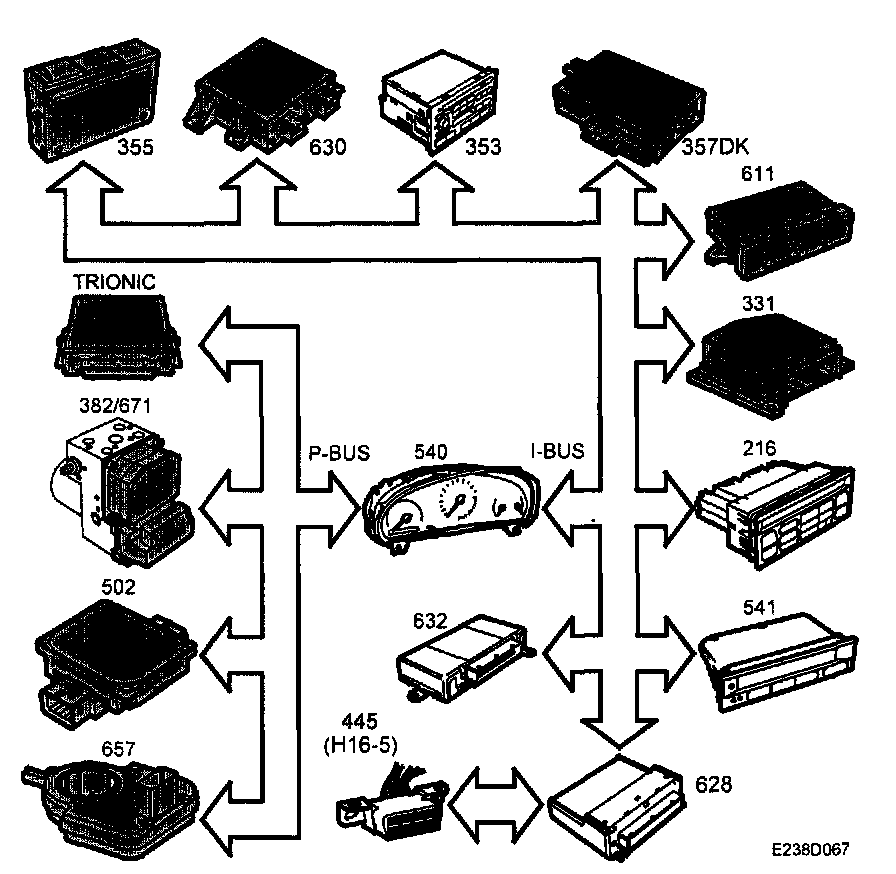

Cars with 4-cyl diesel engine.
- Parking light (on/off) from DICE (628)
- Rear fog light broken (yes/no) from DICE (628)
- LH direction indicators (on/off) from DICE (628)
- RH direction indicators (on/off) from DICE (628)
- Sound from DICE (628), TWICE (632), ACC (216), AUDIO (353), MIU (540), PSM (357 dK), ECM, SPA (630)
- Left rear light broken (yes/no) from TWICE (632)
- Right rear light broken (yes/no) from TWICE (632)
- Left brake light broken (yes/no) from TWICE (632)
- Right brake light broken (yes/no) from TWICE (632)
- High level brake light broken (yes/no) from TWICE (632)
- Brake light (on/off) from TWICE (632)
- Horn (ms) from TWICE (632)
- Text message from TWICE (632), ACC (216), AUDIO (353), MIU (540), ECM, TCM (502), SPA (630)
- RDS time from AUDIO (353)
- RDS date from AUDIO (353)
- RDS month from AUDIO (353)
- Vehicle speed (km/h, mph) from MIU (540)
- Fuel level (litres) from MIU (540)
- Odometer reading (km, miles) from MIU (540)
- Engine started (on/off) from ECM
- Fuel Consumed Since Start (ml) from ECM
- Coolant temperature (°C\°F) from ECM
- Low oil level (ON/OFF) from ECM (diesel)
- Diagnostics communication

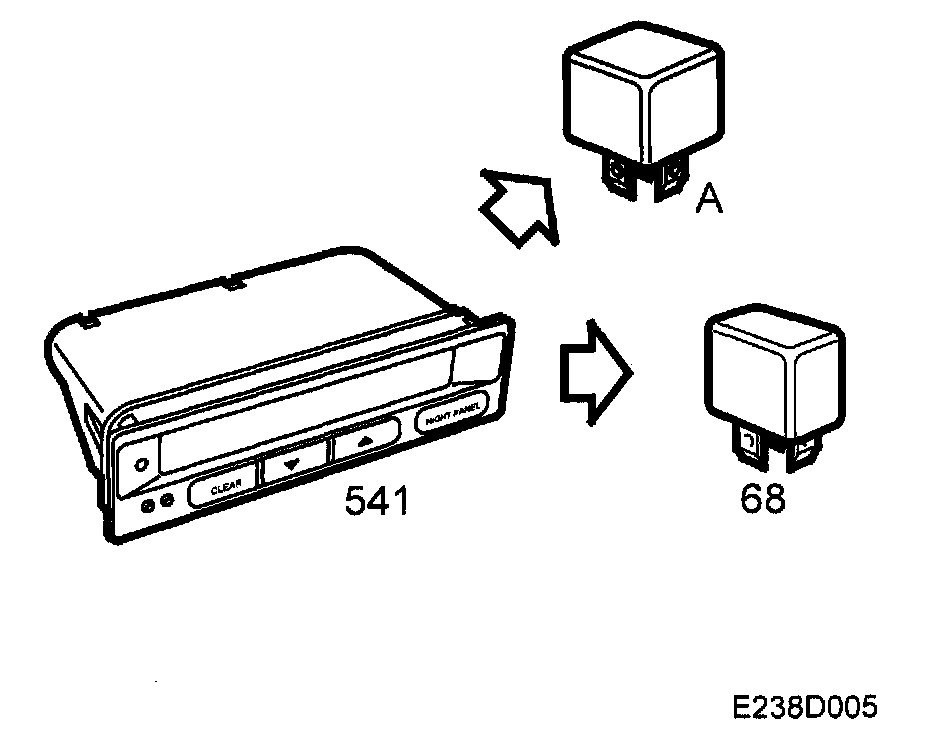

Control Module Outputs
- Horn relay (68)
- Parking heater relay (A)
Control Module Outputs, Bus
Cars with petrol engine
Cars with V6 diesel engine
Cars with 4-cyl diesel engine.
- Info Disp lamp (on/off) is used by MIU (540)
- Unit (°C/°F) is used by ACC (216)
- Language (Swedish, English, German, French, Italian, Spanish) is used by ACC (216)
- Steering wheel control is used by Audio (353)
- Rheostat level (%) is used by Audio (353), ACC (216), DICE (632), MIU (540)
- Rheostat Night Panel (%) is used by Audio (353), ACC (216), DICE (632), MIU (540)
- Clear (on/off) used by SPA (630)
- Night Panel (on/off) is used by Audio (353), ACC (216), DICE (628), MIU (540)
- Display lighting (%) is used by Audio (353), ACC (216), DICE (628), MIU (540)
- Cabin light intensity (Lux) is used by MIU (540)
- Time Engine Off (Min) is used by ACC (216)
- Exterior temperature (°C/°F) used by ACC (216), TWICE (632), DICE (628), PSG16 (595)
- Washer fluid level low (ON/OFF) is used by DICE (628)
- Glass breakage sensor (ON/OFF) used by TWICE (632)
- Diagnostics communication
Control Module
General

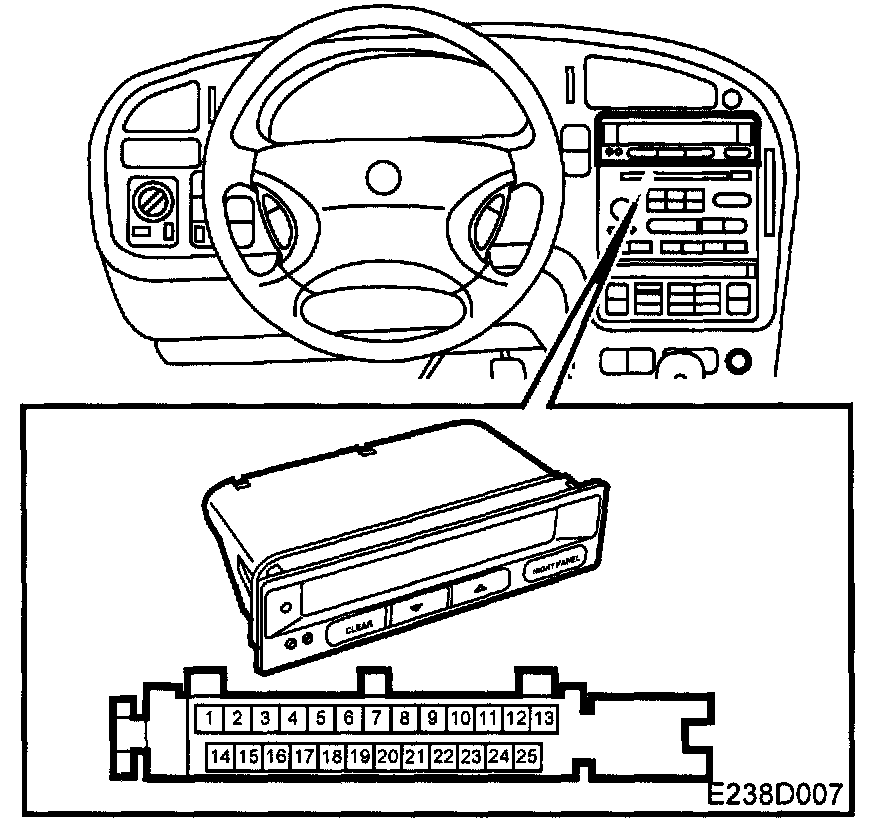

The control module is integrated in the SID. The SID has a 25-pin connector. The control module receives information from its own sensors and switches as well as information from other systems.
The information is processed and used to activate the horn, control instrument and display lighting, shoe CHECK messages and calculate trip computer functions. Certain data is transmitted by the SID on the bus.
The SID is supplied with current via the +30 circuit and is designed to operate at a voltage of between 9 and 16 V. When the ignition switch is in the ON position, the control module display lights up. If the ignition switch is in the OFF position, text from systems connected to the bus can still be shown on the SID.
The SID is active in the following situations:
- With the ignition in the +15 position, all SID functions will be turned on except timer programming for the parking heater (accessory).
- With the ignition OFF, the SID is turned on by information on the bus as follows:
- Remains on for 20 minutes if turned on by DICE.
- Kept active by audio system to show settings on the display.
- Can communicate with Tech 2 if the SID is turned on via the bus.
- The timer for the parking heater can be programmed and started.
- With the ignition OFF, the parking heater and clock can still be activated and the anti-theft alarm sensors disabled.
If a fault occurs, the control module stores the diagnostic trouble codes. When the SID is replaced, it must be ordered for the car concerned and programmed by Saab Automobile.
When handling the control module, it is important to ground yourself first by touching the car body, for example. Avoid touching the pins in the SID connector.
Diagnostics
The control module monitors its internal functions and inputs/outputs.
If an internal control module fault occurs, diagnostic trouble code B1605 will be generated.
Control Module Power Supply

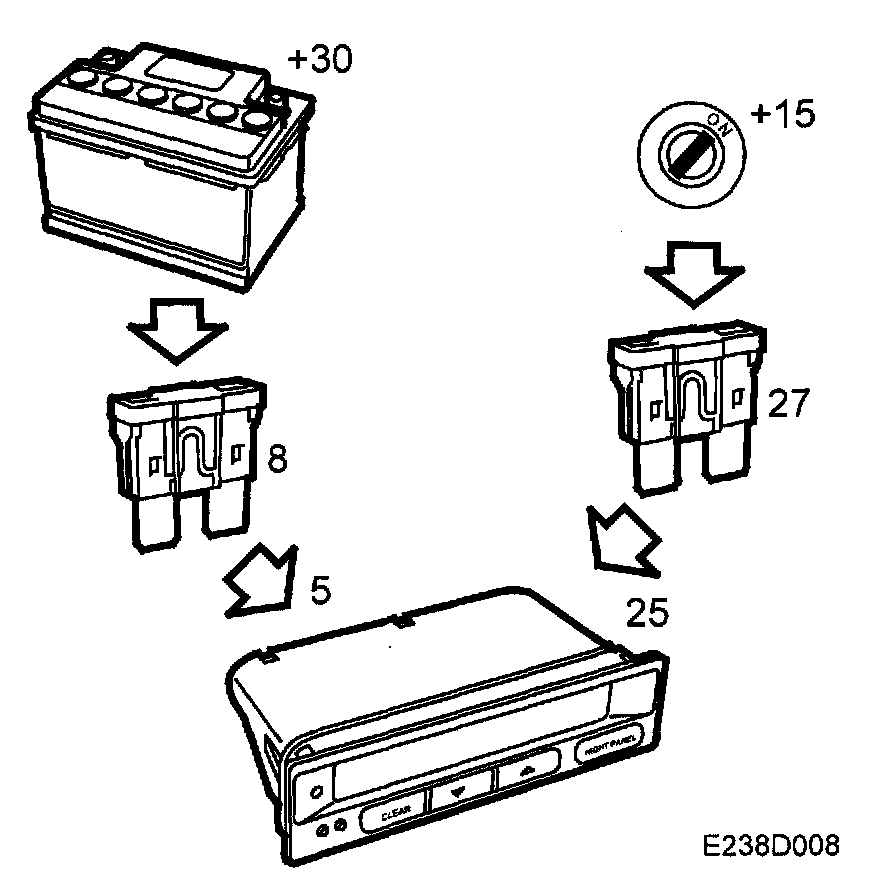

Battery voltage (+30 circuit)

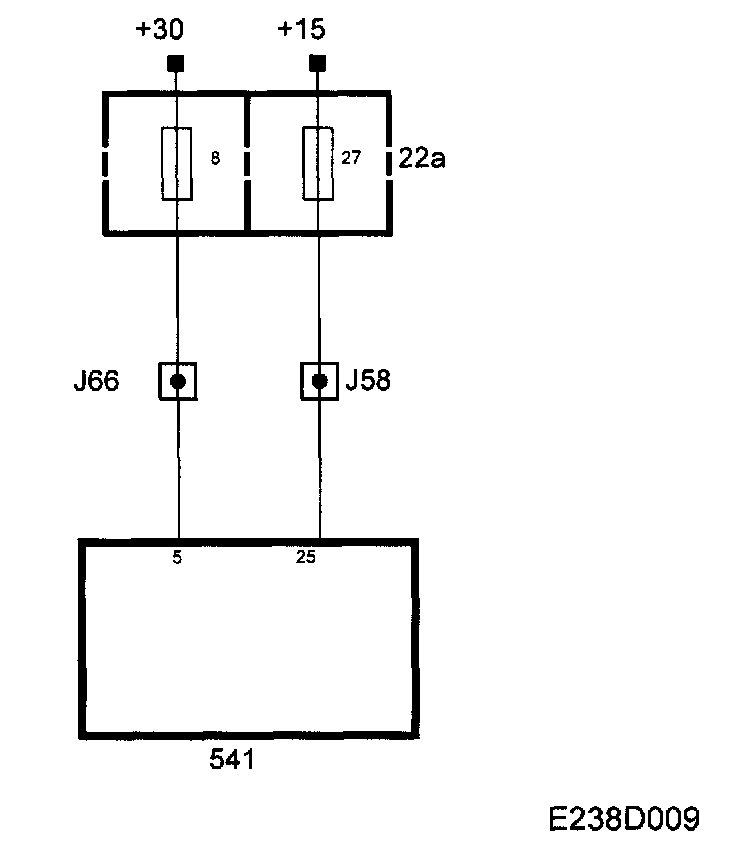

Current (+30 circuit) is supplied via fuse 8 (22a) to pin 5 of the SID connector.
Battery voltage (+15 circuit)
Current (+15 circuit) is supplied via fuse 27 (22a) to pin 25 of the SID connector.
The SID is activated by current from the +15 circuit.
Diagnostics
If no current from the +30 circuit is present, the display will not be active and diagnostic communication will not be possible.
If no current from the +15 circuit is present, the display will not be active but can be turned on via the bus by switching on the radio, for example. Diagnostic communication will be possible with limited functions if the ignition key is turned to ON.
The SID will not generate a diagnostic trouble code if no current is present from either the +30 or +15 circuits.
Control Module Ground
Ground connection

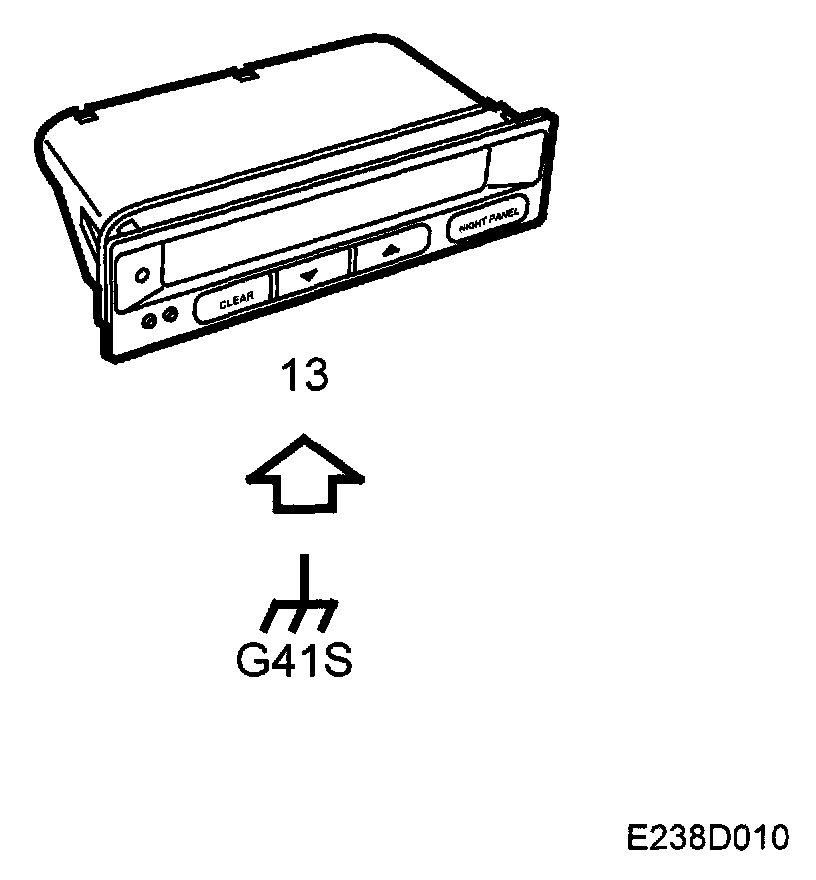

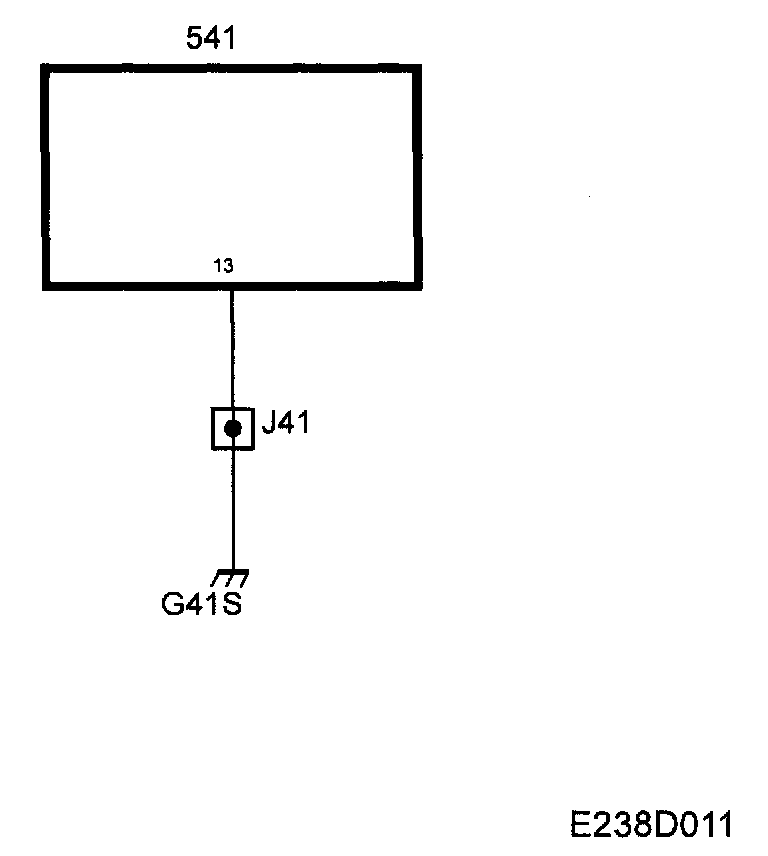

The SID is grounded via pin 13 at grounding point G41S.
Diagnostics
If there is no ground connection, the display will not be active and diagnostic communication will not be possible.
The SID will not generate any diagnostic trouble codes if the is no ground connection.
