G41P, ACC

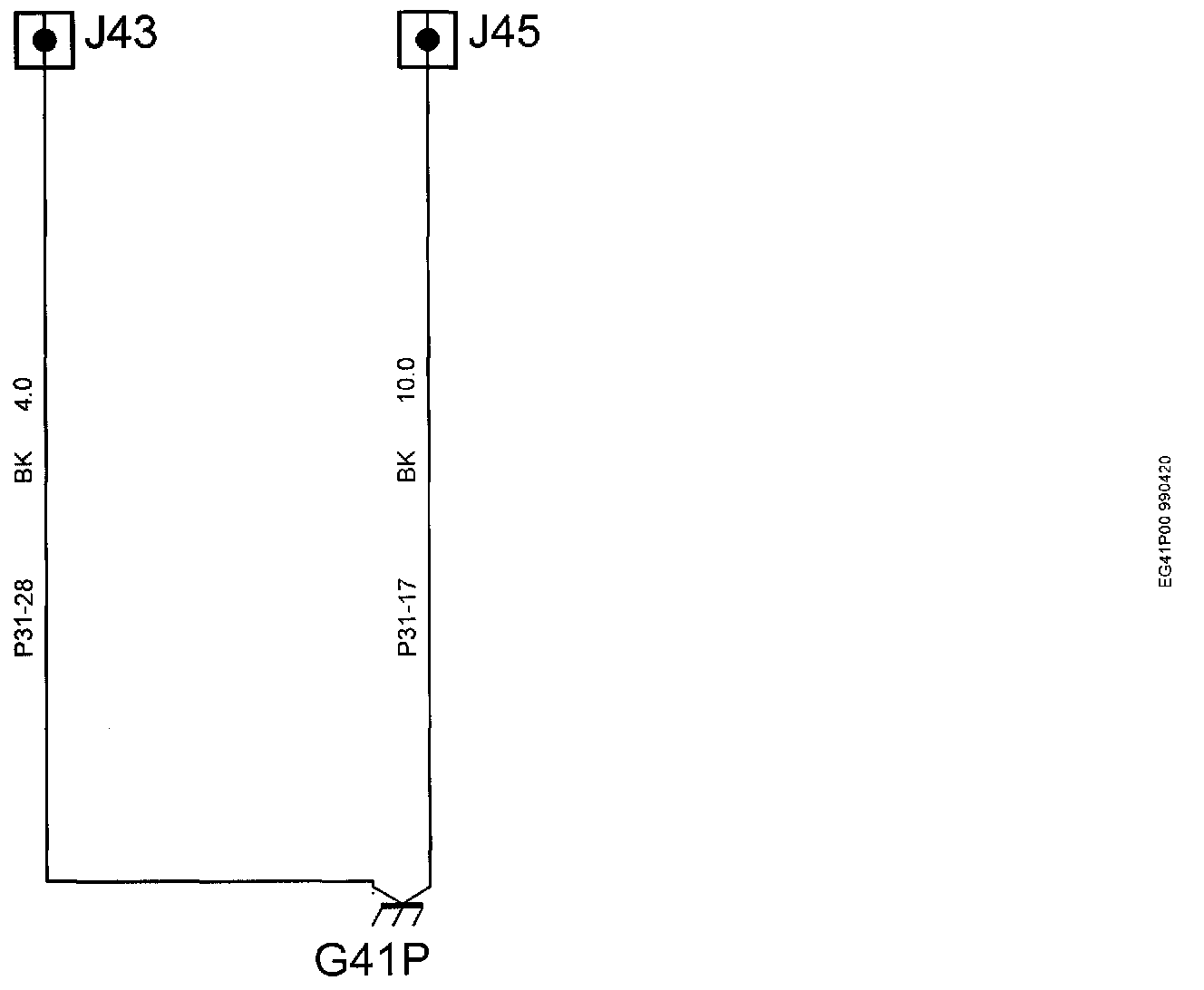

Grounding Point G41P

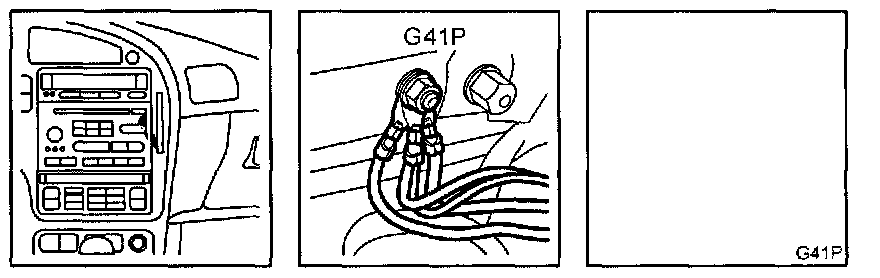

Location: On the centre ground screw in the middle of the knee member (in the interior).

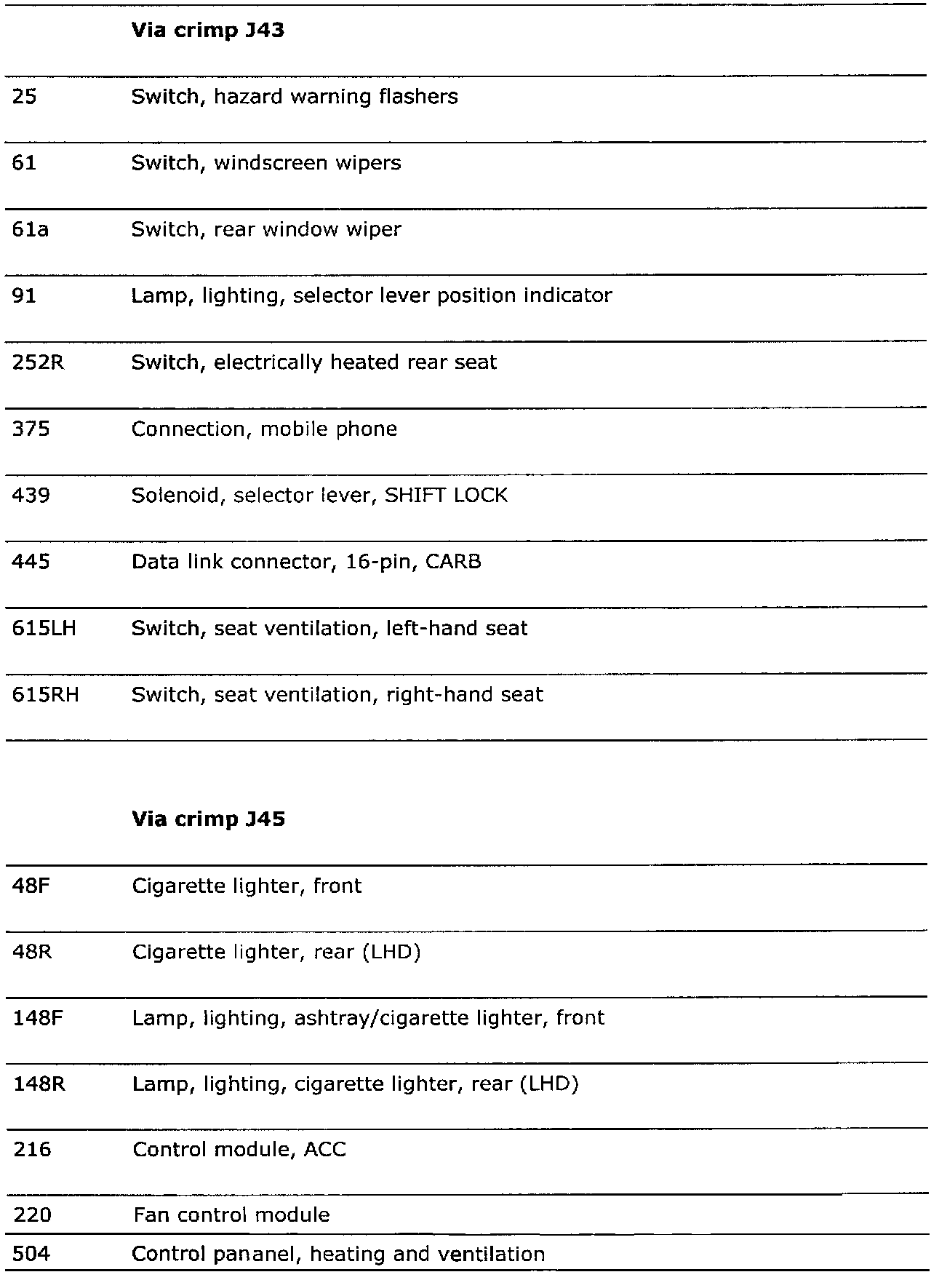

Connected Components:
