Control Module

Control Module

To remove

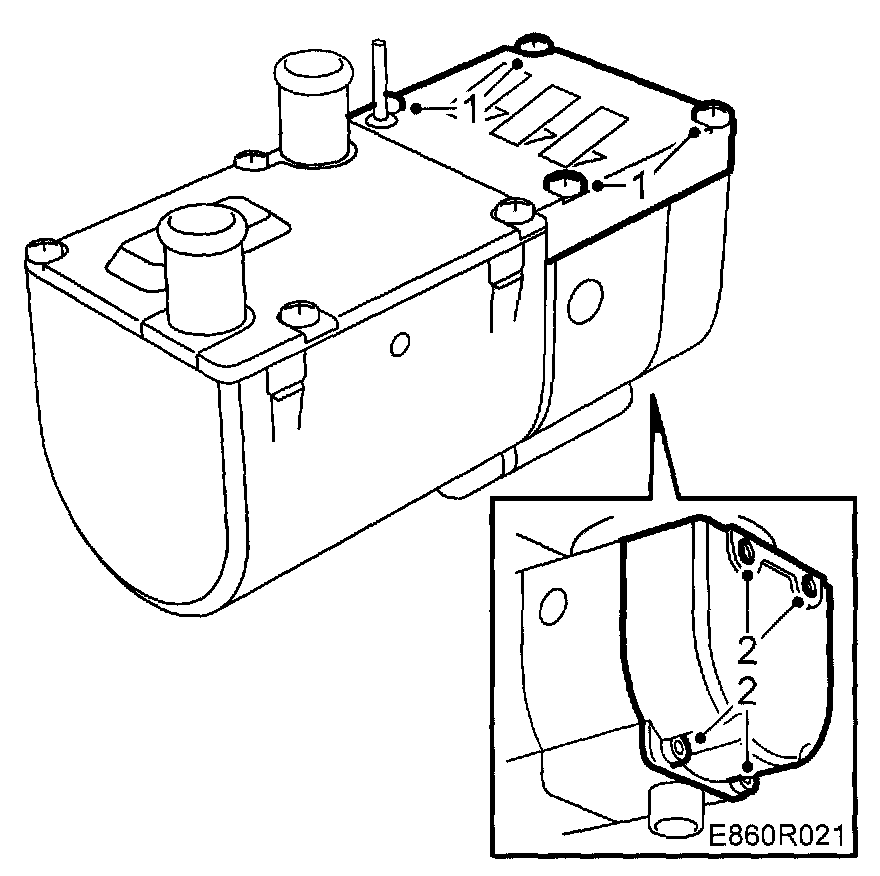

1. Remove the cover over the combustion air fan.


NOTE: Pay attention to the fuel pipe's rubber lead through.


2. Remove the four control module bolts.







3. Detach the housing and carefully extract the control module, unplug the connector and remove the control module from the heater.

Installation

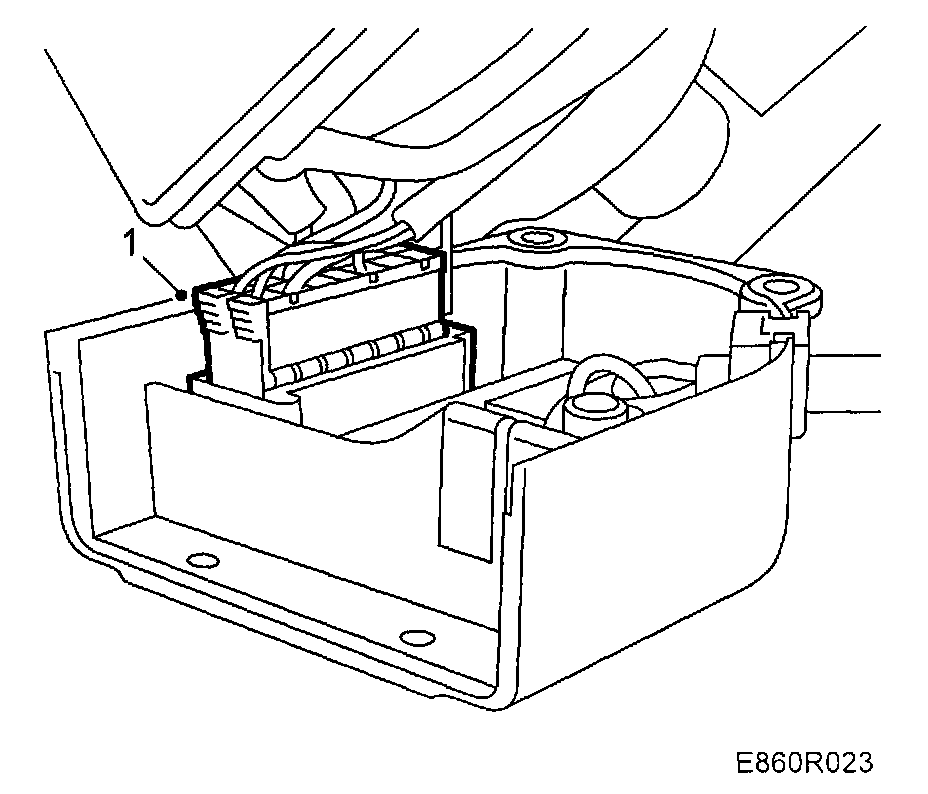

1. Plug connector B2 into the control module. Fit the housing.

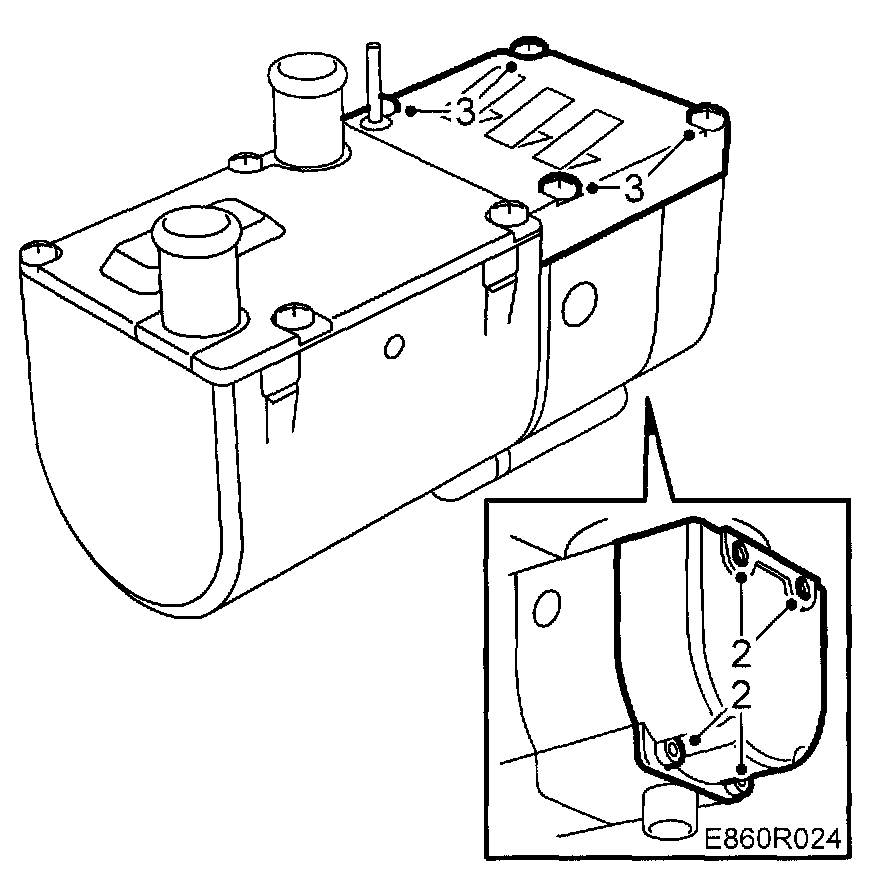

2. Fit the control module.
3. Refit the cover.


NOTE: Pay attention to the fuel pipe's rubber lead-through.
