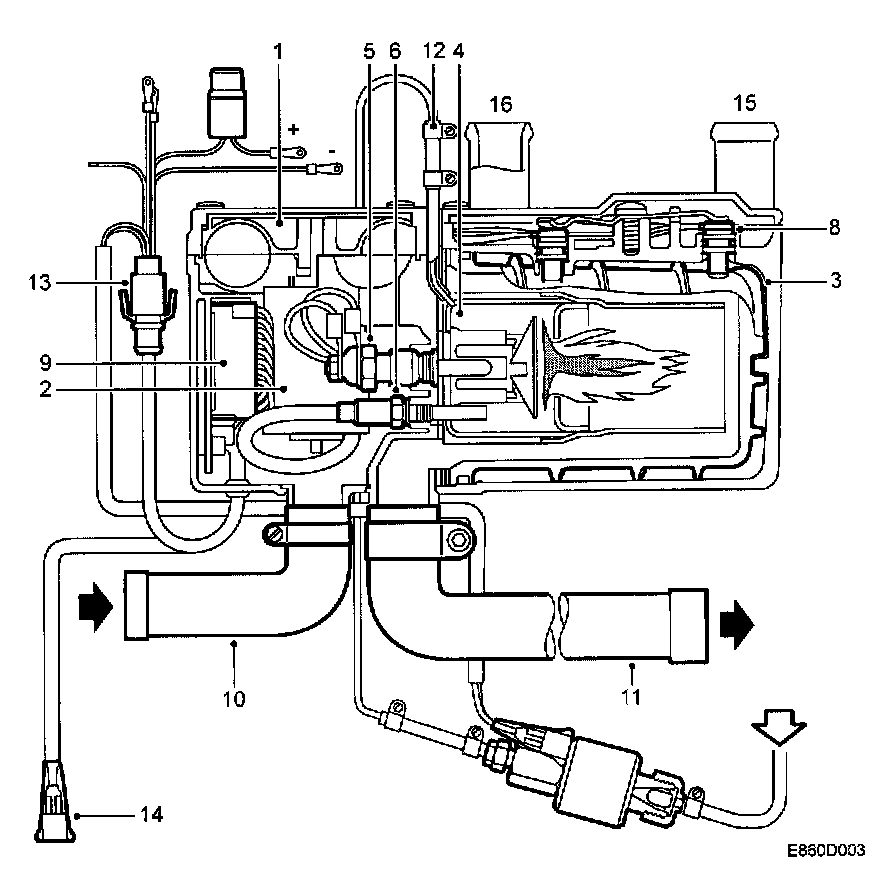

Heater Overview

Heater Overview







1. Combustion air fan
2. Electric motor
3. Heat exchanger
4. Combustion chamber
5. Glow plug
6. Flame temperature sensor
7. Engine coolant temperature sensor 1
8. Engine coolant temperature sensor 2
9. Control module
10. Intake hose
11. Silencer
12. Fuel connection
13. Connector B2
14. Connector, water pump
15. Inlet, coolant
16. Outlet, coolant
