Eberspacher Diagnostics Instrument

Eberspacher Diagnostics Instrument

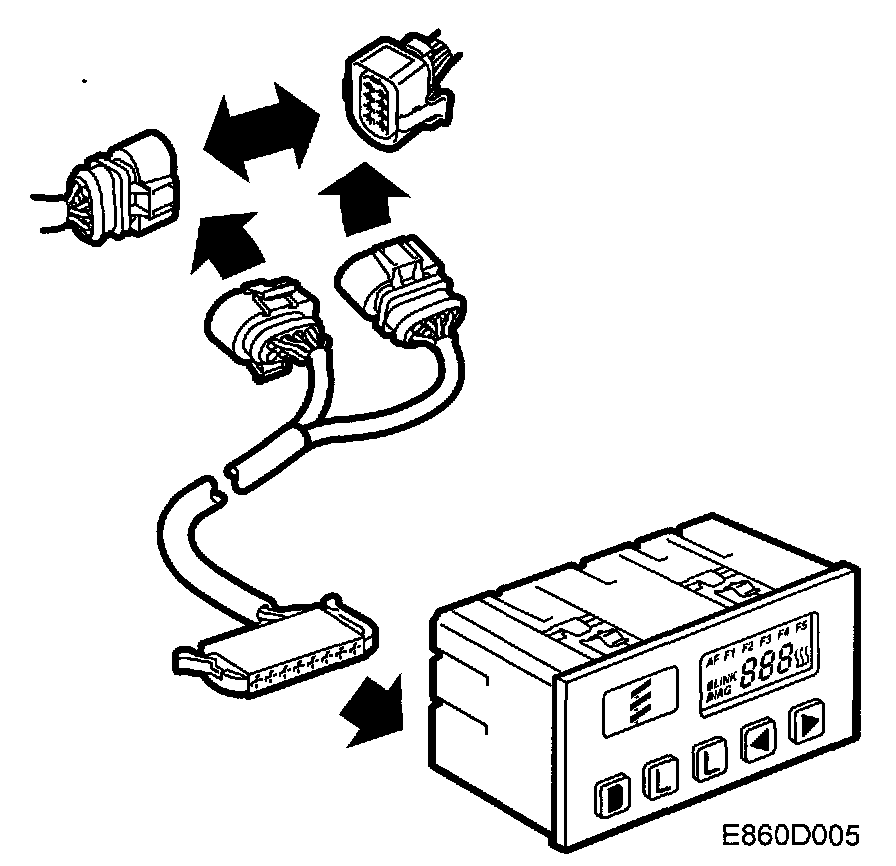

Connection of the diagnostics instrument

Connect the diagnostics instrument as follows:
1. Unplug connector B1.
2. Plug the diagnostics instrument adapter cable into connector B1.
3. Connect the diagnostics instrument.

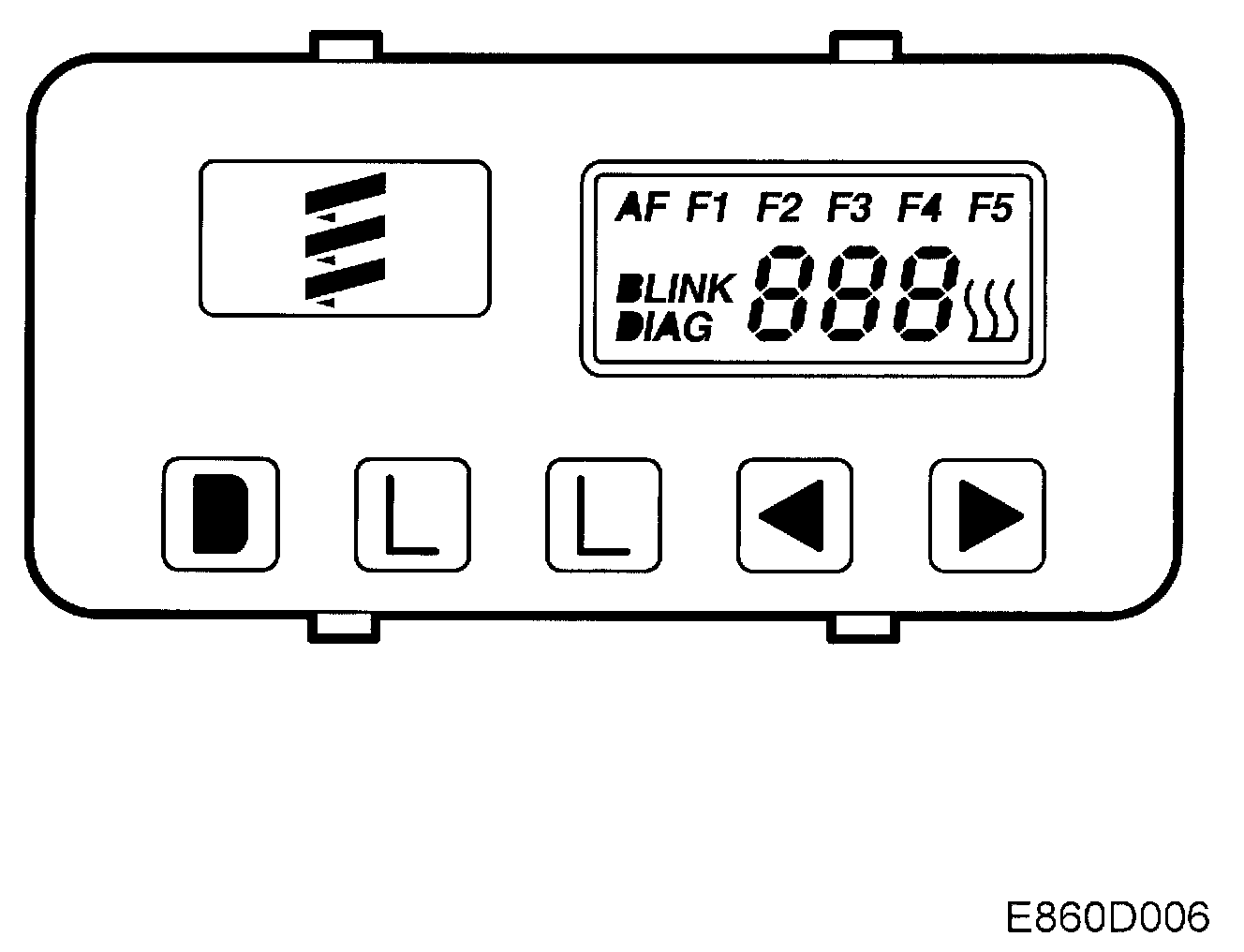

Using the diagnostics instrument
Pushbutton functions:
- D = start diagnosis
- L = clear diagnostic trouble codes/cancel operating block (push both buttons simultaneously)
- > = step upwards through stored diagnostic trouble codes (F1-F5)
- < = step downwards through stored diagnostic trouble codes (F5-F1)







Display indications
AF = Relevant diagnostic trouble code
F1-F5 = Stored diagnostic trouble codes

1. Diagnostics instrument connected. Heater not activated.
2. Heater activated.
3. Diagnosis in progress.
4. The relevant diagnostic trouble code will be displayed after about 4 seconds.
